Sri PXS-710D Bedienungsanleitung
PXS-710D
Podiatry X-Ray Source
(Bi-Directional Operation)
Installation/Operation Manual
(Revision 0, S/N 501 …)
Source-Ray, Inc.
50 Fleetwood Ct., Ronkonkoma, NY 11779
631-244-8200, 631- 244-7464 (Fax)
REVISION CONTROL
Rev Description Initiated
By Date Approved
By Date
0 Initial Release Steven L. 11/15/18 R. Manez 11/16/18
PXS-710D TABLE OF CONTENTS
1
SECTION PAGE
I GENERAL INFORMATION
1.1 Introduction 7
1.2 Description 7
1.3 Important Notice 7
1.4 Responsibilities 9
1.5 Electromagnetic Compatibility Warnings & Declarations 10
1.6 Compliance Notice 15
1.7 Safety Standards 15
1.8 Electrical Specifications 16
1.9 X-ray Tube Characteristics 18
1.10 X-ray Collimator 23
1.11 Mechanical Specification 23
1.12 Equipment Classification 25
II INSTALLATION AND CALIBRATION
2.1 Un-Packaging 28
2.2 Assembly 30
2.3 Electrical Connections 32
2.4 Calibration Set-Up 33
2.5 Tube Potential (kVp) & Beam Current (mA) 33
2.6 mAs 43
2.7 Beam Alignment 44
III UNIT OPERATION
3.1 Controls and Indicators (Control Panel) 45
3.2 Source Base 49
3.3 Operating Procedure (Generator/Control Assembly) 54
3.4 Faults 55
3.5 Procedure 56
IV THEORY OF OPERATION
4.1 Source Overview 60
4.2 Generator/Control Assembly 60
4.3 OpalRad Generator Communications 62
V UNIT MAINTENANCE PAGE
5.1 Introduction 66
5.2 Recommended Intervals 66
5.3 Ordering Information 67
5.4 Maintenance Procedure 67
5.5 Warm-Up Procedure 67
PXS-710D TABLE OF CONTENTS
2
LIST OFFIGURES
FIGURE DESCRIPTION PAGE
1.1 Tube Characteristics 20
1.2 X-Ray Tube Ratings Chart 21
1.3 X-ray Tube Anode Cooling Chart 22
1.4 X-ray Head Heating Chart 22
1.5 X-ray Head Cooling Chart 22
1.6 Collimator Front View 24
1.7 Collimator Side View 24
1.8 Focal Spot Location 25
1.9 Source Dimensions 26
1.10 Zone Of Occupancy 27
2.1 Anchor Points 30
2.2 Handrail Assembly 31
2.3 View Menu 36
2.4 Password Dialog Box 37
2.5 Calibration Menu 37
2.6 Calibration Wizard 38
2.7 Settings Confirmation 39
2.8 Settings Saved Confirmation 40
2.9 Application Exit 40
2.10 Calibration Mode Selection 41
2.11 Calibration Mode Utility 42
2.12 Ready Indicator 42
2.13 X-ray Indicator 43
3.1 Generator/Control Connector Description 47
3.2 Optional Remote Control Panel Description 47
3.3 Control Panel Description 48
3.4 Hand Switch Assembly 48
3.5 Source Front View 50
3.6 Source Side View (0° Head Tilt) 51
3.7 Source Side View (15° Head Tilt) 51
3.8 Source Base (Rear Control Panel) 53
3.9 Source Base (Side Control Panel) 53
3.18 OpalRad Ready Time Display 60
PXS-710D TABLE OF CONTENTS
3
LIST OF TABLES
TABLE DESCRIPTION PAGE
1.1 Emissions & Immunity Chart 13
3.1 mAs Increments Chart 48
3.2 Technique Chart 57
4.1 Approved 3rd Party Control Software 62
4.2 RS-232 Pin Out 63
4.3 Generator OpalRad Communications 65
5.1 Maintenance Checklist (Every 6 Months) 68
5.2 Displayed Fault Conditions 69
LIST OFSCHEMATICS
SCHEMATIC DESCRIPTION PAGE
5.1 Base Wiring Diagram 70
5.2 Generator Wiring Diagram 71
PXS-710D TABLE OF CONTENTS
4
L
IST
O
F
S
YMBOLS

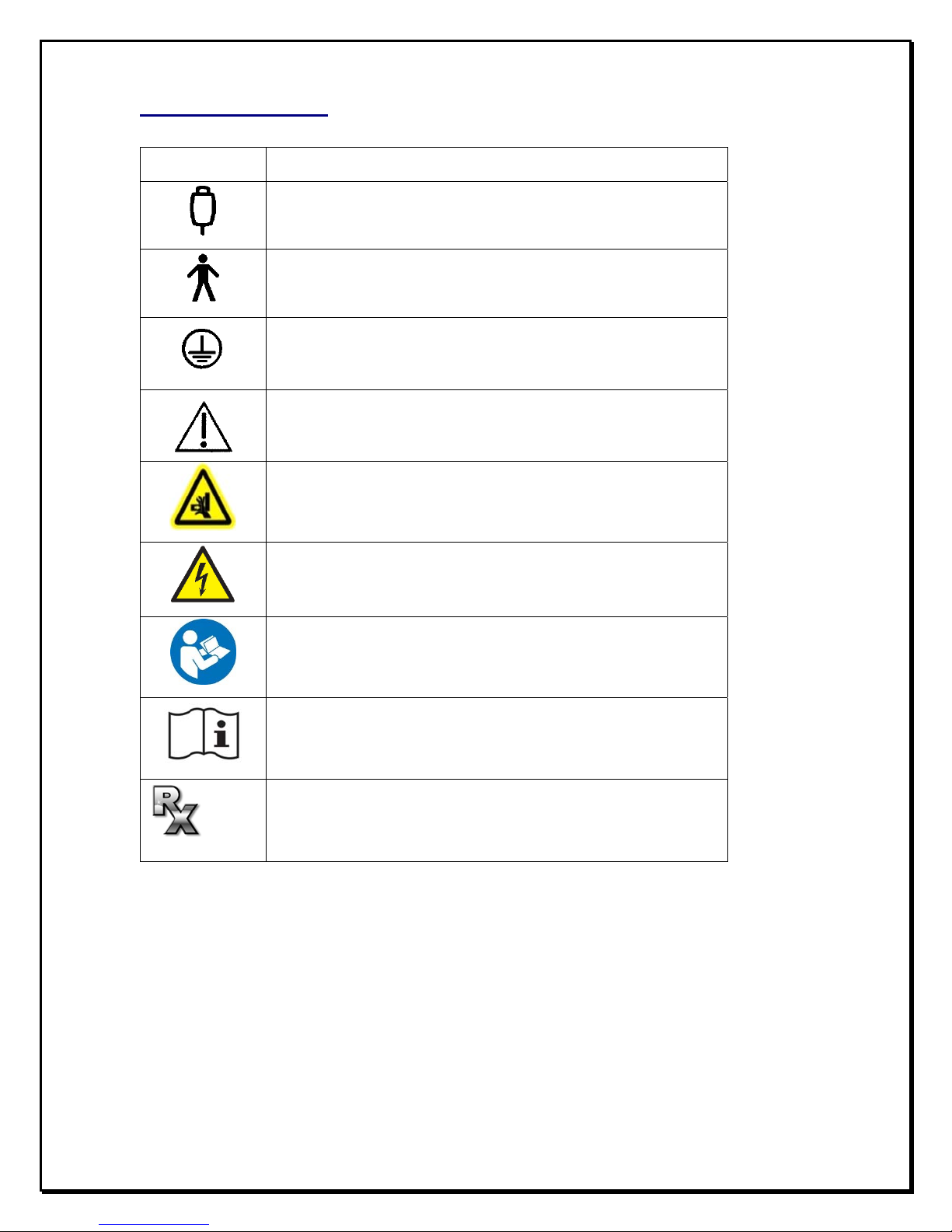

SYMBOL DESCRIPTION
Exposure Switch
Type “B” Applied Part
Protective Earth
Caution
Pinch Point, Keep Hands Clear
Warning- Electric Shock Hazard, Keep Hands Clear
Refer to Instruction Manual
Operator’s Manual; Operating Instructions
Only Prescription Use (Part 21 CFR 801 Subpart D)
PXS-710D TABLE OF CONTENTS
5

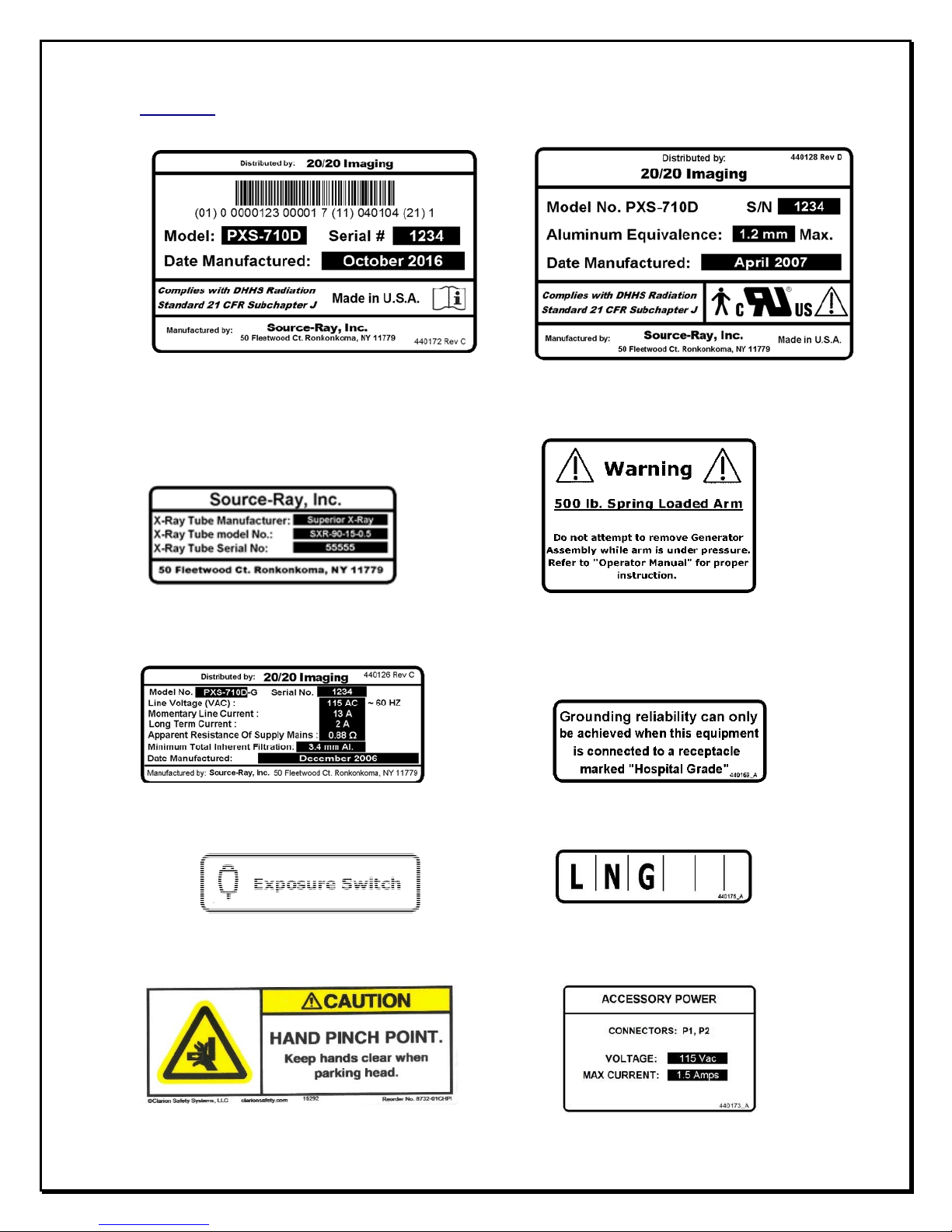

LABELS
LABEL “A” LABEL “B”
LABEL “C” LABEL “D”
LABEL “I”
LABEL “E” LABEL “F”
LABEL “H”
LABEL “G”
LABEL “J”
PXS-710D TABLE OF CONTENTS
6
L
ABEL

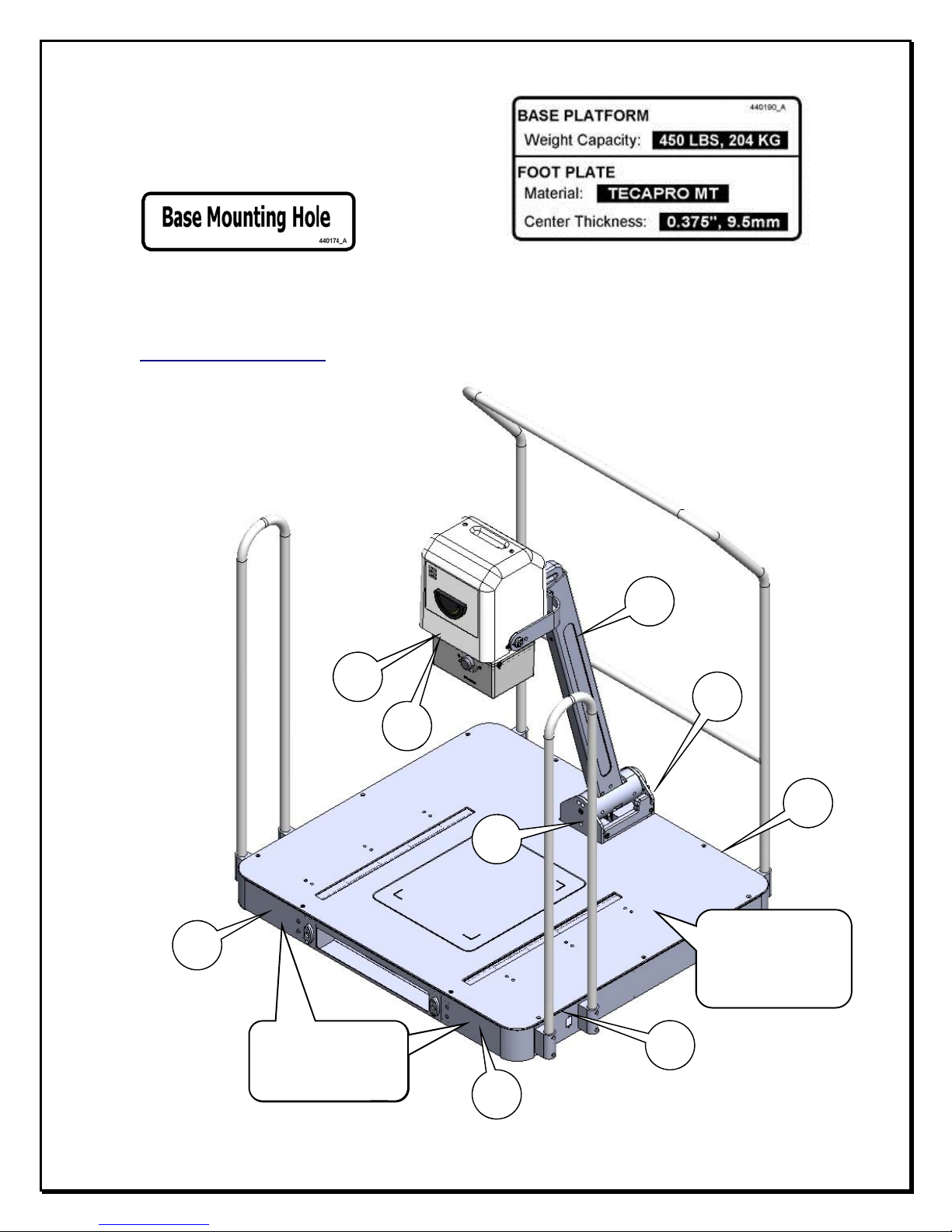

L
OCATIONS
C
D
E
G
B
A
F
I
“J”&“H”
located
insideofbase
LABEL “K”
“K”located
insideofbase
“K”located
insideofbase
L
LABEL “L”
PXS-710D Section 1
7
GENERAL INFORMATION
1.1 INTRODUCTION
This manual is divided into five sections and contains the following information:
Section I describes general information. Section II contains installation and
calibration procedures. Section III contains operating procedures and technique
guides. Section IV discusses theory of operation and Section V contains
maintenance procedures and recommended intervals.
1.2 DESCRIPTION
The PXS-710D Podiatry X-Ray source is designed and manufactured by Source-
Ray, Inc. It provides a high quality radiographic capability in a small lightweight
format. The source consists of the following major assemblies:
X-Ray Generator/ Tube Housing
X-Ray Remote Control Module (Optional)
Podiatry Support Platform
1.3 IMPORTANT NOTICE
The equipment manufactured by Source-Ray, Inc. and covered in this manual
will function properly when operated, maintained, and repaired in accordance
with the instructions in this manual. Source-Ray, Inc. does not assume
responsibility for any malfunctioning of this equipment resulting from
improper operation, maintenance, repair, or modification of its components.
Keep this Operating Manual with the machine at all times and periodically
review Important Notice’s and the Operating & Safety Instructions.
This manual should be carefully studied prior to use of the Podiatry X-ray
Source and the instructions within should be always followed to assure safe
continued usage.
The contents of this manual should be thoroughly read and understood prior
to attempting to put this X-Ray Source into operation.
PXS-710D Section 1
8
1.3 CONTINUED:
This equipment sold is to be used exclusively by or under the prescribed
direction of a person who is licensed by law to operate equipment of this
nature.
The PXS-710D contains no user serviceable parts.
Only qualified and authorized personal shall operate this source. In this
context, qualified means those legally permitted to operate this equipment in
the jurisdiction in which the equipment is being used, and authorized means
those authorized by the authority controlling the use of the equipment. Full
use must be made of all radiation protection features, devices, sources,
procedures, and accessories.
Zone of Occupancy: During X-ray exposure personnel should be located in
a safe distance outside the X-ray field, governed by the regulations and
requirements of every state.
Any procedure involving taking x-ray exposures must comply with federal and
local regulations. X-ray can be harmful unless proper precaution and safety
procedures are adhered to.
Trained personnel operating this unit should be familiar with the
Recommendations of the International Commission on Radiological
Protection, contained in Annals of the ICRP with the applicable National
Standards and should have been trained in the use of the equipment. The
operator should use the largest possible focal post to skin distance in order to
keep the absorbed dose as low as reasonably achievable.
This X-ray source may be dangerous to patient and operator unless safe
exposure factors, operating instructions and maintenance schedules are
observed.
This source is designed to take x-rays of the lower extremities (foot and
ankle). Do not jump or bounce on the foot rest area. Do not lift the unit by
the Patient Assist Handles. Handles are meant for additional patient assist
only.
