SSV Works DF-2A Bedienungsanleitung
Kick Panel Speakers
Installation
MRB3 and Dash Kit
Installation
pg 8
pg 2
DF-2A
Can-Am Defender
SSV Works 2 Speaker Audio Kit
DF-2A
Can-Am Defender
MRB3 Dash Kit and MRB3 Brain Tray
SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751

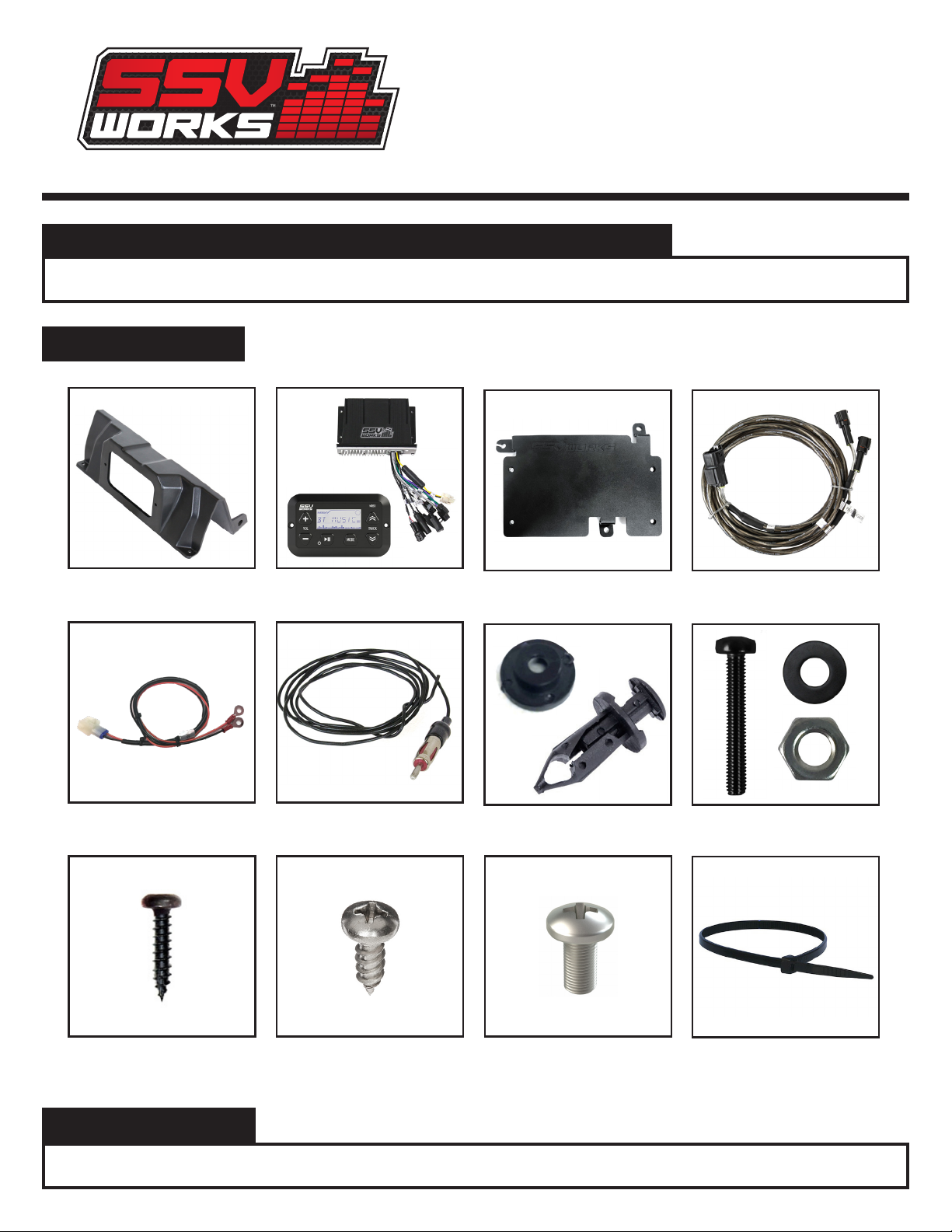

TOOLS NEEDED FOR INSTALLATION MRB3 DASH KIT AND MRB3 BRAIN
PARTS LIST IMAGES
- #2 Phillips Screw Driver - 1/8” drill bit - 9/16” drill bit
INSTALLATION NOTES
For instructions regarding the MRB refer to the MRB3 manual.
- 3/32” drill bit - 5/16” drill bit - 5.5mm Wrench - Drill
1. DF-DM3 Dash Panel
5. MRB3 Power & Ground
Connector
2. MRB3 Bluetooth Media
Player and Brain
6. Antenna
12. Zip Ties
3. MRB3 Brain Tray
7. Drill Guide Buttons & Plastic
push pins x2
10. MRB3 Brain Plate Mounting
Screws x3
11. MRB3 Brain Mounting
Screws x4
4. Front B-H1149 Speaker Wire
8. M3 x 20mm Screws,
Washers and Hex Nuts x2
9. M3 Hex Nuts x 2
DF-2A
B
D E
C
AA

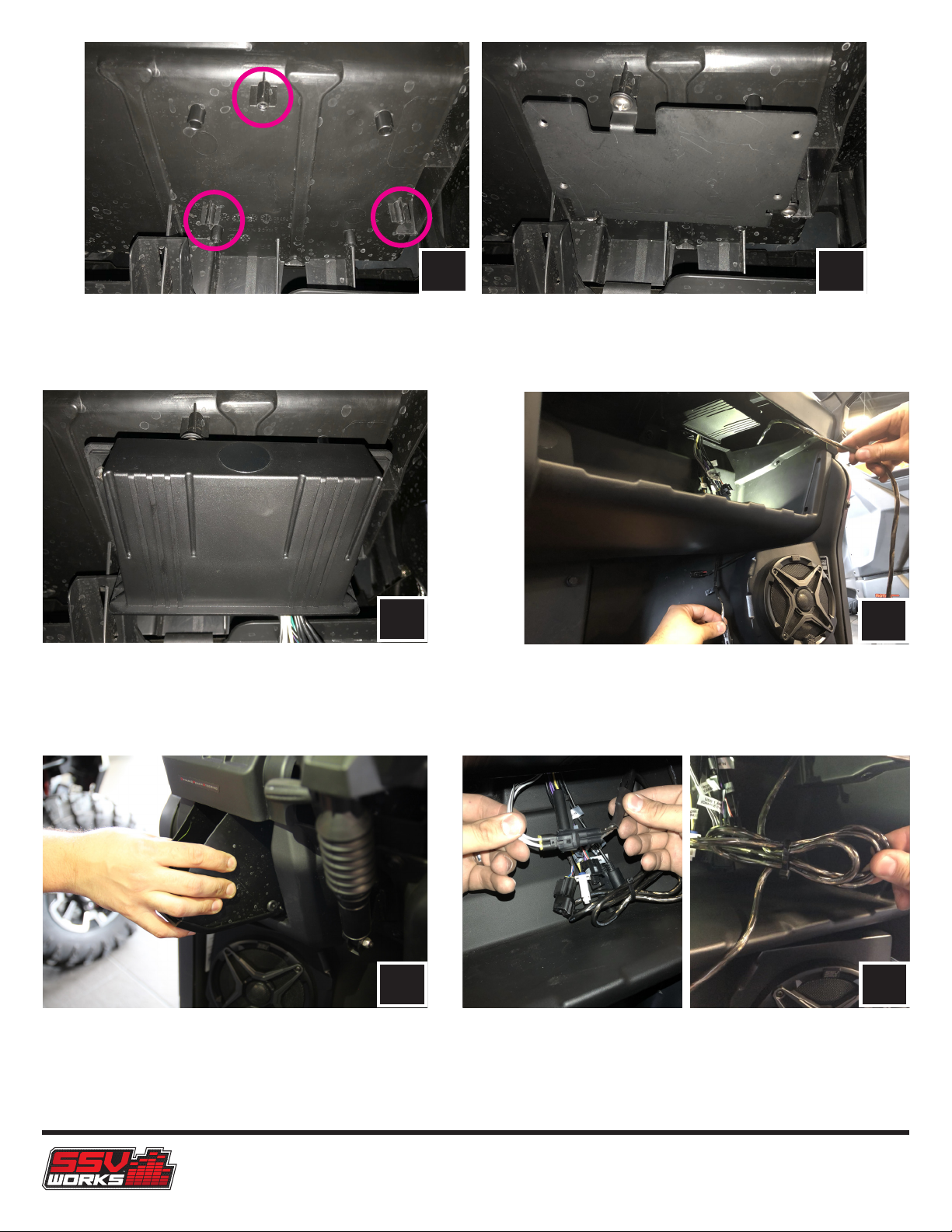

B. Once the MRB3 brain tray is secured, mount the MRB3 brain to the
tray with the provided (4) M5 screws and washers.
D. For ease of access to route the driver side of the harness remove
the pocket located above the pod.
To remove the pocket, pull the pocket open, slightly squeeze the
sides, and twist it out.
Connect to the driver side speaker pod.
E. Connect the B-H1149 harness to the front channels (white/grey wires) of the
MRB3 brain.
Once connected, coil up any slack and zip tie the additional cable neatly out
of the way.
C. Route speaker harness B-H1149 across the inside of the dash to
the driver and passenger side. Avoid any moving rotating parts.
For the passenger side, tuck the harness down the side of the dash,
and pull it through to connect to the pod.
A. Using the (3) mounting bosses on the underside of the dash of the passenger side pocket, place the MRB3 brain tray on the bosses and
fasten it into place with the provided (3) screws and washers.
DF-2A
F
G

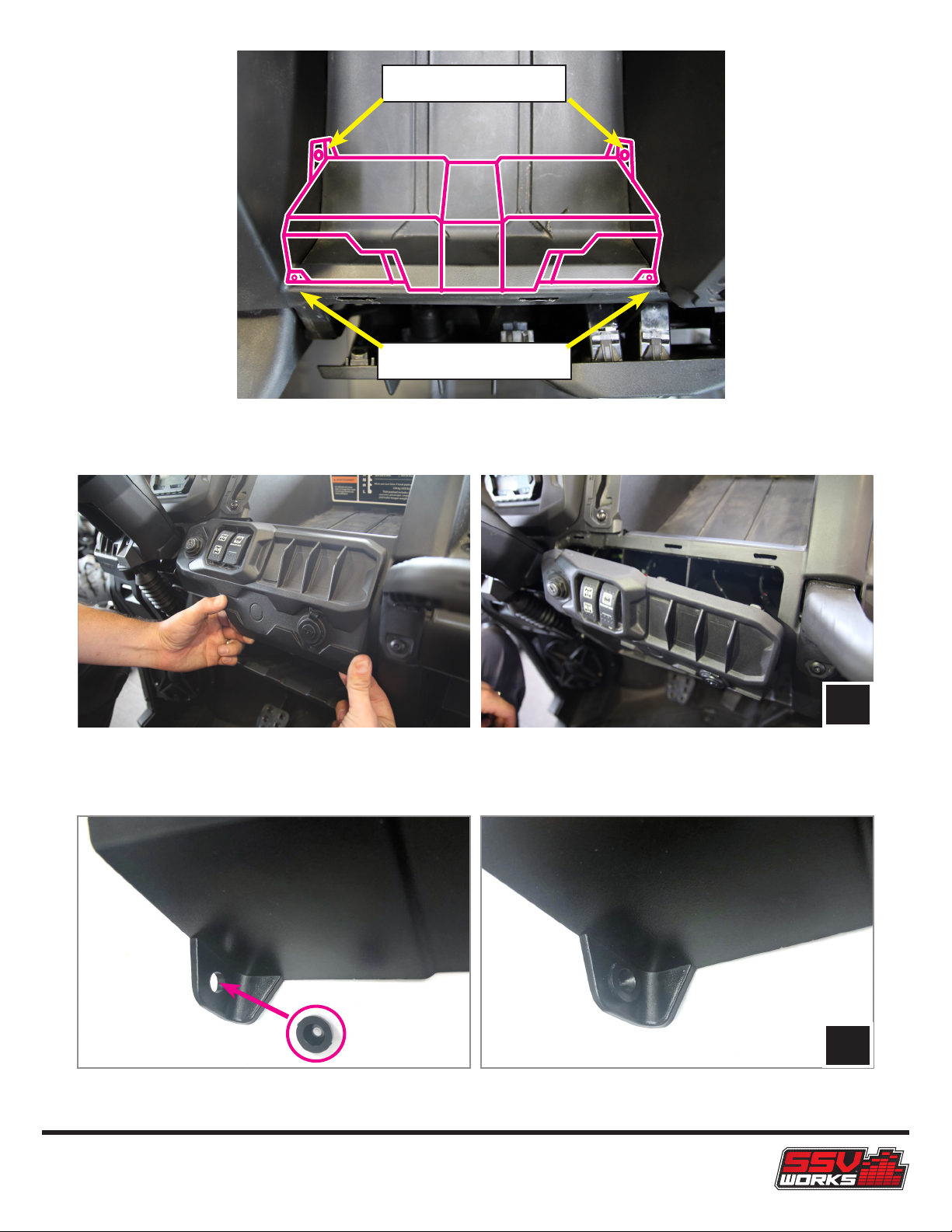

F. Pry away ignition/switch panel from the bottom. Once detached from the dash, let the panel hang away from where you will be drilling.
NOTICE: Top view of the dash where the DM3 dash mount kit will be installed.
Back mounts use push pins
Front mounts use small screws
G. Insert the drill bit guide buttons into the two (2) mounting tabs on the back of DM3 dash kit
DF-2A
KJ
ML
IH

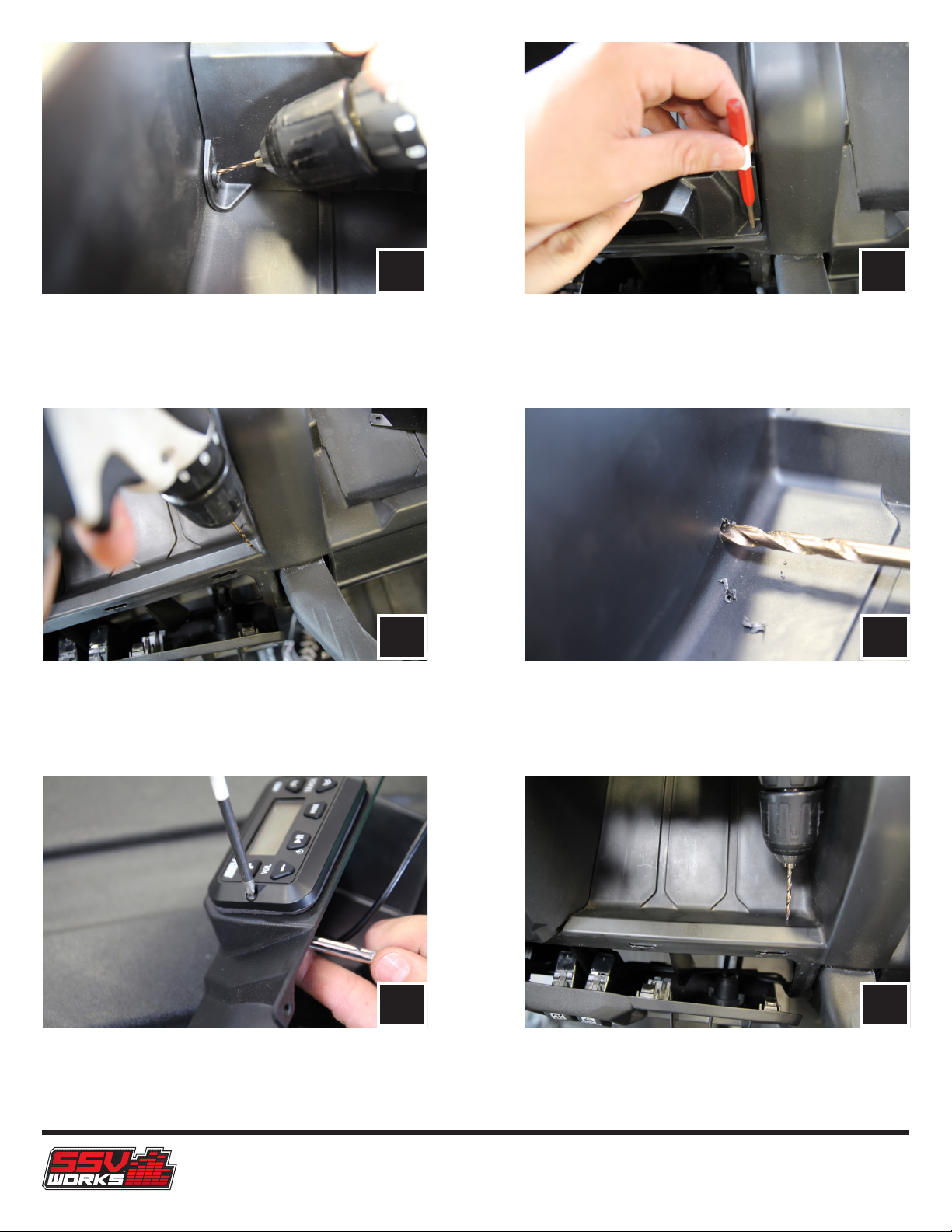

K. Follow through the pilot hole with a 5/16” drill bit.J. Remove the dash mount and drill out pilot holes using a 3/32” drill
bit at the scribed locations from Step B
M. Use a 1/8” drill bit to drill a pilot hole for the MRB3 cable.L. Feed the MRB3 cable through the controller opening and
place the MRB3 controller in the DM3. Fasten down with the
two (2) provided Phillips screw and 5.5mm nuts.
I. Place the MRB3 dash mount into it’s intended location and scribe
marks through the front mounting tabs to drill pilot holes.
H. Drill pilot holes through the drill bit guides that were inserted into
the back tabs in Step B with a 1/8” drill bit.
Q

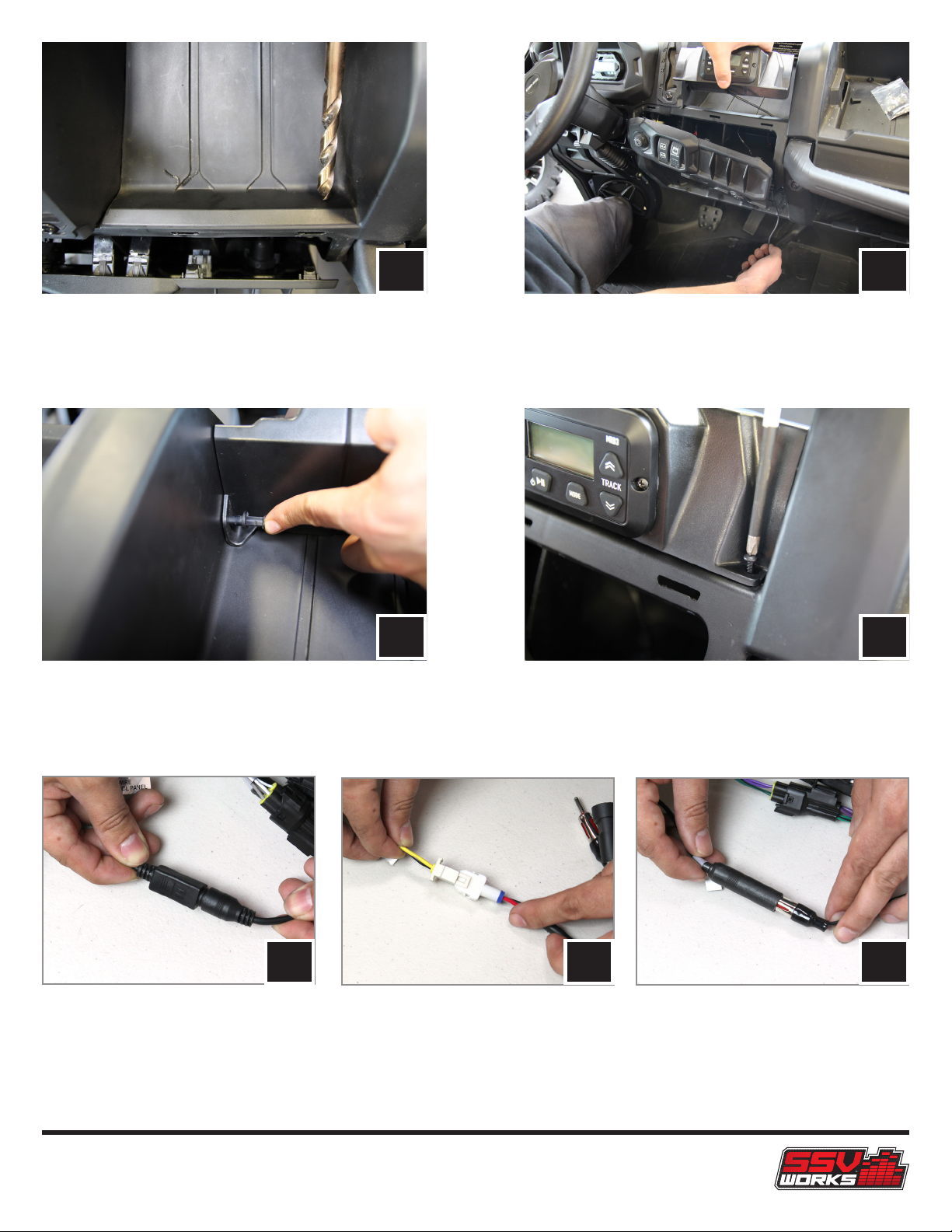

Q. Fasten the front of the DM3 with provided two (2) Phillips screws.
P
P. Insert push pins through the back of the DM3 into the dash.
N O
N. Drill out the pilot hole with a 9/16” drill bit for routing controller
cable through the dash.
O. Route the MRB3 controller cable through the 9/16” hole drilled in
Step C and set the DM3 into place
DF-2A
R2. Connect the power/ground wire. R3. Connect the antenna.R1.Connect the MRB3 controller to the brain.
R1 R2 R3
DF-2A © 2018 SSV Works, Oxnard, CA 93030 DF-2A Rev. A 11-12-18
TS

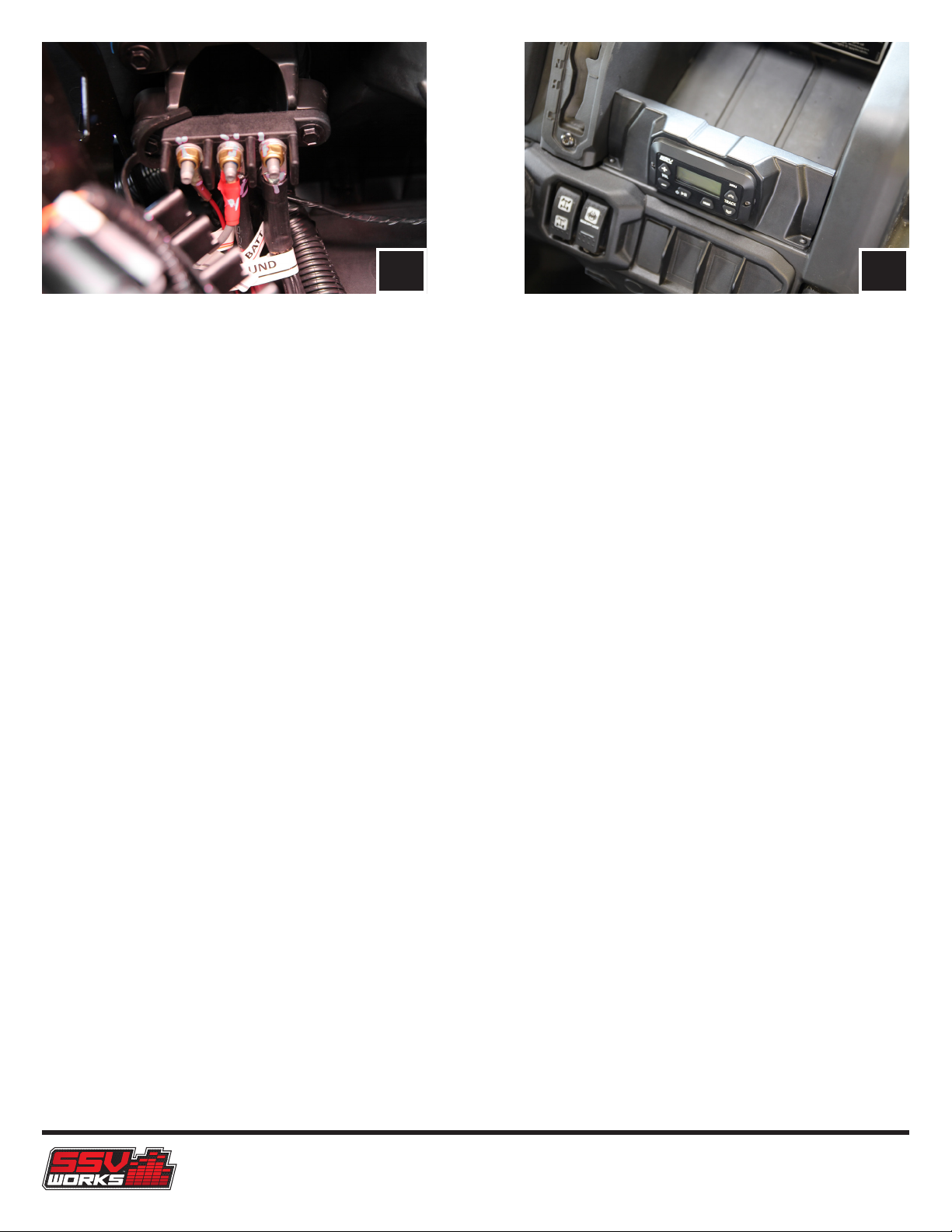

T. DM3 dash kit installation is now complete.S. From under the dash, pull guard away from bus bar, unscrew
the nut on the center position terminal for 12v constant or the
third position for accessory power and attach the red POWER
wire. Refasten on the nut (C1). Then unscrew the nut on the rst
position terminal and attach the black GROUND wire. Re-screw
on the nut (C2).
DF-2A
Can-Am Defender
2-Speaker SSV Works Audio Kit
SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751

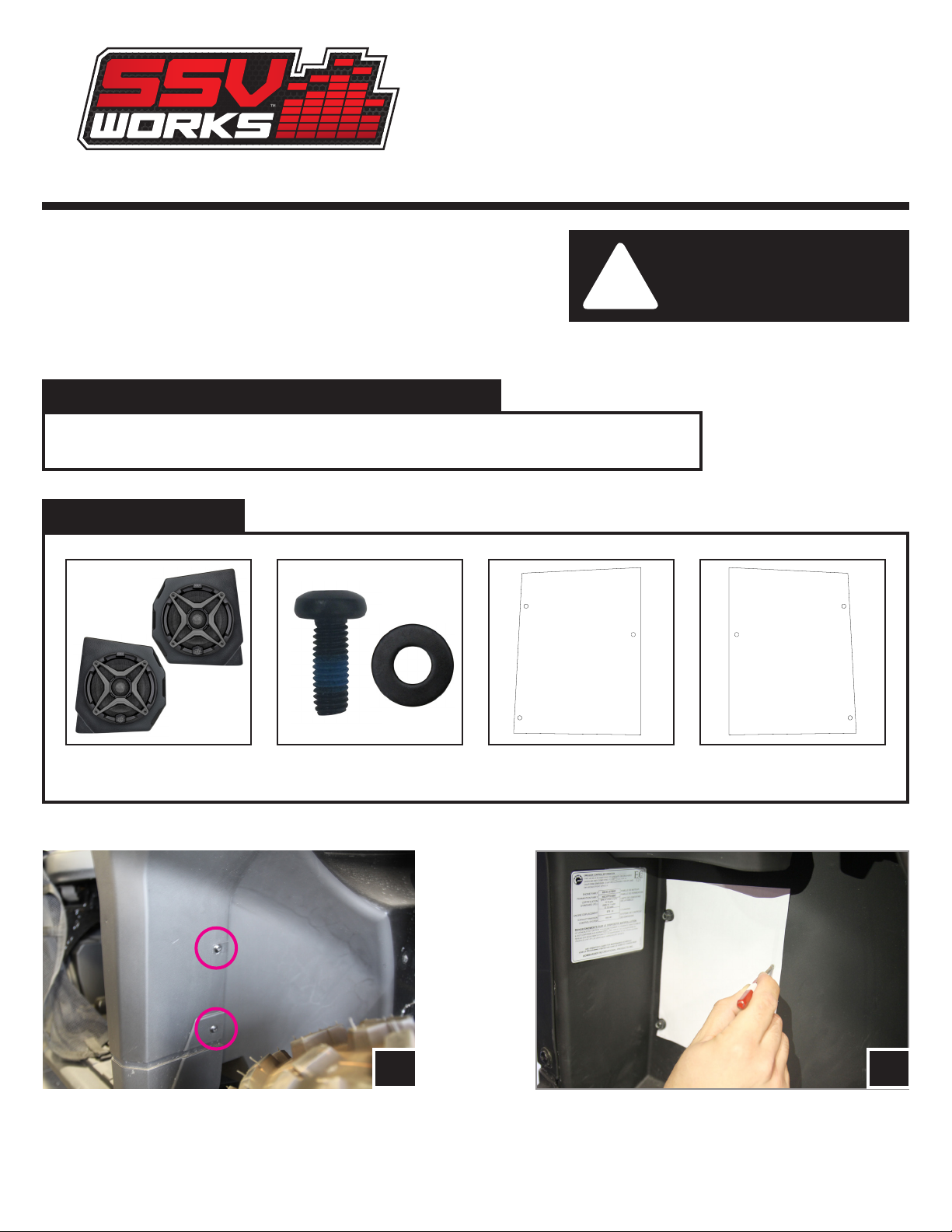

TOOLS NEEDED FOR SPEAKER POD INSTALLATION
PARTS LIST IMAGES
1. DF-F65 Enclosures (1 pair) 3. Driver Side Drill Template 4. Passenger Side Drill
Template
2. M6 x 16mm Screws and
Washers x 2
- T30 Torx Driver - 1/8” Drill Bit
DEFENDER F65 DRIVER SIDE
DRILL TEMPLATE
DEFENDER F65 DRIVER SIDE
DRILL TEMPLATE
A. Remove the (2) bolts in the driver/pass footwell (circled in
pink) with a 10mm wrench and T30 torx driver.
(View from front fender wheel well)
B. Cut out the (Driver/Passenger) template along the cut line.
Position the template on the inside footwell and reinstall the
(2) factory bolts previously removed through the template.
Using a scribe tool, mark the center of the 3rd drill point
illustrated on the template as shown in photo.
A B
- 1/4” Drill Bit - 10mm Wrench - Scribe Tool
!
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty
against defects in material or workmanship. All SSV Works Speakers are covered by a
limited 1 year warranty against defects in material or workmanship. Labor for replacement of
defective components is not covered. Contact SSV Works for further warranty information.
DF-2A

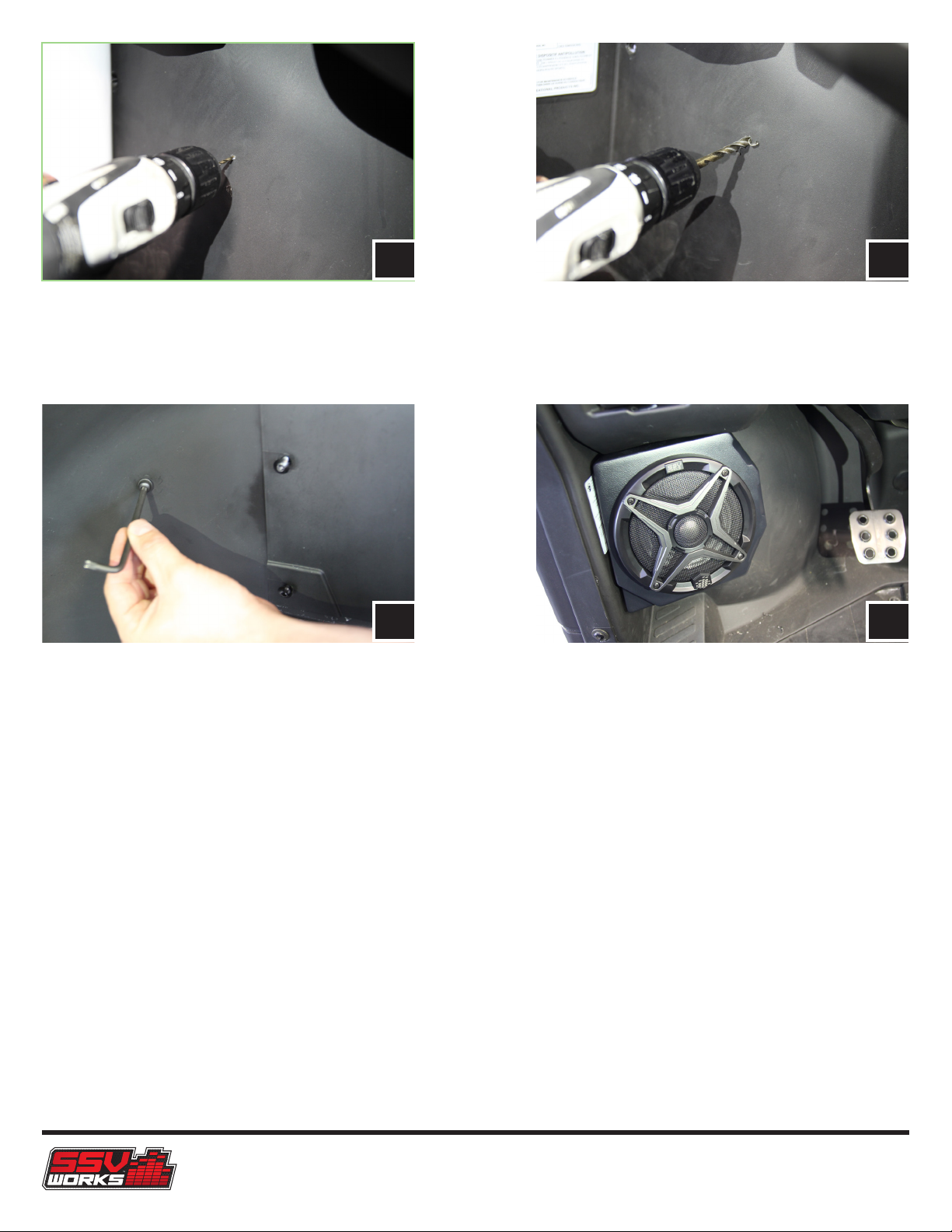

C. Remove the factory bolts and template and drill a 1/8” pilot
hole at the points just marked with a scribe tool.
E. Place enclosure in location for mounting. Re-use the (2)
factory T30 torx screws and SSV provided M6 screws and
washers. to mount the pod loosely. Once all screws have been
loosely installed, tighten down by hand.
D. Drill a 1/4” hole through the pilot hole for mounting the pod.
F. Repeat for the opposite side.
C
E
D
F
