StarTech.com ICUSB232DB25 Bedienungsanleitung

Manual Revision: 02/02/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

ICUSB232DB25

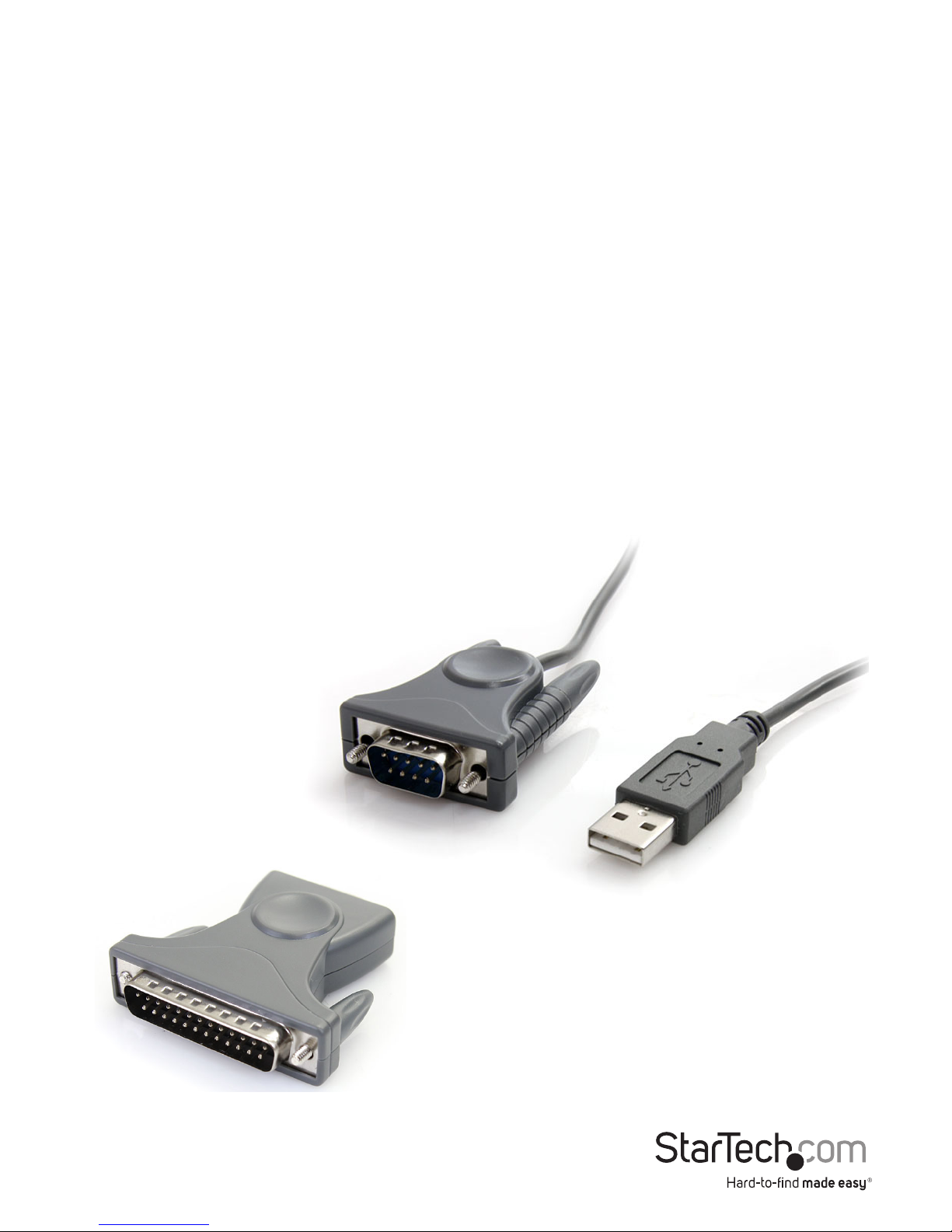

1 Port USB to RS232 Serial DB9/DB25

Adapter Cable - M/M

*actual product may vary from photos

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Driver Installation...................................................................................................................................... 2

Hardware Installation .............................................................................................................................. 2

Verifying Installation ................................................................................................................................ 2

Specications..........................................................................................3

Technical Support ..................................................................................4

Warranty Information............................................................................4

Instruction Manual

Introduction

The StarTech.com USB to RS232 DB9 or DB25 Serial Adapter Cable lets you add an

RS232 serial port to a notebook or desktop computer through Plug and Play USB.

This 3ft USB to RS232 Serial Adapter Cable lets you connect 9-pin or 25-pin (through

included adapter) RS232 serial devices to bridge the compatibility gap between

modern computers without serial ports and legacy serial peripherals. A cost-eective

solution that is backed by StarTech.com’s 2-year warranty.

Packaging Contents

• ICUSB232DB25 adapter cable

• DB9 to DB25 Adapter

• Driver Installation CD

• Instruction Manual

System Requirements

• USB enabled computer system with available USB port

• Microsoft® Windows® XP/Server 2003/Vista/Server 2008 R2/7 (32/64-bit), or

Windows XP Embedded/CE 4.2/5.2, or Windows Mobile 5/6, or PocketPC 2003, or

Apple® Mac OS® 10.1 or later, or Linux®

Instruction Manual

Installation

Driver Installation

Windows XP/Server 2003/Vista/Server 2008 R2/7

1. Turn the computer on and boot into Windows. Do not have the USB adapter

plugged into the computer.

2. Insert the Driver CD into your CD/DVD drive. If AutoPlay runs, then choose to

“Browse the CD”, otherwise access the contents of the CD via “My Computer”.

3. In the “Prolic/PL2303X” location, open the appropriate folder for your operating

system and run the setup.exe le. This will launch the driver installation wizard.

4. Once the installation wizard completes, the drivers will be installed and ready for

use.

Hardware Installation

1. Make sure the driver installation has been completed rst.

2. Plug the USB adapter into an available USB port on the computer system.

3. Windows will automatically detect the USB adapter and install the drivers.

4. Once installation is complete, the serial port will be ready for use.

5. If connecting the serial port to a DB25 interface, use the included DB9 to DB25

(male) adapter.

Verifying Installation

Windows XP/Server 2003/Vista/Server 2008 R2/7

From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Device Manager

from the left window panel.

Double-click on the “Ports (COM & LPT)” option. The additional COM port should be

visible.

Instruction Manual

Specications

Bus Interface USB 2.0

Chipset ID Prolic PL2302HXD

Connectors 1 x 9-pin DB9 male

1 x USB type A male

Supported Protocols RS232

Maximum Data Transfer Rate 230Kbps

FIFO Buer 512B

Integrated Cable Length 90cm/3ft

Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)

Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)

Humidity 0 ~ 90% RH

Compatible Operating Systems

Windows XP/Server 2003/Vista/Server 2008

R2/7 (32/64-bit), Windows XP Embedded/CE

4.2/5.2, Windows Mobile 5/6, PocketPC 2003,

Mac OS 10.1 or later, Linux

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
