StarTech.com USB2SATA25 Bedienungsanleitung

USB 2.0 to SATA Adapter

Cable with Power Adapter

USB2SATA25

USB2SATA25GB

USB2SATA25EU

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Hardware Installation...................................................................1

Driver Installation.........................................................................3

Verifying Installation in Windows®2000/XP/Vista ........................3

Backup Software Installation .......................................................4

Speciﬁcations.................................................................. 5

Technical Support........................................................... 6

Warranty Information...................................................... 6

Introduction

Packaging Contents

1 x USB2SATA25/GB/EU adapter•

1 x Power Adapter and cord•

1 x Software CD•

1 x User Manual•

System Requirements

IBM compatible Pentium-233 MHz or faster PC & MAC•

Available USB port•

Microsoft Windows• ®2000/XP/Vista, Mac OS®9.2.2 - 10.5

Installation

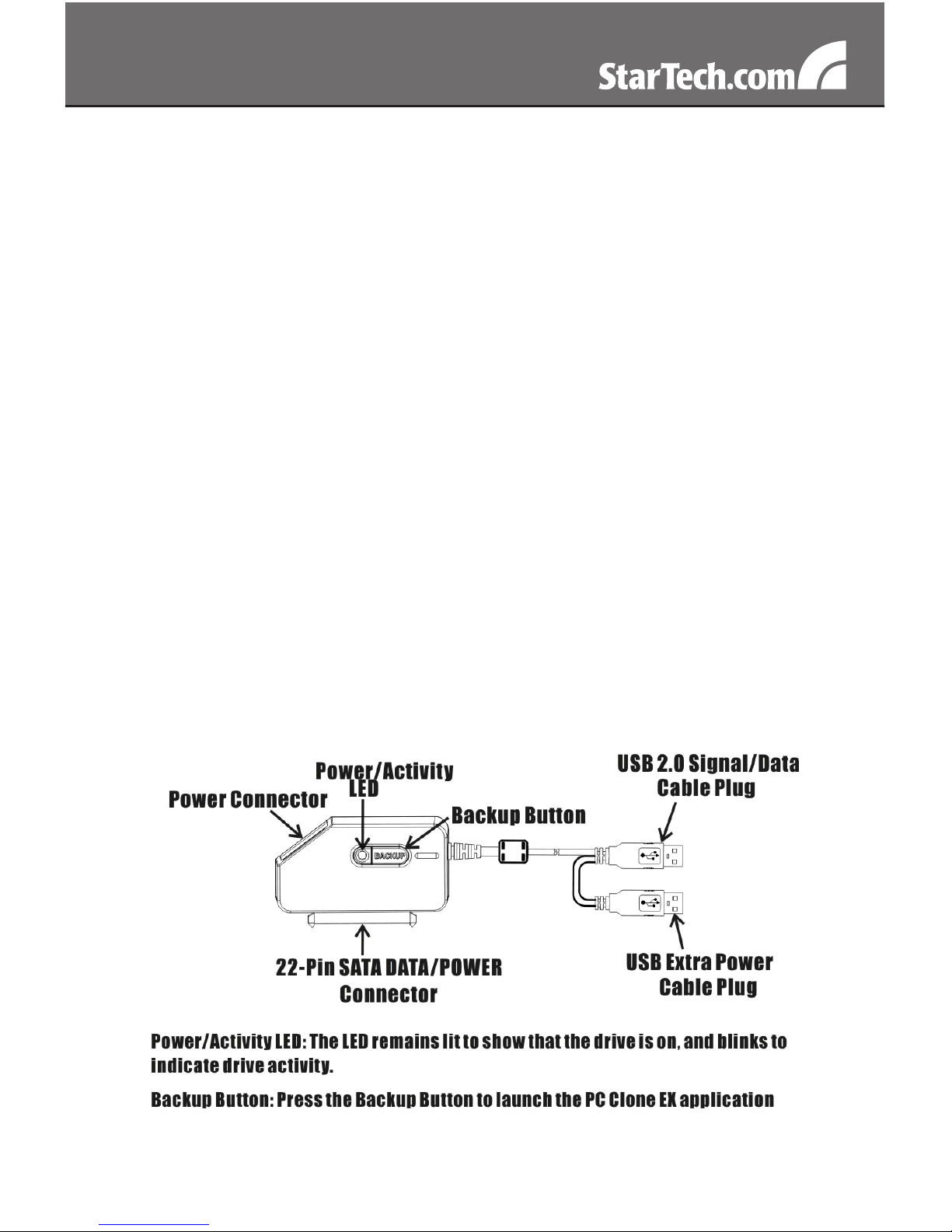

Hardware Installation

Connecting a 2.5” Hard Drive

Connect your 2.5” SATA HDD to the SATA connector on the adapter.1.

Connect the attached USB Data cable to the USB port on your2.

computer.

Optional:3. Connect the USB Extra Power cable to another USB port.

Connecting a 3.5” Hard Drive or 5.25” Optical Drive

Connect your 3.5” SATA HDD or 5.25” DVD/optical driver to the SATA1.

connector on the adapter.

Connect the adapter with the provided power adapter and then2.

connect the power adapter to a working electrical outlet.

Connect the attached USB cable to the USB port on your computer.3.

Driver Installation

Windows®2000/XP/Vista, Mac OS®9.2.2 - 10.5

No driver installation is required for these operating systems, as this

Adapter is natively supported, so the drivers are already installed.

Verifying Installation in Windows®2000/XP/Vista

Open Device Manager by right-clicking on My Computer and selecting

Manage, then select Device Manager from the left window pane.

The screenshot is an example from Windows XP. Actual disk drive string varies according*

to your hard disk brand and model.

An USB device monitor icon will appear on the

notiﬁcation area of the taskbar.

Mac OS®:To verify your installation, open the Disk Utility. Your hard disk

should be displayed.

The attached hard drive will be mounted to the desktop

and appears as a removable media device.

Backup Software Installation

To install the PC Clone EX utility, please locate the installation folder1.

“JM20329” on the software CD and then double click the setup.exe

ﬁle.

Follow the on-screen installation to complete the installation.2.

“PC Clone EX” icon will displays in the notiﬁcation area after setup,3.

you can double click the icon or press the right key of the mouse to

execute PC Clone EX.

For more information about the PC Clone EX utility, right click the “PC

Clone EX” icon in the notiﬁcation area, then select the “Help” option in

the pop-up menu.

Specications

Bus Interface USB 2.0 (backward compatible

with USB 1.x)

Connectors

SATA: 7+15 Pin male

USB: USB 2.0 Type A

DC IN: LP4 molex male

Chipset JMicron JM20329

Drive Compatibility

2.5”/3.5” SATA 1.5 & 3.0 Gb/s

hard drive

5.25” SATA 1.5 & 3.0 Gb/s

optical drive

Maximum Data Transfer Rate 480Mbps

Operating Temperature 10-55°C

Storage Temperature 0~70°C

Dimensions 63.0mm x 40.0mm x 12.0mm

Supported Operating Systems Windows®2000/XP/Vista,

Mac OS®9.2.2 - 10.5

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
