4x M.2 SSD to 3.5in SATA HDD Adapter
*actual product may vary from photos
Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by StarTech.com could void the user’s
authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
i
Table of Contents
Product Diagram ....................................................................................1
Front View .................................................................................................................................................... 1
Top View ....................................................................................................................................................... 1
Introduction............................................................................................2
Packaging Contents ................................................................................................................................. 2
System Requirements.............................................................................................................................. 2
M.2 NGFF SSD Installation ....................................................................2
System Installation ................................................................................7
Technical Support ..................................................................................8
Warranty Information............................................................................8
Instruction Manual
1
Product Diagram
Front View
Top View
1. M.2 NGFF connectors
2. SSD Mounting holes
3. SSD stando
4. SATA Power Port
5. SATA Data Port
Instruction Manual
2
Introduction
Packaging Contents
• 1x 4x M.2 SSD to 3.5in SATA HDD Adapter (35S24M2NGFF)
• 4x SATA data cables
• 1x SATA power extension cable
• 4x M.2 SSD Installation screws
• 4x Bracket Mounting Screws.
System Requirements
• 4x M.2 NGFF SATA SSD Drive
• 1x Computer System with:
• 1x Available 3.5in expansion bay
• 4x Available SATA ports
• 1x Available SATA Power connector on the power supply
• 1x Philips Head Size 1 Screw Driver
• 1x Philips Head Size 2 Screw Driver
M.2 NGFF SSD Installation
WARNING! SSD Drives and storage adapters require careful handling. If you are
not careful with your SSD Drive, lost data may result. Always handle your drive with
caution. Be sure that you are properly grounded by wearing an anti-static strap when
handling computer components or discharge yourself of any static electricity build-up
by touching a large grounded metal surface (such as the computer case) for several
seconds.
1. Assess the lengths of your drives to determine if the SSD installation standos
require relocating. The board is labeled with the respective drive types for length,
but if your drive length is unknown, place your SSDs next to each of the M.2 (NGFF)
SSD connectors, note which drive installation holes match the height of your SSDs.
If the standos are already installed in the correct position please proceed to step 6.
Instruction Manual
3

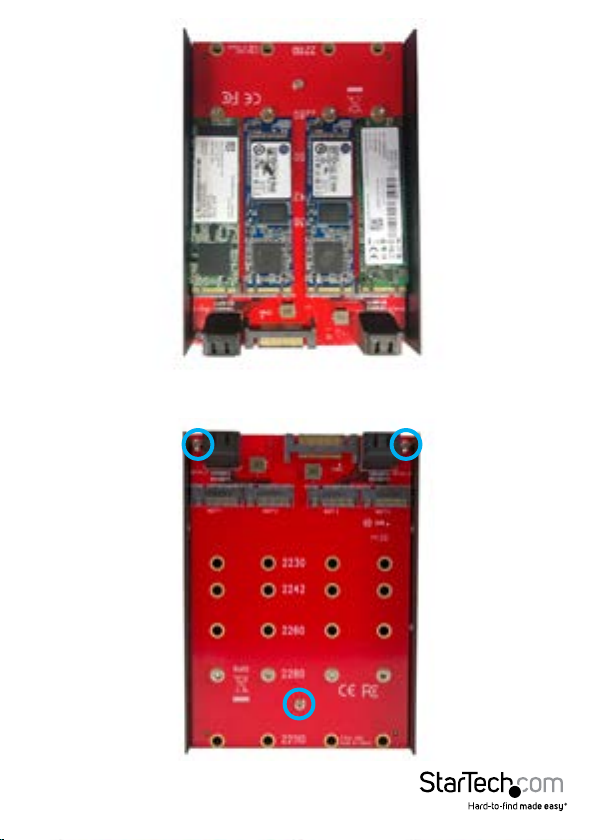

2. (Only required if any of the drive installation screws and standos requires
relocating) Using a Philip’s head screw driver, remove the three board mounting
screws pictured below.
Instruction Manual
4
3. (Only required if any of the drive installation screws and standos requires
relocating) Remove the screw holding the SSD stando you wish to move, from the
reverse side using a small Phillip’s head screw driver (not included).
4. (Only required if the drive installation screw and stando requires relocating)
Remove the SSD installation stando, and reseat it into the drive installation hole
that matches your SSD. Replace the nut on the reverse side and secure it into place
using a small phillip’s head screw driver.
Instruction Manual
5
Repeat steps 3 and 4 for each stando that requires relocating.
5. Place the board back on the enclosure, lining up the mounting holes where the
screws were earlier removed, and screw the board back into place, using a Philip’s
head screw driver.
6. Slide the M.2 connector on the SSD into the M.2 receprical connector on the
35S24M2NGFF.
Instruction Manual
6
Note: The connector on your M.2 SSD is keyed so the drive will only t one way.
7. Press the drive down toward the SSD stando, and drive the removed screw
through the mounting hole on your SSD drive and into the SSD stando using the a
Philips head screw driver.
8. The SSD has now been installed, and is ready for system installation.
Repeat steps 6 through 8 for each SSD that requires installation.
Instruction Manual
7
System Installation
1. Open your computer case (refer to the computer case user manual for details), and
place the 35S24M2NGFF with installed M.2 NGFF SSDs into an available 3.5in bay.
2. Using four of the included computer case screws and a Phillip’s head screw driver.
Drive two screws into either side of the 3.5in bay in your computer through the case
mounting holes on the side of the 35S24M2NGFF.
Notes:
• While only four mounting points are required (two on either side), six mounting
holes are available to accommodate dierent styles of computer cases.
• Installation steps may vary depending on your computer case, refer to the
computer case user manual for details.
3. Connect a SATA cable from your motherboard to each of the SATA Data ports on the
35S24M2NGFF (four SATA cables in total).
4. Connect a SATA Power cable from your power supply to the SATA Power Port on the
35S24M2NGFF.
Note: If a SATA power connector is not available, a port replicating SATA Y power
cable is included. Use this cable to connect power to this adapter as well as an
existing peripheral. Check your power supply manual for installation details.
5. Replace the cover on your computer system, and installation is now completed.
