StarTech.com USB32HDDVII Bedienungsanleitung

Manual Revision: 05/29/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

USB32HDDVII

USB 3.0 Dual Head Graphics Adapter -

HDMI® and DVI-I

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

Recommended System Requirements.............................................................................................. 1

Installation ..............................................................................................2

Driver Installation...................................................................................................................................... 2

Hardware Installation .............................................................................................................................. 3

Multiple USB Video Adapter Installation .......................................................................................... 3

Conguring the USB Video Adapter................................................................................................... 4

Extend ........................................................................................................................................................... 5

Mirror............................................................................................................................................................. 5

Specications..........................................................................................6

Specications (Cont’d)...........................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

The USB32HDDVII USB 3.0 to HDMI® and DVI-I Dual Head Adapter turns an available

USB 3.0 port into one DVI-I or VGA port (DVI to VGA adapter included) and one

HDMI®output, with support for high-denition 1080p and 1920x1200 video and 5.1

surround sound audio (from HDMI®port only). The adapter delivers a convenient

external video solution that makes it easy to add multi-monitor capability to a USB-

enabled desktop or laptop computer (optimal performance from USB 3.0, backward

compatible with USB 2.0).

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the USB video

adapter functions as a convenient external graphics card that eliminates having to

open the computer case for video card installation. The adapter delivers smooth, high-

denition content to multiple displays and can be used to mirror your primary desktop,

showing the same image on each display, or to extend your desktop onto a second or

third monitor to double or triple your workspace and increase your productivity.

The USB 3.0 HDMI®and DVI-I Adapter is backed by a StarTech.com 2-year warranty and

includes free lifetime technical support.

Packaging Contents

• 1x USB 3.0 to HDMI®/DVI-I Graphics Adapter

• 1x Mini USB 3.0 Cable

• 1x DVI to VGA Adapter

• 1x Driver CD

• 1x Installation guide

Recommended System Requirements

• USB enabled computer system with available USB 3.0 or 2.0 port

• CPU: Quad Core 2.4GHz or Higher (i5 recommended)

• RAM: 4GB or higher

• Microsoft® Vista(32/64-bit) 7(32/64-bit)

Instruction Manual

Installation

Driver Installation

Please ensure that the driver installation is complete prior to the physical

installation (plugging in) of the USB 3.0 Video Adapter

1. Download the latest drivers from the StarTech.com website (recommended), or

insert the included Driver CD into your CD/DVD-ROM drive.

2. Locate the Setup.exe application. This le will be located in the root directory of the

Driver CD (e.g. D:\) or downloaded le.

3. Executing the Setup.exe application will launch the following screen. Please click I

Accept to start installation process. The set-up program will install the device driver

and software application respectively.

Note: Ensure that the USB Video Adapter is not connected to the host computer.

Note: The screen may ash or go black during installation. No additional message

will be displayed to alert that the installation has completed.

Instruction Manual

Hardware Installation

1. Once DisplayLink Core Software screen has disappeared Connect your USB32HDDVII

device via the USB cable to your PC.

2. The system will initiate driver and software application (the DisplayLink Software

Conguration screen may ash or go black during the install).

*Some machines may require a system reboot for the USB Display Adapter to initialize.

3. Connect your HDMI® and/or DVI monitor(s) to the available HDMI® and/or DVI ports

on the USB32HDDVII device.

* VGA (RGB) Monitors are also supported via the included DVI to VGA adapter.

4. The USB Video Adapter is now ready for use.

Multiple USB Video Adapter Installation

Ensure you have the latest version of the drivers installed, otherwise, please download

them from the StarTech.com website (www.startech.com).

1. Complete the standard driver installation steps, up to when you plug in the rst USB

Video Adapter.

Connect another monitor/display to the second USBVideo Adapter, and turn on the display.

3. Connect the USB type A connector on the second USB Video Adapter to an available

USB 3.0 port on the host computer. The driver installation will begin automatically.

Repeat these steps for each additional USB Video Adapter you wish to install. Once all

USB Video Adapters are installed, reboot the computer. After rebooting, you may be

prompted to reboot one nal time; please do so.

Instruction Manual

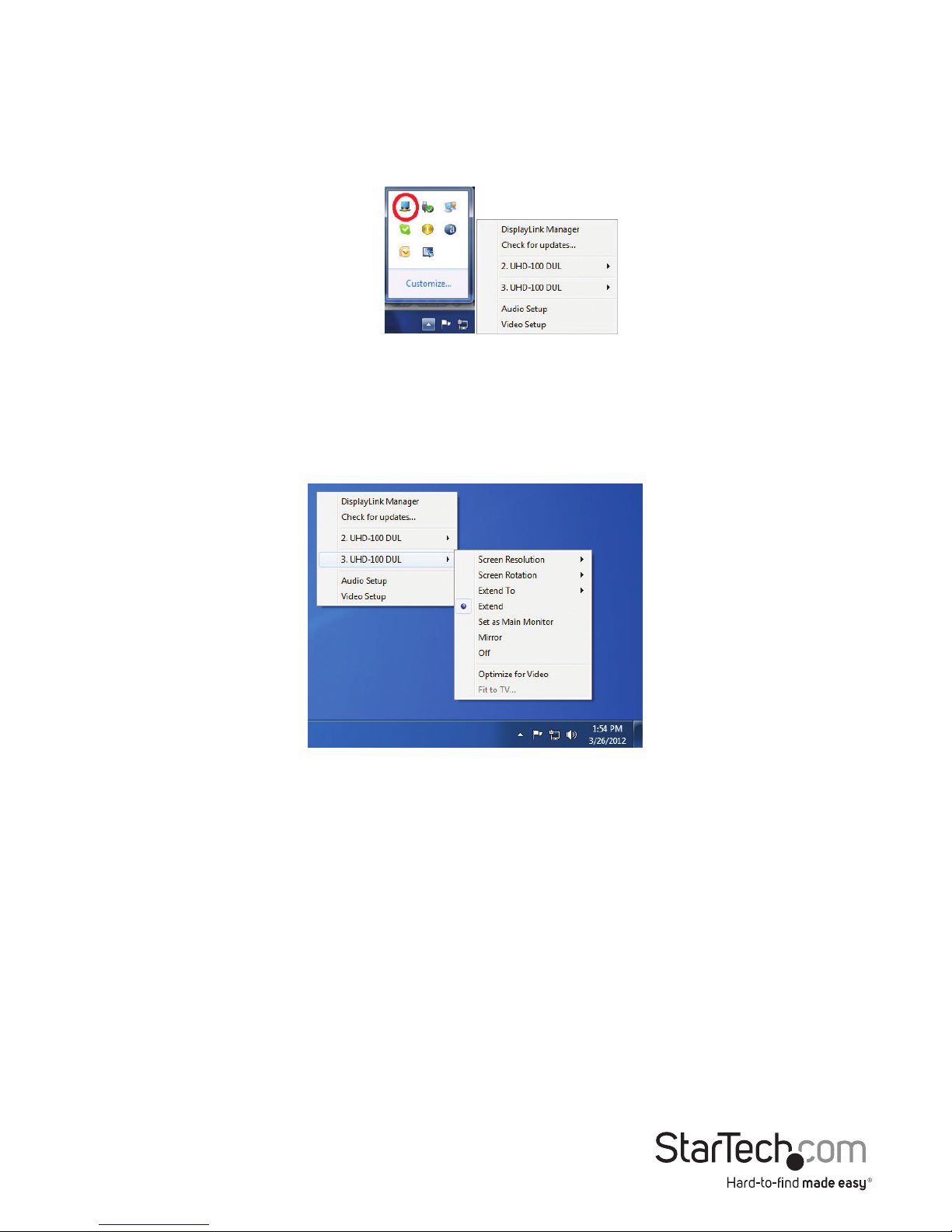

Conguring the USB Video Adapter

When devices are attached, an icon appears in the taskbar. This gives you access to the

DisplayLink® manager menu.

1. From the taskbar, click the Show hidden icons arrow to show all available icons.

2. Click the DisplayLink® icon. Two options will be displayed 2.UHD-100 DP and

3.UHD-100 DP. These represent each available display (HDMI® or DVI). Selecting

either display will extend a sub menu with the congurable options for the

respective display. Each display is congured independently. All conguration

options are shown and described below.

Instruction Manual

Extend

The monitor(s) attached to the USB32HDDVII USB Graphics adapter display an

extension of the user’s active Windows desktop. The extra desktop area is a great

productivity aid, allowing more applications or documents to be visible at a time. The

device is now extended in the direction it was the last time the display was in this

mode. For more control, use the Extend To submenu and select one of the options. This

puts the device into extend mode, and places it to the Left/Right/Above/Below the

main (primary) monitor.

Mirror

The monitor(s) attached to the USB32HDDVII USB Graphics device display a duplication

of the primary display.

The resolution, color depth and refresh rate of the primary screen are replicated on the

monitor connected to the USB Graphics device.

Note: If the monitors used are of dierent specications, the system’s primary

graphics adapter will scale all settings to lower specication to maintain a

uniform aspect ratio.

Instruction Manual

Extend To

This option allows you to specify the physical location of the monitor connected to the

USB32HDDVII in relation to the systems on board monitor.

Screen Resolution

This option allows you to change the resolution on the monitor connected to the

USB32HDDVII device. Simply select the desired option from the list of supported

resolutions displayed in the sub menu.

Screen Rotation

This option allows you to change orientation in which the screen is viewed. The two

most common types of orientation are portrait and landscape.

Set as Main Monitor

Selecting this option allows your computer to consider the monitor connected

through the USB32HDDVII as your primary monitor. Your primary monitor displays all

system notications, and takes priority with applications.

O

This option disables the monitor connected to the USB32HDDVII.

Specications

Audio Specications 5.1-Channel Surround (48Khz)(HDMI®)

AV Input USB 3.0

Interface USB

Max Resolution 2048x1152

AV Output HDMI®

DVI

Cable Length 160mm

Chipset ID DisplayLink® DL 3900

Instruction Manual

Color Black

Enclosure Type Plastic

Audio Yes

Maximum Digital

Resolutions 2048x1152

Memory 1GB DDR II

OS Compatibility Windows®7 (32/64bit)* Aero 3D interface supported

Output Signal DVI-I (DVI Digital/Analog)

HDMI®

Industry Standards Standard HDMI®, DVI-I, SuperSpeed USB 3.0, USB 2.0

Supported Resolutions

Widescreen(16/32 bit):

2048x1152, 1920x1200, 1920x1080, 1680x1050,

1600x900, 1440x900, 1368x768, 1366x768, 1360x768,

1280x800, 1280x768, 1280x720, 1024x600, 848x480,

800x480, 720X480

Standard(16/32 bit):

1600x1200, 1400x1050, 1280x1024, 1280x960,

1152x870, 1152x864, 1024x768, 832x624, 800x600,

768X567, 640X480

Wide Screen Resolutions Yes

Note Connect a maximum of three USB32HDDVII adapters

on a single PC - See manual for system requirements

Specications (Cont’d)

Inhaltsverzeichnis

Andere StarTech.com Adapter Handbücher

StarTech.com

StarTech.com USB300WN2X2D Systemhandbuch

StarTech.com

StarTech.com 35S24M2NGFF Bedienungsanleitung

StarTech.com

StarTech.com USB312SAT3 Bedienungsanleitung

StarTech.com

StarTech.com USB32DP4K Bedienungsanleitung

StarTech.com

StarTech.com USB2DVIE2 Bedienungsanleitung

StarTech.com

StarTech.com DKT30CSDHPD3 Bedienungsanleitung

StarTech.com

StarTech.com PEX867WAC22 Bedienungsanleitung

StarTech.com

StarTech.com 8STUSB312SAT3CB Bedienungsanleitung

StarTech.com

StarTech.com DP2DVID2 Bedienungsanleitung

StarTech.com

StarTech.com 8ST102BUSBCMULTIP Bedienungsanleitung

StarTech.com

StarTech.com ITB20D3250 Bedienungsanleitung

StarTech.com

StarTech.com US1GA30SXSC Bedienungsanleitung

StarTech.com

StarTech.com 167B-USBC-MULTIPORT Bedienungsanleitung

StarTech.com

StarTech.com ICUSB232HUB2 Bedienungsanleitung

StarTech.com

StarTech.com USB2DVIPRO2 Bedienungsanleitung

StarTech.com

StarTech.com IDE502CFE Bedienungsanleitung

StarTech.com

StarTech.com USB31000NDS Bedienungsanleitung

StarTech.com

StarTech.com US1GC30SFP Bedienungsanleitung

StarTech.com

StarTech.com USB31CSAT3CB Bedienungsanleitung

StarTech.com

StarTech.com WIFI2HDMCGE Bedienungsanleitung

StarTech.com

StarTech.com USB32HD2 Bedienungsanleitung

StarTech.com

StarTech.com 1P3FP-USB-SERIAL Bedienungsanleitung

StarTech.com

StarTech.com ICUSB2321284 Bedienungsanleitung

StarTech.com

StarTech.com USB32HD2 Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
