StarTech.com USB32VGAEH Bedienungsanleitung

Manual Revision: 03/18/2013

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

USB32VGAEH

USB 3.0 to VGA Video Adapter with

USB Hub Port

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements .............................................................................................................................. 1

Installation ..............................................................................................3

Hardware Installation .............................................................................................................................. 4

USB HUB Installation (Optional) .......................................................................................................... 4

Multiple USB Video Adapter Installation .......................................................................................... 5

Conguring the USB Video Adapter ................................................................................................... 5

Display Settings ......................................................................................................................................... 6

Identify Monitors ...................................................................................................................................... 6

Multi-Display Control Panel .................................................................................................................. 7

Specications ..........................................................................................8

Technical Support ..................................................................................9

Warranty Information ............................................................................9

Instruction Manual

Introduction

The USB32VGAEH USB 3.0 to VGA® Adapter turns an available USB 3.0 port into a VGA

output port with high resolution 1920x1200 video support. The adapter features a

built-in 1-Port USB 3.0 hub, which oers a connection port in place of the USB port

used for connecting the VGA adapter – an ideal workaround for Ultrabook™ or laptop

users where only a limited number of USB ports are available.

The USB to VGA adapter functions as an external graphics card, providing a convenient

way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer

(optimal performance from USB 3.0, backward compatible with USB 2.0).

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter

delivers smooth, high-denition content to your VGA display / projector. The adapter

can be used to mirror your primary desktop, showing the same image on each display,

or to extend your desktop to double your workspace and increase your productivity.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1x USB 3.0 to VGA Adapter

• 1x Software CD

• 1x Manual

System Requirements

• USB enabled computer system with available USB 3.0 or 2.0 port

• CPU: Quad Core 2.4GHz or Higher (i5 recommended)

• RAM: 4GB or higher

• Microsoft® 7(32/64-bit) 8(32/64-bit)

Instruction Manual

Front Back

Example: External USB device

attached to pass-through port

of USB32DVIEH

*actual product may vary from photos

Instruction Manual

Installation

Driver Installation

Please ensure that the driver installation is complete prior to the physical installation

(plugging in) of the USB 3.0 Video Adapter

1. Download the latest drivers from the StarTech.com website (recommended), or

insert the included Driver CD into your CD/DVD-ROM drive.

2. Locate the Setup.exe application. This le will be located in the root directory of the

Driver CD (e.g. D:\) or downloaded le.

3. Executing the Setup.exe application will launch the following screen. Please click

Next > to start installation process. The set-up program will install the device driver

and software application respectively.

NOTE: Ensure that the USB Video Adapter is not connected to the host computer.

4. Once Windows has nished the driver installation, it will prompt you to restart the

computer. Select “Yes, I want to restart my computer now”, and click the

“Finish” button.

Instruction Manual

Hardware Installation

1. Once the computer has restarted connect your USB32VGAEH device via the USB

cable to your PC.

2. The system will initiate driver and software application (screen may ash or go black

during the install).

3. Connect your VGA monitor to the available VGA port on the USB32VGAEH device.

4. The USB Video Adapter is now ready for use.

USB HUB Installation (Optional)

This device includes a 1 port USB 3.0 hub to replace the port taken up by the device.

NOTE: If the USB display adapter is connected to a USB 2.0 host port, the hub will only

operate at USB 2.0 speeds.

1. Ensure the Hardware Installation steps have been completed. USB Hub drivers will

install as part of the installation when device is connected.

2. Connect the USB A type cable from your desired USB device to USB female port on

the Display adapter.

3. Follow any installation steps for the device connected.

Instruction Manual

Multiple USB Video Adapter Installation

Ensure you have the latest version of the drivers installed, otherwise, please download

them from the StarTech.com website (www.startech.com).

1. Complete the standard driver installation steps, up to when you plug in the rst USB

Video Adapter.

2. Connect another monitor/display to the second USB Video Adapter, and turn on

the display.

3. Connect the USB type A connector on the second USB Video Adapter to an available

USB 3.0 port on the host computer. The driver installation will begin automatically.

Repeat these steps for each additional USB Video Adapter you wish to install. Once all

USB Video Adapters are installed, reboot the computer. After rebooting, you may be

prompted to reboot one nal time; please do so.

Conguring the USB Video Adapter

Look for the “USB Video Adapter” icon ( ) on your Windows System Tray (next

to Clock). Right-click this icon to congure the adapter using the options explained in

detail below.

Instruction Manual

Display Settings

Quick access to the Windows® “Display Settings” window.

This option allows you to use the Windows® native Display Settings to adjust all

settings including: Resolution, monitor placement, and choose whether the additional

will extend or mirror the main display.

Identify Monitors

This option displays the identication number assigned by Windows® to dierentiate

between each monitor. Using an easy to read overlay this number is displayed in the

upper right corner of each monitor.

Instruction Manual

Multi-Display Control Panel

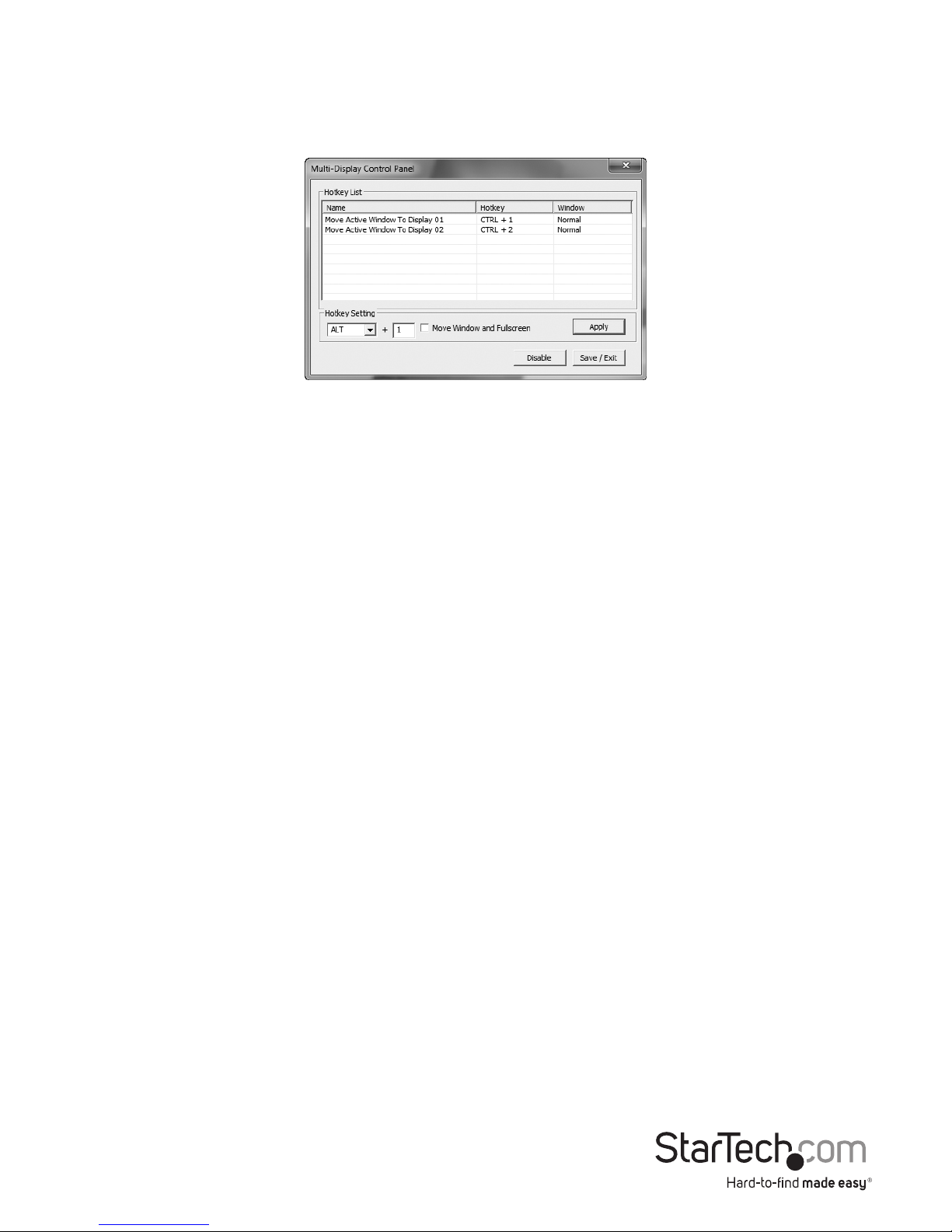

This unique feature allows for quicker and simpler management of a multi-display

environment using a series of hotkeys to quickly move the active program window to

the desired display (either on-board or each USB Video Adapter).

The default setting of the hotkeys can be found in the Hotkey List of “Multi-Display

Control Panel”.

Example: Ctrl + 2 means: to move the window to Display 2
