StarTech.com PEX8S952 Bedienungsanleitung

Manual Revision: 11/10/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

PEX8S952

8 Port PCI Express to RS232 Serial Adapter Card

- Single Chip

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Driver Installation...................................................................................................................................... 2

Verifying Installation ................................................................................................................................ 3

Specications..........................................................................................4

Technical Support ..................................................................................5

Warranty Information............................................................................5

Instruction Manual

Introduction

The PEX8S952 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART

allows you to turn a PCI Express slot into eight RS232 (DB9) serial connections using

the included breakout cable.

The serial card is based on a native single chip design, that allows you to harness the

full capability of PCI Express (PCIe) - providing optimum reliability and speed, and

reducing the load applied to the CPU by as much as 48% over conventional serial

cards.

Packaging Contents

• 1 x PCI Express Serial Card

• 1 x 8 port DB9 break-out cable

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• PCI Express enabled computer with an available PCI Express slot

• Microsoft® Windows® 98SE/ ME/ 2000/ XP/ Server 2003/ Vista/ Server 2008 R2/ 7

(32/64-bit), or Windows XPe, or WinCE 4.2/ 5.0/ 6.0, or Linux®

Instruction Manual

Installation

WARNING! PCI Express cards, like all computer equipment, can be severely

damaged by static electricity. Be sure that you are properly grounded before

opening your computer case or touching your PCI Express card. StarTech.com

recommends that you wear an anti-static strap when installing any computer

component. If an anti-static strap is unavailable, discharge yourself of any

static electricity build-up by touching a large grounded metal surface (such

as the computer case) for several seconds. Also be careful to handle the PCI

Express card by its edges and not the gold connectors.

Hardware Installation

1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,

external hard drives, etc.). Unplug the power cable from the rear of the power

supply on the back of the computer and disconnect all peripheral devices.

2. Remove the cover from the computer case. See documentation for your computer

system for details.

3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the

computer case (Refer to documentation for your computer system for details.). Note

that this card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots).

4. Gently insert the card into the open PCI Express slot and fasten the bracket to the

rear of the case.

5. Place the cover back onto the computer case.

6. Insert the power cable into the socket on the power supply and reconnect all other

connectors removed in Step 1.

Driver Installation

Windows 2000/ XP/ Server 2003

1. When the Found New Hardware wizard appears on the screen, insert the Driver CD

into your CD-ROM drive. If you are prompted to connect to Windows Update, please

select the “No, not this time”option and click Next.

2. Select the option “Install Drivers Automatically (Recommended)”and then click the

Next button.

3. Windows should now start searching for the drivers. Once this has completed, click

the Finish button.

Instruction Manual

Windows Vista/ 7

1. When the Found New Hardware window appears on the screen, click on the“Locate

and install drivers software (recommended)”option. If prompted to search online,

select the “Don’t search online” option.

2. When prompted to insert the disc, insert the Driver CD that came with the

PEX8S952, into your CD-ROM drive and Windows will automatically proceed to

search the CD.

3. If a Windows Security dialog window appears, click the “Install this driver software

anyway” option to proceed.

4. Once the driver is installed, click the Close button.

Verifying Installation

Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7

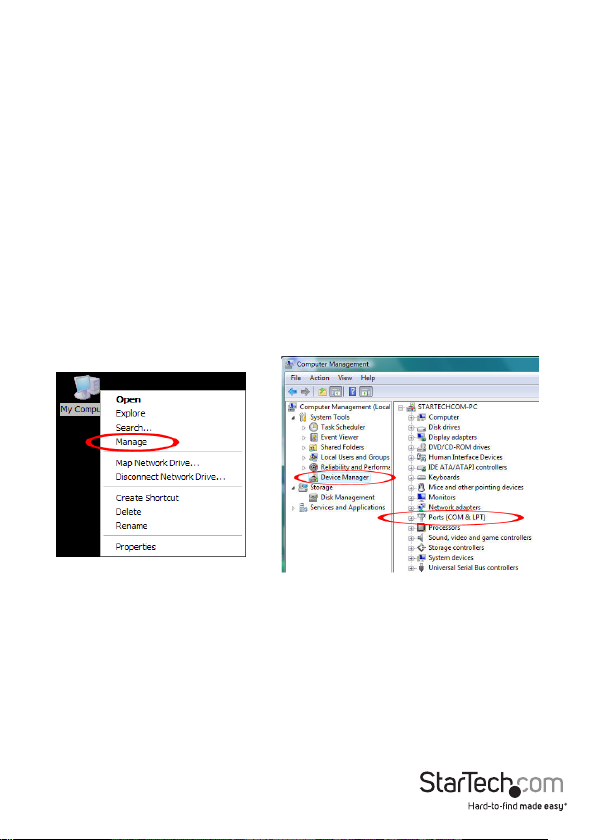

From the main desktop, right-click on “My Computer”(“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Device Manager

from the left window panel.

Double-click on the “Ports (COM & LPT)”option. Additional COM ports should be listed

undre this category.

*screenshots for reference only

Instruction Manual

Specications

Host Interface PCI Express x1 (base spec 1.1)

Form Factor Standard (Full) Prole

Chipset ID Oxford OXPCIe958

Connectors 8 x DB9 male (via breakout cable)

Supported Protocols RS-232

Maximum Data Transfer Rate 460 Kbps

Operating Temperature -40°C ~ 85°C (-40°F ~ 185°F)

Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)

Humidity 5% ~ 85% RH

Compatible Operating Systems

Windows 98SE/ ME/ 2000/ XP/

Server 2003/ Vista/ Server 2008 R2/ 7

(32/64-bit), Windows XPe, WinCE 4.2/

5.0/ 6.0, Linux

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
