StarTech.com SATSASBP125 Bedienungsanleitung

Manual Revision: 03/20/2018

For the most up-to-date information, please visit: www.startech.com

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

JP: 取扱説明書 - jp.startech.com

SATSASBP125

1-Bay 2.5in SATA/SAS Hard Drive Backplane

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Diagram ....................................................................................1

Front View.................................................................................................................................................... 1

Rear View...................................................................................................................................................... 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Hardware Installation............................................................................3

Hard Drive Installation ..........................................................................4

Specications..........................................................................................8

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Product Diagram

Front View

Rear View

1. Power button

2. 1x 2.5” Drive bay/tray

3. 1x 2.5” Drive bay key hole

4. 1x Drive Tray Release Latches

1. 1x SATA power connector port

2. 1x SATA data connector port

Instruction Manual

Introduction

Packaging Contents

• 1x 1-Bay 2.5in SATA/SAS Hard Drive Backplane

• 2x Drive bay keys

• 1x 2.5” HDD/SSD Drive Tray

• 1x SATA cable

• 4x Drive mounting screw kit

• 4x Backplane mounting screw kit

• 1x Instruction Manual

System Requirements

• 1x 2.5in SATA/SAS hard drive

Computer System:

• 1x SATA/SAS host connector port

• 1x Available 3.5”bay

• 1x Available SATA power connection

Instruction Manual

WARNING! Hard drives and storage docks require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data may result.

Always handle your hard drive and storage device with caution. Be sure that you

are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

Hardware Installation

1. Ensure your computer system is powered down, and the power cable has been

disconnected from the Power Supply.

2. Open your computer case (refer to the computer user manual for details), and place

the 2.5in SATA/SAS HDD Backplane into the 3.5” slot, lining up the side installation

holes on the Backplane (pictured below), with installation holes on the 3. 5” slot

inside the computer.

3. Hold the Backplane into place, and x the four included drive bay screws (black)

through the installation holes on the 3.5”bay, into the side installation holes on the

Backplane.

Notes:

• While only four mounting points are required (two on either side), six mounting

holes are available to accommodate dierent styles of computer cases.

• Installation steps may vary depending on your computer case, refer to the

computer case user manual for details.

Instruction Manual

4. Connect the included SATA data cable from an available SATA/SAS host ports

on your motherboard to the SATA/SAS data connector port on the back of the

Backplane.

5. Connect a SATA Power connector from your power supply to the SATA power

connector port on the back of the backplane.

Hard Drive Installation

1. To remove the tray, squeeze the latch to release the door handle, pull the tray door

handle open and slide the tray out of the enclosure.

Note: If the drive is locked, insert either of the included bay keys into the 2.5in drive

bay key hole, and turn the key clockwise into the unlock position before attempting

to remove the tray.

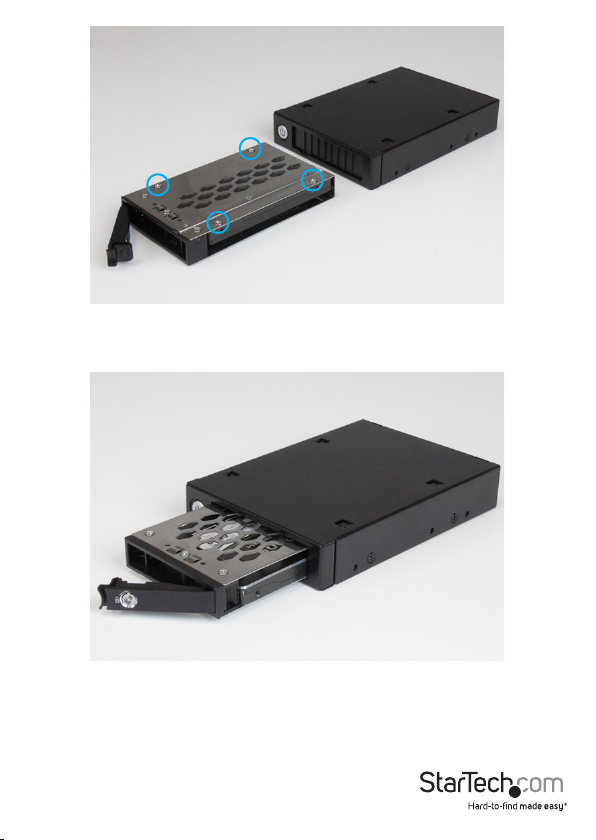

2. Insert your desired drive into the drive tray with the bottom mounting drive holes

in line with the mounting holes on the drive tray. Fix the drive to the drive tray using

four of the included drive screws (silver).

Instruction Manual

3. Slide the drive tray with installed hard drive back into the slot and close the door.

Instruction Manual

4. (Optional) If you would like to lock the drive door for added security, use the key to

turn the key counter clockwise into the locked position.

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.
