StarTech.com SATDOCKU3S Bedienungsanleitung

USB 3.0 Hard Drive Docking

Station

SuperSpeed USB 3.0 to SATA

Hard Drive Docking Station for

2.5”/3.5” SATA Hard Drives

SATDOCKU3S

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Front View....................................................................................2

Rear View ....................................................................................2

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................3

Using the Storage Device............................................... 4

Speciﬁcations.................................................................. 6

Technical Support........................................................... 7

Warranty Information...................................................... 7

Introduction

The StarTech.com SATDOCKU3S USB 3.0 Hard Drive Docking

Station delivers full and instant access to any 2.5” or 3.5” SATA hard

drive (SATA 1.5/3.0Gbps), without having to mount the drive inside a

computer or install it into an external enclosure. Connected through a

single USB 3.0 SuperSpeed or USB 2.0 HighSpeed connection, the

hard drive docking station provides a convenient, plug-and-play storage

solution.

Packaging Contents

1 x SATDOCKU3S hard drive docking station•

1 x USB 3.0 A-B cable•

1 x Universal Power Adapter•

3 x Power Adapter Cord (NA/UK/EU)•

1 x Instruction Manual•

System Requirements

USB enabled computer system with available port•

2.5” or 3.5” SATA 1.5/3.0Gbps hard drive•

Microsoft Windows• ®2000/XP/Vista/7 (32/64-bit),

or Apple Mac OS®X, or Linux

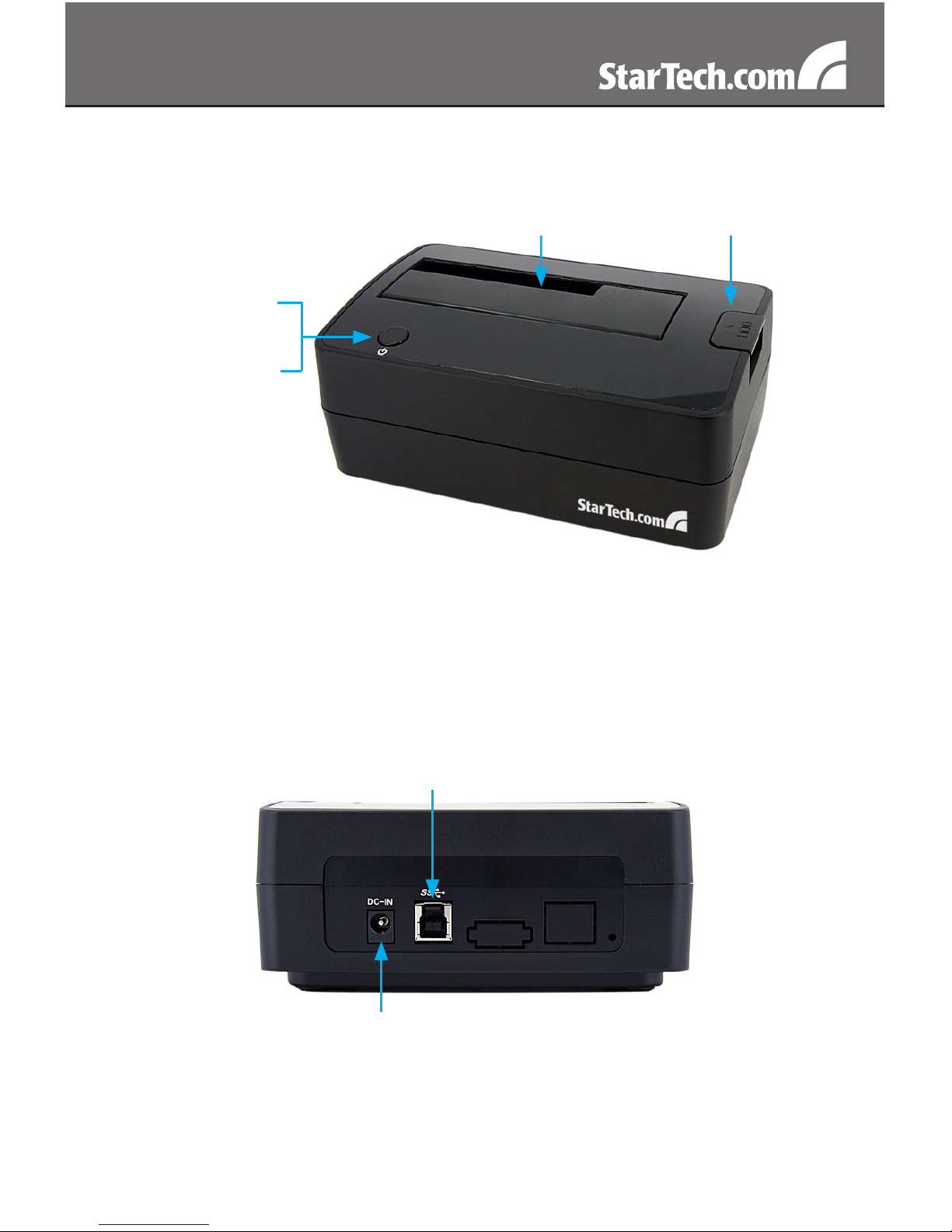

Front View

Rear View

Power

Button

Power/Activity

LED

Hard Drive slot

Hard Drive

Eject button

DC Power

connector

USB 3.0 type B

connector (Host)

Installation

WARNING: Hard drives require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data

may result. Always handle storage devices with caution.

Hardware Installation

Connect the external power adapter from the hard drive dock to a1.

power outlet.

Insert a 2.5” or 3.5” hard drive into the top loading slot. Make sure2.

that the connectors on the hard drive are facing the same corner of

the slot that has a cutout in the door. The label on the hard drive

should face the front of the hard drive dock.

Connect the included USB cable from the hard drive dock to an3.

available USB port on the computer system. The computer can be

on or off.

NOTE: A USB 2.0 A-B cable could also be used on the hard drive

dock.

Press the power button on the top of the hard drive dock. The Power4.

LED under the power button should light up.

To remove the hard drive, make sure it is currently not being5.

accessed by the computer then unmount or uninstall the disk drive

from the operating system (see documentation for your operating

system). Press the power button to turn off the hard drive dock and

wait for the drive to power down. Press the drive ejection button on

the top of the hard drive dock the release the drive. Then pull the

drive from the slot.

Driver Installation

Windows 2000/XP/Vista/7, Mac OS X, Linux

No driver installation is required for these operating systems, as

this hard drive dock is natively supported, so the drivers are already

installed.

Using the Storage Device

Windows 2000/XP/Vista/7

If you are using a brand new hard drive that does not contain any data,

then you will ﬁrst need to prepare the hard drive for use. From the

main desktop, right-click on “My Computer” (“Computer” in Vista/7),

then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity

to conﬁrm it’s the correct hard drive) and then right-click in the section

that says “Unallocated” and select “New Partition”.

The New Partition Wizard will appear. Follow the instructions in the

wizard to complete setting up the drive. Once complete, the Disk

should show up as “Healthy” with a drive letter assigned (i.e. E:). This

drive letter should now appear within My Computer.

If you are installing a hard drive that already has data on it, then after

plugging it in, the drive should automatically show up with a drive letter

assigned within My Computer.

Specications

Bus Interface USB 3.0

Connectors 1 x USB 3.0 type-B

1 x DC Power

LEDs 1 x Power/Activity

Chipset ID LucidPort USB300

Maximum Data Transfer Rate USB 3.0: 5Gbps

Compatible Hard Drives

2.5” or 3.5” SATA 1.5/3.0Gbps

with capacity up to 2TB

(500GB for 2.5”)

Power Adapter 12VDC, 2.5A, center positive

Dimensions 145.0mm x 93.0mm x 65.0mm

Weight 410g

Compatible Operating

Systems

Windows 2000/XP/Vista/7

(32/64-bit), Mac OS X,

Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.
