StarTech.com 410VDSLEXT Bedienungsanleitung

VDSL Ethernet LAN Extender

4-Port 10/100Mbps VDSL2

Ethernet Extender Kit

over Single Pair Wire

410VDSLEXT

410VDSLEXTGB

410VDSLEXTEU

Instruction Manual

Manual Revision:11/29/2010

For the most up-to-date information, please visit www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents..................................................................... 1

System Requirements ................................................................. 1

Front View.................................................................................... 2

Rear View .................................................................................... 2

Installation....................................................................... 3

Hardware Installation................................................................... 3

Driver Installation......................................................................... 3

Conﬁguration .................................................................. 3

Web Interface .............................................................................. 3

Setup Wizard (CPE Modem only)............................................ 4

Advanced Menu....................................................................... 4

Speciﬁcations.................................................................. 10

Technical Support........................................................... 11

Warranty Information...................................................... 11

Introduction

The 410VDSLEXT 10/100 4 Port VDSL2 Ethernet Extender Kit over

Single Pair Wire lets you span a 10/100 network over long distances

(up to 1km) to multiple users or network segments while maintaining

high-speed network connectivity.

With the ability to run the connection over new or existing RJ45 cabling,

RJ11 phone lines, or any other type of single pair wire, the 4 port

VDSL2 kit provides a simple to install, ready out-of-the-box solution

that includes both the Ethernet-VDSL2 extender and receiver units.

Perfect for connecting isolated user stations within a building or

between separate buildings, or overcoming infrastructure obstacles

(e.g. older stone/concrete architecture) where new wiring or wireless

may be impossible. This LAN extender kit helps to eliminate expense

by allowing video streaming and data to share the same telephone pair

without interference.

Packaging Contents

• 2 x VDSL2 Extender Unit (CO/CPE Modem)

• 1 x RJ11 cable

• 1 x RJ45 cable

• 2 x Power Adapter

• 1 x Software CD

System Requirements

• 10/100 Mbps Ethernet network

• Available AC electrical outlets

Rear View

Front View

Installation

Hardware Installation

1. Place each VDSL Extender unit at their respective end-point

locations. Make sure an AC electrical outlet is located nearby.

2. Connect the included power adapters to the pair of VDSL Extender

units. The Power LED should light up solid.

3. Connect the “Line” RJ11 connector on the VDSL Extender units

either directly together with patch cabling, or to a buildings existing

analog telephone wiring. If the two units are able to successfully

communicate with each other, the “WAN” LED should light up solid.

OPTIONAL: If the telephone wiring is also used for POTS telephone

service, then a telephone may be connected to the “Phone” RJ11

connector on the VDSL Extender units.

4. Connect each computer, or Ethernet networking device to an

available RJ45 connector on the VDSL Extender units. The

respective LAN LED should light up to indicate a successful physical

connection.

Driver Installation

No driver or software installation is required.

Conguration

Web Interface

Each of the VDSL Extender units have a built-in web interface, for

conﬁguring the router settings (WAN and LAN ports), if necessary.

The interface can be access via their IP addresses (CO Modem:

192.168.16.249, CPE Modem: 192.168.16.250). The default password

is: admin

The main menu screen on the CPE Modem has two options: “Setup

Wizard” for quick setup, and “Advanced Setup” for a more customized

conﬁguration. The CO Modem only has “Advanced Setup” options.

Setup Wizard (CPE Modem only)

The Setup Wizard allows for quick and easy conﬁguration of the most

common settings (WAN) for the VDSL Extender.

Advanced Menu

System

This section allows for general conﬁguration/administration of the VDSL

Extender unit.

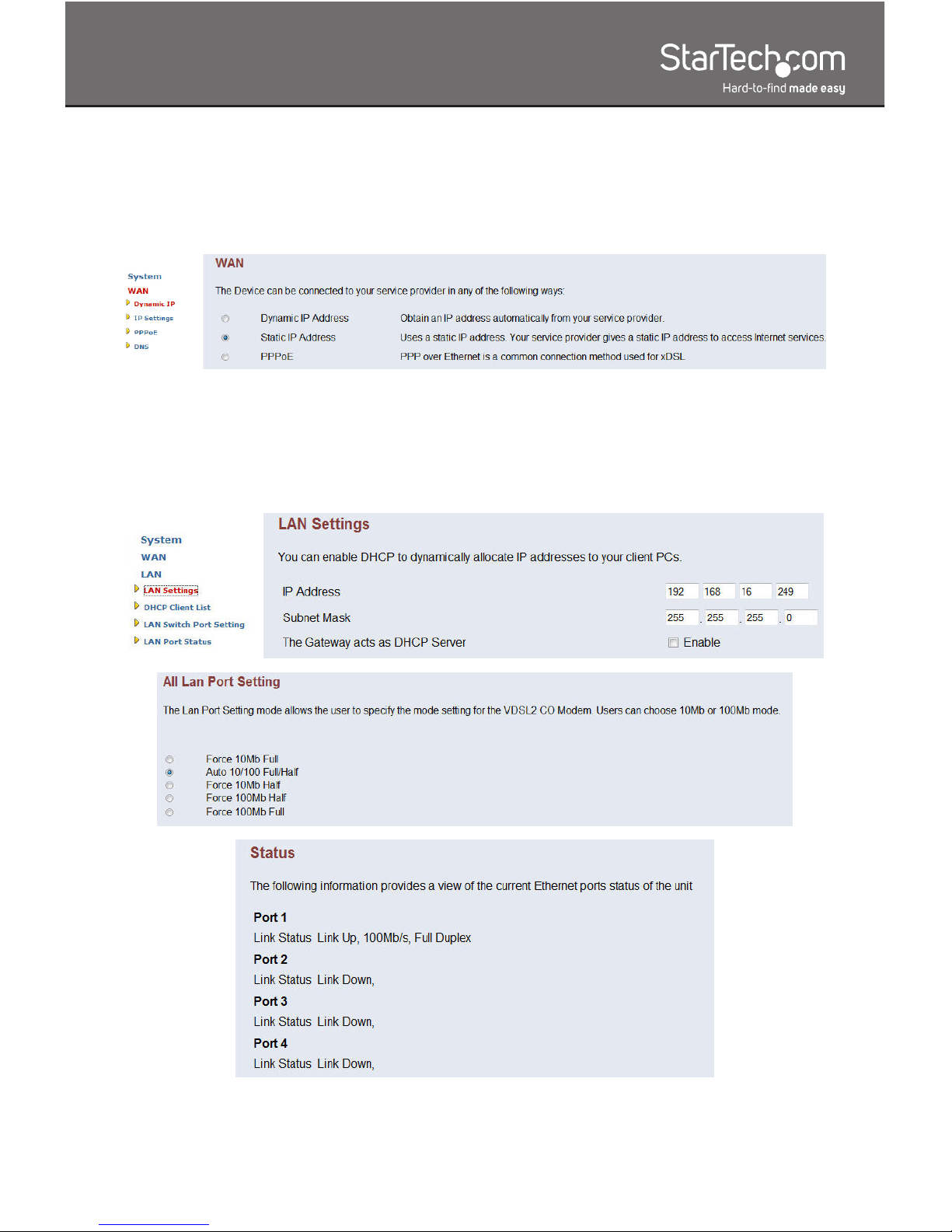

WAN

This section can conﬁgure how the built-in VDSL Modem connects to a

DSL Internet Service Provider (ISP) through the “Line” RJ11 connector.

The modem supports Dynamic IP, Static IP and PPPoE modes.

LAN

The LAN section is used to conﬁgure the IP address and DHCP server

on the RJ45 Ethernet side of the VDSL Extender unit. By default the

DHCP server is not enabled.

NAT

This section is used to conﬁgure the advanced features on the

Ethernet side of the VDSL Extender unit. This include “Virtual Server”,

“Port Mapping” and DMZ settings.
