StarTech.com SV565DUTPU Bedienungsanleitung

Manual Revision: 06/26/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SV565DUTPU

USB Dual VGA Cat5 KVM Console

Extender - 650ft/200m

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ............................................................................................1

Features ........................................................................................................................................................ 1

System Requirements .............................................................................................................................. 1

Packaging Contents ................................................................................................................................. 2

Connecting Your KVM Extender ..........................................................3

Preparing Your Site .................................................................................................................................. 3

Installation ..............................................................................................4

Installing the Local Unit .......................................................................................................................... 4

Installing the Remote Unit ..................................................................................................................... 4

Push-Button Control and LEDs.............................................................6

Push-Button on Remote Unit ................................................................................................................ 6

Push-Button on Local Unit ..................................................................................................................... 6

Video Compensation .............................................................................................................................. 7

Hotkey Commands.................................................................................8

Cascade Architecture ............................................................................................................................... 8

Mask Hotkey Switch ................................................................................................................................. 8

Hotkey Commands for both Remote Unit and Local Unit ......................................................... 10

Hotkey Commands for Local Unit ....................................................................................................... 12

Hotkey Commands for Remote Unit .................................................................................................. 13

Beep Codes ................................................................................................................................................. 14

Specications ..........................................................................................15

RJ-45 Connector Pinout ........................................................................16

Troubleshooting .....................................................................................17

Technical Support ..................................................................................19

Warranty Information ............................................................................19

Instruction Manual

Introduction

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you

Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed

locally, at high-denition 1920x1200 resolution. PC connection cables are included

with this product for a ready to use solution.

The dual VGA Cat5 KVM extender supports easy to use hot-key and push button

commands which allow you to switch between a locally connected system and your

remote server or KVM, and works with virtually any standard USB keyboard and mouse

including wireless sets. The hot-key commands also provide video adjustment controls

for optimizing picture quality over varying distances. Extending over two standard

Cat5 (or better) cables gives you the ability to use existing infrastructure wiring to

achieve remote access to your server or KVM switch.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Features

• Can be used with a single computer or connected to an existing dual-VGA KVM switch

• Easy installation using 2 industry-standard UTP network cables

• Intuitive hotkey commands

• Supports auto-switching between local and remote users or dedicated control

• USB computers are supported at the local and remote locations (USB keyboard and

mouse required for remote console)

• Independently adjust video quality, inclusive of Equalizer (sharpness), Gain

(brightness) and RGB skew

System Requirements

• 1 x integrated KVM cable each for the local and remote computers. Longer cables

are available from StarTech.com, part numbers: SVECONx (PS/2), SVECONUSx (USB)

• 2x unshielded Category 5/5e/6 twisted pair (UTP) straight-through network cable

terminated at each end with RJ-45 connectors (if using surface cabling)

• Unshielded Category 5/5e/6 twisted pair (UTP) straight-through network cable

terminated at each end in two wall-mounted outlets, with two standard Category

5/5e/6 patch cables, at both locations (if using premises cabling)

Instruction Manual

NOTE: The total length of cable between the Local and Remote Units cannot exceed

650 feet (200 meters), including patch cables (if used). It is suggested using Cat5 cables

with identical brand and length when connected simultaneously. Category 5e and 6

cabling is compatible with this product and may improve performance.

NOTE: Long cable lengths between the Local and Remote Units may adversely aect

image quality at high resolutions and refresh rates. If you need to run your remote

displays at high resolutions and frequencies, use as little cabling between locations as

possible and avoid practices such as “coiling” unused cable in a ceiling.

NOTE: This product will also control a KVM switch, allowing you to manage more than

one computer remotely. In this conguration, you can connect the KVM extender’s

Local Unit to the “console” ports on the KVM. You must use the provided power

adapters if using this conguration. You should set the Local Unit to Compatibility

Mode before connecting it to a KVM that uses the [Ctrl] key as its hotkey sequence; see

(Hotkey Commands) page 8 for details.

Packaging Contents

• 1x Local Unit

• 1x Remote Unit

• 2x 6 ft 2-in-1 USB VGA KVM cables

• 2x Packs Rubber Feet

• 1x Power Adapter

• 1x Instruction Manual

Instruction Manual

Connecting Your KVM Extender

Preparing Your Site

Before you can install the product, you need to prepare your site.

1. Determine where the local computer will be located and set up the computer.

2. Determine where the console devices (mouse, keyboard, monitor) will be located

and place them appropriately.

3. a) If you are using surface cabling, ensure you have enough Category 5 unshielded

twisted pair (UTP) network cabling to run two cables from the Local Unit to the Remote

Unit’s location, and that each end is terminated with a RJ-45 connector.

b) If you are using premises cabling, ensure that the Category 5 unshielded twisted

pair (UTP) network cabling between the Local Unit and the Remote Unit has been

properly terminated into wall outlets in each location and there is a patch cable long

enough to connect the Remote Unit and the Local Unit to their respective outlets.

Remote Unit Local Unit

(Option)

CAT5 1

Instruction Manual

Installation

Installing the Local Unit

1. Place the Local Unit near the computer.

2. Switch o the computer and disconnect any connected devices.

3. Using the provided StarTech.com integrated KVM cable, connect the end of the

cable that has the USB or PS/2 + VGA connectors to the VGA Out connectors and the

USB or mouse and keyboard PS/2 connectors on the computer as appropriate. (The

PS/2 version of the cable is color-coded.) Connect the opposite end of the cable

with a single connector to the gray-coded connector marked COMPUTER on the

Local Unit of the KVM extender.

4. Use Video cable for the connection between the video port on the computer side of

the Unit and the video output port of the connected Computer.

5. Use Video cable for the connection between the video port on the console side of

the Unit and the video input port of the connected monitor.

6. Use a CAT5 cable for the connection between the respective RJ45 port (Cat5 1 &

Cat5 2) on the Remote and Local Unit.

7. If you wish to have console access to the local computer, connect a USB mouse,

keyboard, and VGA monitors to the indicators marked as CONSOLE on the Local Unit.

8. Connect the UTP cable connections for Remote Unit to the NETWORK RJ-45

connector on the Local Unit. Connect the opposite end to a terminated wall outlet

(if you are using premises cabling).

Installing the Remote Unit

1. Place the Remote Unit near the computer.

2. Switch o the computer and disconnect any existing VGA and input connections.

3. Using a StarTech.com integrated KVM cable, connect the end of the cable that has

the USB or PS/2 + VGA connectors to the VGA Out connectors and the USB or mouse

and keyboard PS/2 connectors on the computer as appropriate. (The PS/2 version

of the cable is color-coded.) Connect the opposite end of the cable with a single

connector to the gray-coded connector marked COMPUTER on the Remote Unit of

the KVM extender.

4. Use Video cable for the connection between the video port on the computer side of

the Unit and the video output port of the connected Computer.

5. Use Video cable for the connection between the video port on the console side of

the Unit and the video input port of the connected monitor.

6. Use a CAT5 cable for the connection between the respective RJ45 port (Cat5 1 &

Cat5 2) on the Remote and Local Unit.

Instruction Manual

7. Connect a USB mouse, keyboard, and a VGA monitor to the indicators marked as

CONSOLE on the Remote Unit.

8. Connect the UTP cable connections for Remote Unit to the NETWORK RJ-45

connector on the Remote Unit. Connect the opposite end to a terminated wall

outlet (if using premises cabling).

CAUTION: The UTP network cables that connect the Local and Remote Units carry

electrical current and should not be plugged in to other devices, as they may cause

damage. We strongly recommend marking the cables you are using with this product

at both locations for easy identication.

Instruction Manual

Push-Button Control and LEDs

A push-button on the respective top panel of Local Unit and Remote Unit can be used

to select the control mode.

Push-Button on Remote Unit

The button on the top panel of Remote Unit can be used to switch mode between

Local and Remote in the sequence as the diagram shown below:

Local On: When the LED “Local” lights up, the system controls its local computer.

Remote On: When the LED “Remote” lights up, the system remotely controls the Local Unit.

Push-Button on Local Unit

The button on the top panel of Local Unit can be used to switch mode among Local,

Remote, and Auto in the sequence as the diagram shown below:

Auto: The LEDs “Remote” and “Local” ash alternatively, the system is now waiting for

the Remote or Local Unit to take control. The control priority is on the rst come,

rst served basis.

For example, once the keyboard or mouse attached to the Local Unit is active,

the LED “Local” will light up and the LED “Remote” will light o. This status

indicates that the Local Unit is now taking control of the system, and vice versa

for Remote Unit. In Auto mode, the duration of latch time for taking control can

be preset to 5, 15, 30, or 60 seconds via hotkeys, which allows the Local or

Remote Unit to resume control again via any keystroke or mouse activity if the

latch time is due and the status returns to the “Auto” mode.

In “Auto” mode, whenever, any activity from the keyboard, mouse buttons or

mouse scroll wheel is detected, the Unit (Local Unit or Remote Unit) immediately

takes control of the system.

Local On: The LED “Local” lights up, the connected PC (or KVM Switch) is controlled by

the Local Unit. In this case, 3 LEDs (Num, Caps and Scroll Lock) ash on the

keyboard attached to the Remote Unit.

Remote On: The LED “Remote” lights up, the system can be remotely controlled by the

Remote Unit.

Local On Remote On

Auto Local On Remote On

Instruction Manual

Video Compensation

Video Compensation allows the user to adjust the equalization from the Remote Unit

console to optimize video performance based on the length of cable being used, as

well as other factors that may aect the display, with adjustments available for Equalizer

(Sharpness), Gain (Brightness) and Skew (RGB). To compensate the varying lengths of

CAT 5 / CAT 5e / CAT 6 cable, there 16 levels on coarse tune and up to 128/256 scales on

ne tune are available for adjustment on the equalizer and gain. There are also 8 levels

on coarse tune and 16/32 scales on ne tune are available for skew adjustment on Red,

Green and Blue. Please refer to the section below titled Hotkey Commands for Remote

Unit for details on how to apply video compensation settings.

Note:

1. The video adjustment is available on the Remote Unit ONLY.

2. The video adjustment is applicable only if the CATx cable is connected and the

Remote Unit is in control

3. The idle time-out of Video Adjustment is 30 seconds. That is, it will automatically

escape from video adjustment status if no activity is detected by the keyboard

within 30 seconds.

You can activate video adjustment on the Remote Unit either through hotkeys or push-

button. The Unit is capable of hotkey control whether the Mask Hotkey is OFF or ON.

When the Video Adjustment mode is activated, the Numeric Lock and Scroll Lock LED

on the keyboard connected to the Remote Unit will ash respectively. Then, you can

perform the video adjustment by hotkey commands as the table shown below.

To exit the video adjustment status, three approaches are available:

1. No activity is detected by the keyboard for 30 seconds.

2. Push the Esc key once on the keyboard attached to the Remote Unit

3. Push the push-button on the top panel of the Remote Unit once

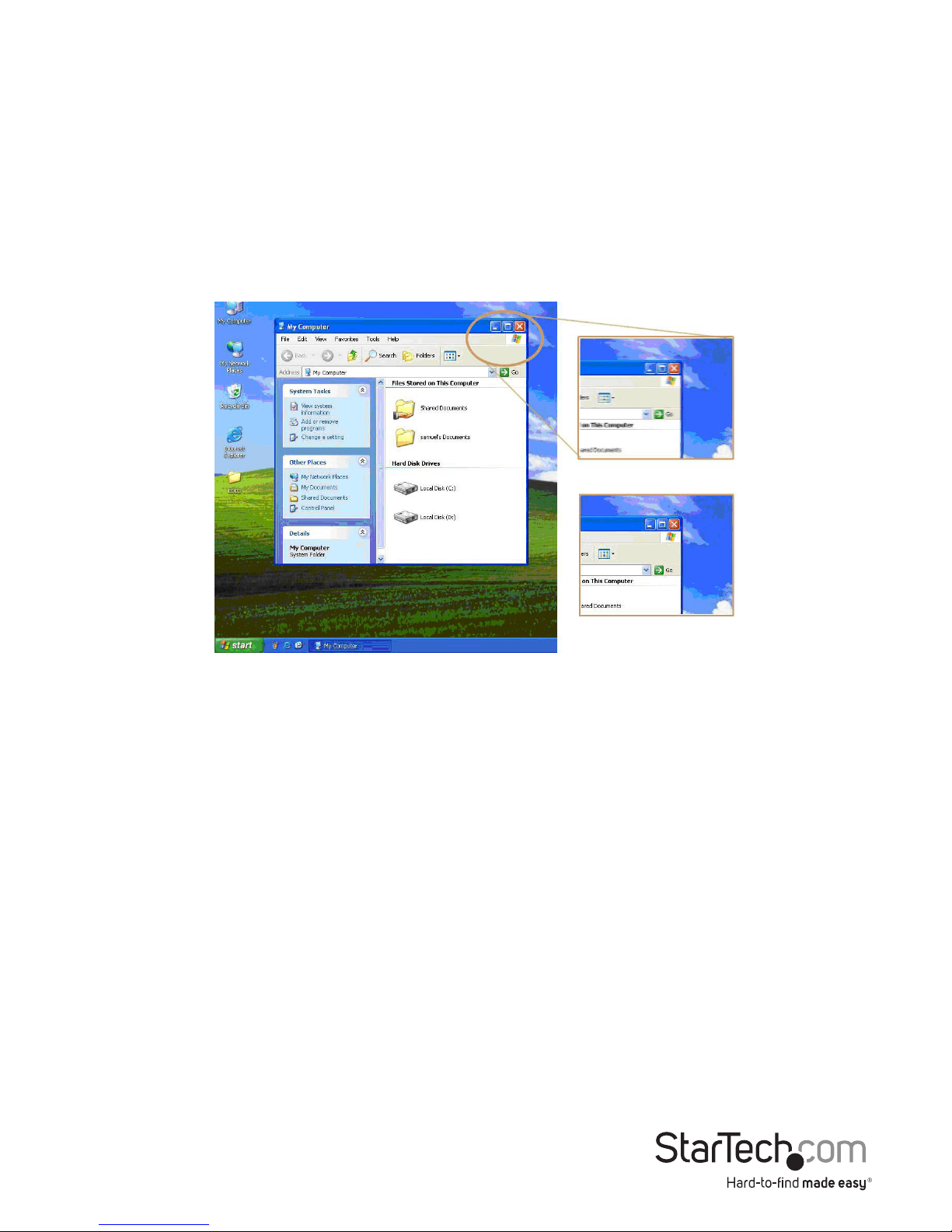

Before Video Compensation

After Video Compensation

Inhaltsverzeichnis

Andere StarTech.com Extender Handbücher

StarTech.com

StarTech.com STDHVHDBT Bedienungsanleitung

StarTech.com

StarTech.com ST124UTPEA Bedienungsanleitung

StarTech.com

StarTech.com ST121WHDS Bedienungsanleitung

StarTech.com

StarTech.com USB2004EXTGB Bedienungsanleitung

StarTech.com

StarTech.com ST222HDBT Bedienungsanleitung

StarTech.com

StarTech.com USBthere USB204EXTFIB Bedienungsanleitung

StarTech.com

StarTech.com USBthere USB204EXT Bedienungsanleitung

StarTech.com

StarTech.com SV565UTPUSA Bedienungsanleitung

StarTech.com

StarTech.com F35023-USB-EXTENDER Bedienungsanleitung

StarTech.com

StarTech.com USB2004EXTV Bedienungsanleitung

StarTech.com

StarTech.com ST1218T Bedienungsanleitung

StarTech.com

StarTech.com 110VDSLEXT2 Bedienungsanleitung

StarTech.com

StarTech.com 8STST12MHDLAN Bedienungsanleitung

StarTech.com

StarTech.com USBthere USB201EXT Bedienungsanleitung

StarTech.com

StarTech.com USB2G4LEXT2NA Bedienungsanleitung

StarTech.com

StarTech.com ST121HDT4P Bedienungsanleitung

StarTech.com

StarTech.com ST121UTPDVI Bedienungsanleitung

StarTech.com

StarTech.com WIFI2VGA Bedienungsanleitung

StarTech.com

StarTech.com USBthere USB221EXT Bedienungsanleitung

StarTech.com

StarTech.com SV565LANDUA Bedienungsanleitung

StarTech.com

StarTech.com ST121USBHD Bedienungsanleitung

StarTech.com

StarTech.com USBthere USB120EXT Bedienungsanleitung

StarTech.com

StarTech.com USB110EXT2 Bedienungsanleitung

StarTech.com

StarTech.com SV565UTPUSA Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
