SV565UTPUL

Long Range VGA USB KVM Console

Extender over Cat5 UTP - 1000 ft

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Features ........................................................................................................................................................ 1

System Requirements .............................................................................................................................. 1

Package Contents ..................................................................................................................................... 2

Connecting Your KVM Extender ...........................................................3

Preparing Your Site ................................................................................................................................... 3

Installing the Remote Unit ..................................................................................................................... 5

Mask Hotkey Switch ................................................................................................................................. 5

Video Calibration (Remote Unit only) ................................................6

Using the KVM Extender .......................................................................8

Using the Host Unit .................................................................................................................................. 8

Keyboard Shortcut Command Sequences ....................................................................................... 9

Beep Codes .................................................................................................................................................. 11

LED Indicators............................................................................................................................................. 12

Alternative Hot-Key Control .................................................................................................................. 14

Command Sequence - Host Unit ......................................................................................................... 14

Specications ..........................................................................................15

RJ-45 Connector Pinout .......................................................................................................................... 15

Technical Support ..................................................................................16

Warranty Information ............................................................................16

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com KVM extender. This product allows a

computer to control a host system from a remote location at a distance of up to 984

feet (300 meters). For ease of installation, this product uses standard Category 5, 5E, or

6 network cabling that ts easily into almost any existing network infrastructure. For

added versatility, the KVM extender supports either PS/2 or USB computer interfaces.

Console support is provided using standard USB and VGA connectors.

Features

• Can be used with a single computer or connected to an existing KVM switch

• Easy installation using industry-standard UTP network cable

• Intuitive hotkey commands

• Supports auto-switching between host and remote users or dedicated control

• USB computers are supported at the host and remote locations (USB keyboard and

mouse required for remote console)

System Requirements

• 1 x StarTech.com integrated KVM cable for each, the host (included) and remote

(optional) computer connections. If necessary, longer cables are available,

StarTech.com ID: SVECONx (PS/2), SVECONUSx (USB)

• Unshielded Category 5/5e/6 twisted pair (UTP) straight-through network cable

terminated at each end with RJ-45 connectors (if using surface cabling)

Unshielded Category 5/5e/6 twisted pair (UTP) straight-through network cable

terminated at each end in a wall-mounted outlet, with a standard Category 5/5e/6

patch cable, at both locations (if using premises cabling)

NOTE: The total length of cable between the Host and Remote Units cannot exceed

984 feet (300 meters), including patch cables (if used). Category 5e and 6 cabling is

compatible with this product and may improve performance.

NOTE: Long cable lengths between the Host and Remote Units may adversely aect

image quality at high resolutions and refresh rates. If you need to run your remote

displays at high resolutions and frequencies, use as little cabling between locations as

possible and avoid practices such as “coiling” unused cable in a ceiling.

Instruction Manual

This product will also control a KVM switch, allowing you to manage more than one

computer remotely. In this conguration, you can connect the KVM extender’s Host Unit

to the “console” ports on the KVM. You must use the provided power adapters if using this

conguration. You should set the Host Unit to Compatibility Mode before connecting it to

a KVM that uses the [Ctrl] key as its hotkey sequence; see page 7 for details.

Package Contents

• 1 x Host Unit

• 1 x Remote Unit

• 1 x Instruction Manual

• 1 x Power adapter

• 2 x 6 ft. 2-in-1 USB VGA KVM cable

• 2 x Set of rubber mounting feet

Instruction Manual

Connecting Your KVM Extender

Preparing Your Site

Before you can install the product, you need to prepare your site.

1. Determine where the Host computer will be located and set up the computer.

2. Determine where the console devices (mouse, keyboard, monitor) will be located

and place them appropriately.

3. a) If you are using surface cabling, ensure you have enough Category 5 unshielded

twisted pair (UTP) network cabling to connect the Host Unit to the Remote Unit’s

location, and that each end is terminated with a RJ-45 connector. The cabling should

not go through any networking equipment (i.e. router, switch).

b) If you are using premises cabling, ensure that the Category 5 unshielded twisted

pair (UTP) network cabling between the Host Unit and the Remote Unit has been

properly terminated in a wall outlet in each location and there is a patch cable long

enough to connect the Remote Unit and the Host Unit to their respective outlets.

The cabling should not go through any networking equipment (i.e. router, switch).

Instruction Manual

Installing the Host Unit

1. Place the Host Unit near the Host computer system.

2. Switch o the computer and disconnect any connected devices.

3. Using the provided StarTech.com integrated KVM cable, connect the end of the cable

that has two (USB) or three (PS/2 + VGA) connectors to the VGA Out connector and the

USB or mouse and keyboard PS/2 connectors on the Host computer as appropriate.

(The PS/2 version of the cable is color-coded). Connect the opposite end of the cable

with a single connector to the gray-coded connector marked COMPUTER on the Host

Unit of the KVM extender.

4. If you wish to have local console access to the host computer, connect a USB mouse,

keyboard, and VGA monitor to the indicators marked as CONSOLE on the Host Unit.

5. Connect the UTP cable connection for the Remote Unit to the NETWORK RJ-45

connector on the Host Unit. Connect the opposite end to a terminated wall outlet

(if you are using premises cabling) or run it directly to the Remote Unit.

NOTE: The Host Unit can draw power from the Host computer system. If it cannot

draw sucient power from the Host computer, however, a power adapter (not

included) may be required.

Instruction Manual

Installing the Remote Unit

1. Place the Remote Unit near the remote keyboard/mouse/monitor setup.

2. Connect the USB mouse, keyboard, and a VGA monitor to the indicators marked as

CONSOLE on the Remote Unit.

OPTIONAL: If connecting a computer system directly to the Remote Unit, switch

o the computer and disconnect any existing VGA and input connections. Using a

StarTech.com integrated KVM cable, connect the end of the cable that has two (USB) or

three (PS/2) connectors to the VGA Out connector and the USB or mouse and keyboard

PS/2 connectors on the computer as appropriate. (The PS/2 version of the cable is

color-coded.) Connect the opposite end of the cable with a single connector to the

gray-coded connector marked COMPUTER on the Remote Unit of the KVM extender.

3. Connect the UTP cable connection for Remote Unit to the NETWORK RJ-45

connector on the Remote Unit. Connect the opposite end to a terminated wall

outlet (if using premises cabling).

4. Connect the power adapter from an electrical outlet to the Remote Unit.

WARNING! The UTP network cables that connect the Host and Remote Units carry

electrical current and should not be plugged in to other devices, as they may cause

damage. We strongly recommend marking the cables you are using with this product

at both locations for easy identication.

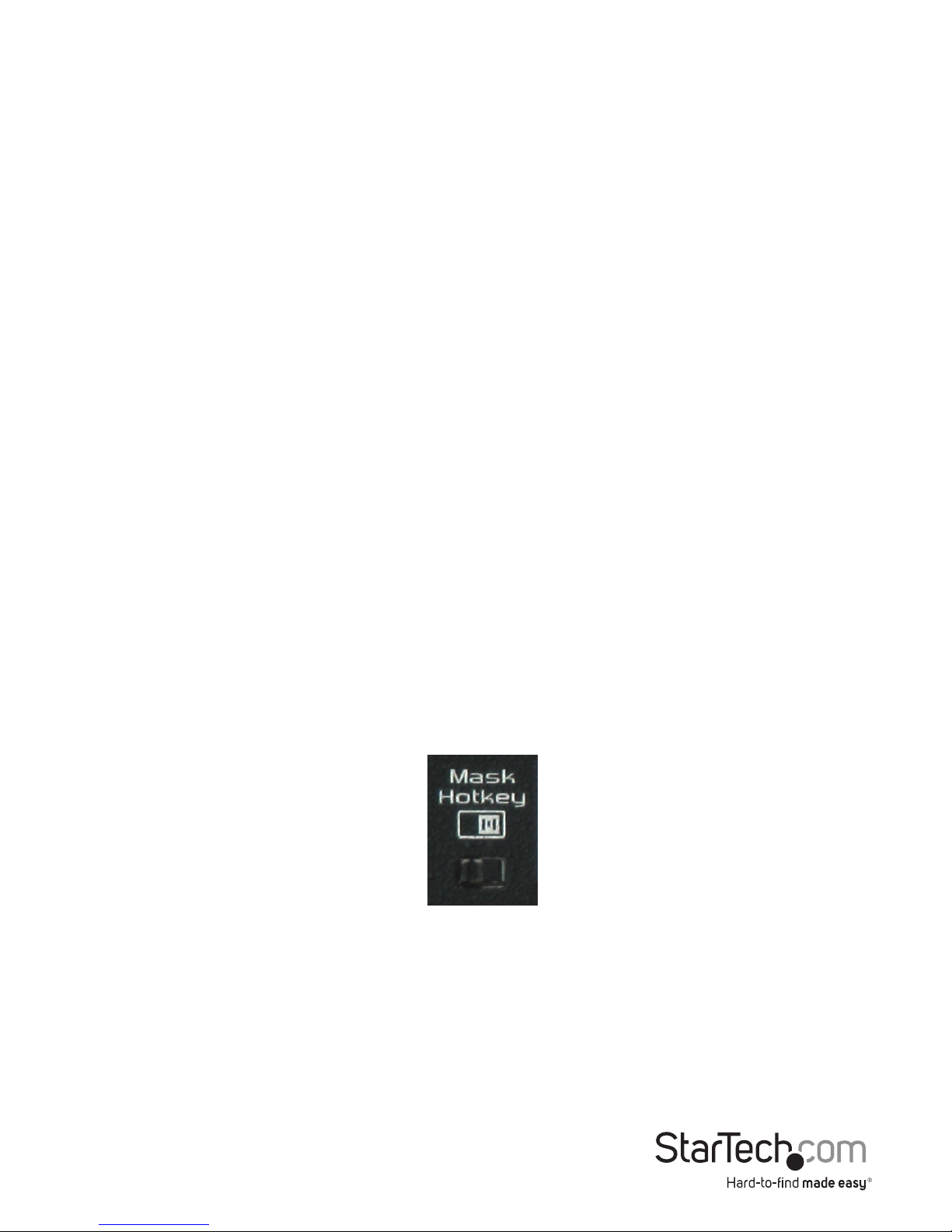

Mask Hotkey Switch

The Mask Hotkey switch on the rear panel of both the Host and Remote Units is a

feature for use when a KVM switch is being used. Setting the switch to ON or OFF will

Mask (disable) the units built in hotkey detection, allowing the controls keys to be sent

directly to the KVM switch.

ONOFF

Instruction Manual

Video Calibration (Remote Unit only)

Video Calibration allows the user to adjust the equalization, gain and RGB skew on

the Remote Unit to optimize video performance based on the length of the UTP cable

being used, as well as other factors that may aect the signal.

There are 16 levels of coarse tuning and up to 128/256 scales of ne tuning available for

adjustment of the equalizer and gain. Skew adjustment for red, green and blue colour

channels come in 8 levels of coarse adjustment and 16/32 scales of ne adjustment.

NOTE: Video Calibration is only available when the UTP cable is connected and the

Remote unit has control of the Host computer system.

To enter Video Calibration Mode:

left [CTRL] - left [CTRL] - [F11]

To enter Video Calibration Mode while in Compatibility Mode:

left [CTRL] - left [CTRL] - [E] - [F11]

When in Video Calibration mode, the Num Lock and Scroll Lock LEDs on the keyboard

will ash simultaneously. Video calibration can now be performed. Refer to the table

for the dierent adjustment options.

Before Video Calibration

After Video Calibration

Instruction Manual

Hotkey Description

[E]

Equalizer Adjustment (Sharpness):

Num Lock and Caps Lock LEDs will ash.

Press the left or right arrow keys for coarse tuning.

Press and hold [SHIFT] and use the left and right arrow keys for

ne tuning.

Gain Adjustment (Brightness):

Caps Lock and Scroll Lock LEDs will ash.

Press the up or down arrow keys for coarse tuning.

Press and hold [SHIFT] and use the up or down arrow keys for

ne tuning.

[R]

Red Skew Adjustment:

Num Lock LED will ash.

Press the left or right arrow keys for coarse tuning.

Press and hold [SHIFT] and use the left and right arrow keys for

ne tuning.

[G]

Green Skew Adjustment:

Caps Lock LED will ash.

Press the left and right arrow keys for coarse tuning.

Press and hold [SHIFT] and use the left and right arrow keys for

ne tuning.

[B]

Blue Skew Adjustment:

Scroll Lock LED will ash.

Press the left and right arrow keys for coarse tuning.

Press and hold [SHIFT] and use the left and right arrow keys for

ne tuning.

[ESC] Exit Video Calibration mode. There is also a 30 sec. timeout based

on keyboard input.

Andere Handbücher für SV565UTPUL

Inhaltsverzeichnis

Andere StarTech.com Extender Handbücher

StarTech.com

StarTech.com USBthere USB204EXT Bedienungsanleitung

StarTech.com

StarTech.com ST122UTPA Bedienungsanleitung

StarTech.com

StarTech.com ST121HD20L Bedienungsanleitung

StarTech.com

StarTech.com ST121R Bedienungsanleitung

StarTech.com

StarTech.com 8STSV565HDIP Bedienungsanleitung

StarTech.com

StarTech.com SV565UTPU Bedienungsanleitung

StarTech.com

StarTech.com USBthere USB110EXT Bedienungsanleitung

StarTech.com

StarTech.com ST121UTP Bedienungsanleitung

StarTech.com

StarTech.com 410VDSLEXT Bedienungsanleitung

StarTech.com

StarTech.com SV565UTPU Bedienungsanleitung

StarTech.com

StarTech.com ST121HDBTU Bedienungsanleitung

StarTech.com

StarTech.com USBthere USB204EXTFIB Bedienungsanleitung

StarTech.com

StarTech.com SV565UTPU Bedienungsanleitung

StarTech.com

StarTech.com ST121HD20FXA Bedienungsanleitung

StarTech.com

StarTech.com SV565UTPDUA Bedienungsanleitung

StarTech.com

StarTech.com ST121HD20FXA2 Bedienungsanleitung

StarTech.com

StarTech.com 0065030863223 Bedienungsanleitung

StarTech.com

StarTech.com SV565FXHD4KU Bedienungsanleitung

StarTech.com

StarTech.com 8STST12MHDLAN Bedienungsanleitung

StarTech.com

StarTech.com IPUSB2HD3 Bedienungsanleitung

StarTech.com

StarTech.com USB2004EXTV Bedienungsanleitung

StarTech.com

StarTech.com ST1212T Bedienungsanleitung

StarTech.com

StarTech.com ST1214T Bedienungsanleitung

StarTech.com

StarTech.com USBthere USB221EXT Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
