StarTech.com HDMI2HDMI Bedienungsanleitung
HDMI to HDMI Scaler / Converter
with Audio Separation
HDMI2HDMI
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver•
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected
names and/or symbols of third-party companies not related in any way to StarTech.com.
Where they occur these references are for illustrative purposes only and do not represent an
endorsement of a product or service by StarTech.com, or an endorsement of the product(s)
to which this manual applies by the third-party company in question. Regardless of any
direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
i
Instruction Manual
Table of Contents
Introduction ................................................................................... 1
Package contents ........................................................................1
Operating Controls and Functions .............................................. 2
Front Panel ..................................................................................2
Rear Panel...................................................................................3
OSD Operation............................................................................... 4
Connection and Installation ......................................................... 5
Supported Resolutions................................................................. 5
Specifications ................................................................................ 6
Technical Support ......................................................................... 7
Warranty Information .................................................................... 7
Instruction Manual
1
Introduction
Thank you for purchasing a StarTech.com HDMI to HDMI Scaler/
Converter with Audio Separation. This compact device accepts HDMI
input with a separate Toslink or analog audio signal, and scales it to HDMI
output - adjusting the resolution to match the display’s native resolution,
while allowing you to add external analog or digital audio that can be
combined with the HDMI video signal or separated to an analog or digital
output.
Features
HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant•
Supports 50/60Hz frame rate conversion•
Supports 3-D motion video adaptive de-interlacing,•
Supports 3:2 / 2:2 pull-down detection and recovery•
Output picture adjustment•
Supports digital and analog audio input and output•
Package contents
This package should contain:
1 x• HDMI to HDMI Scaler with Audio Separation
1 x 5VDC Power Supply Adapter•
1 x Instruction Manual•
Instruction Manual
2
Operating Controls and Functions
Front Panel

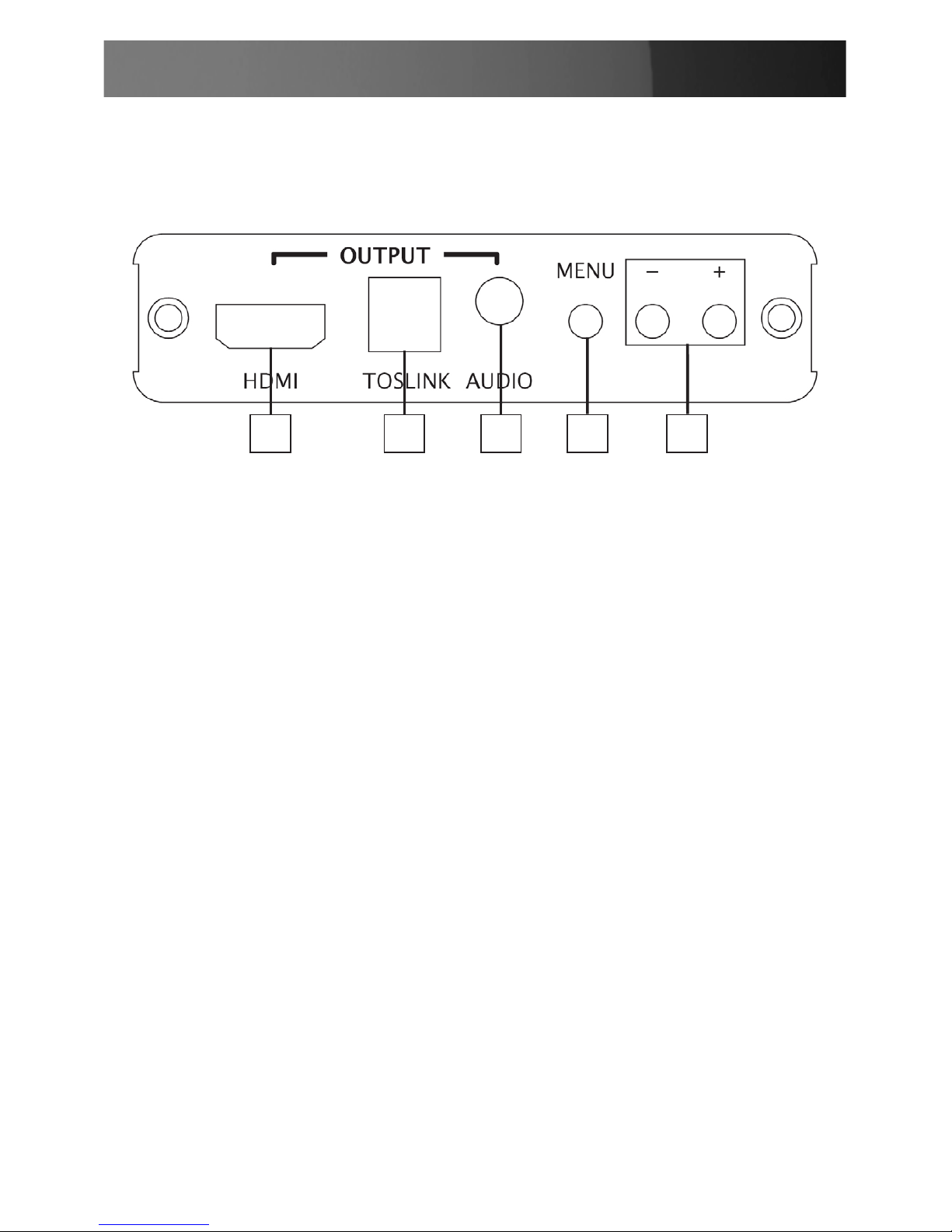

HDMI OUTPUT:1. Connect the HDMI output port to the HDMI input port
of your display.
TOSLINK OUTPUT:2. Connect the digital audio output port to the input
port of your digital audio equipment (i.e.
amplifier or receiver, using Optical Fiber cable.
AUDIO OUTPUT:3. Connect the analog audio output port to the input
port of your analog audio equipment (speakers etc.)
MENU Button4.
a. Press the MENU button to bring up OSD operation menu
b. When in the OSD menu mode, use MENU button as an OK key to
confirm the selection.
+/- Buttons:5.
a. On the first tier of OSD menu, use + and - buttons to scroll up/down
the highlight bar for selection.
b. Once the desired option is selected, use + and - buttons to toggle
between setting values.
1 2 3 4 5
Instruction Manual
3
Operating Controls and Functions - Cont’d
Rear Panel
HDMI INPUT:1. Connect the HDMI input port to the HDMI output port of
your source equipment (i.e. DVD player or Set-Top-Box)
AUDIO INPUT:2. Connect the analog audio input port to the output port
of your source equipment
TOSLINK INPUT:3. Connect the digital audio input port to the Toslink
output port of your source equipment such as DVD
player or Set-Top-Box
Power Supply:4. Plug the 5VDC power supply into the unit and connect
the adaptor to AC wall outlet.
12 3 4
Instruction Manual
4
OSD Operation
1st Tier Option 2nd Tier
Option Adjustment/Function
CONTRAST 0 ~ 100% of Contrast Level
BRIGHTNESS 0 ~ 100% of Brightness Level
FINETUNE
HUE 0 ~ 100% of Hue Level
SATURATION 0 ~ 100% of Saturation Level
SHARPNESS 0 ~ 100% of Sharpness Level
EXIT Back to 1st Tier
COLOR
RED 0 ~ 100% of Red Color Level
GREEN 0 ~ 100% of Green Color Level
BLUE 0 ~ 100% of Blue Color Level
EXIT Back to 1 Tier
OUTPUT
NATIVE / VGA / SVGA / XGA / SXGA /
UXGA / 480i / 480p / 720p@60Hz /
1080i@60Hz / 1080p@60Hz / 576i / 576p /
720p@50Hz / 1080i@50Hz /1080p@50Hz /
WXGA / WSXGA / WUXGA
AUDIO HDMI / EAR PHONE / OPTICAL
OSD
HPOSITION 0 ~ 100% of OSD Horizontal Position
VPOSITION 0 ~ 100% of OSD Vertical Position
TIMER 0 ~ 100% of OSD Existing Time (sec.)
TRANSP 0 ~ 100% of OSD Transparent Level
EXIT Back to 1st Tier
INFORMATION
SOURCE (Input Interface)
INPUT (Input Resolution)
OUTPUT (Output Resolution)
VERSION (Firmware Version)
EXIT Close OSD Menu
Instruction Manual
5
Connection and Installation
Supported Resolutions
Input
PC VGA@60Hz, 72Hz, 75Hz, 85Hz; SVGA@52Hz, 60Hz, 72Hz,
75Hz, 85Hz
XGA@60Hz, 70Hz, 75Hz, 85Hz; SXGA@60Hz, 75Hz, 85Hz,
UXGA@60Hz; WXGA@60Hz; WSXGA@60Hz; WUXGA@60Hz;
TV 480i, 480p, 576i, 576p, 720p @50/60Hz
1080i@25/30Hz; 1080p@50/60Hz
Output
PC VGA@60Hz, 72Hz, 75Hz, 85Hz; SVGA@52Hz, 60Hz, 72Hz, 75Hz,
85Hz
XGA@60Hz, 70Hz, 75Hz, 85Hz; SXGA@60Hz, 75Hz, 85Hz;
UXGA@60Hz; WXGA@60Hz; WSXGA@60Hz; WUXGA@60Hz
TV 480i, 480p, 576i, 576p, 720p @50/60Hz
1080i@25/30Hz, 1080p@50/60Hz
Input Device
HDMI Cable
HDMI to HDMI
Scaler Box
HDMI Cable
Instruction Manual
6
Specications
Frequency Bandwidth 1.65Gbps (single link)
Input Ports 1 x HDMI; 1 x Toslink; 1 x 3.5mm Audio jack
Output Ports 1 x HDMI; 1 x Toslink;1 x 3.5mm Audio jack
Power 5V/2.6A DC Power Supply
Dimensions 102(w) x 145(d) x 25(h)mm
Weight 3.2Kgs
Instruction Manual
7
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commit-
ment to provide industry-leading solutions. If you ever need help with your
product, visit www.startech.com/support and access our comprehensive
selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a one-year warranty. In addition, StarTech.com
warrants its products against defects in materials and workmanship for the
periods noted, following the initial date of purchase. During this period,
the products may be returned for repair, or replacement with equivalent
products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages
arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA
LLP (or their officers, directors, employees or agents) for any damages
(whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of profits, loss of business, or any pecuniary loss, arising
out of or related to the use of the product exceed the actual price paid
for the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages. If such laws apply, the limitations or
exclusions contained in this statement may not apply to you.
