State Water Heaters SBD71120NE Anwendungshandbuch
- 1 -
State Water Heater Parts Fulllment • 1-800-821-2017 • www.statewaterheaters.com
COMMERCIAL TANK TYPE WATER HEATER
REPLACEMENT PARTS LIST
MODELS SBD71120NE - SBD100400NE/A:
STANDARD AND ASME (A)
SERIES 118, 119
PRINTED 0507 197307-001
12
Damper Drive Assembly
11
18 16
1
26
27
Harness - Control
24
Gas Valve - Natural
19
Gas Valve - LP
20
- 2 -

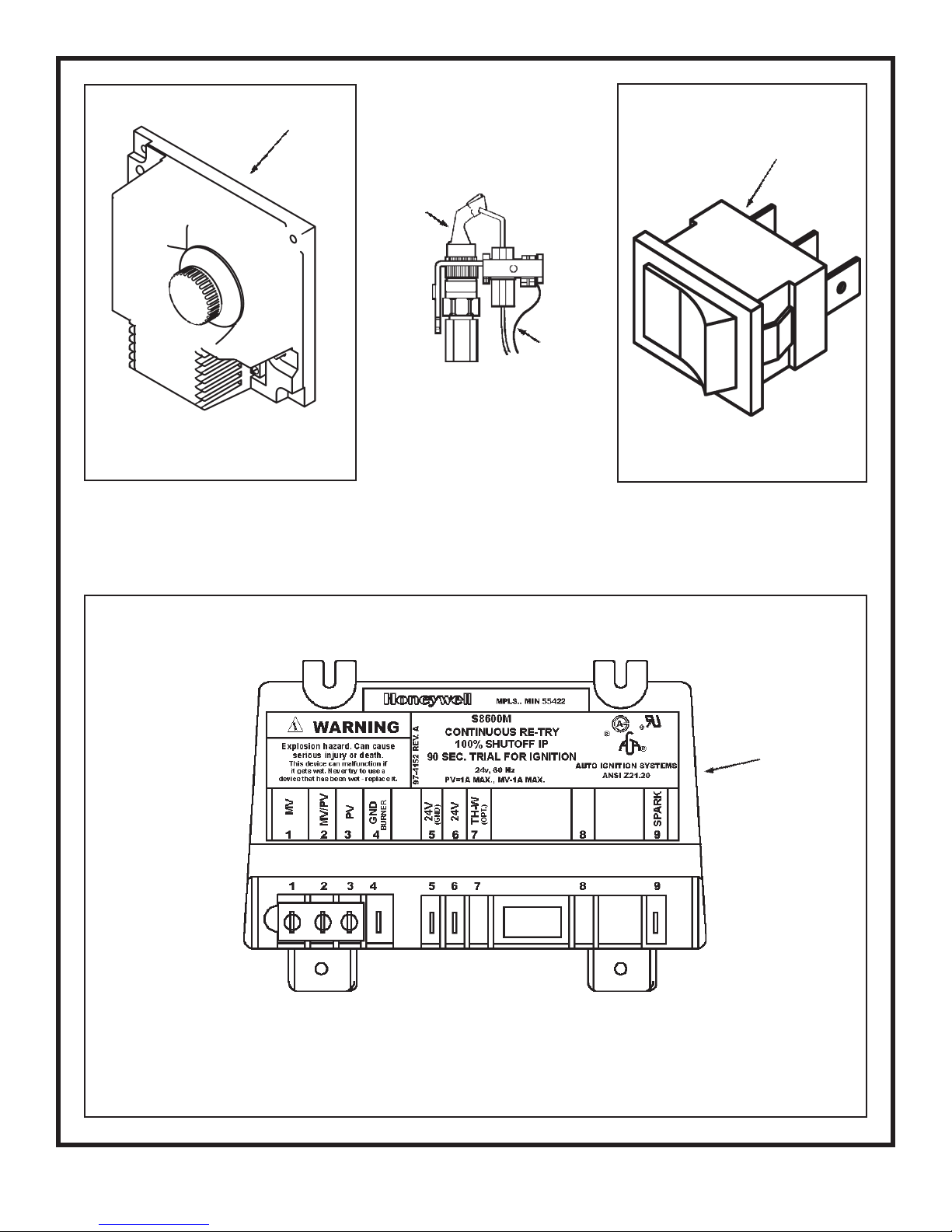

23
4, 5
10
On Off Switch
Control Thermostat
7
6
Honeywell Control Ignition Module
- 3 -

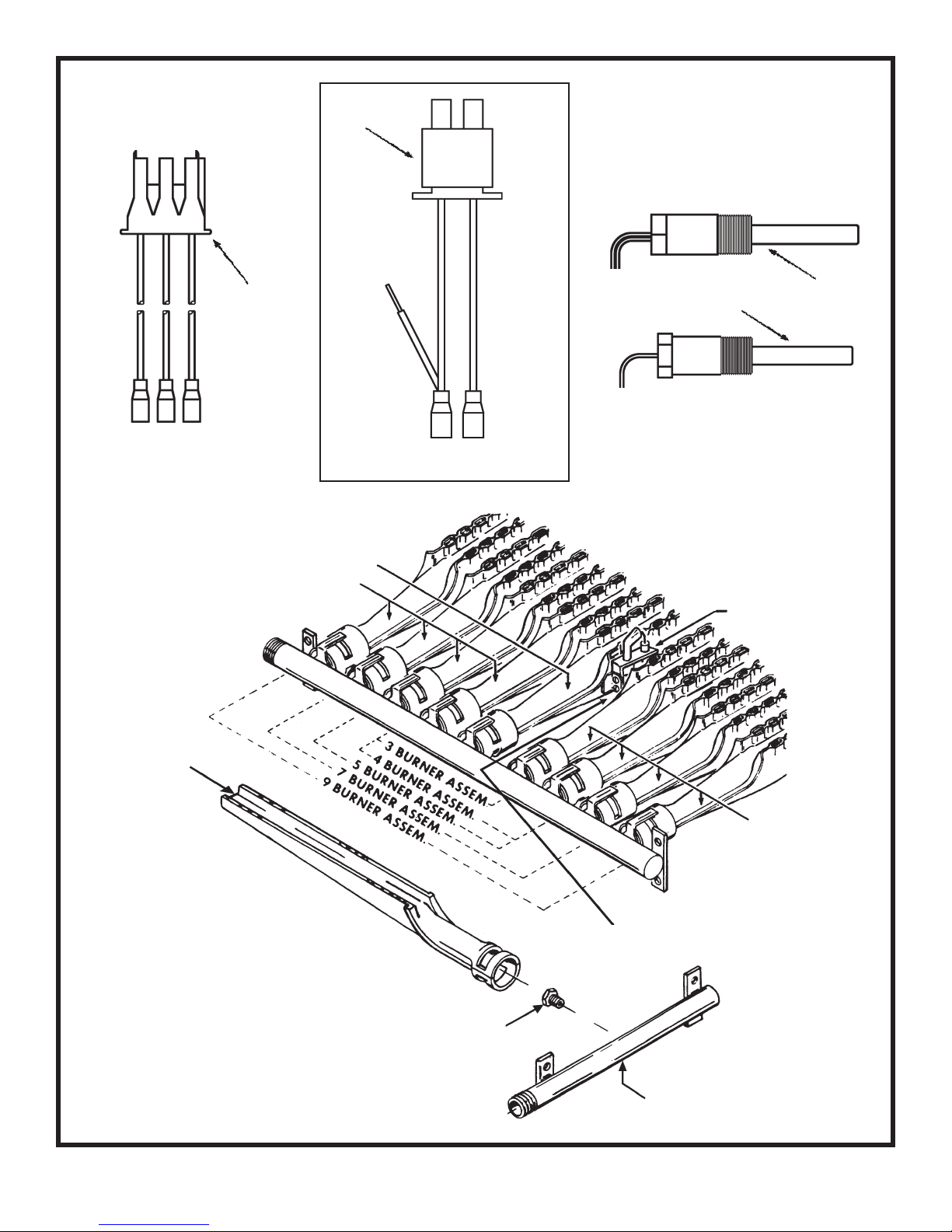

13
14,15
3
2
3
2
9
8
21, 22
Harness Power
25
- 4 -
SBD
SBD
SBD
SBD
ITEM PARTS DESCRIPTION SBD71120NE SBD81154NE SBD81180NE SBD100199NET SBD100199NE
1............ Flue Bafe......................................9005288 ...........9005284 ............9005823 ...............9005289 ................9005289
2............ Main Burner ...................................9005889 ...........9005889 ............9005889 ...............9005889 ................9005889
3............ Main Burner w/Pilot Bracket ..........9005291 ...........9005291 ............9005291 ...............9005291 ................9005291
4............ Pilot Burner, Natural.......................9004541 ...........9004541 ............9004541 ...............9004541 ................9004541
5............ Pilot Burner, LP ..............................9004542 ...........9004542 ............9004542 ...............9004542 ................9004542
6............ Control, Ignition Module .................9004544 ...........9004544 ............ 9004544 ...............9004544 ................9004544
7............ Control Thermostat ........................9004570 ...........9004570 ............9004570 ...............9004570 ................9004570
8............ Lower Probe ..................................9006048 ...........9006048 ............9006048 ...............9006048 ................9006048
9............ Upper Probe ..................................9006047 ...........9006047 ............9006047 ...............9006047 ................9006047
10.......... On/OffSwitch ..................................9005929 ...........9005929 ............9005929 ...............9005929 ................9005929
11 .......... Drafthood .......................................9006045 ...........9006061 ............9005934 ...............9005934 ................9005934
12.......... Damper Drive Assembly ................9002537 ...........9002537 ............ 9002537 ...............9002537 ................9002537
13.......... Manifold .........................................9006049 ...........9006049 ............9006062 ...............9006062 ................9006062
14.......... Main Burner Orice - Natural .........9005896 ...........9005896 ............9006070 ...............9005896 ................9005896
15.......... Main Burner Orice - LP ................9005896 ...........9006073 ............9006075 ...............9005896 ................9005896
16.......... T&P Relief Valve ............................9005899 ...........9005899 ............9005899 ...............9005899 ................9005899
17.......... Pilot Tubing ....................................9003925 ...........9003925 ............9003925 ...............9003925 ................ 9003925
18.......... Inlet Tube .......................................9006046 ...........9006044 ............ 9006046 ...............9006044 ................9006044
19.......... Gas Valve - Natural ........................9006055 ...........9006055 ............9006055 ...............9006055 ................9006055
20.......... Gas Valve - LP ...............................9006059 ...........9006059 ............9006059 ...............9006059 ................9006059
21.......... Harness-Gas Valve Natural ...........9006056 ...........9006056 ............ 9006056 ...............9006056 ................9006056
22.......... Harness - Gas Valve LP ................9006067 ...........9006067 ............9006067 ...............9006067 ................9006067
23.......... Ground Wire ..................................9004991 ...........9004991 ............9004991 ...............9004991 ................ 9004991
24.......... Harness - Control...........................9006057 ...........9006057 ............9006057 ...............9006057 ................9006057
25.......... Harness - Power ............................9006058 ...........9006058 ............9006058 ...............9006058 ................9006058
26.......... The Eliminator................................9006051 ...........9006051 ............9006050 ...............9006050 ................9006050
27.......... Galvanized Pipe Union, 1-1/2” .......9006053 ...........9006053 ............9006053 ...............9006053 ................ 9006053
- 5 -
SBD
SBD
SBD
SBD
ITEM PARTS DESCRIPTION SBD81199NE SBD100199NES SBD100250NE SBD65251NE
1........... Flue Bafe ..........................................9005823 .....................9005293 .......................9005288 ................... 9005288
2........... Main Burner .......................................9005889 .....................9005889 .......................9005889 ................... 9005889
3........... Main Burner w/Pilot Bracket...............9005291 .....................9005291 .......................9005291 ................... 9005291
4........... Pilot Burner, Natural ...........................9004541 .....................9004541 .......................9004541 ................... 9004541
5........... Pilot Burner, LP ..................................9004542 .....................9004542 .......................9004542 ................... 9004542
6........... Control, Ignition Module .....................9004544 .....................9004544 .......................9004544 ................... 9004544
7........... Control Thermostat ............................9004570 .....................9004570 .......................9004570 ................... 9004570
8........... Lower Probe.......................................9006048 .....................9006048 .......................9006048 ................... 9006048
9........... Upper Probe.......................................9006047 .....................9006047 .......................9006047 ................... 9006047
10......... On/OffSwitch ......................................9005929 .....................9005929 .......................9005929 ................... 9005929
11 ......... Drafthood ...........................................9005934 .....................9005934 .......................9005926 ................... 9005926
12......... Damper Drive Assembly ....................9002537 .....................9002537 .......................9002539 ................... 9002539
13......... Manifold .............................................9006062 .....................9006062 .......................9006062 ................... 9006063
14......... Main Burner Orice - Natural .............9005896 .....................9005896 .......................9005896 ................... 9006069
15......... Main Burner Orice - LP .................... 9005896 .....................9005896 .......................9006072 ................... 9006075
16......... T&P Relief Valve ................................9005899 .....................9005899 .......................9005903 ................... 9005903
17......... Pilot Tubing ........................................9003925 ..................... 9003925 .......................9003925 ................... 9003925
18......... Inlet Tube ...........................................9006046 .....................9006046 .......................9006044 ....................... N/A
19......... Gas Valve - Natural ............................9006055 .....................9006055 .......................9006055 ................... 9006055
20......... Gas Valve - LP ...................................9006059 .....................9006059 .......................9006059 ................... 9006059
21......... Harness-Gas Valve Natural ...............9006056 .....................9006056 .......................9006056 ................... 9006056
22......... Harness - Gas Valve LP .....................9006067 .....................9006067 .......................9006067 ................... 9006067
23......... Ground Wire ....................................... 9004991 .....................9004991 .......................9004991 ................... 9004991
24......... Harness - Control ...............................9006057 .....................9006057 .......................9006057 ................... 9006057
25......... Harness - Power ................................9006058 .....................9006058 .......................9006058 ................... 9006058
26......... The Eliminator ....................................9006050 .....................9006054 .......................9006054 ................... 9006052
27......... Galvanized Pipe Union, 1-1/2” ...........9006053 .....................9006065 .......................9006065 ................... 9006053
- 6 -
SBD
SBD
SBD
SBD
ITEM PARTS DESCRIPTION SBD100275NE SBD65305NE SBD85365NE SBD100400NE
1............Flue Bafe .............................................9005152 .................... 9005288 ....................9005289 ................... 9005294
2............Main Burner ...........................................9005889 ....................9005912 ....................9005889 ................... 9005912
3............Main Burner w/Pilot Bracket ..................9005291 ....................9005291 ....................9005291 ................... 9005291
4............Pilot Burner, Natural ..............................9004541 ....................9004541 ....................9004541 ................... 9004541
5............Pilot Burner, LP ......................................9004542 ....................9004542 ....................9004542 ................... 9004542
6............Control, Ignition Module.........................9004544 ....................9004544 ....................9004544 ................... 9004544
7............Control Thermostat ................................9004570 ....................9004570 ....................9004570 ................... 9004570
8............Lower Probe ..........................................9006048 ....................9006048 ....................9006048 ................... 9006048
9............Upper Probe ..........................................9006047 ....................9006047 ....................9006047 ................... 9006047
10..........On/OffSwitch .........................................9005929 .................... 9005929 ....................9005929 ................... 9005929
11 ..........Drafthood ...............................................9005926 ....................9005926 ....................9005926 ................... 9005926
12..........Damper Drive Assembly ........................9002539 ....................9002539 ....................9002539 ................... 9002539
13..........Manifold .................................................9006062 ....................9006063 ....................9006064 ................... 9006064
14..........Main Burner Orice - Natural .................9006068 ....................9005896 ....................9005896 ................... 9005896
15..........Main Burner Orice - LP ........................9006071 ....................9006074 ....................9005896 ................... 9006074
16..........T&P Relief Valve ....................................9005903 ....................9005903 ....................9005903 ................... 9005903
17..........Pilot Tubing ............................................9003925 ....................9003925 ....................9003925 ................... 9003925
18..........Inlet Tube ...............................................9006044 ........................ N/A ........................9006044 ................... 9006044
19..........Gas Valve - Natural ...............................9006055 ....................9006066 ....................9006066 ................... 9006066
20..........Gas Valve - LP .......................................9006059 ....................9004528 ....................9004528 ................... 9004528
21..........Harness-Gas Valve Natural ...................9006056 ....................9006056 ....................9006056 ................... 9006056
22..........Harness - Gas Valve LP ........................9006067 .................... 9006067 ....................9006067 ................... 9006067
23..........Ground Wire ..........................................9004991 ....................9004991 ....................9004991 ................... 9004991
24..........Harness - Control ..................................9006057 .................... 9006057 ....................9006057 ................... 9006057
25..........Harness - Power ....................................9006058 ....................9006058 ....................9006058 ................... 9006058
26..........The Eliminator .......................................9006054 .................... 9006052 ....................9006050 ................... 9006054
27..........Galvanized Pipe Union, 1-1/2”...............9006065 ....................9006053 ....................9006053 ................... 9006065
- 7 -
NOTES
500 Tennessee Waltz Parkway, Ashland City, TN 37015
Phone: 1-800-821-2017 Fax: 1-800-644-9306
www.statewaterheaters.com
