State Water Heaters SHE50 100 Anwendungshandbuch

COMMERCIAL WATER HEATERS

REPLACEMENT PARTS LIST

MODELS: SHE50 100

SERIES 100/101

PRINTED 1107 197841-000

State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com

Item Description Kit Number

1 Display Board 9006412

2 Power Switch 9005980

3 Plastic Top 9005978

4 Plastic Enclosure 9006414

5 Display Label 9006416

6 T&P Valve 9003917

7 Drain Valve 9003906

Item Description 100/101 Series

1 Controller 9006418

2 Switch-Blocked Outlet 9006421

3 Switch-Blocked Inlet 9005972

4 Switch-Fan Prover 9004586

5 Upper Temperature Probe 9004238

6 Anode 9004335

7 Inlet Tube 9006422

8 Outlet Nipple 9005981

Standard hardware items may be purchased locally.

TOP COVER CONTROL ASSEMBLY

BLOWER/BURNER ASSEMBLY

Item Description 100 Series 101 Series

1 Blower 9006423 9006423

2 Venturi Gasket 197789-000 197789-000

3 Blower Gasket 197618-000 197618-000

4 Blower Adapter 197607-000 197607-000

5 Burner Gasket 197257-000 197257-000

6 Burner Assembly 9006424 9006424

7 Gas Valve/Venturi Assembly 9006425 9006426

8 Observation Window 9006102 9006102

9 Observation Window Gasket 9006103 9006103

10 Burner Flange 197611-000 197611-000

11 Burner Flange Gasket 194817-000 194817-000

12 Igniter 9006101 9006101

13 Flame Sensor Rod 9006106 9006106

14 Machine Screw* 191937-003 191937-003

15 Socket Buttonhead Cap Screw* 197615-000 197615-000

16 Socket Head Cap Screw* 192515-000 192515-000

17 Fan/Venturi Screw 197790-000 197790-000

18 1-3/4" x 5/16" - 18 Alloy Stud 196881-000 196881-000

19 Machine Screw* 194816-000 194816-000

20 Locknut-5/16-18* 196882-000 196882-000

21 Hose Clamp* 196813-001 196813-001

22 1.50" 90 Degree Rubber Elbow* 197814-000 197814-000

23 1.50" x 3" PVC Pipe with 1/4" Tap Hole 197815-000 197815-000

24 1.50" x 2.00" PVC Adapter* 197816-000 197816-000

25 2" Wire Screen 182885-000 182885-000

26 Hose Barb 192800-001 192800-001

* Standard hardware items may be purchased locally.

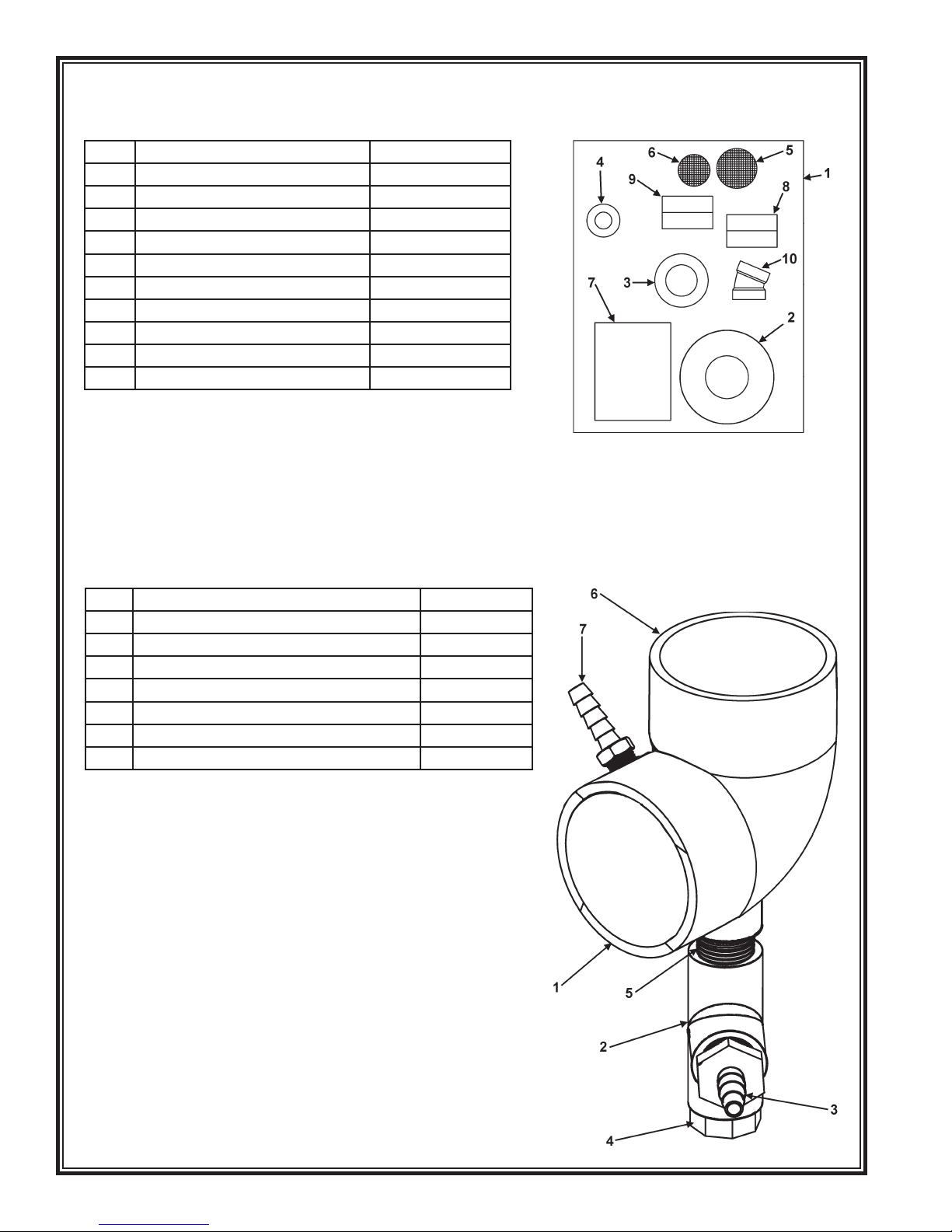

Item Description 100/101 Series

1 Vent Kit with All Components 9006427

2 Wall Plate 4" Included in Kit

3 Wall Plate 3" Included in Kit

4 Wall Plate 2" Included in Kit

5 Wire Screen 4" Included in Kit

6 Wire Screen 3" Included in Kit

7 Intruction Sheet Included in Kit

8 Instruction Tag - Wire Screen f/e 4" Included in Kit

9 Instruction Tag - Wire Screen f/e 3" Included in Kit

10 Vent Terminal Included in Kit

ENVELOPE WITH PARTS

EXHAUST ELBOW ASSEMBLY

Item Description 100/101 Series

1 Exhaust Elbow Assembly 9006428

2 Tee - 3/4" NPT Included in Kit

3 Hose Adapter Included in Kit

4 Hex Plug Included in Kit

5 3/4" Pipe Nipple Included in Kit

6 2" Schedule 40 PVC Elbow with 3/4" Fitting Included in Kit

7 Hose Barb Included in Kit
