Stealth Cam STC-DVSIR5 Prowler DVS Bedienungsanleitung

STC-DVSIR5 Prowler DVS

User’s Manual

Toll Free Customer Support 1-877-269-8490

www.stealth am.net

Version 1.0 11/07

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 2

For Customer Servi e or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 539504

Grand Prairie, TX 75053-9504

www.steatlhcam.net

Stealth Cam Limited Warranty

Your Stealth Cam scouting camera is covered by a 90 days Limited Warranty

on parts and labor from the date of original purchase, and purchases must be

made through an authorized dealer. The warranty covers defects in

workmanship and materials. The warranty does not apply to units, which have

been damaged or abused intentionally or unintentionally. A purchase from

individuals or unauthorized internet sites voids the warranty.

Tampering with or altering the unit will void the warranty. Any unauthorized

service will void warranty. Original sales receipt must be produced for any

warranty service and a Return Authorization (RA) number must be obtained

from customer service at 877- 69-8490 prior to returning product.

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 3

Manual Contents

Camera overview 4

Camera kit contents 8

Battery and memory Installation 9

Set up and programming 1

Camera use 0

Mounting the camera 1

Viewing & Deleting images 7

Memory compatibility chart 36

Technical Specs 37

General Information 41

Moon phase chart 43

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 4

Camera overview

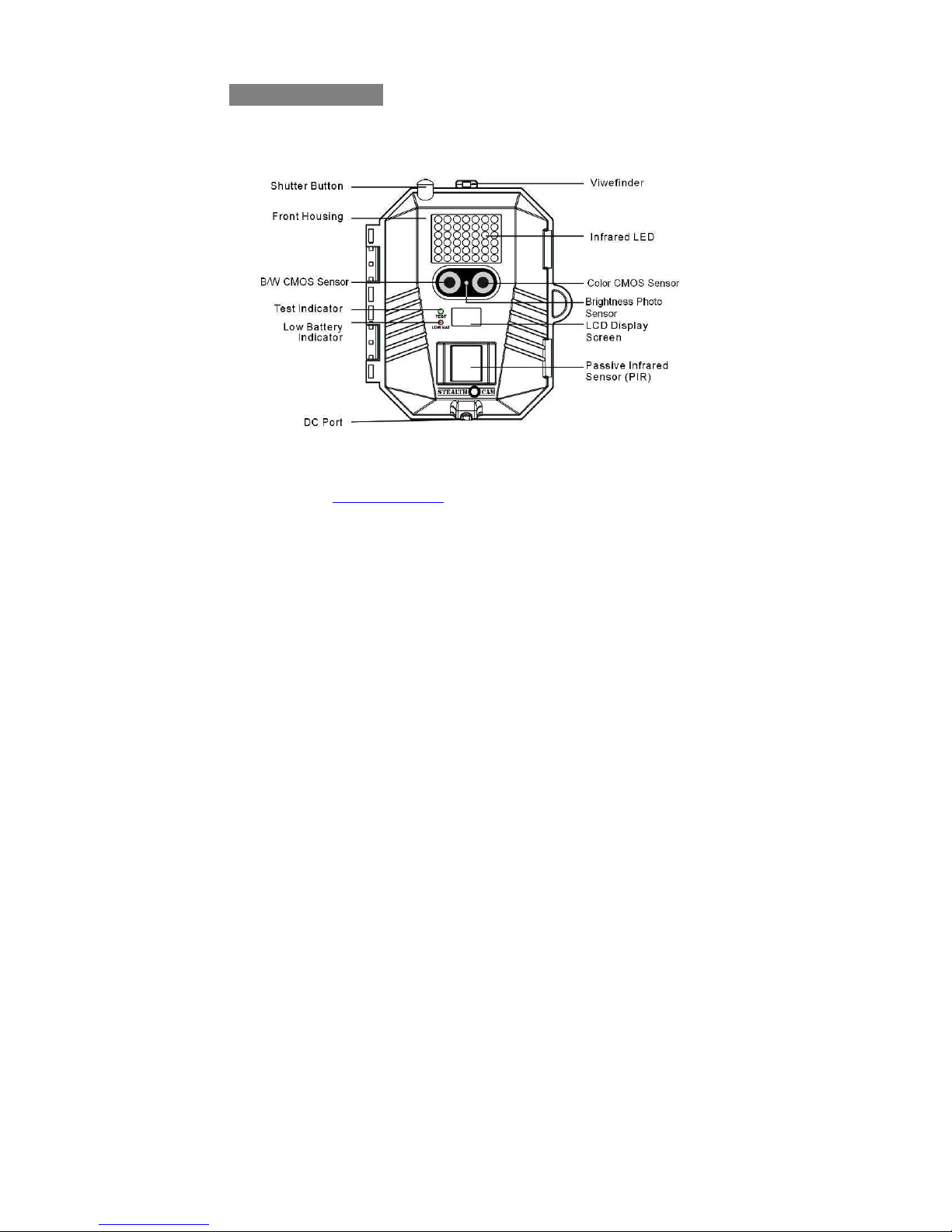

Front housing image with major parts indication.

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 5

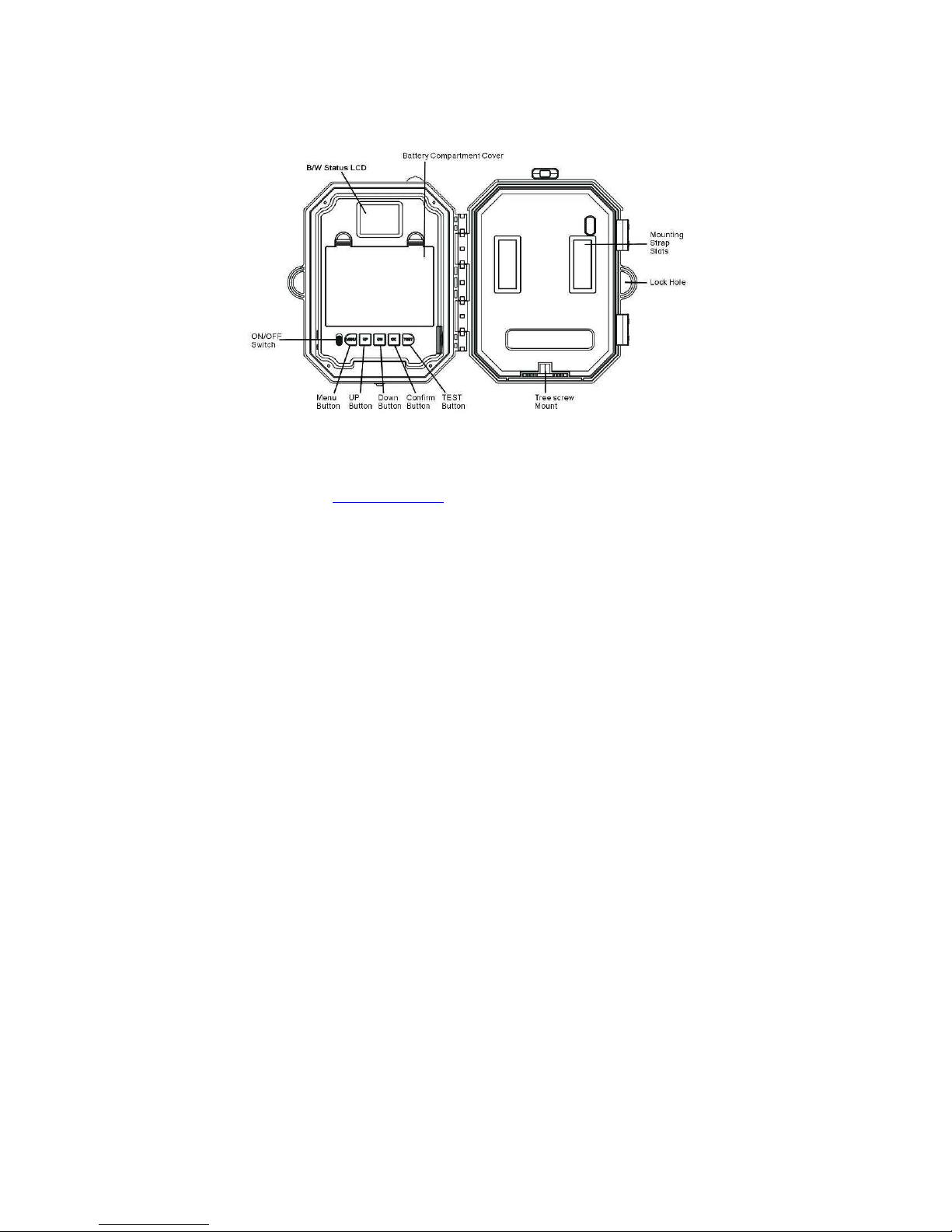

Open view image with major parts indication

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 6

Side view with major parts indication

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 7

Pi ture / Image Capa ity

High Low Base AVI

(in seconds)

SD card

Color B&W Color B&W Color B&W Color B&W

16MB

16 53 3 80 80 160 40s 45s

3 MB

3 106 64 160 160 3 0 80s 90s

64MB

64 1 1 8 3 0 3 0 640 160s 180s

1 8MB

1 8 4 4 56 640 640 1 80 3 0s 360s

56MB

56 848 51 1 80 1 80 560 640s 7 0s

51 MB

51 1696 10 4 560 560 51 0 10 4s 1440s

1 GB

10 4 339 048 51 0 51 0 10 40 048s 880s

048 6784 4096 10 40 10 40 0480 4096s 5760s

NOTE: Picture / Image Capacity Chart provides approximate number of

images or AVI movies based on resolution setting and the size of

memory card. These figures may vary depending on the amount of

detail in the image.

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 8

Camera kit ontents

• Model STC-DVSIR5 PROWLER DVS Digital Scouting Camera

• CDROM (Contains Ulead Photo Explorer 8.0 and camera

driver)

• User Manual.

• USB cable.

• TV out cable for TV (RCA Jack).

• TV out cable for handheld TV (Mini Jack).

• Strap.

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 9

Battery & memory installation

The Stealth Cam STC-DVSIR5 PROWLER DVS Advanced Digital

Scouting Camera is designed to operate using two different types

of battery power options.

NOTE: Always have camera in the OFF position when installing or

removing batteries. Removing battery while the camera is in

operation may damage the camera.

Batteries “C” ell

The internal battery compartment accepts 6 “C” cell batteries. Be

sure to use high quality brand name alkaline batteries. Install

batteries with correct polarity (+/-) as noted inside the battery

compartment.

Warning:

Do not use different Voltage lead

acid battery other than the one specified in

this section. Doing so will damage the camera

and will void the warranty.

STC-DVSIR5 Prowler DVS

www.stealthcam.net Toll Free 877- 69-8490 10

12V Lead A id external battery

The STC-DVSIR5 PROWLER DVS is equipped with an external

power jack designed to accept a barrel plug cable to attach to a

sealed lead acid battery. (sold separately). Battery cable and

complete 1 V Lead Acid battery kits are available wherever Stealth

Cam scouting cameras are sold or call toll free 877- 69-8490. Only

Stealth Cam external battery accessories are recommended.

• Insert the external battery barrel plug into the DC 1 V jack on

the bottom of camera housing

• Turn the camera power on.

 Please make sure the voltage and polarity ( /-) are correct

before connection. Incorrect voltage or polarity ( /-) will

damage the camera.

Memory Options

Your STC-DVSIR5 PROWLER DVS camera is equipped with

3 MB built in flash memory. The camera is also equipped with

an expandable media card slot capable of accepting up to GB

SD card (sold separately). With no memory card inserted into the
