Stealth Cam STC-WD1 Bedienungsanleitung

Stealth Cam

STC-WD1

User’s Manual

Toll Free Customer Support 1-877-269-8490

www.stealthcam.net

Version 1.6 08/05

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 211662

Bedford, Texas 76095

www.steatlhcam.net

Stealth Cam Limited Warranty

Your Stealth Cam is covered by a One Year Limited Warranty on parts

& labor from the date of purchase. The warranty covers defects in

workmanship & materials. The warranty does not apply to units, which

have been damaged or abused intentionally or unintentionally.

Tampering with or altering the unit will void the warranty.Any

unauthorized service will void warranty. Original sales receipt must be

produced for any warranty service. Questions call 877-269-8490

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

Manual Contents

Camera overview 4

Camera kit contents 8

Battery and memory Installation 9

Set up and programming 12

Camera use 20

Mounting the camera 21

Viewing & Deleting images 26

Memory compatibility chart 35

Technical Specs 36

General Information 39

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

Camera overview

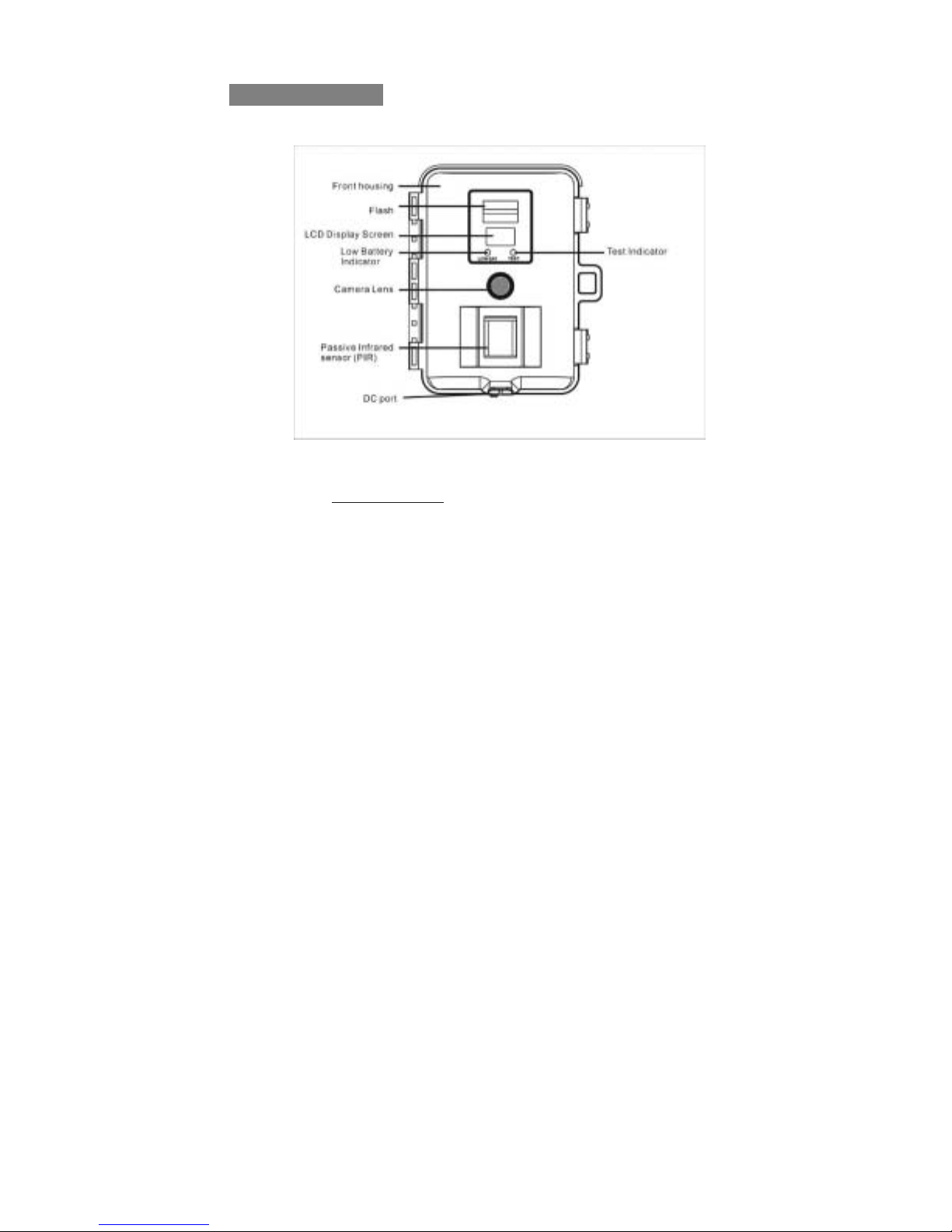

Front housing image with major parts indication.

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

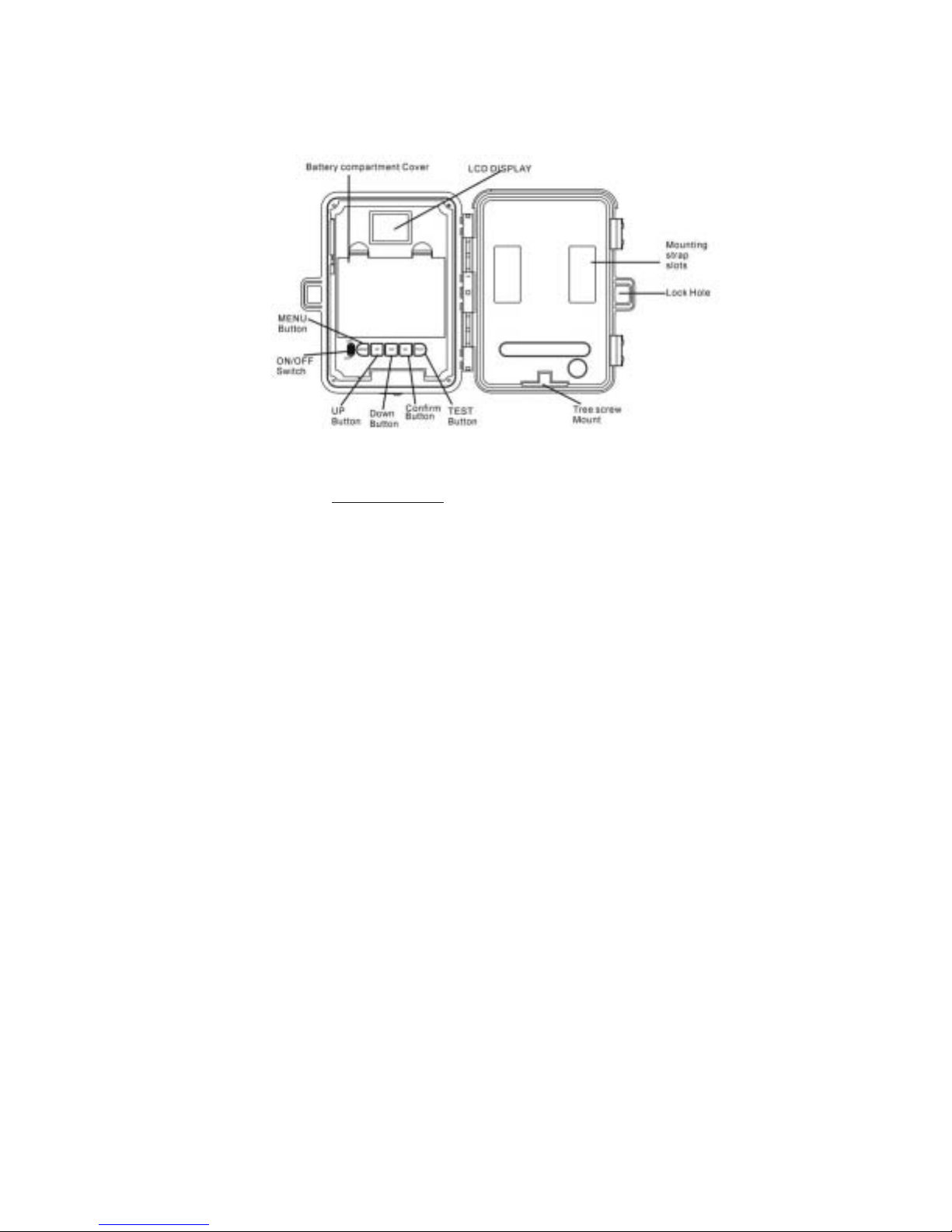

Open view image with major parts indication

For use with Stealth Cam cable

only. (sold separately)

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

Side view with major parts indication

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

Picture / Image Capacity

SD card High Low Base AVI

16MB 40 50 80 8

32MB 80 100 160 16

64MB 160 200 320 32

128MB 320 400 640 64

256MB 640 800 1280 128

512MB 1280 1600 2560 256

1 GB 2560 3200 5120 512

NOTE: Picture / Image Capacity Chart provides approximate number of

images or AVI movies based on resolution setting and the size of

memory card. These figures may vary depending on the amount of

detail in the image.

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

Camera kit contents

• Model STC-WD1 Digital Scouting Camera

• CDROM (Contains Ulead Photo Express 8 and camera driver)

• User Manual.

• 1.5M USB cable.

• 1.5M TV out cable for TV (RCA Jack).

• 1.5M TV out cable for handheld TV (Mini Jack).

• Strap.

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

Battery & memory installation

The Stealth Cam STC-WD1 Advanced Digital Scouting Camera is

designed to operate using two different types of battery power

options.

NOTE: Always have camera in OFF position when installing or

removing batteries.

Batteries “C” cell

The internal battery compartment accepts 6 “C” cell batteries. Be

sure to use high quality brand name alkaline batteries. Install

batteries in correct polarity (+/-) as noted inside battery

compartment.

12V Lead Acid external battery

The STC-WD1 is equipped with an external power jack designed to

accept a barrel plug cable to attach to a sealed lead acid battery.

(sold separately). Battery cable and complete 12V Lead Acid

battery kits are available wherever Stealth Cam scouting cameras

are sold or call toll free 877-269-8490. Only Stealth Cam external

battery accessories are recommended.

STC-WD1

www.stealthcam.net Toll Free 877-269-8490

• Make sure the camera power switch is OFF and power source

switch on BATTERY.

• Insert the battery pack plug into the DC 12V jack of the bottom

of camera housing

• Turn the camera power on.

 Please make sure the voltage and polarity (+/-) are correct

before connection. Incorrect voltage or polarity (+/-) will

damage the camera.

Memory Options

Your STC-WD1 camera is equipped with 16MB built in flash

memory. The camera is also equipped with an expendable

media card slot capable accepting up to 1GB SD card (sold

separately). With no memory card inserted into the slot, the

camera will use the built in 16MB memory. If a SD card is

inserted into the slot then the camera will bypass the built in

memory and utilize the SD memory. The front counter display will
