STRX-9

TAKE CONTROL

READY-TO-RUN

100%

TAKE CONTROL

INSTRUCTION MANUAL

w/ Adult Supervision

Included Items

Important Notes

Included Items Pg.1

Important Notes Pg.1

Battery Installation Pg.2

Charging Instructions Pg.3

Transmitter/Receiver Binding Pg.3

Basic Controls Pg.4

Turn Fins Pg.4

Driving Your Model Pg.4-5

Lubricating the Drive Shaft Pg.5

Troubleshooting Pg.5

Replacement Parts Pg.6

Warranty and Warnings Pg.6

Index

- Your Steerix STRX-9 comes with a water-cooling system. Before using your Steerix

STRX-9, carefully check the silicone tubing to make sure the water-cooling system is

working correctly and that all tubes are properly attached and free of debris. If the

system is not correctly installed, this could lead to ESC burn out and motor failure.

- The Steerix STRX-9 is designed for use in fresh water only. They are not designed to

be used in salt water.

Boat

Allen Wrench Boat Stand NiMH Battery

9V Battery

(For Transmitter)

Spare Silicone

Coupler

Transmitter

Phillips Screwdriver

(Not Included)

AAx8, DC

Field Charger

STEERIX-RC.COM

18005

Battery Installation

Installing the 9V Battery in your

Transmitter

1. Make sure the transmitter ON/OFF

switch is in the “OFF”position.

2. Remove battery cover screw.

3. Remove battery cover by pressing

down on the embossed arrow and

sliding the cover as indicated.

4. Insert the 9V battery, paying close

attention to the + and - polarity.

5. Slide the battery cover back into place.

6. Replace battery cover screw.

NOTE: Remove the 9V battery from the

transmitter if you do not intend to

use it for an extended period of

time.

Installing the 6V NiMH Battery in

your Boat

(Model should be placed on its supplied

boat stand to prevent damage to the

running hardware.)

1. Remove the hatch by pulling

carefully on the catch at the rear

section.

2. Insert the 6V battery into the left side

of the hull.

3. Insert the 6V battery connector into the matching connector inside the STRX-9. DO

NOT force them together.

4. Replace the hatch.

NOTE: 1. There is a rubber ring placed along the slot of the hull. Always make sure it is

secured properly before re-positioning the hatch.

2. When you are not using the boat, also unplug the battery and remove the

rubber ring from the hull. This will keep the rubber ring exible and provide

eective water-resistance for future use.

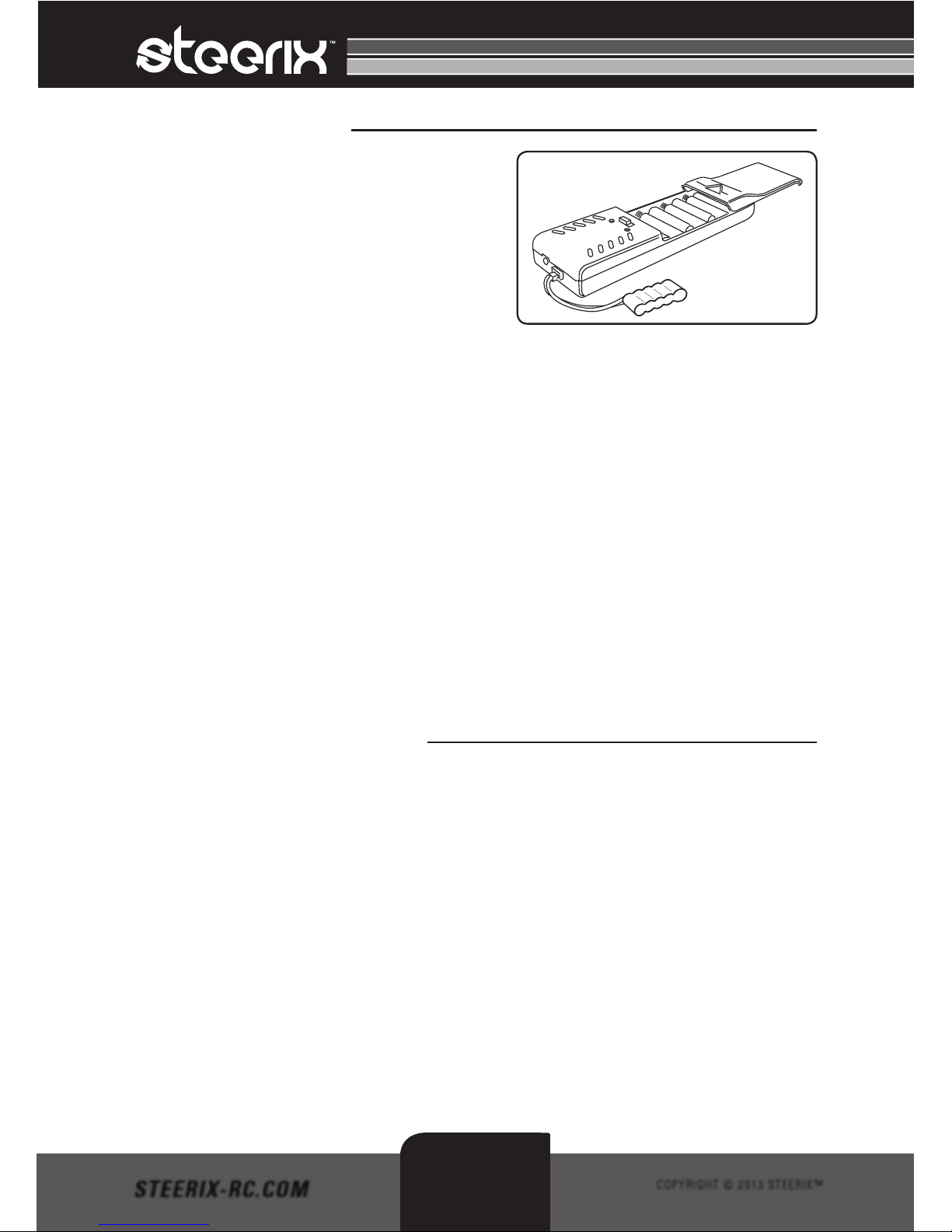

Charging Instructions

1. Insert 8 AA batteries into the eld charger.

Make sure the polarity is correct. Switch to

“AAX8”position. The red light indicator will

turn on.

2. Plug in the 6V NiMH battery to the charger.

The green light indicator turns on while

charging.

3. A fully discharged battery will take about

40min to fully charge. Do not overcharge. Do not leave the battery unattended while

charging.

4. The green indicator light will turn o when the battery is nished charging.

5. Disconnect the 6V NiMH battery from the charger and switch to the “DC12V”position.

• The 6V NiMH battery does not come pre-charged. You must fully charge the battery

before using the Steerix STRX-9.

• The 6V NiMH battery can be re-charged many times before it needs to be replaced.

When the battery no longer holds a charge (is dead), it should be properly recycled.

NOTE 1: The Steerix STRX-9 will typically run for about 8-10 min on a fully charged

battery. As soon as you notice a drop o in speed, you should bring the model

back to shore or you may lose control of the boat.

NOTE 2: Continuous running of the model will generate high heat levels, which will lead

to premature wear on the motor. It is recommended to let the model cool down

for about 5-10 min before installing a re-charged battery pack.

Transmitter/Receiver Binding

The binding process ties the transmitter and receiver together. Under normal

circumstances, both items are supplied like this from the factory. If, however, you nd

that your transmitter and boat are not communicating (receiver’s red LED light is on),

please follow these instructions:

1. Switch“ON” the transmitter.

2. Switch“ON” the receiver by attaching the 6V NiMH battery pack’s connector to the

matching connector in the boat.

3. Press down the “BIND” button on the receiver. The receiver’s green LED light will be

on to indicate that binding has been successful and the receiver will now accept

commands from the transmitter.

NOTE 1: During the binding process, the transmitter and receiver should be no more

than 3ft. apart and no other similar devices should be within 35ft.

NOTE 2: If the green LED light is ashing, the binding process has failed. Please repeat

the steps above.

STEERIX-RC.COM

18005

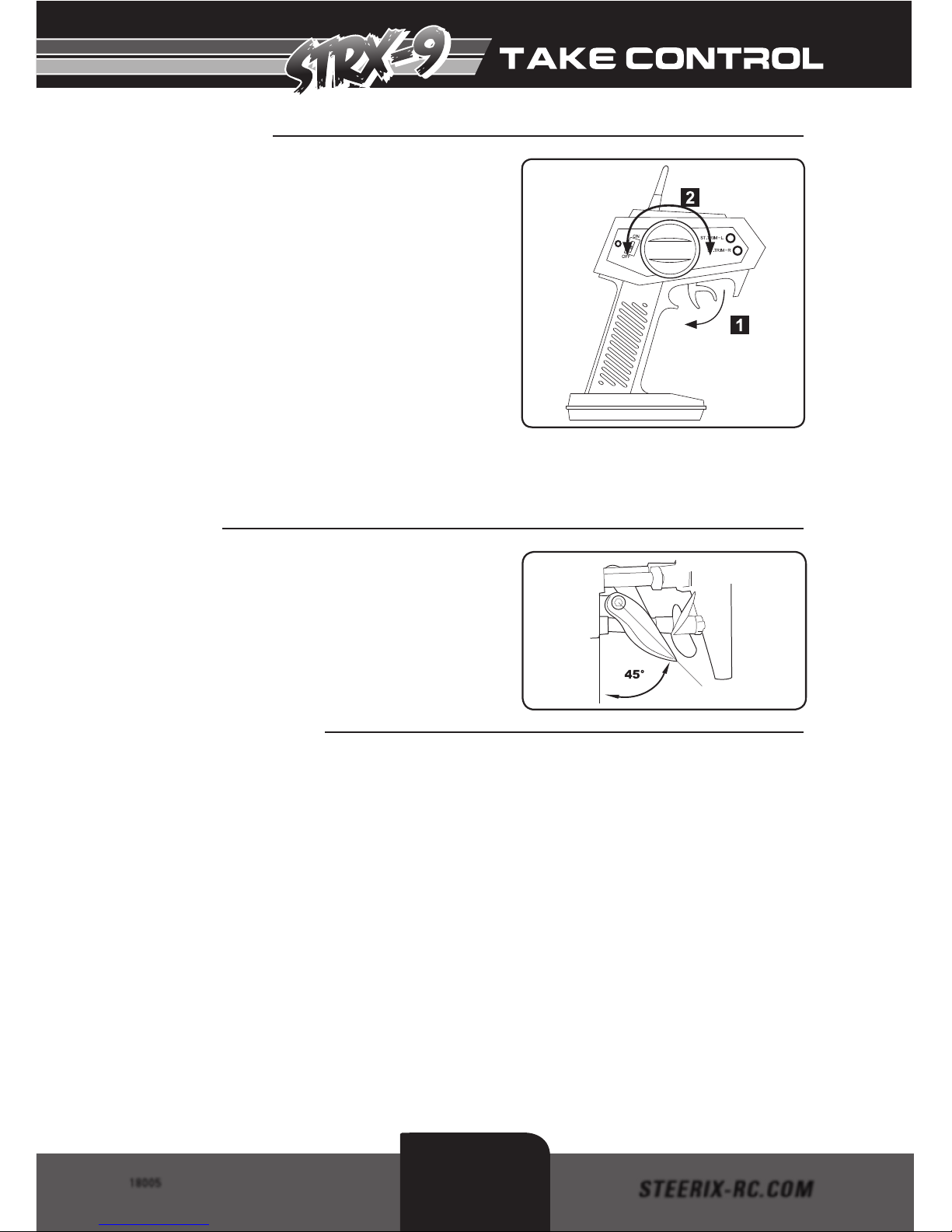

Basic Controls

1. Forward Throttle Trigger

Your Steerix STRX-9 can be driven forward by

pulling the throttle trigger. Release the trigger

to stop the boat.

2. Left/Right Steering Wheel

The steering wheel controls the Steerix

STRX-9’s left and right movement. Turn the

wheel to the left to steer to the left. Turn the

wheel right to steer the boat right. Release the

wheel to go straight.

RACING TIP: The Steerix STRX-9 is an oval racer

designed for clockwise racing and will be less responsive to steering inputs at high

speed, particularly left turns. Decrease your speed to allow tighter turning.

Turn Fins

The Steerix STRX-9 features adjustable turn ns

to aid in turning. These can be adjusted using

the included Allen Wrench. The optimum angle

of the adjustment is 45 degrees to the hull.

Driving Your STRX-9

1. Switch“ON” the transmitter. Check that the transmitter’s red LED light glows brightly.

2. Check that the model’s turn ns are adjusted correctly.

3. Switch“ON” the model. (Connect the 6V NiMH battery pack.)

4. Check that the propeller and the rudder respond to the transmitter inputs before

placing the boat in the water.

After Use:

1. When you have nished using the boat, rst switch“OFF”the model by disconnecting

the battery pack. Then switch“OFF”the transmitter.

2. Remove all batteries from the transmitter and model.

3. Leave the boat’s upper deck o to allow moisture to evaporate. Place the model in a

safe, dry place until it is dry and then store it away.

NOTE: If the boat begins to bob when running, it may have taken on an excessive amount

of water. In this case, you should immediately return to shore, remove the upper

deck and drain the water from the hull.

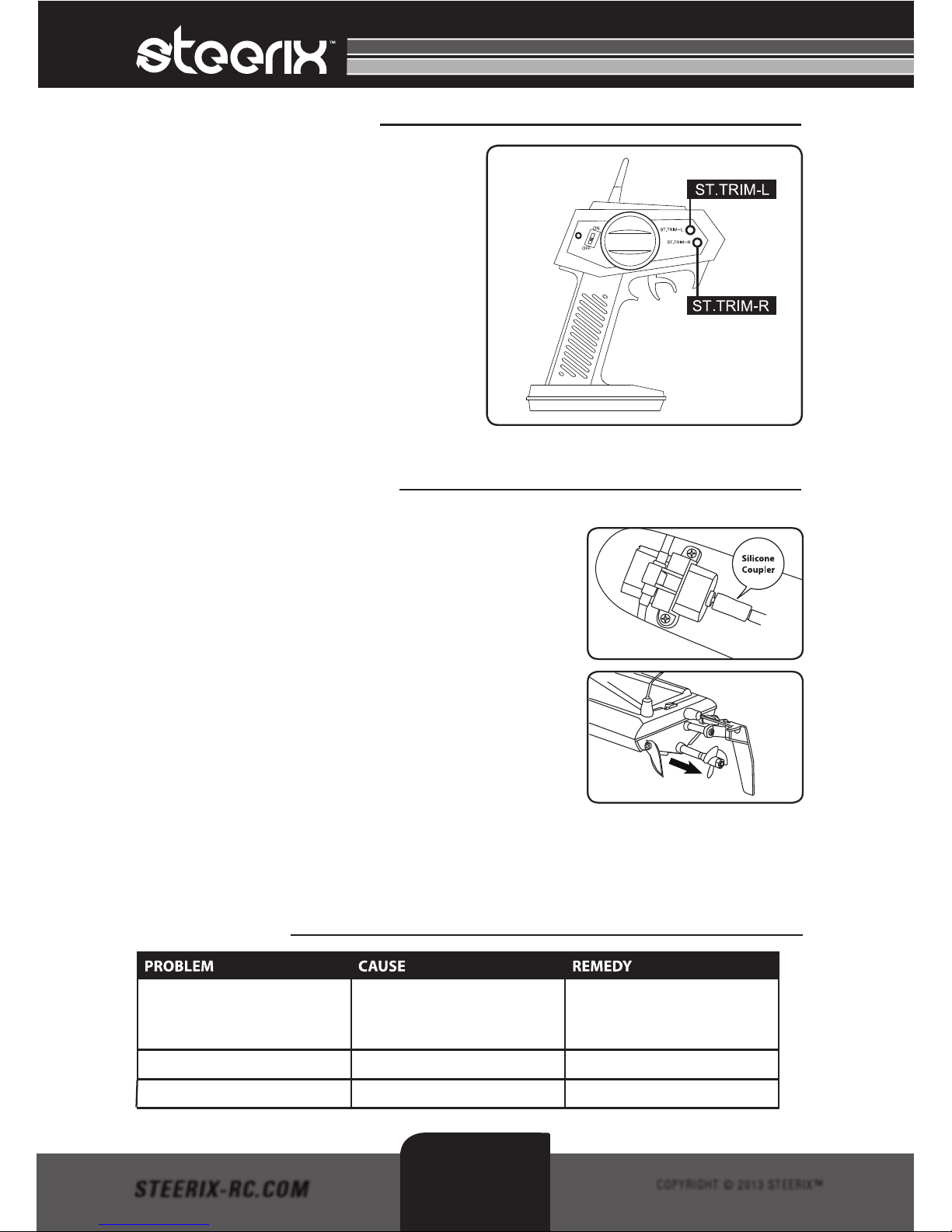

Driving Your STRX-9 Cont.

If the boat does not run in a straight line

when not being steered, you can x this by

adjusting the steering trim located on the

upper right hand side of the transmitter.

1. Run your model on calm water when

adjusting the steering. If your model runs

to the right when not being steered, press

the “ST. TRIM-L” button. Re-center the

model and see if this has corrected the

problem. Keep making small adjustments

in this way until the model runs straight.

2. Press the “ST. TRIM-R” button to correct if

the model steers to the left without being steered in the same way as explained above.

Lubricating the Drive Shaft

Troubleshooting

Lubricating the ex shaft is vital to the life of the drivetrain,

The lubricant also acts as a water seal, keeping water from

entering the hull through the stung tube. It is

recommended to lubricate the ex shaft, propeller shaft after

every 2 or 3 runs.

1. Use one hand to hold the silicone coupler tight, while the

other hand pulls the propeller shaft out from the stung

tube.

2. Lubricate the ex shaft/prop shaft with the waterproof

marine grease, reinstall the ex shaft/prop shaft in reverse

order. Be sure to push the ex shaft end into the silicone

coupler for full connection.

NOTE: After several times of pulling the ex shaft out from the silicone coupler, the silicone

coupler might lose exibility, which is not good for the connection of the ex shaft.

Once this happens, replace the silicone coupler with the extra coupler that was

included in the gift box.

Model will not move No battery in transmitter/model

Battery installation is incorrect

Weak battery in transmitter

Weak battery in model

Install batteries

Install batteries correctly

Install a fresh battery

Recharge the 6V NiMH battery

No control of model Weak battery in transmitter Install a fresh battery

Install a fresh battery

Weak battery in transmitter

Limited radio range

STEERIX-RC.COM

18005

Warranty & Warnings

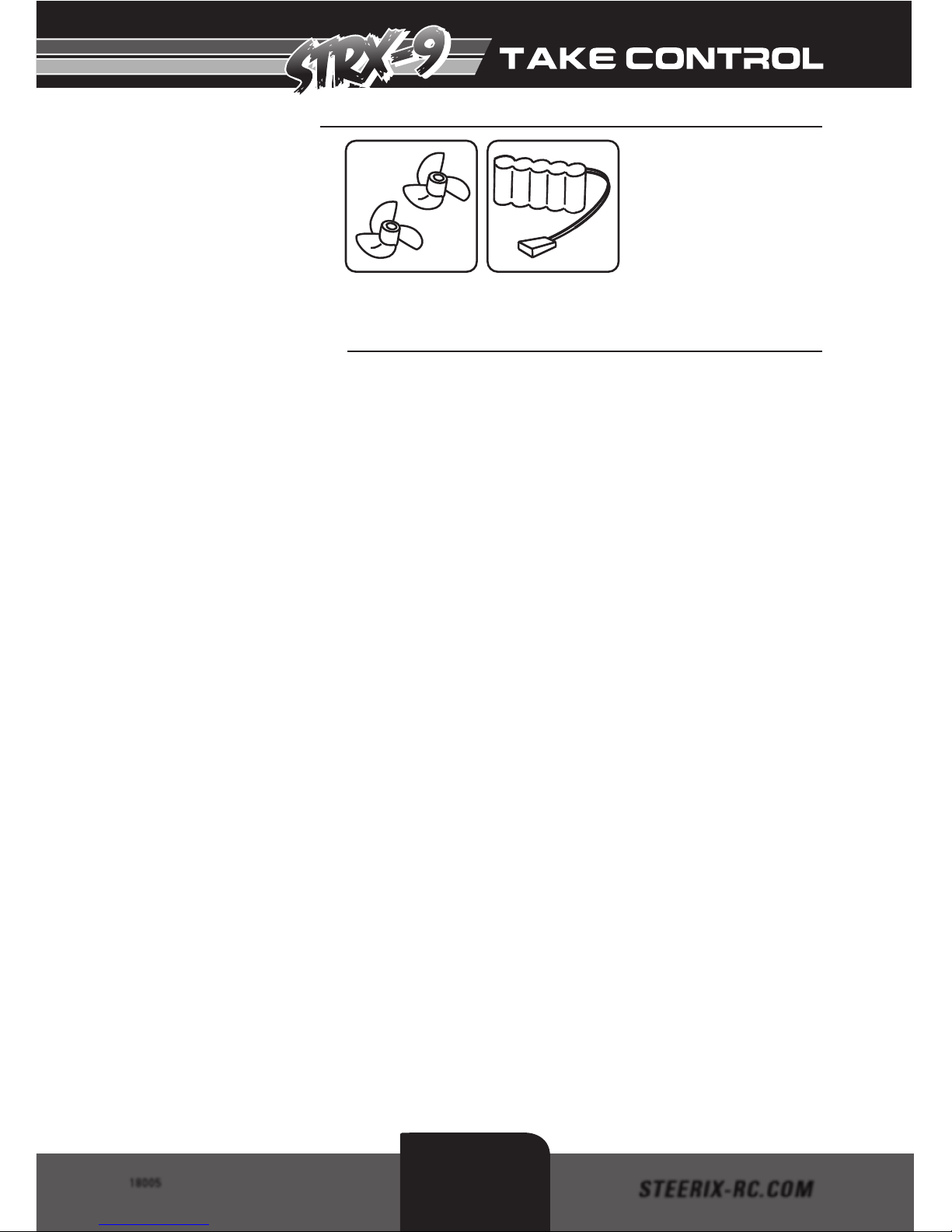

Replacement Parts

Keep the packaging and instruction manual as they contain important information.

Always check your model for loose screws and components before operating.

Always unplug the battery in the model before removing debris that has become tangled in the prop.

The transmitter's range will vary depending on your surroundings and battery strength. Do not operate too far away or control will be lost.

Ensure that all batteries are correctly installed and that the 6V NiMH battery is fully charged.

Do not touch moving parts during operation, especially the propeller.

Some of the electronic components may become very hot during use and can severely burn you if touched before they cool. Let the model stand and cool down before handling

the motor, ESC and cooling components.

If you lose control of your STRX-9, never wade into the water with strong currents to retrieve it. First, hold the transmitter as high as you can and try to re-establish control. If this

does not work, nd another way to move closer to the model, but do not endanger yourself in the process.

GENERAL WARRANTY POLICIES

Steerix™ warrants this product to be free of material and workmanship defects when new. Steerix™ will at its sole discretion repair or replace defective components free of charge

within 90 days from date of purchase or within 30 days for all electronic components. This warranty does not cover wear and tear, crash damage, modications, failure to perform

routine maintenance, or any damages arising as a result of improper use. All warranty claims are to be directed to Steerix™ Customer Service at 1-800-705-0620 (208-762-0620).

GUARANTEE

All products are inspected and adjusted individually before leaving the manufacturer and are guaranteed to be free of material defects and manufacturing faults.

IMPORTANT NOTICE

Steerix™ assumes sole responsibility for our products; therefore, dealers should not be involved in any warranty issues. All warranty claims are to be directed to Steerix™ Customer

Service. Before returning any defective product, please contact Steerix™ Customer Service at 800-705-0620 (208-762-0620) to receive a Return Merchandise Authorization

Number. A dated & itemized sales receipt must accompany any product returned for warranty work.

RELEASE OF LIABILITY

Steerix™, It’s aliates, manufacturers, distributors, or retail partners shall not be held liable for any accident, injury to persons, or damage to property resulting from use, misuse, or

abuse of any Steerix™ product. In purchasing a Steerix™ product the user agrees to accept responsibility for all such risks.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Charging and discharging batteries has the potential for serious injury to persons and damage to property. In purchasing this product, the user agrees to accept responsibility for

all such risks, and will not hold Steerix™, it’s aliates, manufacturers, distributors, or retail partners responsible for any accident, injury to persons, or damage to property resulting

from the use of this product.

Adult supervision is required when using this product. This product should be assembled by an adult before use. Proper assembly should be checked by an adult before use. This

product should be periodically examined by an adult for potential hazards. Any potential hazardous parts should be repaired or replaced.

WARNING: This product contains sharp edges or objects that can cause cuts or other bodily injury. To prevent cuts or other bodily injury, do not contact sharp edges or objects.

FCC WARNING:

FCC ID: ZDTJH8002

CAUTION: Steerix™ is not responsible for any radio or TV interference caused by unauthorized modications to this product. Changes or modications not authorized by Steerix™

will void all warranties.

NOTE: This product has been tested and found to comply with the limits for a Class B digital device, compliant to Part 15 of the FCC Rules.These limits are designed to provide

reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy and, if not installed and used

as instructed, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product

does cause harmful interference to radio or television reception, which can be determined by turning the product on and o, correct the interference by trying one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit dierent from the receiver.

- Consult the dealer or an experienced radio/TV technician for help.

This product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Be responsible, dispose of properly.

NOTICE OF RIGHTS

the prior written permission of Steerix™. For information on getting permission for reprints and excerpts, contact Steerix™ Customer Service.

NOTICE OF LIABILITY

The information in this manual is distributed on an“As Is”basis, without warranty. While every precaution has been taken in the preparation of the manual, Steerix™ does not have

any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the information contained in this manual or by the

products described in it.
