STMicroelectronics STSW-L9907-H Bedienungsanleitung

October 2016 DocID029822 Rev 1 1/23

UM2119

User manual

Graphical user interface (GUI) for EVAL-L9907-H

Introduction

This document describes the STSW-L9907 the Graphical User Interface (GUI) dedicated to

set and control the EVAL-L9907-H board (3-phase BLDC motor application boards for

L9907) through the SPI protocol, manage the Enable and BST_Dis pins and read the value

from the current sensing section.

The STSW-L9907-H has been developed using Labview®and it works with SPC560P-DISP

evaluation board programmed with a dedicated FW (GP-Pictus.elf).

www.st.com

DocID029822 Rev 1 3/23

UM2119 List of figures

List of figures

Figure 1. STSW-L9907-H Graphical User Interface (GUI) for EVAL-L9907-H . . . . . . . . . . . . . . . . . . 4

Figure 2. SPC560P-DISP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 3. SPC560P-DISP – 4x37 Connector, pin “A-34” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 4. SPC560P-DISP – 4x37 Connector, pins used to connect the EVAL-L9907-H. . . . . . . . . . . 8

Figure 5. EVAL-L9907-H and SPC560P-DISP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 6. EVAL-L9907-H and SPC560P-DISP plugged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 7. UDE software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 8. USB driver installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 9. Device driver installation wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 10. USB Driver Installation – folder “JtagUsbDriver”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 11. SPC560P-DISP: USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 12. Start menu, Computer, Manage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 13. Disk management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 14. PLS USB JTAG Adapter- COM Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 15. PLS USB JTAG Adapter for SPC5xxx B – Load VCP box . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 16. PLS USB JTAG Adapter for SPC5xxx B – PLS USB Serial Port . . . . . . . . . . . . . . . . . . . . 14

Figure 17. PLS USB drivers and serial port – Device manager window after installation procedure. . 15

Figure 18. UDE Visual Platform icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 19. UDE Visual Platform: File and New Workspace. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 20. UDE Visual Platform: Define File name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 21. UDE Visual Platform: Select Target Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 22. UDE Visual Platform: Load Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 23. UDE Visual Platform: Program All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 24. UDE Visual Platform: Execute Memtool Command - loading. . . . . . . . . . . . . . . . . . . . . . . 20

Figure 25. UDE Visual Platform: p0rocedure completed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Contents UM2119

2/23 DocID029822 Rev 1

Contents

1 Graphical User Interface description . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 How to use the GUI to configure and test the EVAL-L9907-H . . . . . . . . 6

3 How to plug SCP560P-DISP and EVAL-L9907-H . . . . . . . . . . . . . . . . . . 8

4 SPC560P-DISP: USB drivers installation . . . . . . . . . . . . . . . . . . . . . . . 10

5 Labview Driver: Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6 SPC560P-DISP: Load Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Graphical User Interface description UM2119

4/23 DocID029822 Rev 1

1 Graphical User Interface description

The STSW-L9907-H GUI includes the fields highlighted in Figure 1:

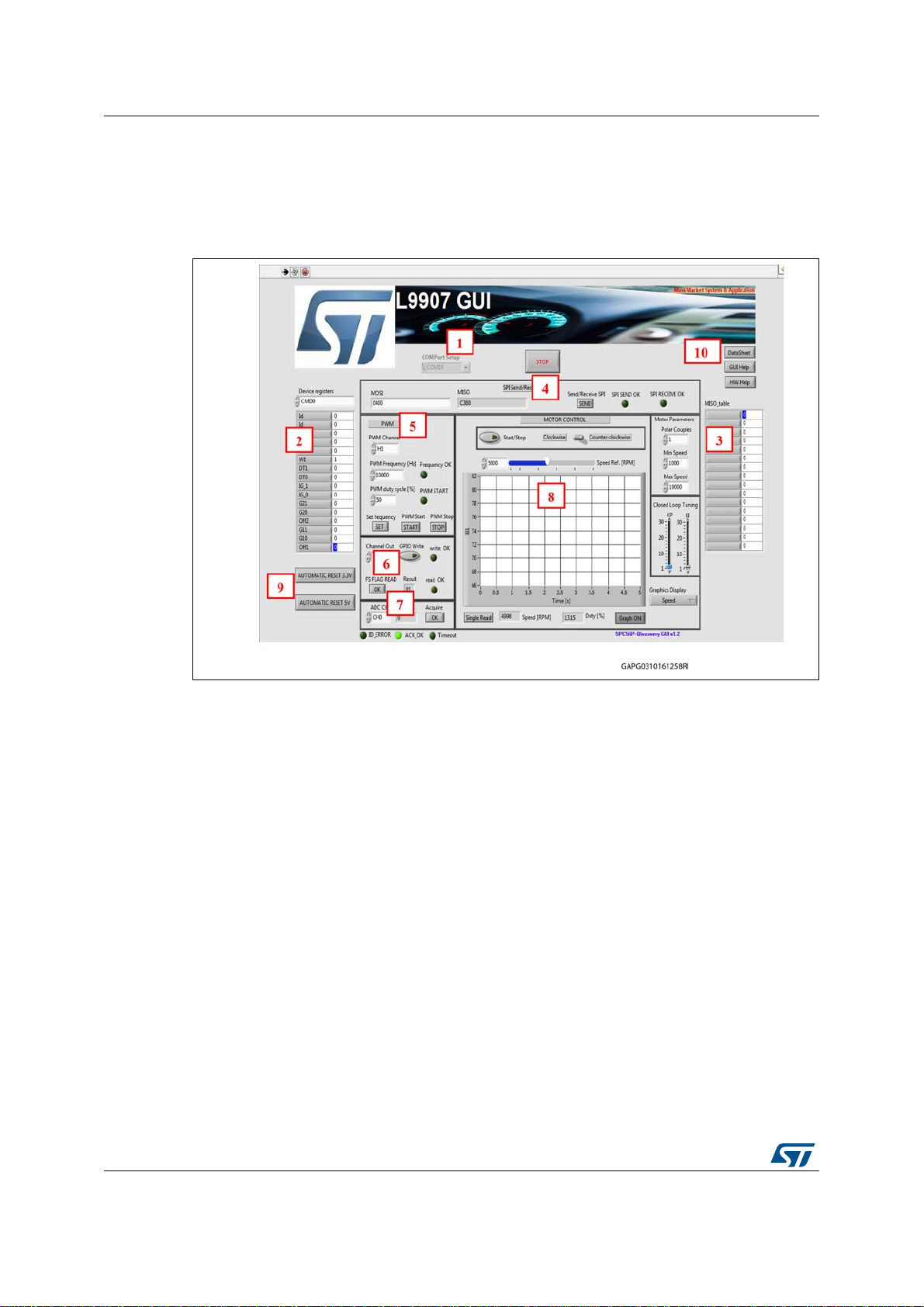

Figure 1. STSW-L9907-H Graphical User Interface (GUI) for EVAL-L9907-H

1. Com Port Setup: this menu allows to set the COM port

2. SDI: this menu allows to select and to configure each device register. It is possible to

program all the bits of each register.

3. SDO: the value of each register is copied in the field of this menu. This portion of the

GUI allows to monitor the device status.

4. SPI Send/Receive: in this portion of the GUI it is possible:

a) To end an SPI commands or configuration as programmed in the SDI menu (see

#2) by pressing the “SEND” button.

b) To send a single SPI command manually written in the MOSI field (HEX format). In

the same time it is available to read the register value in the MISO filed.

c) SPI functionality: the LEDs, SPI SEND OK and SPI RECEIVE OK provide a

visual feedback about the SPI communication status (if the LEDs are on means

communication is working properly).

5. PWM signals: the Frequency and the Duty cycle of the each PWM signals are

programmed in this frame. The "START" button enables the PWM signal generators

(PWM signals: L1, L2, L3, H1, H2 and H3), whereas “STOP” button stops the the PWM

DocID029822 Rev 1 5/23

UM2119 Graphical User Interface description

signals. Before sending a PWM configuration, the selected Frequency must be

confirmed by pushing the “SET” button.

6. ENABLE SETUP – BST_DIS SETUP & FS_FLAG STATUS: this frame is used is to

configure the EN1, EN2 and BST_DIS pins of the L9907 and to read the FS_FLAG

status.

7. ADC READ: this section displays the value of the Ib1 and Ib2 pins (ADC inputs).

8. MOTOR CONTROL: this menu is used to start a BLDC Motor Control based on Closed

Loop and by using 6-Steps Algorithm technique, to setup some parameters and to view

some useful waveforms:

a) Motor Parameters: through this menu it is possible to setup some parameters of

the BLDC Motor, such as “Polar Couples”, minimum and maximum rotation speed.

b) Closed Loop Tuning: through this menu it is possible to setup the PI parameters

for Closed Loop and Kp and Ki values.

c) Graphics Display: with this button it is possible to select a graphic between

Speed, Error, Duty, ADC IB1 and ADC IB2.

d) Speed Ref.: by using this cursor it is possible to set the target BLDC motor speed.

e) Single Read: this button allows to read the instantaneous speed value.

f) Duty %: it shows the value of the current Duty Cycle.

g) Graph ON/OFF: the button allows to turn ON and OFF the Graph window.

9. Automatic Reset: through this two buttons it is possible to automatically reset the

device at Start-up for Vcc=3,3 V and Vcc=5 V. Pressing the button “Automatic Reset

3.3 V”, the procedure described at Par. 3 point A will be automatically performed.

Pressing the button “Automatic Reset 5 V”, the procedure described at Par. 3 point B

will be automatically performed.

10. HELP: through this menu it is possible to download the SW help, the L9907 Datasheet

and info about the HW.

How to use the GUI to configure and test the EVAL-L9907-H UM2119

6/23 DocID029822 Rev 1

2 How to use the GUI to configure and test the EVAL-

L9907-H

The following procedure has to be followed to start the EVAL-L9907-H Device using the

L9907-H GUI.

A. Start up at Vcc= 3.3 V

1. Configure the COM port

2. Press “OK” button

3. Send the SPI frame 0xC800 (0b 1100100000000000) - DIAG & 0xE000 (0b– DIAG2

4. In the field #3 (see Section 1) it is possible to read the device answer in bit, in the field

n° 4 it is possible to read the SDI and SDO signals expressed in hex.

5. Check the FS_FLAG status (field #6). The value must be 01

B. Start up at Vcc= 5 V

The Power Up default value for Vcc over voltage threshold is “10”, corresponding to

Vcc=3.3 V application. The below procedure has to be followed in order to use Vcc=5 V (for

more details see the EVAL-L9907-H HW Manual):

1. Configure the COM port

2. Press “OK” button”

3. In field #7, force one of the EN pins to 0

4. Send the command 0x2401 (0b 0010010000000001) – CMD1 register in order to reset

the fault.

5. Press “SEND” in the field #4. If the communication has been established and the

command has been sent and interpreted properly, the LED “SPI SEND OK” will be

turned on. The LED “SPI RECEIVE OK” will be turned on if the device answer has

been received properly.

6. The field #3 will be updated with the device registers value as well as in the field #4 the

SDI and SDO expressed in hex

7. Send the SPI frame 0xC800 (0b 1100100000000000) - DIAG & 0xE000

(0b1110000000000000) – DIAG2

8. Set High the EN pin previously set to zero (step 3).

9. Check the FS_FLAG status (field #6): the value should be 01

C. How to start the PWM independently

1. Set the desired channel (L1, L2, L3, H1, H2 and H3) – Field #5

2. Insert the frequency value in the field #5.

3. Press “SET”.

4. Set Duty Cycle value.

5. Press “START”, to enable the PWM signals

6. In the field #5, press “STOP PWM” to stop the PWM signals.

7. Press the button “STOP” on the top side of the GUI to stop the execution of Labview

code and close the window.

DocID029822 Rev 1 7/23

UM2119 How to use the GUI to configure and test the EVAL-L9907-H

D. How to start the MOTOR CONTROLL

1. STOP all the PWM signals by pressing “STOP PWM” for all 6 channels (L1, L2, L3, H1,

H2 and H3), see Field #5. This action will stop all PWM signals from L9907-H.

2. Follow the procedure described at point A or B or press one of the two button

“Automatic Reset 3.3 V” or “Automatic Reset 3.3 V” depending on the Vcc supply

value.

3. Setup the BLDC motor parameters (polar couples, min and max speed)

4. Set Kp and Ki values (for example by using a for a 60W BLDC motor set Kp= 10 and

Ki=5)(a)

5. Press “Start/Stop Motor” button and the motor will start to run. If the Motor shaft doesn’t

turn it means a fault is present. Stop the Motor Control and reset the fault following the

procedure at section A, point 3 to 5. Restart the motor control(b).

6. Set the rotation direction: Clockwise or CounterClockwise

7. Press “Start/Stop Motor” to stop the Motor shaft.

8. Press the button “STOP” on the top side of the GUI to stop the execution of Labview

code and close the window.

a. The Kp and Ki constants depend on the BLDC motor characteristics and must be tuned to achieve the best

control

b. Due to the Start-up procedure developed in the Firmware, depending on the BLDC motor and the BLDC rotor

position, a cross conduction between high-side and low-side Power MOSFET could happen; under this working

a fault is detected.

How to plug SCP560P-DISP and EVAL-L9907-H UM2119

8/23 DocID029822 Rev 1

3 How to plug SCP560P-DISP and EVAL-L9907-H

In the SPC560P-DISP is implemented a 0.1” 4x37 pin array; it is used as connector to plug

the EVAL-L9907-H.

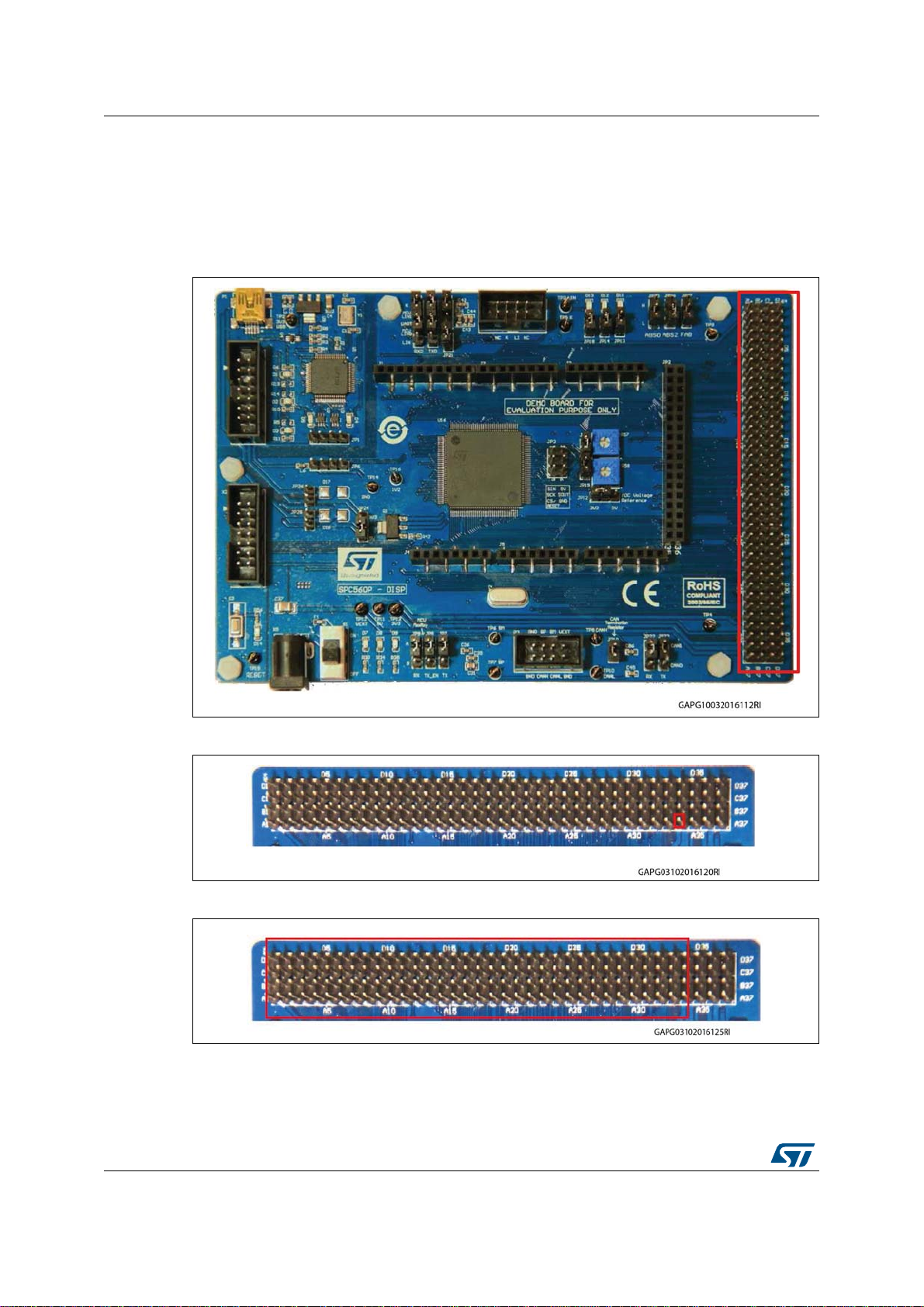

Figure 2. SPC560P-DISP

Figure 3. SPC560P-DISP – 4x37 Connector, pin “A-34”

Figure 4. SPC560P-DISP – 4x37 Connector, pins used to connect the EVAL-L9907-H



DocID029822 Rev 1 9/23

UM2119 How to plug SCP560P-DISP and EVAL-L9907-H

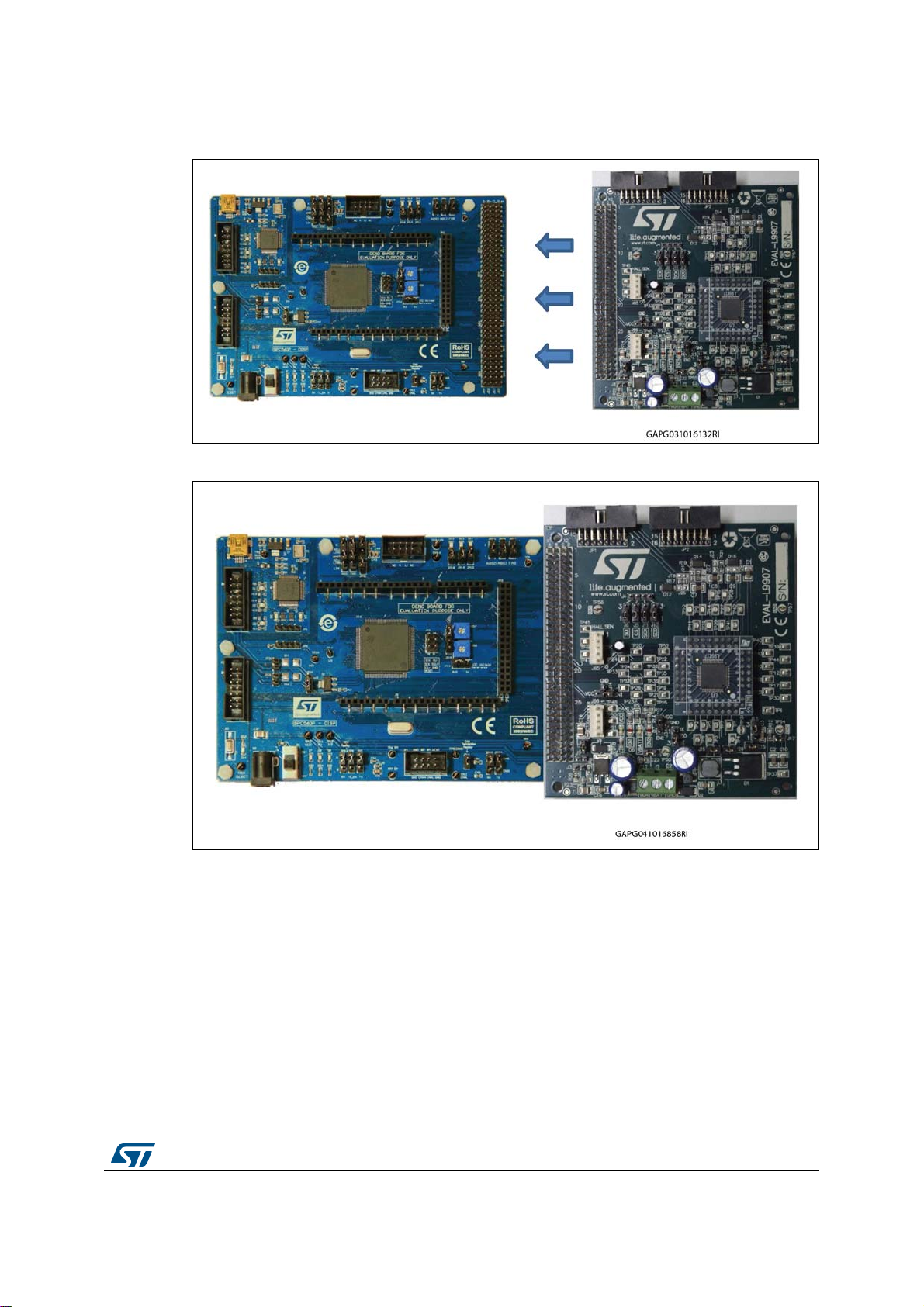

Figure 5. EVAL-L9907-H and SPC560P-DISP

Figure 6. EVAL-L9907-H and SPC560P-DISP plugged

SPC560P-DISP: USB drivers installation UM2119

10/23 DocID029822 Rev 1

4 SPC560P-DISP: USB drivers installation

The GUI needs a dedicated USB driver to enable the serial communication channel. If the

driver is not yet installed or not appropriately configured, the following procedure describes

how to install the Driver or to update the current version.

To install the drivers the board SPC560P-DISP does not need the external supplier; the

USB connection provides the supply voltage.

1. Disconnect the USB from SPC560P-Discovery

2. If the UDE Visual Platform 4.2 is already installed as well as the drivers are updated go

to step #7 otherwise continue to next step

3. Download the SPC5-UDE/STK 4.02.07 from pls-mc web site.

4. Install the SW; right click on the icon named “ude-4-02-07-spc5-udestk.exe” then select

“Run as Administrator”

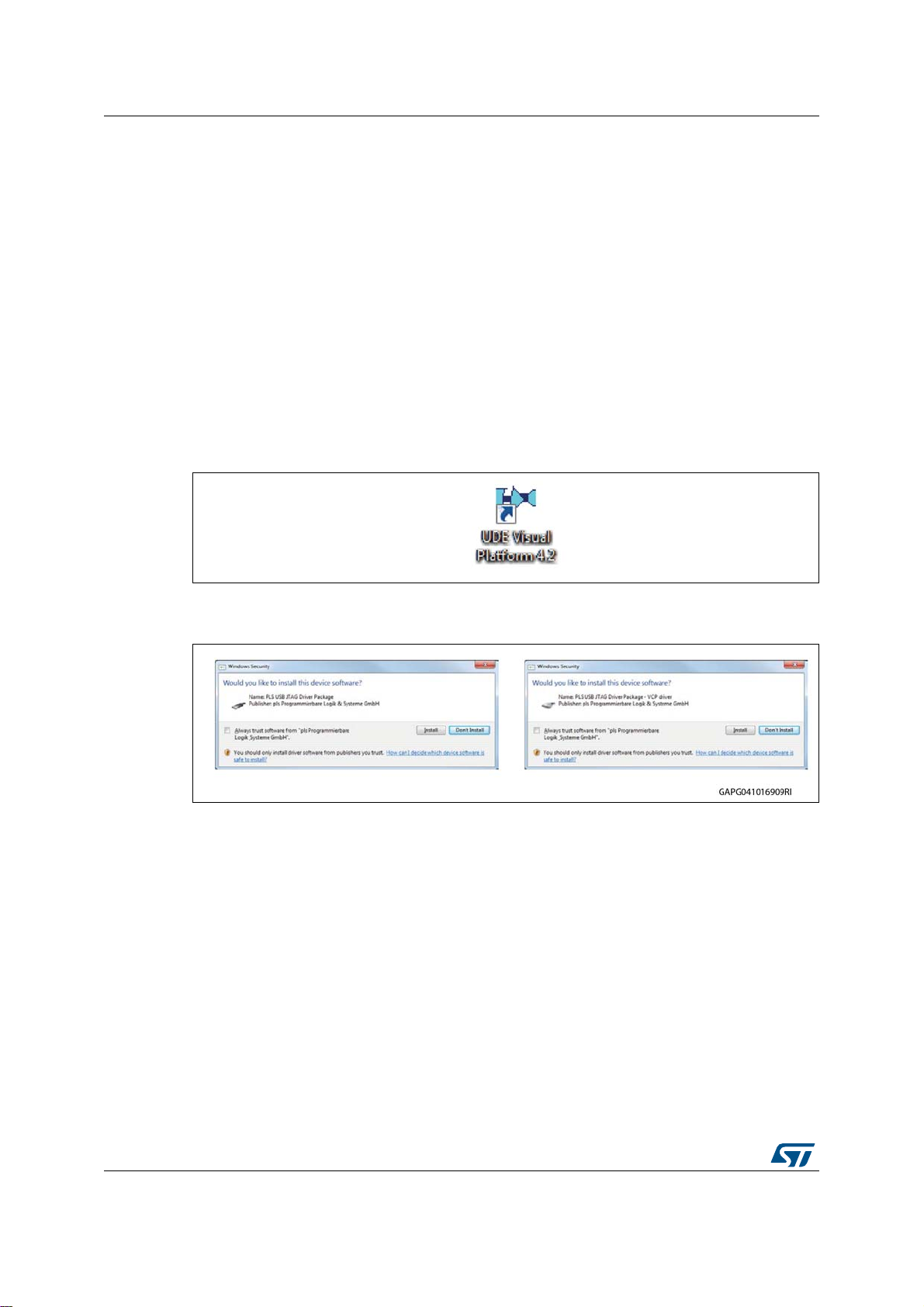

Figure 7. UDE software

5. Accept to install the USB drivers (see Figure 8)

Figure 8. USB driver installation

6. The Drivers installation is completed when the window here below appears (Figure 9).

Pressing the “Finish button” the installation will be completed and the installation

program will be closed.

Inhaltsverzeichnis

Andere STMicroelectronics Hauptplatine Handbücher

STMicroelectronics

STMicroelectronics STM32L476 Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM32100E-EVAL Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM32439I-EVAL Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM32G081B-EVAL Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM3210E-EVAL Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM32100B-EVAL Bedienungsanleitung

STMicroelectronics

STMicroelectronics STEVAL-IHM029V1 Bedienungsanleitung

STMicroelectronics

STMicroelectronics SPC58XCADPT176S Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM32L152D-EVAL Bedienungsanleitung

STMicroelectronics

STMicroelectronics STEVAL-IHT008V1 Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM32F4 Series Bedienungsanleitung

STMicroelectronics

STMicroelectronics STR9 Series Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM32F4 Series Bedienungsanleitung

STMicroelectronics

STMicroelectronics STEVAL-LLL002V1 Bedienungsanleitung

STMicroelectronics

STMicroelectronics EVALSPEAr320CPU Bedienungsanleitung

STMicroelectronics

STMicroelectronics SPC570SADPT64S rev. B Bedienungsanleitung

STMicroelectronics

STMicroelectronics STEVAL-IDB005V1 Bedienungsanleitung

STMicroelectronics

STMicroelectronics EVALSTGAP4S Bedienungsanleitung

STMicroelectronics

STMicroelectronics STM32L476G-EVAL Bedienungsanleitung

STMicroelectronics

STMicroelectronics STEVAL-ILL028V1 Bedienungsanleitung

STMicroelectronics

STMicroelectronics STEVAL-3DP001V1 Administratorhandbuch

STMicroelectronics

STMicroelectronics STM32F756G-EVAL Bedienungsanleitung

STMicroelectronics

STMicroelectronics STEVAL-GLA001V1 Bedienungsanleitung

STMicroelectronics

STMicroelectronics STEVAL-ISQ006V1 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
