Streamit Iris Bedienungsanleitung

Iris Transmitter/Receiver

Updated on 11/10/2022

for software version 0.1.3

User Manual

Iris Transmitter/Receiver 2

Contents

1. Getting started 4

................................................................................................................................................. 41.1 Introduction

................................................................................................................................................. 41.2 Important safety instructions

................................................................................................................................................. 51.3 Iris product range

................................................................................................................................................. 71.4 Applications

2. Installation 8

................................................................................................................................................. 82.1 Unpacking your device

................................................................................................................................................. 82.2 Connecting the Iris

................................................................................................................................................. 92.3 General installation notes

3. Configuration 10

................................................................................................................................................. 103.1 Setting up an audio network

................................................................................................................................................. 123.2 Sites with multiple audio networks

4. LED status information 13

5. The Iris configurator app 15

6. Troubleshooting 18

................................................................................................................................................. 186.1 Find the advertising name

................................................................................................................................................. 186.2 Find the PIN code

................................................................................................................................................. 186.3 Reset to default settings

7. More information 19

8. Support 20

Iris Transmitter/Receiver 3

EU Declaration of Conformity

This product carries the CE-Mark in accordance with the related European Directives. CE marking is the

responsibility of Streamit B.V. The Netherlands.

This is a class A product. In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

FCC Compliance Statement

NOTE: This device complies with Part 15 of the FCC limits for Class B digital devices FOR HOME OR

OFFICE USE (“home or office” interference requirements are more stringent than “outdoor” requirements).

Operation of this device is subject to the following conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

The Iris device does not contain any user-serviceable parts. Repairs should be made only by an authorized

Streamit service center. Unauthorized repairs or modifications could result in permanent damage to the equipment,

and void your warranty and your authority to operate the device under Part 15 regulations.

Understanding of Instructions

WARNING: These are instructions which can cause harm to people or damage to the device if not

followed properly. It is important to read and follow these instructions carefully.

IMPORTANT: These instructions are important in order to understand the correct behavior of the device.

Notices about trademarks

The Iris family of devices is a registered trademark of Streamit

Streamit is a registered trademark

All other trade names that are used in this manual are owned by their respective owners

Disclaimer

This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are

accurate for the Streamit Iris devices at the time of this manual’s production. However, later Iris devices and

manuals are subject to change without notice. Streamit assumes no liability for damages incurred directly or

indirectly from errors, omissions or discrepancies between Iris device and the manual.

Iris Transmitter/Receiver 4

1Getting started

This is the consolidated manual for the 'Iris Transmitter' and the 'Iris Receiver' devices running software

version 0.1.3.

1.1 Introduction

Thank you for purchasing the Iris wireless audio networking device. We strongly recommend you to

read this manual thoroughly before you start installing and using the device for the first time.

The Iris Transmitter (also referred to as the TX-device) can be used to broadcast high quality audio

wirelessly, using DECT, to one or more Iris Receivers (also referred to as the RX-device).

Based on the application requirements, many Iris devices can be paired (wirelessly connected) to form

wireless audio networks. Pairing devices is easily done using the Iris configurator app.

For more information on Streamit products and technologies, we invite you to visit our website

https://www.streamit.eu.

Finally, we wish you lots of pleasure using your Iris devices.

1.2 Important safety instructions

Use the following safety guidelines to help ensure your own personal safety and to help protect your

equipment and working environment from potential damage.

1. Read these instructions.

2. Keep these instructions.

3. Follow all instructions.

4. Keep your equipment away from extremely hot or cold temperatures to ensure that it is used within

the specified operating range:

Operation temperature 5-40 °C

Humidity 30-90%, no condensation

5. Install in accordance with the manufacturer’s instructions.

6. Only use accessories specified by the manufacturer.

7. Refer all servicing to qualified service personnel. Servicing is required when the product has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the product, the product has been exposed to rain or moisture, does not

operate normally, or has been dropped.

8. The power supply and power cord for this product is intended for indoor use only.

Iris Transmitter/Receiver 5

9. Use only the supplied power adapter.

1.3 Iris product range

The Iris technology can be used as the base for a number of products. The scope of this manual are

the products currently on offer:

Iris Transmitter

Iris Receiver

For special requirements or product ideas, please do not hesitate to contact us

(https://www.streamit.eu/contact/)

The Iris Transmitter

The Iris Transmitter also referred to as the TX-device, is connected at the audio source and it is the

center point of your audio network. You can connect up to 100 RX-devices in the same audio network.

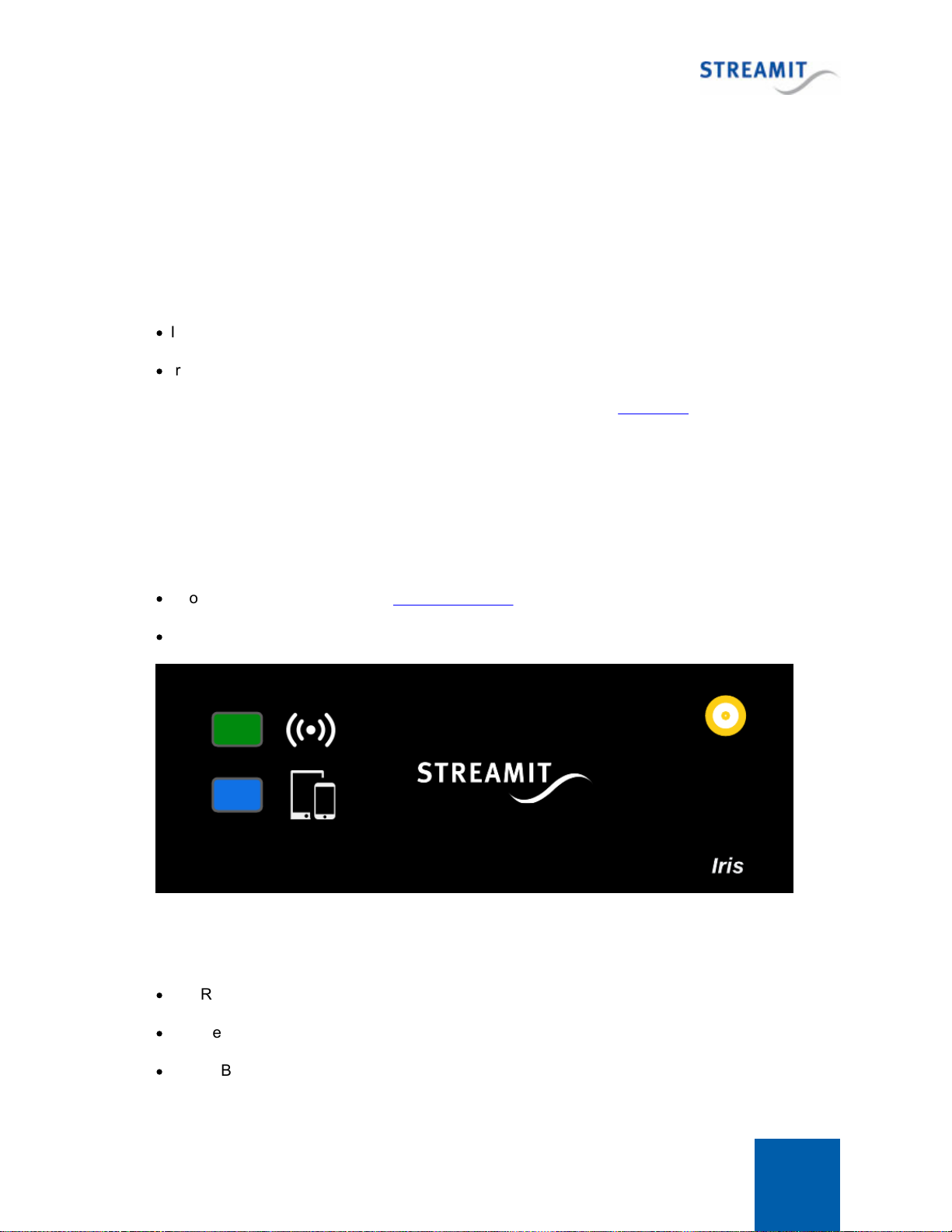

Looking at the hardware, on the front side we find:

Two LEDs used to communicate status information

The external antenna connector

On the back side we find:

The RCA audio input connector

A Phoenix Contact connector that implements a general purpose IO (GPIO)

The USB-C power connector.

Iris Transmitter/Receiver 6

The current firmware version features MONO only support. Only the LEFT channel input will be used.

The current firmware does not support the GPIO related functionality.

The Iris Receiver

The Iris Receiver also referred to as the RX-device, is connected at the playout location, very close to,

or mounted on the speaker.

When it comes to the appearance, one will not be able to distinguish between the RX-device and the

TX-device.

On the front, you will notice the two LEDs used to communicate status information, as well as the

external antenna connector.

Looking at the back side, the only difference between with the TX-device is functional. The RCA

connector on the RX is the audio output.

Iris Transmitter/Receiver 7

The current firmware version only supports transmission of MONO audio. The output will be identical

on both channels of the RX-device.

1.4 Applications

The Iris devices have been developed for many types of applications that require highly reliable

transport of high quality audio, without cables.

Any of the following applications is possible at any location (site):

A single one-to-one audio network

A single one-to-many audio network, with as many as 100 RX-devices

Up to 10 one-to-many audio networks, with as many as 100 RX-devices each

Iris devices feature an internal antenna, which should be good enough for many application especially

for small sites and without serious obstacles between devices. Range extension is achieved by attaching

an external antenna. Accessories such as external antennas are available for purchase from Streamit.

Please get in touch for more information.

Iris Transmitter/Receiver 8

2Installation

This section of the manual covers the installation of your Iris audio networking devices, and includes

some general installation notes.

2.1 Unpacking your device

Carefully unpack the device and the supplied materials. Make sure that all of the following components

are included:

1x Iris device

1x USB-C power supply

3x power plug adapters for EU (Type C), UK (Type G) and US (Type A)

1x Blank sticker

1x User manual

2.2 Connecting the Iris

Connecting the USB-C power supply

Select the correct power plug adapter for your mains socket and mount this to the base of the power

adapter. Plug the power adapter to the mains outlet and plug the other side in the Iris. In the process we

ask that you play careful attention to the following instructions:

Never use wet hands when plugging the power adapter in the mains and never remove the power

adapter from the mains with wet hands.

Do not cut or damage the cord of the power adapter; do not place heavy objects on the cord. This

can cause short-circuit, resulting in electrical shocks or even fire.

Pulling the cord can also damage the wire and/or isolation causing electrical shocks or fire.

Using power adapters other than the one recommended for your Iris, can result in overheating

and damage you device. This can cause fire, electrical shocks and other hazards. Only use the

supplied power adapter.

Applying your Iris to situations with rapid changing temperatures can result in condensation (small

amount of water) on the inner and outer surface of your device. To ensure a long lifetime of your

device, this should be prevented. In case of such a scenario, wait until you device is ‘dry’ before you

use it again.

Iris Transmitter/Receiver 9

Connecting the audio input on the TX-device

The analogue audio source is connected to the audio input of the TX-device. The type of cable

required has an RCA connector (2x tulp male) for the Iris side, while the other end depends on the type

of connector of the source device. No audio cables are included with the Iris.

The current firmware features MONO only support. Please make sure that the input from the mono

source is connected to the LEFT (black) connector.

Connecting the audio output on the RX-device

The audio output of the RX-device will be connected to the line input of the audio installation, or

speaker system. The type of cable required has an RCA connector for the Iris side, while the other end

depends on the type of connector in your audio installation. No audio cables are included with the Iris.

2.3 General installation notes

Whether you are dealing with a one-to-one or a one-to-many audio network, attention needs to be paid

to the following:

Always try to have the TX-device placed in the “middle” of the installation.

In case you need a longer range, the range can be extended by using an external antenna.

Try to place the products as high as possible and prevent moving obstacles between the devices.

Thanks to the stability of the solution, it is possible to install as many as a thousand devices at a single

site. For such large installations, the following is important:

There can be a maximum of 100 devices in one audio network.

There can be a maximum of 10 audio networks in one site.

The volume of the TX-device can be adjusted.

The volume of each RX-device can be adjusted individually.

Iris Transmitter/Receiver 10

3Configuration

To be able and configure your Iris audio networks, you need to install the Iris configurator app on your

mobile device. The Iris configurator is available for free and features support for Android as well as iOS.

For more information and download location see §The Iris configurator app or visit the Streamit website.

The default advertising name and PIN are printed on the sticker on the bottom of the device.

3.1 Setting up an audio network

Setting up an audio network, whether one-to-one or one-to-many, is an easy task.

Start the Iris configurator app and press 'Administrator login'

(First time only) Create admin password and store/remember the chosen password

From the admin home, select 'Sites' and eventually create a new site for your audio network

From the home page of the site you just created, select 'Add audio network'
