Strong SRT 5855 Bedienungsanleitung
Table of Contents
1.0 Usage 3
1.1 Safety Instructions 4
1.2 Features & Accessories 5
1.3 Safety Precautions 6
1.4 Storage 7
1.5 Equipment Set-up 7
2.0 Your DVB-T Receiver 8
2.1 Front Panel 8
2.2 Rear Panel 8

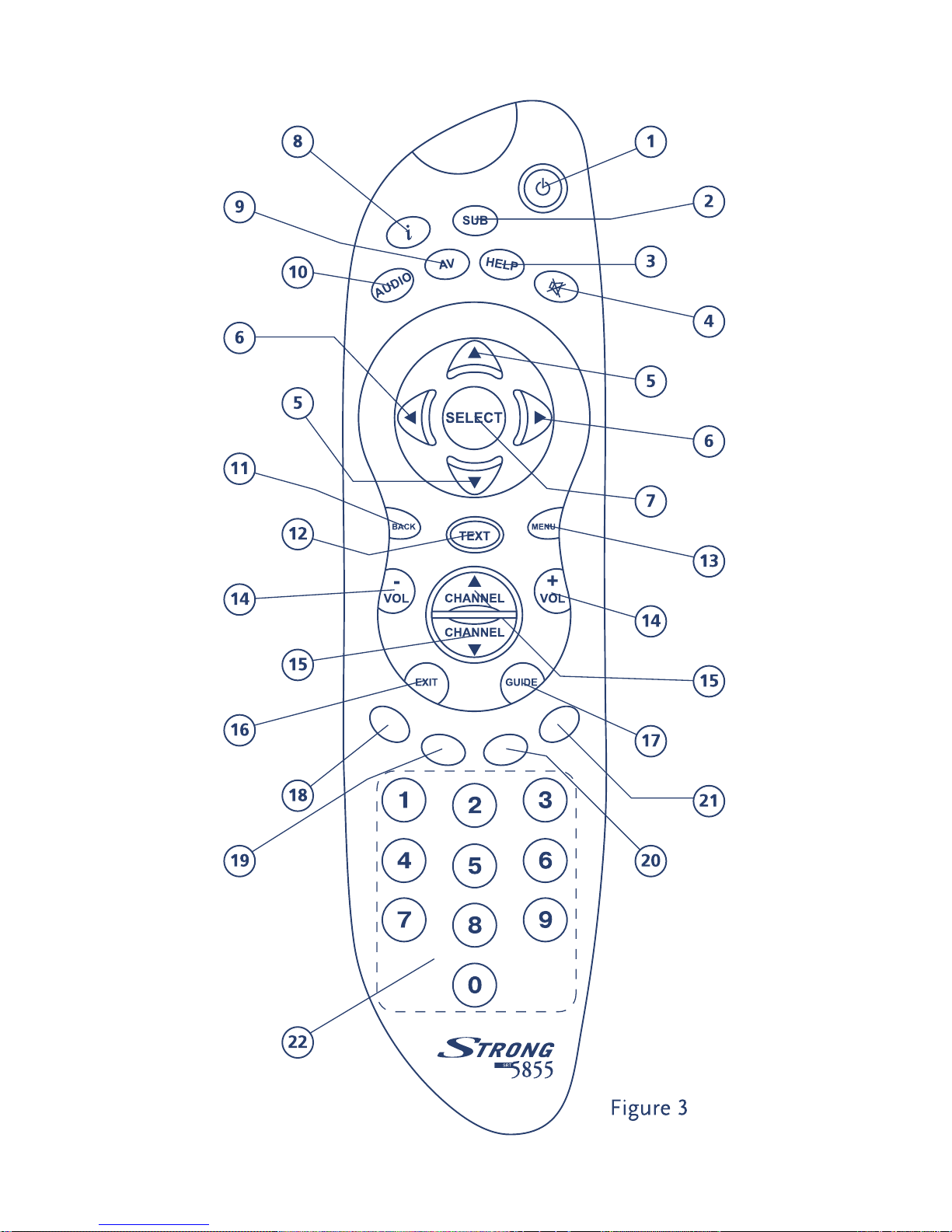

2.3 Basic Functions Remote Control 10
3.0 Connections 12
3.1 Connecting to your TV & VCR 12
3.1.1 Basic connection with a coaxial cable 12
3.1.2 Basic connection with a Scart cable 12
3.1.3 Advanced connection 12
3.1.4 Connection with Audio Cable RCA Connectors 13
3.1.5 Connection to a digital audio amplifier using
the S/PDIF output 13
3.1.6 Connecting a remote eye (optional accessory) 13
3.1.7 Connecting a serial cable for downloading software 14
4.0 Starting up 14
4.1 Starting up for the First Time 14
5.0 Basic settings 15
5.1.1 Main Menu 15
5.1.2 Channel Organizer Menu 15
5.1.3 The Timer Menu 16
5.1.4 The Installation Menu 18
5.1.4.1 System Set-up Menu 18
5.1.4.2 Channel Set-up 22
5.1.4.3 Parental Lock – Changing PIN Code 23
6.0 Pay TV – Subscription 25
6.1 Putting your card into the receiver 25
6.2 Activating the card 25
A1 Troubleshooting 26
A2 Glossary of terms 28
A3 Technical specification 30
2
3
Thank you for choosing this Strong Digital Terrestrial Television Receiver. This receiver is
of our latest development and it is designed to be capable of upgrading its software
through the PC. It is highly recommended that you read this manual carefully to safely
install your receiver and to achieve its optimum performance.
1.0 Usage
This user manual is applicable for Strong SRT 5855 Digital Terrestrial Receiver and its
related accessories. It is advised that first time and experienced users read this manual in
order to safely install the receiver.
Strong has supplied this product with the most recent innovations of software and
hardware. Strong reserves the right to make changes in production to the software used
by your terrestrial receiver without prior notification. In order to maintain and ensure that
your receiver is compatible and updated with the most recent software technology, we
recommend that you visit our website to check the latest software. (www.strongsat.com)
1.1 Safety Instructions
Warning:
DO NOT INSTALL YOUR RECEIVER:
In a closed or poorly ventilated cabinet;
Directly on top of or under any another equipment;
On a surface which might obstruct the ventilation slots.
DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES:
To direct sunlight or near any other equipment that generates heat;
To rain or intense moisture.
To any shock which may cause permanent damage to your receiver;
To any magnetic objects, such as loudspeakers, transformers, etc.;
To intense vibration.
Never open the cover. It is dangerous to touch the inside of the receiver due to
high voltage currents and possible electrical hazards. Your warranty will be void
if the receiver has been opened.
When the receiver is not used for a long period of time, you should unplug the
power cord from the wall socket.
Do not use a damaged power cord. It may cause a fire or an electrical shock.
Do not touch a power cord with wet hands. It may cause an electric shock.
Place the receiver in a well-ventilated environment.
When you are connecting the cables, be sure that the receiver is disconnected
from the mains supply voltage.
Do not use your receiver in a humid environment.
4
5
Make sure you read this user manual before installing your receiver.
This manual provides complete instructions for installing and using this receiver. The
following symbols will be used as follows:
Bold Characters: Represents a button on the remote control or the receiver.
Italic Characters: Represents a menu item within the On Screen Display
(OSD) Menu.
1.2 Features & Accessories
SRT 5855 Digital Terrestrial Receiver:
Easy to use Graphic MENU Interface
Automatic channel scan
2 TV SCART Connectors (VCR and TV)
3 RCA Connectors (CVBS, Audio Left/Right)
Multi-Language function (Menu, Audio)
IR sensor-connector for connecting an external remote eye to control the receiver
(available as accessory)
Front Panel Buttons & standard remote control
EPG (Electronic Program Guide) for on screen channel information
Over 250 channels memory capacity
2 Operation Modes (Digital TV, Digital Radio)
Digital Tuner with Loop-through output
MPEG-2 Main Profile at Main Level
Supports software downloading via PC — through RS 232 port for updating
software and additional services
S/PDIF output for connection with a digital audio amplifier
Built-in UHF modulator
For all digital Free-To-Air TV and Radio programmes via your TV antenna (no
satellite or cable connection needed)
Single Smart Card reader for Pay TV services (Conditional Access
for Mediaguard)
Accessories:
User’s Manual
Standard remote control unit
2x Batteries (AAA type)
Scart cable
Optional Accessories:
Remote Eye
Note: The batteries should not be recharged, disassembled, electrically short-circuited or
be mixed or used with other types of batteries.
1.3 Safety Precautions
To maintain your receiver’s optimum performance, you are advised to apply the following
safety precautions:
Read this manual carefully and make sure you fully understand the instructions
given.
Refer all maintenance or servicing to suitably qualified personnel
If you wish, you may clean your receiver with a soft lint-free cloth slightly made
damp with a mild soap solution, only after disconnecting from the mains voltage
supply.
Do not use alcohol or ammonia based liquids to clean the receiver.
Do not open the receiver cover, as you will be exposed to a shock hazard
Do not open the receiver cover, this will void your warranty.
6
7
Do not place any objects on top of the receiver because this might prevent
proper cooling of the components inside.
Make sure no foreign objects fall through the ventilation slots because this could
cause fire or an electric shock.
Wait a few seconds after switching off the receiver before you move the receiver
or disconnect any equipment;
Please ensure that that the electrical power supply corresponds with the voltage
on the electrical identification plate at the back of the receiver.
It is a necessity that you only use an approved extension and compatible wiring
that is suitable for the electrical power consumption of the installed equipment.
If the receiver does not operate normally even after strictly following the
instructions in this user manual, it is recommended to consult your dealer.
1.4 Storage
Your receiver and its accessories are stored and delivered in protective packaging against
electric shocks and moisture. When unpacking it, make sure that all the parts are included
and keep packaging away from children. When transporting the receiver from one place to
another or if you are returning it under warranty make sure to store the receiver in its
original packaging with its accessories. Failing to comply with such packaging procedures
could void your warranty.
1.5 Equipment Set-up
We recommend you to consult a professional installer to set up your equipment.
Otherwise, please follow the following instructions:
Refer to the user manual of your TV and/or your antenna.
Make sure that the SCART cable is in a good condition.
Make sure that the SCART cable connections are well shielded
Make sure that the outdoor components of the antenna are suitable for Digital
Terrestrial reception and that you are in a coverage area. More information
available from; FREEVIEW on 08708 809980; Top Up TV on 08700 543210 or
“Text” your postcode to 83331 (standard rates apply)
2.0 Your DVB-T Receiver
2.1 Front Panel (Please see inside cover Figure 1)
1. Power Button
Turns the receiver ON/OFF.
2. The 3 LED’s
Indicate; Stand-BY, ON and SIGNAL “locked”. The red LED is the “stand-by”
indicator. The green LED is the “Power On” indicator. The orange LED lights up
once you correctly receive an antenna signal (signal locked)
3. UP/DOWN Buttons
Changes the channels UP/DOWN in no menu state.
4. Card Reader
Insert your Pay TV subscriber card here.
2.2 Rear Panel (Please see inside cover Figure 2)
1. ANTENNA INPUT
Connect the antenna cable to this connector.
2. RF OUTPUT
Gives you the possibility to connect the receiver to TV by RF cable.
8
