BUILT-IN DESIGN GUIDE
STAINLESS FLUSH INSET INSTALLATION
Features and specications are subject to change at any
time without notice. Visit subzerowolf.com.au for the most
up-to-date information.
Built-In Refrigeration 3
subzero.com/specs
Built-In Refrigeration. For the built-in line, Sub-Zero designers and engineers took a fresh look at everything,
inside and out. Exterior renements include redesigned grilles and lower-prole hinges. Inside, new technology in food
preservation makes the built-in line nothing short of revolutionary.
914 mm914 mm
2134
mm
914 mm
2134
mm
762 mm
1219 mm 1219 mm1067 mm1067 mm
2134
mm
914 mm
ICBBI-36R
914 mm914 mm
2134
mm
914 mm
2134
mm
762 mm
1219 mm 1219 mm1067 mm1067 mm
2134
mm
914 mm
914 mm914 mm
2134
mm
914 mm
2134
mm
762 mm
1219 mm 1219 mm1067 mm1067 mm
2134
mm
914 mm
ICBBI-36F ICBBI-36UICBBI-30U
ICBBI-36S ICBBI-42S ICBBI-42SD ICBBI-48S ICBBI-48SD

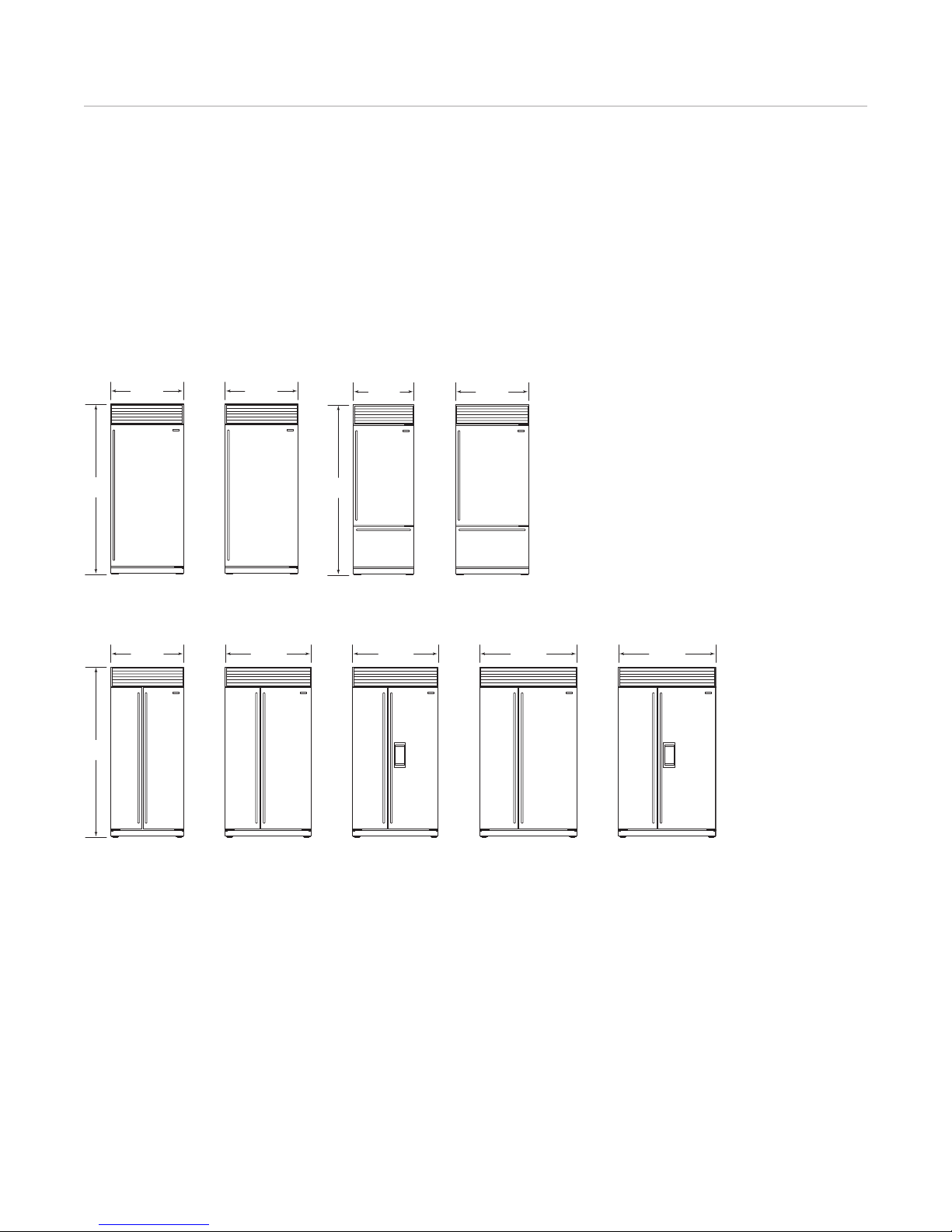

BUILT-IN MODELS
KEY FEATURES
• Three distinct design approaches: overlay, ush inset
and stainless steel.
• Handle options coordinate with handles of Wolf
cooking products.
• Dual refrigeration; two compressors preserve food’s
goodness in two sealed compartments.
• Energy ecient.
• Advanced air purication system.
• Crisper and deli drawers form a lower-temperature
zone for produce and meats.
• Flip-up grille provides easy access for quick routine
maintenance.
• All models are Star-K certied.
Built-In Refrigeration 4
914 mm
2134
mm
610 mm
102 mm
1873
mm
606
mm
946
mm
432
mm
606 mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
MODELS ICBBI-36R AND ICBBI-36F
Interior Capacity R (L) F (L)
ALL REFRIGERATOR / ALL FREEZER MODELS
ICBBI-36R 662
ICBBI-36F 640
OVER-AND-UNDER MODELS
ICBBI-30U 362 116
ICBBI-36U 451 149
SIDE-BY-SIDE MODELS
ICBBI-36S 346 227
ICBBI-42S 455 227
ICBBI-42SD 453 230
ICBBI-48S 533 270
ICBBI-48SD 531 274
Shipping Weight kg
ALL REFRIGERATOR / ALL FREEZER MODELS
ICBBI-36R 191
ICBBI-36F 184
OVER-AND-UNDER MODELS
ICBBI-30U 210
ICBBI-36U 234
SIDE-BY-SIDE MODELS
ICBBI-36S 244
ICBBI-42S 264
ICBBI-42SD 276
ICBBI-48S 286
ICBBI-48SD 298
Shipping weights and overall dimensions are based on
stainless steel models. For ush inset applications, add
13 mm to door clearance dimensions.
All Refrigerator / All Freezer Models
OVERALL DIMENSIONS
Built-In Models
SPECIFICATIONS
Built-In Refrigeration 5
subzero.com/specs
762 mm
2134
mm
610 mm
102 mm
1289
mm
584
mm
606
mm
600
mm 796
mm
368
mm
606 mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
MODEL ICBBI-30U
914 mm
2134
mm
610 mm
102 mm
1289
mm
584
mm
606
mm
600
mm 946
mm
432
mm
606 mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
MODEL ICBBI-36U
Over-and-Under Models
OVERALL DIMENSIONS
Built-In Refrigeration 6
Overall dimensions are based on stainless steel models.
For ush inset applications, add 13 mm to door clearance
dimensions.
1067 mm
2134
mm
610 mm
102 mm
1873
mm
606 mm
606
mm
668
mm
318
mm
222
mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
MODELS ICBBI-42S AND ICBBI-42SD
914 mm
2134
mm
610 mm
102 mm
1873
mm
606
mm
565
mm
216
mm 260
mm
606 mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
MODEL ICBBI-36S
Side-by-Side Models
OVERALL DIMENSIONS
Built-In Refrigeration 7
subzero.com/specs
1219 mm
2134
mm
610 mm
102 mm
1873
mm
606 mm
606
mm
762
mm
356
mm
248
mm
60 mm
HEIGHT DIMENSIONS ± 13 mm
Side-by-Side Models
OVERALL DIMENSIONS
MODELS ICBBI-48S, ICBBI-48SD & ICBBI-48SID
Built-In Refrigeration 8
subzero.com/specs
Electrical Requirements
Power Supply 220-240 V AC, 50/60 Hz
Circuit Breaker 10 amp
Receptacle 3-prong grounding-type
Plumbing Requirements
Water Supply Line 6mm plastic line
Water Pressure 2.1–6.9 bar
Water line for Connection 5m
FRONT VIEW
1918 mm
FROM
FLOOR
178
mm E
152
mm
Freestanding location of
power supply.
Built in. Alternative location
of power & water supply
depending on ease of access.
2,200 mm
minimum
FROM
FLOOR
1.
2.
2. Built in. Water supply beside
fridge. Location of 6mm
fl exible hose. Tape to wall and
fl oor with pressure limiting
valve next to tap.
pressure
limiting valve
6mm flexi hose
& tape to wall
& floor.
1.
2.
pressure
limiting valve
6mm flexi hose
& tape to wall
& floor.
1. Built in. Water supply above
fridge. Location of 6mm
fl exible hose. Tape to wall and
fl oor with pressure limiting
valve next to tap.
pressure
limiting valve
6mm flexi hose
& tape to wall
& floor.
1.
2.
pressure
limiting valve
6mm flexi hose
& tape to wall
& floor.
Planning Information
ELECTRICAL REQUIREMENTS
International models from the factory designed without a
transformer require a 220-240 V AC, 50/60 Hz electrical
supply, fused at the correct rating for the unit. If required
by local or national codes, the power cord can be easily
replaced using the power inlet device.
Built-in models should have the electrical supply either
in the cabinet above the refrigerator a MINIMUM OF
2200MM ABOVE THE FLOOR or in the cabinet alongside.
If freestanding then locate the power point as per the
diagram below. A separate circuit servicing only this
appliance is required. A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption
of operation.
PLUMBING REQUIREMENTS
For built-in models with an automatic ice maker, a
pressure limiting valve and 5 meters of exible 6mm
pipe with ttings is included in the refrigerator carton.
Connect the pressure limiting valve close to the water tap,
CHECKING THE WATER FLOW IS IN THE RIGHT
DIRECTION. Ensure water connection is ½” BSP male
threaded outlet. Tape the 6mm water line to the wall and
oor to ensure it isn’t squashed when the refrigerator is
pushed into the cavity. Locate the water tap either in the
cabinet above a minimum of 2200mm from the oor, or in
the cabinet alongside.
The water line must not interfere with installation of the
anti-tip brackets.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 2.1 bar
to 6.9 bar supplied to the unit at all times.
Built-In Refrigeration 9
subzero.com/specs
Stainless Flush Inset Application
It is necessary to consider the following points when
planning for a ush inset application:
• The ush inset depth is 56 mm deeper than the
standard opening depth.
• The ush inset width is 46 mm wider than the
standard opening width.
• The ush inset height is 22 mm higher than the
standard opening height.
• You must allow a 15 mm reveal around the perimeter
of the unit and grille to allow for proper door swing and
air ow.
IMPORTANT NOTE: The ush inset application is not a
separate model. The same model is used in a standard or
ush inset application of stainless steel fridge.
STANDARD INSTALLATION
620 mm
minimum
OPENING
DEPTH
675 mm
minimum
FLUSH
INSET
DEPTH
56 mm 32 mm
TOP VIEW
TOP VIEW
FLUSH INSET INSTALLATION
WITH 19 mm PANEL
620 mm
minimum
OPENING
DEPTH
Standard installation. Flush inset installation.
STANDARD INSTALLATION
620 mm
minimum
OPENING
DEPTH
675 mm
minimum
FLUSH
INSET
DEPTH
56 mm 23 mm
TOP VIEW
TOP VIEW
STAINLESS STEEL
FLUSH INSET INSTALLATION
620 mm
minimum
OPENING
DEPTH
Flush Inset Opening Widths AB
ICBBI-30U and ICBWS-30 746 mm 792 mm
ICBBI-36U 902 mm 948 mm
ICBBI-36S 902 mm 948 mm
ICBBI-42S 1054 mm 1100 mm
ICBBI-48S, ICBBI-48SD & ICBBI-48SID 1206 mm 1252 mm
DETAIL A
DETAIL B
FRONT VIEW
A
WIDTH TO CLEAT
B
FLUSH INSET WIDTH
23
mm 23
mm
SIDE VIEW
2149
mm
FLUSH
INSET
HEIGHT
18 mm
620 mm
minimum
DEPTH TO CLEAT
675 mm
minimum
FLUSH INSET DEPTH
56
mm
2127
mm
HEIGHT
TO CLEAT
620 mm
minimum
DEPTH
TO CLEAT
675mm
minimum
FLUSH
INSET
DEPTH
TOP VIEW
56 mm
23
mm
CLEAT
CLEAT
Detail A
Detail B
23 mm
620 mm
minimum
OPENING
DEPTH
TO CLEAT
CLEAT
TOP VIEW
675
mm
minimum
FLUSH
INSET
DEPTH
56 mm
620 mm
minimum
OPENING
DEPTH TO
CLEAT
23 mm
56 mm
CLEAT
SHADED
AREA
MUST BE
FINISHED
76 mm
typical
102
mm
76 mm
typical
23 mm
620 mm
minimum
OPENING
DEPTH
TO CLEAT
CLEAT
TOP VIEW
675
mm
minimum
FLUSH
INSET
DEPTH
56 mm
620 mm
minimum
OPENING
DEPTH TO
CLEAT
23 mm
56 mm
CLEAT
SHADED
AREA
MUST BE
FINISHED
76 mm
typical
102
mm
76 mm
typical
Built-In Models
FLUSH INSET INSTALLATION
Built-In Refrigeration 10
