Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

IMPORTANT NOTE: Save these instructions for the local

electrical inspector.

subzero.com

Product Information

Important product information including the model and

serial number are listed on the product rating plate. For

column models, the rating plate is located inside the middle

drawer near the drawer guide opposite the hinge. For tall

and drawer models, the rating plate is located inside the

cabinet, to the left of the upper drawer. Refer to the illustra-

tions below.

If service is necessary, contact Sub-Zero factory certied

service with the model and serial number. For the name

of the nearest Sub-Zero factory certied service or for

questions regarding the installation, visit the contact & sup-

port section of our website, subzero.com or call Sub-Zero

customer care at 800-222-7820.

INTEGRATED REFRIGERATION

Tools and Materials

•Screwdrivers—standard, Phillips and Torx.

•Power drill.

•Drill bits (masonry bits required for concrete installation).

•Standard socket and wrench set.

•2' and 4' levels.

•Tubing cutter.

•3' (.9 m) of 1/4" OD copper, braided stainless steel or

PEX tubing.

•Saddle valve.

•Material to protect home, ooring and cabinetry during

installation.

Column models.

Tall and drawer models.

RATING

PLATE

RATING

PLATE

Sub-Zero Customer Care 800.222.7820

SITE PREPARATION

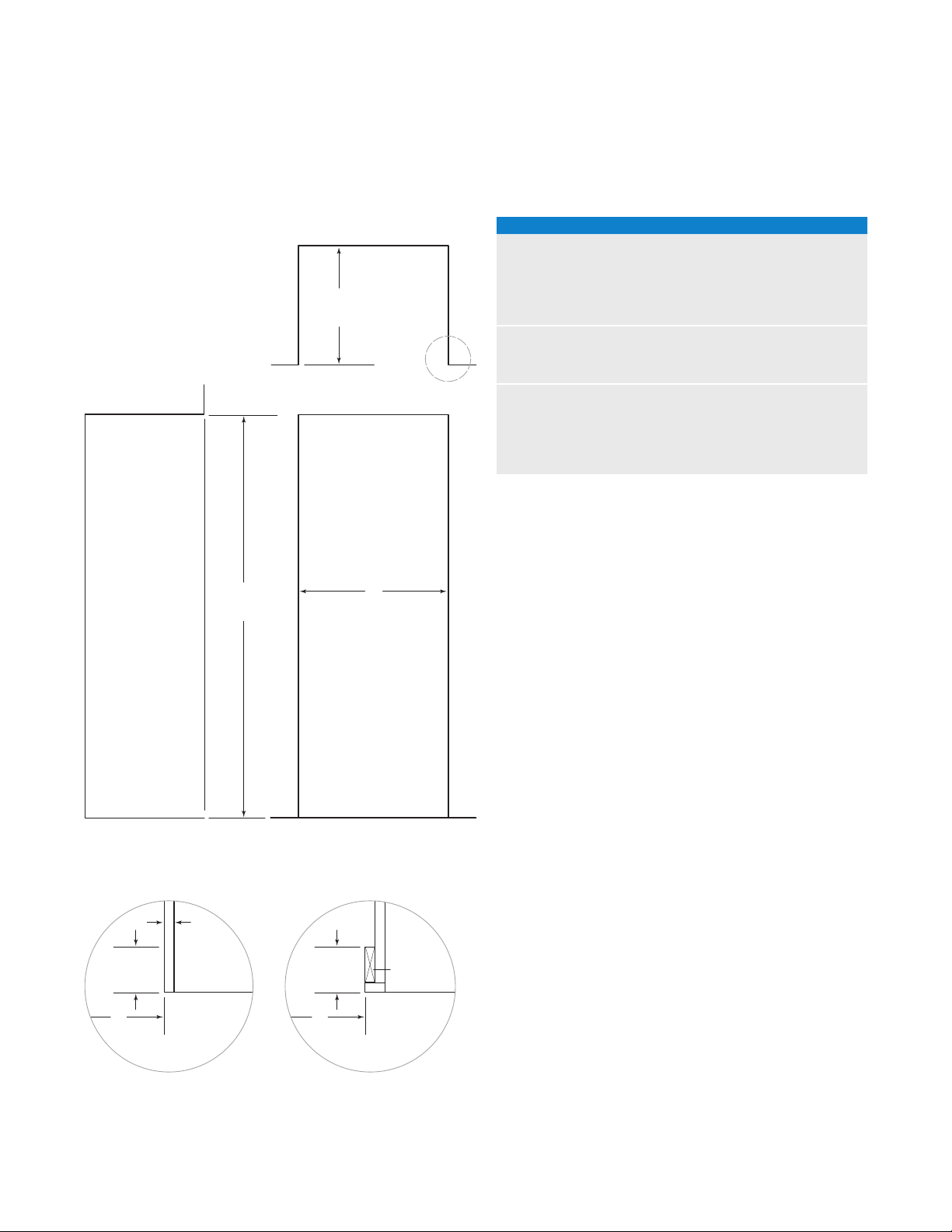

Opening Dimensions

INTEGRATED MODELS

25" (635)

OPENING

DEPTH

OPENING WIDTH

OPENING

HEIGHT

NOTE:

31/2"(89) finished returns will be visible and should be finished to match cabinetry.

SIDE

VIEW

TOP VIEW

FRONT VIEW

31/2"(89)

FINISHED

RETURN

FRAMELESS CABINETRY

3/4"

(19)

TYPICAL 31/2"(89)

FINISHED

RETURN

FILLER

FRAMED CABINETRY

W W

OPENING DIMENSIONS

COLUMN W H

IC-18FI 18" (457) 84" (2134)

IC-24R, IC-24FI 24" (610) 84" (2134)

IC-30R(ID), IC-30FI 30" (762) 84" (2134)

IC-36R(ID) 36" (914) 84" (2134)

TALL W H

IT-30R(ID), IT-30FI, IT-30CI(ID) 30" (762) 84" (2134)

IT-36R(ID), IT-36CI(ID) 36" (914) 84" (2134)

DRAWER W H

ID-24R, ID-24F(I) 24" (610) 341/2"(876)

ID-27R 27" (686) 341/2"(876)

ID-30R(P), ID-30F(I), ID-30C(I) 30" (762) 341/2"(876)

ID-36R(P), ID-36C(I) 36" (914) 341/2"(876)

The depth of each integrated model is 24" (610). Allow for

panel thickness when planning the nished opening depth.

A minimum 31/2"(89) nished return is required on all sides

of the opening. Framed cabinets will require additional

nished ller material behind the face frame for a proper

installation. Refer to the illustration.

DUAL INSTALLATION

When installing two units side by side in a dual installa-

tion, the opening width is the width of the two units added

together. A dual installation kit will be required for this instal-

lation. If a dual installation kit is not specied, a minimum

2" (51) ller strip is required between units.

Dual installation kits are available through an authorized

Sub-Zero dealer. For local dealer information, visit the nd a

showroom section of our website, subzero.com. For ques-

tions regarding the installation, call Sub-Zero customer care

at 800-222-7820.

subzero.com

SITE PREPARATION

Electrical

Installation must comply with all applicable electrical codes.

The electrical supply must be located within the shaded

area shown in the illustration and chart below. A separate

circuit, servicing only this appliance is required. A ground

fault circuit interrupter (GFCI) is not recommended and may

cause interruption of operation.

The electrical outlet must be positioned with the grounding

prong to the right of the thinner blades.

CAUTION

The outlet must be checked by a qualied electrician to

be sure that it is wired with the correct polarity. Verify

that the outlet is properly grounded.

WARNING

Do not use an extension cord, two-prong adapter or

remove the power cord ground prong.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz

Service 15 amp

Receptacle 3-prong grounding-type

ELECTRICAL SUPPLY LOCATION

WIDTH A

18" Models 6" (152)

24" Models 91/2"(241)

27" Models 11" (279)

30" Models 121/2"(318)

36" Models 151/2"(394)

Plumbing

Installation must comply with all applicable plumbing codes.

The water supply line should be located within the shaded

area shown in the illustration below. The water supply line

should be connected to the house supply with an easily

accessible shut-off valve. Do not use self-piercing valves.

The water supply line must be ush to the oor and not

interfere with installation of the anti-tip bracket.

Column and tall models with an ice maker or water dis-

penser feature a water ltration system. An in-line lter is

required for drawer models with an ice maker when water

conditions have a high sediment content.

A reverse osmosis system can be used provided there is

constant water pressure of 35–120 psi (2.4–8.3 bar) supplied

to the unit at all times. In this application, the water ltra-

tion system must be bypassed. Refer to water lter bypass

on page 15. A copper line is not recommended for this

application.

PLUMBING REQUIREMENTS

Water Supply Line 1/4" OD copper, braided

stainless steel or PEX tubing

Water Pressure 35–120 psi (2.4–8.3 bar)

Excess Water Line for Connection 36" (914)

WATER SUPPLY LOCATION

WIDTH A

18" Models 3" (76)

24" Models 51/2"(140)

30" Models 6" (152)

36" Models 9" (229)

1/4" (6)

41/4"

(108)

41/2"

(114)

FLOOR

LEFT SIDE

OF OPENING

Electrical supply location.

3" (76)

6" (152)

RIGHT SIDE

OF OPENING

AREA EXTENDS 1/2"(13)

FORWARD ON FLOOR

Water supply location.

Sub-Zero Customer Care 800.222.7820

SITE PREPARATION

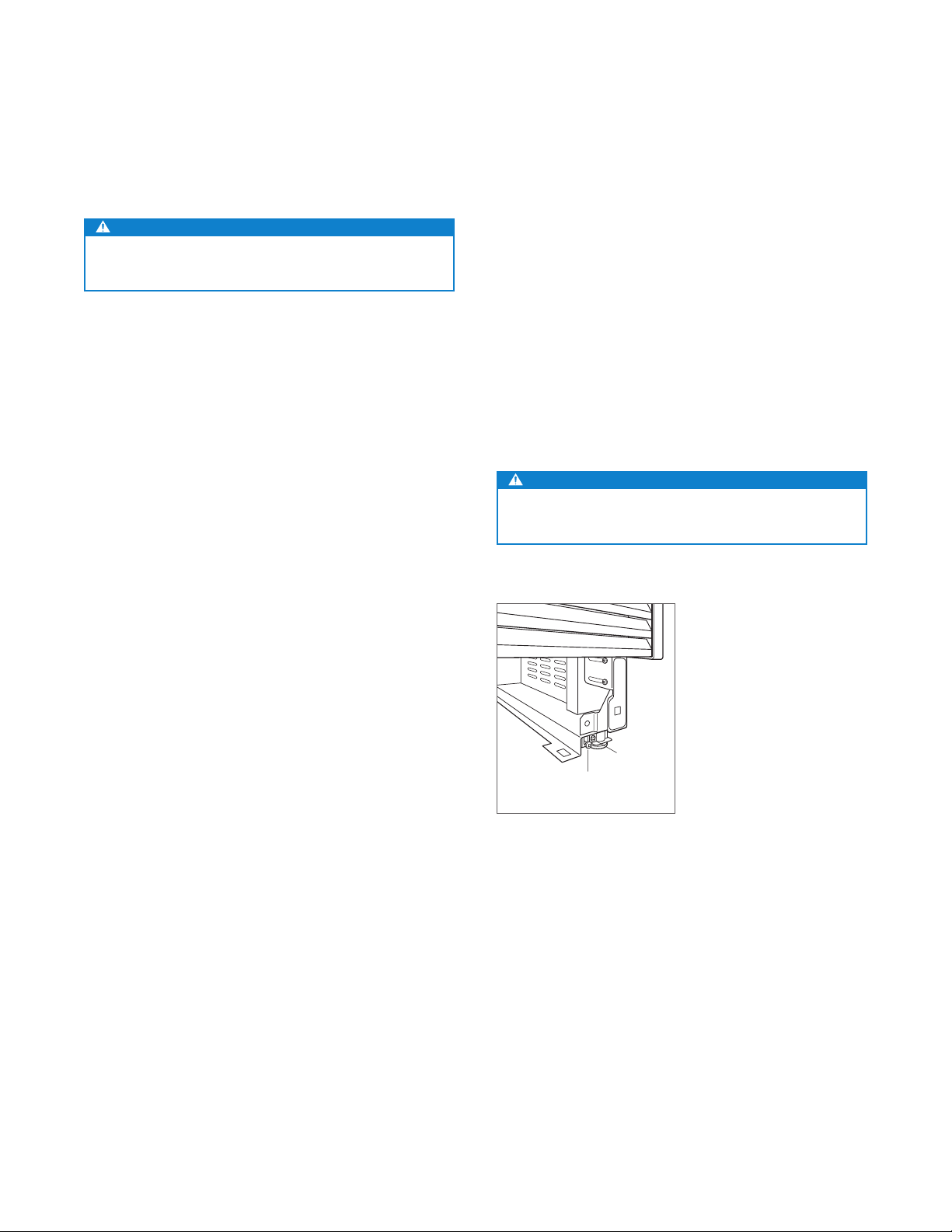

Preparation

Uncrate the unit and inspect for damage. Remove the wood

base and discard shipping bolts and brackets. Remove and

recycle packing materials. Do not discard the kickplate, anti-

tip bracket and hardware.

Remove the kickplate by extracting the two mounting

screws. Refer to the illustration below.

Anti-Tip Bracket

WARNING

To prevent the unit from tipping forward, the anti-tip

bracket must be installed.

The back of the anti-tip bracket must be installed 24" (610)

from the front of the unit (without panels).

Use all anti-tip bracket hardware as instructed for wood or

concrete oors.

IMPORTANT NOTE: For wood or concrete oor applications,

if the #12 screws do not hit a wall stud or wall plate, use the

#8 screws and #12 washers with the wall anchors.

IMPORTANT NOTE: In some installations the subooring or

nished oor may necessitate angling the screws used to

fasten the anti-tip bracket to the back wall.

ANTI-TIP HARDWARE

1 Anti-tip bracket

12 #12 x 21/2" pan head screws

43/8"–16 x 33/4" wedge anchors

12 #12 at washers

4 #8–18 x 11/4" truss head screws

4 Nylon Zip-it®wall anchors

SCREW

Kickplate removal.

subzero.com

SITE PREPARATION

CONCRETE WEDGE ANCHOR INSTALLATION:

1Drill a 3/8"(10) diameter hole any depth exceeding the

minimum embedment. Clean the hole or drill additional

depth to accommodate drill nes.

2Assemble the washer and nut ush with the end of

anchor to protect threads. Drive the anchor through the

material to be fastened until the washer is ush with the

surface material.

3Expand the anchor by tightening the nut 3–5 turns past

hand-tight position or to 25 foot-pounds of torque.

WARNING

Verify there are no electrical wires or plumbing in the

area which the screws could penetrate.

CAUTION

Always wear safety glasses and use other neces-

sary protective devices or apparel when installing or

working with anchors.

Anchors are not recommended for use in lightweight

masonry material such as block or brick, or for use in

new concrete which has not had sufcient time to cure.

The use of core drills is not recommended to drill holes

for the anchors.

Anti-Tip Bracket

WOOD FLOOR APPLICATION

After properly locating the anti-tip bracket in the opening,

drill pilot holes 3/16"(5) diameter maximum in the wall studs

or wall plate. Use the #12 screws and washers to secure the

brackets. Verify the screws penetrate through the ooring

material and into wall studs or wall plate a minimum of 3/4"

(19). Refer to the illustration and chart below.

CONCRETE FLOOR APPLICATION

After properly locating the anti-tip bracket in the opening,

drill pilot holes 3/16"(5) diameter maximum in the wall studs

or wall plate. Drill 3/8"(10) diameter holes into the concrete

a minimum of 11/2"(38) deep. Use the #12 screws and

washers to secure the brackets to the wall, and use the 3/8"

wedge anchors to secure the brackets to the oor. Verify the

screws penetrate wall studs or wall plate a minimum of 3/4"

(19). Refer to the illustration and chart below.

ANTI-TIP BRACKET PLACEMENT

WIDTH A

18" Models 9" (229)

24" Models 12" (305)

27" Models 131/2"(343)

30" Models 15" (381)

36" Models 18" (457)

SUBFLOORING

WOOD FLOOR

WALL PLATE

FINISHED

FLOORING

SUBFLOORING

CONCRETE

FLOOR

WALL PLATE

FINISHED

FLOORING

11/2"(38)

min

Wood oor.

Concrete oor.

Sub-Zero Customer Care 800.222.7820

INSTALLATION

Placement

CAUTION

Before moving the unit into position, secure the door/

drawers closed and protect any nished ooring.

Use an appliance dolly to move the unit near the opening.

The front leveling legs are extended below the front rollers to

improve stability during placement. Once the unit is placed

in front of the opening, completely retract the front leveling

legs to allow the unit to be rolled into position. Front and

rear leveling legs can be adjusted from the front once the

unit is positioned.

If the unit has been on its back or side, it must stand upright

for a minimum of 24 hours before connecting power.

Plug the power cord into the grounded outlet and roll the

unit into position. Verify the anti-tip bracket is properly

engaged.

Alignment

LEVELING

Once the unit is in position, height adjustment can be made

from the front. Using a Phillips drive, turn clockwise to raise

the unit or counterclockwise to lower. Use the lowest torque

setting when using a power drill. Do not turn the leveling

legs by hand. Refer to the illustration below.

When the unit is properly leveled, door/drawer adjustments

are less likely to be necessary.

IMPORTANT NOTE: Level the unit to the oor, not sur-

rounding cabinetry. This could affect the operation of the

unit, such as door closing.

WARNING

To reduce the possibility of the unit tipping forward,

the front leveling legs must be in contact with the oor.

REAR

ADJUSTMENT

FRONT

ADJUSTMENT

Leveling.

subzero.com

INSTALLATION

Water Line

Purge the water line prior to nal connection to the unit. This

will remove any debris that may be present in the tubing

from installing the new water line. Connect the plastic tubing

from the unit to the house water supply line with the tting

connection kit provided. Check all water line ttings for

leaks.

Locate the water line in the notch as shown in the illustration

below.

IMPORTANT NOTE: If a reverse osmosis system used, it is

recommended that the water ltration system be bypassed

by removing the lter.

IMPORTANT NOTE: Water lines can not be exposed to

freezing temperatures.

WATER LINE

CONNECTION

NOTCH

Water line.

Alignment

DEPTH ADJUSTMENT

Adjust the depth of the unit to t ush with surrounding

cabinetry. Follow these steps for a precision t:

1Place decorative panel on a protected work surface.

Place the panel thickness gauge next to the panel to

determine which notch corresponds with the panel thick-

ness. Refer to the illustration below. Once the proper

notch has been determined, mark that notch with a

marker.

2With the door closed, position the top of the unit using

the panel thickness gauge. Refer to the illustration

below. Insert a #8 x 1/2" stainless steel screw above the

hinge, then insert a #8 x 1/2" pan head screw on the

handle side of the unit. For narrower units, the door may

need to be opened to access the handle side screw

location. Repeat the process to align the bottom.

ANCHORING

Once the top and bottom are aligned, verify doors and

drawers open properly, then install remaining screws in each

side trim.

PANEL THICKNESS

GAUGE

FRONT OF

UNIT

CABINETRY

FACE

FRAME

SCREW

SIDE TRIM

Panel thickness.

Unit depth.

Sub-Zero Customer Care 800.222.7820

Custom Panels

For integrated models, custom door panels and handle

hardware must be installed. Stainless steel panels are

available through an authorized Sub-Zero dealer. For local

dealer information, visit the nd a showroom section of our

website, subzero.com.

The thickness of the custom panel can vary. A minimum

5/8"(16) thick panel is required, but the thickness can be

increased provided it does not exceed the maximum panel

weight indicated in the chart below. The depth of each

integrated model is 24" (610). Allow for panel thickness when

planning the nished opening depth.

PANEL REQUIREMENTS

PANEL WEIGHT MAX

18" Column 45 lb (20 kg)

24" Column 60 lb (27 kg)

30" Column 75 lb (34 kg)

36" Column 75 lb (34 kg)

PANEL WEIGHT MAX

30" Tall (door) 50 lb (22 kg)

36" Tall (door) 60 lb (27 kg)

Drawer 15 lb (7 kg)

PANEL THICKNESS MIN

All Panels 5/8"(16)

Reveals between panels can vary, 1/8"(3) reveals are typical.

CAUTION

When installing a panel thicker than 1" (25), the 90° stop

may be required to prevent damage to the unit and

adjacent cabinetry.

CAUTION

As reveals between cabinetry and the unit decrease,

severe nger pinching can occur while door is closing.

Finish all sides of custom panels. They will be visible when

the door/drawer is open.

D-style handles are recommended. Door handles must be

located near the edge of the panel opposite the hinge and

should be centered top to bottom. Drawer handles must

be located near the top edge of each panel. Stainless steel

tubular and pro handles are available through an authorized

Sub-Zero dealer. For local dealer information, visit the nd a

showroom section of our website, subzero.com.

PANEL INSTALLATION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sub-Zero Kühlschrank Handbücher

Sub-Zero

Sub-Zero 600 Series BI-30U Bedienungsanleitung

Sub-Zero

Sub-Zero UC24CLH Bedienungsanleitung

Sub-Zero

Sub-Zero BI-36R Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24BG/S/TH-RH Bedienungsanleitung

Sub-Zero

Sub-Zero 601R Bedienungsanleitung

Sub-Zero

Sub-Zero DEC3650FI/R Bedienungsanleitung

Sub-Zero

Sub-Zero INTEGRATED REFRIGERATION Bedienungsanleitung

Sub-Zero

Sub-Zero BI-30U Bedienungsanleitung

Sub-Zero

Sub-Zero PRO 48 Bedienungsanleitung

Sub-Zero

Sub-Zero IC-30FI Bedienungsanleitung

Sub-Zero

Sub-Zero Designer Series Bedienungsanleitung

Sub-Zero

Sub-Zero 400 Series Installations- und Betriebshandbuch

Sub-Zero

Sub-Zero BI-42SID Bedienungsanleitung

Sub-Zero

Sub-Zero 700BR Bedienungsanleitung

Sub-Zero

Sub-Zero ID-24RO Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24RO Montageanleitung

Sub-Zero

Sub-Zero Built-In Refrigeration Betriebsanleitung

Sub-Zero

Sub-Zero ICBDEC2450FI/R Bedienungsanleitung

Sub-Zero

Sub-Zero 648PRO Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24B Bedienungsanleitung

Sub-Zero

Sub-Zero 200 Series Bedienungsanleitung

Sub-Zero

Sub-Zero INTEGRATED REFRIGERATION Bedienungsanleitung

Sub-Zero

Sub-Zero BI-36F Montageanleitung

Sub-Zero

Sub-Zero 700 Series Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
