I STALLATIO GUIDE

PRO 48 Refrigeration

Important Note

To ensure the safe and efficient installation of Sub-Zero

equipment, please take note of the following types of

highlighted information throughout this guide:

IMPORTA T OTE highlights information that is especially

relevant to a problem-free installation.

CAUTIO signals a situation where minor injury or product

damage may occur if instructions are not followed.

WAR I G states a hazard that may cause serious injury or

death if precautions are not followed.

Contents

PRO 48 Refrigeration ............................ 3

PRO 48 Specifications ........................... 4

PRO 48 Site Preparation .......................... 5

PRO 48 Installation .............................. 8

Service Information ............................. 18

Features and specifications are subject to change at any time

without notice. Visit subzero.com/specs for the most up-to-

date information.

IMPORTA T OTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specified.

PRO 48 Refrigeration 3

subzero.com/specs

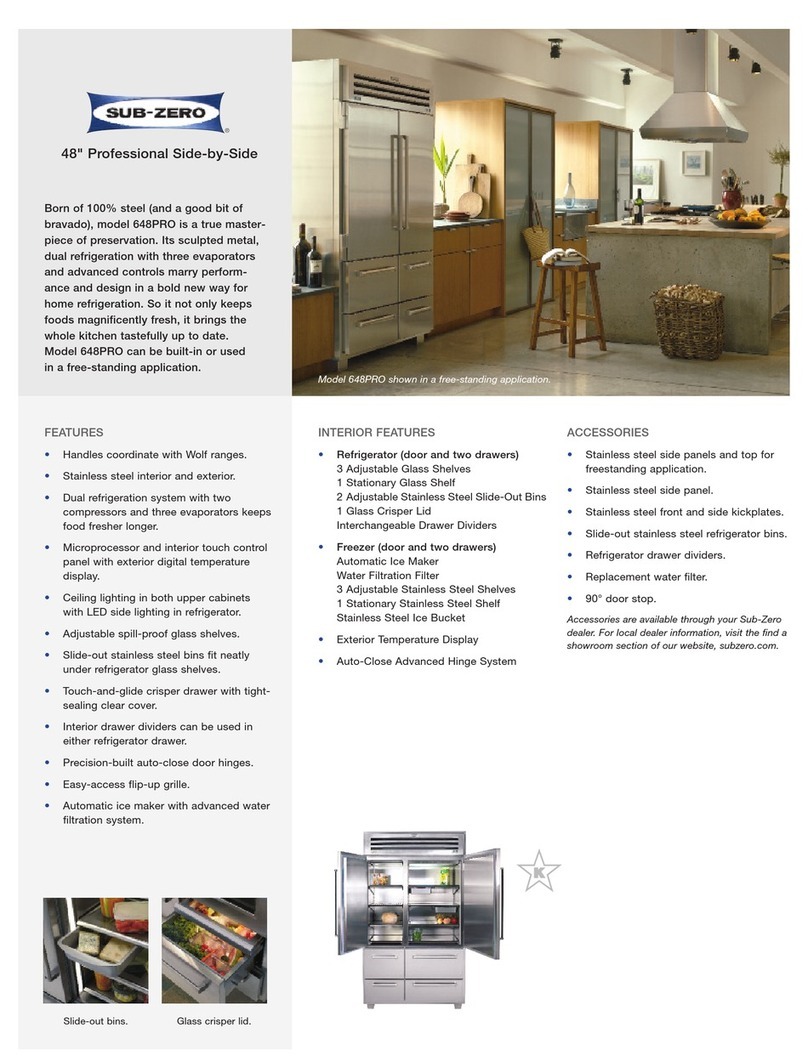

Sub-Zero PRO 48 Refrigeration

The importance of the installation of the Sub-Zero

PRO 48 unit cannot be overemphasized. Installation

should be done by a qualified installer.

Before you begin the installation process, it is recom-

mended that you read this entire installation guide. There

are key details that you should take special care to

observe during the installation. By reading these instruc-

tions carefully, you will make the installation process

easier, problem-free and most importantly, safe.

The installation process is identical for both the model

648PROG which features a glass door on the upper refrig-

erator compartment and model 648PRO with a solid door.

Any questions or problems regarding the installation

should be directed to your authorized Sub-Zero dealer or

Sub-Zero customer care at 800-222-7820. You may also

check the contact & support sectionofour website,

subzero.com.

Important product information, including the model and

serial number of your unit are listed on the product rating

plate. The rating plate is located on the left side of the top

freezer drawer compartment (drawer must be open).

Refer to the illustration below.

Location of rating plate

(open drawer).

RATING

PLATE

Before You Start

Make sure the opening dimensions, door and drawer

clearances, electrical service and plumbing are correct for

the model you are about to install. Refer to specifications

on the following pages.

TOOLS A D MATERIALS REQUIRED

•Appliance dolly able to support 1000 lbs (454 kg) and

adequate manpower to handle the weight of the unit.

•Phillips and slotted screwdrivers.

•Torx drive screwdriver set

•Allen, standard and crescent wrenches.

•Various sized pliers.

•7/16" hex bolt nut driver.

•Cordless drill and assorted drill bits.

•Level—2' (.6 m) and 4' (1.2 m) recommended.

•4' (1.2 m) of 1/4" copper, braided stainless steel or

PEX tubing and saddle valve for water line (do not use

self-piercing valves).

•Tubing cutter.

•Masonite, plywood, pressed fiberboard, cardboard or

other suitable material to protect finished flooring.

•Appropriate materials to cover and protect the home

and furnishings during installation.

PRO 48 Specifications 4

48" (1219)

84"

(2134)

257/8"(657)

303/16"(767)

4" (102)

301/2"

(775)

237/8"

(606)

421/8"

(1070)

141/2"

(368)

303/4"

(781)

21" (533)

23/8"(60)

HEIGHT DIMENSIONS ± 1/2"(13)

Overall Dimensions

MODELS 648PRO A D 648PROG

SPECIFICATIO S

Capacity / Weight

I TERIOR CAPACITY R CU FT (L) F CU FT (L)

648PRO and 648PROG 18.4 (521) 11.7 (331)

SHIPPI G WEIGHT LBS (KG)

648PRO 860 (390)

648PROG 875 (397)

PRO 48 Site Preparation 5

subzero.com/specs

OPENING

DEPTH

FRONT VIEWSIDE VIEW

TOP VIEW

OPENING

WIDTH

OPENING

DEPTH

OPENING

HEIGHT

IMPORTA T OTE: For standard built-in installations, the

face frame of the unit will extend 2" (51) beyond cabinetry.

In flush built-in installations, the front of the face frame will be

flush with surrounding cabinetry.

Opening Dimensions Standard Flush

Opening Width 471/2"(1206) 48" (1219)

Opening Height 833/4"(2127) 841/8"(2137)

Opening Depth 24" (610) 26" (660)

Opening Dimensions

STA DARD A D FLUSH BUILT-I I STALLATIO S

PRO 48 Site Preparation 6

Electrical Requirements

Power Supply 115 V AC, 60 Hz

Circuit Breaker 15 amp

Receptacle 3-prong grounding-type

Do not use an extension cord or two-prong adapter.

Do not remove the power supply cord ground prong.

The outlet must be checked by a qualified electrician to

be sure that it is wired with the correct polarity. Verify

that the outlet is properly grounded.

FRONT VIEW

751/2"

(1918)

FROM

FLOOR

(178) E

(152)

Location of electrical supply.

Electrical Requirements

For PRO 48 models, the electrical supply should be

located within the shaded area shown in the illustration

below. Follow the National Electrical Code and local codes

and ordinances when installing the receptacle. A separate

circuit, servicing only this appliance is required. A ground

fault circuit interrupter (GFCI) is not recommended and

may cause interruption of operation.

Always shut power off at the circuit breaker before

performing any installation, service or maintenance.

PRO 48 Site Preparation 7

subzero.com/specs

Plumbing Requirements

The PRO 48 has an automatic ice maker with an integrated

water filtration system. The water supply line should be

located within the shaded area shown in the illustration.

The water line must not interfere with installation of the

anti-tip bracket.

The water supply line should be connected to the house

supply with an easily accessible shut-off valve between

the supply and the unit. Do not use self-piercing valves.

A saddle valve kit is available through your authorized

Sub-Zero dealer.

A reverse osmosis system can be used provided there

is constant water pressure of 35 psi (2.4 bar) to 120 psi

(8.3 bar) supplied to the unit at all times. In this application,

the water filtration system must be bypassed. Refer to

water filter bypass mode on page 16. A copper line is not

recommended for this application.

IMPORTA T OTE: All installations must meet local

plumbing code requirements.

It is not recommended that the ice maker be connected to

a softened water supply. Water softener chemicals, such

as salt from a malfunctioning softener, can damage the

ice maker and lead to poor ice quality. If a softened water

supply cannot be avoided, make sure that the water

softener is well maintained and operating properly.

IMPORTA T OTE: Do not use with water that is microbi-

ologically unsafe or of unknown water quality without

adequate disinfection before or after the system. Systems

certified for cyst reduction may be used on disinfected

waters that may contain filterable cysts.

3" (76)

FRONT VIEW

FLOOR

53/16"

(132)

(152)

Location of water supply.

Plumbing Requirements

Water Supply Line 1/4" OD copper, braided stainless steel

or PEX tubing

Water Pressure 35–120 psi (2.4–8.3 bar)

Excess Water Line for Connection 36" (914)

PRO 48 Installation 8

IMPORTA T OTE: For either wood or concrete floor

applications, if the wood screws do not hit a wall stud in

any of the upper holes on the anti-tip bracket, use the

provided #8–18 x 11/4" wood screw, #12 flat washer and

nylon zip-it wall anchor in its place.

IMPORTA T OTE: In some installations the subflooring

or finished floor may necessitate angling the screws used

to fasten the anti-tip bracket to the back wall.

Anti-Tip Bracket Installation

IMPORTA T OTE: Placement of the anti-tip bracket is

critical to a stable installation. Failure to properly position

the anti-tip bracket will prevent it from engaging the unit.

The anti-tip bracket must be installed exactly 26" (660)

from the front of the face frame of the unit to the back of

the anti-tip bracket. Also, the centering line on the lower

flange of the anti-tip bracket must be centered in the

rough opening. Make sure the anti-tip bracket is installed

on a solid base. Refer to the illustration below.

To properly secure the anti-tip bracket for a stable installa-

tion, use all anti-tip bracket hardware as instructed for

wood or concrete floors.

To prevent the PRO 48 from tipping forward and

provide a stable installation, the unit must be secured

in place with the anti-tip bracket provided with the unit.

Make sure there are no electrical wires or plumbing in

the area which the screws could penetrate.

Anti-tip bracket.

Anti-Tip Bracket Hardware

1 Anti-tip bracket

12 #12 x 21/2" PN HD wood screws

33/8"x33/4" Trubolt anchors

12 #12 flat washers

3 #8–18 x 11/4" AB PH HD screws

3 Nylon zip-it wall anchors

PRO 48 Installation 9

subzero.com/specs

Anti-Tip Bracket Installation

WOOD FLOOR APPLICATIO S

Use the twelve #12 x 21/2" wood screws and twelve #12

flat washers provided. Drill pilot holes 3/16"(5) diameter

maximum and make sure the screws penetrate through

the flooring material and into the wall plate a minimum of

3/4" (19). Make sure the screws hold tight. Refer to the

illustration below.

CO CRETE FLOOR APPLICATIO S

Use the three 3/8" x 33/4" concrete wedge anchors,

six #12 x 21/2" wood screws and six #12 flat washers

provided. Drill pilot holes 3/16"(5) diameter maximum and

make sure the screws penetrate through the flooring

material and into the wall plate a minimum of 3/4"(19).

Then drill 3/8"(10) diameter holes into the concrete a

minimum of 11/2"(38) deep. Make sure the anchors and

screws hold tight. Refer to the illustration below.

I STALL CO CRETE WEDGE A CHORS:

1) Drill a 3/8"(10) diameter hole any depth exceeding the

minimum embedment. Clean the hole or continue

drilling additional depth to accommodate drill fines.

Use a carbide drill bit manufactured within ANSI

B94.12-77.

2) Assemble the washer and nut flush with the end of

anchor to protect threads. Drive the anchor through the

material to be fastened until the washer is flush with

the surface material.

3) Expand the anchor by tightening the nut 3–5 turns past

hand-tight position or to 25 foot-pounds of torque.

Always wear safety glasses and use other necessary

protective devices or apparel when installing or

working with anchors.

Anchors are not recommended for use in lightweight

masonry material such as block or brick, or for use in

new concrete which has not had sufficient time to cure.

The use of core drills is not recommended to drill holes

for the anchors.

233/4"

(603)

233/4"

(603)

SUBFLOORING

WOOD FLOOR

WALL PLATE

FINISHED

FLOORING

233/4"

(603)

233/4"

(603)

SUBFLOORING

CONCRETE

FLOOR

WALL PLATE

FINISHED

FLOORING

11/2"(38)

min

Wood floor. Concrete floor.

PRO 48 Installation 10

Unpack the Unit

Uncrate the PRO 48 unit and inspect for any damages.

Remove the wood base and discard the shipping bolts

and brackets that hold the wood base to the bottom of the

unit. Remove and discard all packing materials.

IMPORTA T OTE: Do not discard the kickplate, anti-tip

bracket and hardware or corner protectors. These items

will be needed for installation.

Retract the front leveling legs all the way up to allow the

unit to be moved into position more easily. You will extend

the front leveling legs down and make adjustments once

the unit is in position.

Remove the drain pan from the base of the unit to avoid

damage to the drain pan, and allow for proper placement

of the appliance dolly.

Lift grille assembly. Grille removal.

GRILLE

SCREW

NETWORK

CABLES

GRILLE BOLT

Grille Removal

In order to prevent damage to the PRO 48 grille, the top

grille assembly should be removed prior to moving the

unit.

To remove the grille assembly, pull out on the bottom edge

of the grille and tilt the grille frame forward. Disconnect the

network cables which connect the exterior temperature

displays on the grille to the display module. Cut the two

white cable ties which attach the network cables to the

right grille support and disconnect the cables. The cable

ties should be replaced with the extra cable ties provided,

once the unit is properly installed. Remove the three grille

bolts from base of the grille and the upper grille screw.

Remove the grille assembly. Refer to the illustrations

below.

Reverse this procedure to reinstall the grille assembly.

Andere Handbücher für PRO 48

Andere Sub-Zero Kühlschrank Handbücher

Sub-Zero

Sub-Zero Built-in Series Betriebsanleitung

Sub-Zero

Sub-Zero IC-24R Bedienungsanleitung

Sub-Zero

Sub-Zero 400 Series Installations- und Betriebshandbuch

Sub-Zero

Sub-Zero DEU2450R Leitfaden

Sub-Zero

Sub-Zero 200 Series Bedienungsanleitung

Sub-Zero

Sub-Zero ICBDEC2450FI/R Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24 series Bedienungsanleitung

Sub-Zero

Sub-Zero 700BC-3 Betriebsanleitung

Sub-Zero

Sub-Zero UC-24RO Bedienungsanleitung

Sub-Zero

Sub-Zero 600 Series BI-36U Bedienungsanleitung

Sub-Zero

Sub-Zero 700TCI Bedienungsanleitung

Sub-Zero

Sub-Zero 700TR Bedienungsanleitung

Sub-Zero

Sub-Zero BI-42SD Montageanleitung

Sub-Zero

Sub-Zero BI-36S Bedienungsanleitung

Sub-Zero

Sub-Zero IT30RRH Bedienungsanleitung

Sub-Zero

Sub-Zero 700BC Bedienungsanleitung

Sub-Zero

Sub-Zero BI-30UG Bedienungsanleitung

$Sub-Zero \601RG Bedienungsanleitung$

Sub-Zero

Sub-Zero \601RG Bedienungsanleitung

Sub-Zero

Sub-Zero BI-36UFD Bedienungsanleitung

Sub-Zero

Sub-Zero 700BR Bedienungsanleitung

Sub-Zero

Sub-Zero ICBBI36FSPHRH Bedienungsanleitung

Sub-Zero

Sub-Zero 650G Bedienungsanleitung

Sub-Zero

Sub-Zero BI-42S Bedienungsanleitung

Sub-Zero

Sub-Zero INTEGRATED REFRIGERATION Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
