ASSEMBLY INSTRUCTIONS

included in door handle

5x 2x 1x 1x

1 2 3 5 6 7

4x 2x 4x 1x 1x

M6x70

Allen wrench Philips Screw Driver

47x

M6x55

A B C D

1x Roof

1x Back Wall

1x Left Wall with glass panel

1x Bench

1x Right Wall

1x Front Wall

1x Glass Front Door

E1x Floor

2x 11 in, 1x 3 1/2 ft.

ASSEMBLY INSTRUCTIONS

1sunlighten.com

2sunlighten.com

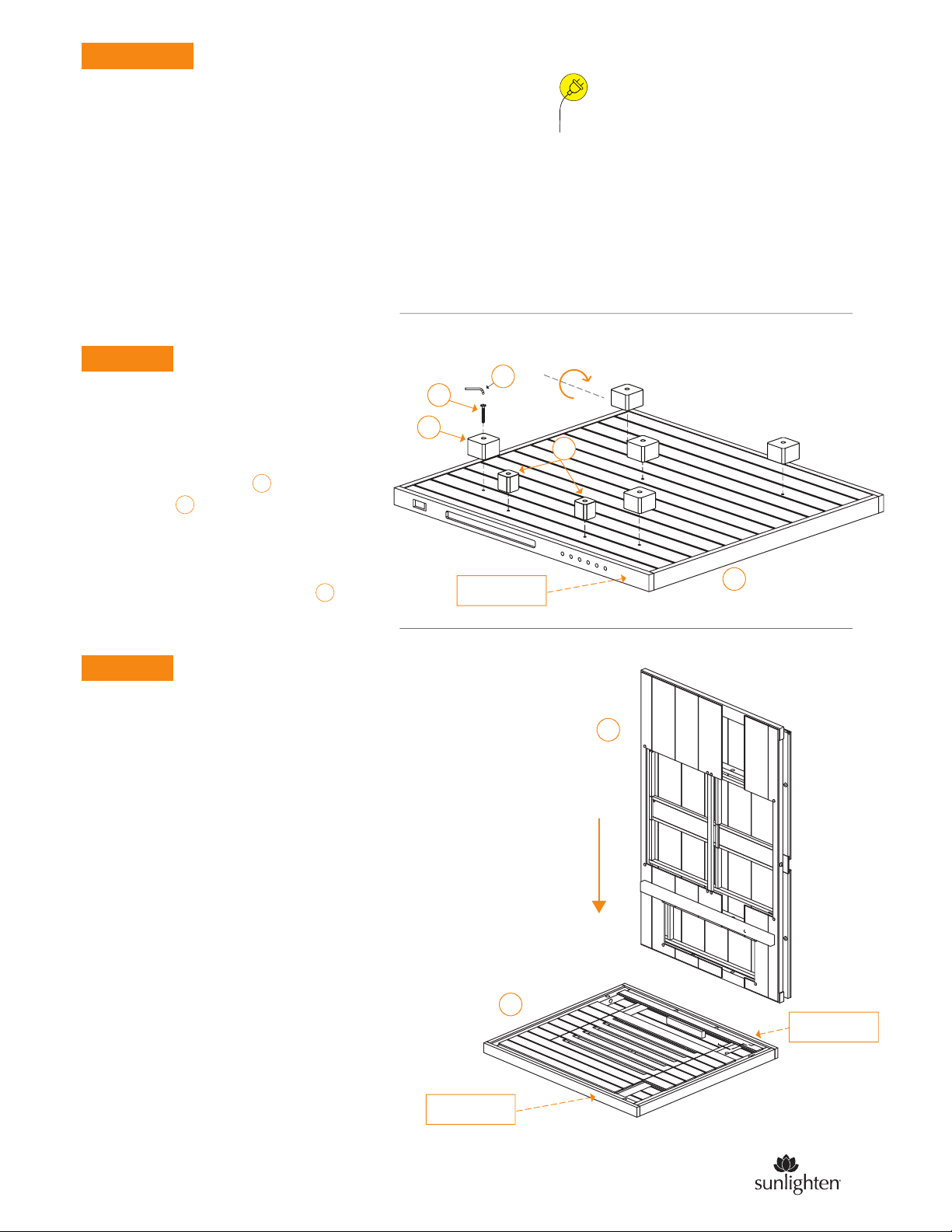

The ﬁrst step to installing your new sauna

will be to insert the legs underneath the

ﬂoor panel. The holes are already pre-drilled

so all you need are the bolts and the

Allen wrench . This is necessary to allow

air circulation to ﬂow underneath and

maintain the integrity of the unit. After legs are

in place, please turn ﬂoor panel 180° so the back

of the sauna connects with the back wall

as shown below.

Unpack each wall segment from the shipping material, stage each

wall segment in the room you will be assembling the unit.

Remove the internal wooden heater frames during unpacking

of the wall segments, set these aside for installation after

the sauna is assembled.

Remove the small wooden wire covers at the base of each vertical

wall segment, set aside for placement after the sauna is assembled.

* Failure to do so will void your sauna's warranty

and customer will assume liability for any electrical

damages to the sauna itself or the residence/business

in which the sauna is installed.

120V, 2160 watts. Dedicated 20A circuit* and

20A power socket with no GFCI or similar fault

protection installed in the meter box.

See USER MANUAL

STEP 1

Before you begin installing the walls, be sure you

have at least:

• 6.2 in between the back of the sauna and the

outlet wall.

•12 in gap from the top of the sauna to the ceiling.

•Place the sauna next to the wall power outlet to

ensure you have access to the wall power socket

outlet to cut the power to the unit if required.

Make sure the ﬂoor panel is placed on a surface that

is relatively smooth and perfectly level. Failure to do

so can cause the door to not close all the way in the

later steps.

In this step make sure one person is holding the wall

while the other helps balance it and press it in place.

STEP 2

PRE-STEPS

Back of sauna

180°

Back of sauna

Front of sauna

STEP 3 STEP 4

The front wall will be the last to install.

There will be wire connections that need to be made

at the base of each wall panel. These can be accessed

by small hatches on the walls (ﬂoor hatch for the

front). If a cable gets stuck in the ﬂoor it can be

accessed by removing the wood piece that covers

the power box.

A diagram showing the connection locations

can be found on STEP 8.

NOTE: If you ever have trouble getting

a U-clip to slide in, this can be resolved by

tapping it with a hammer.

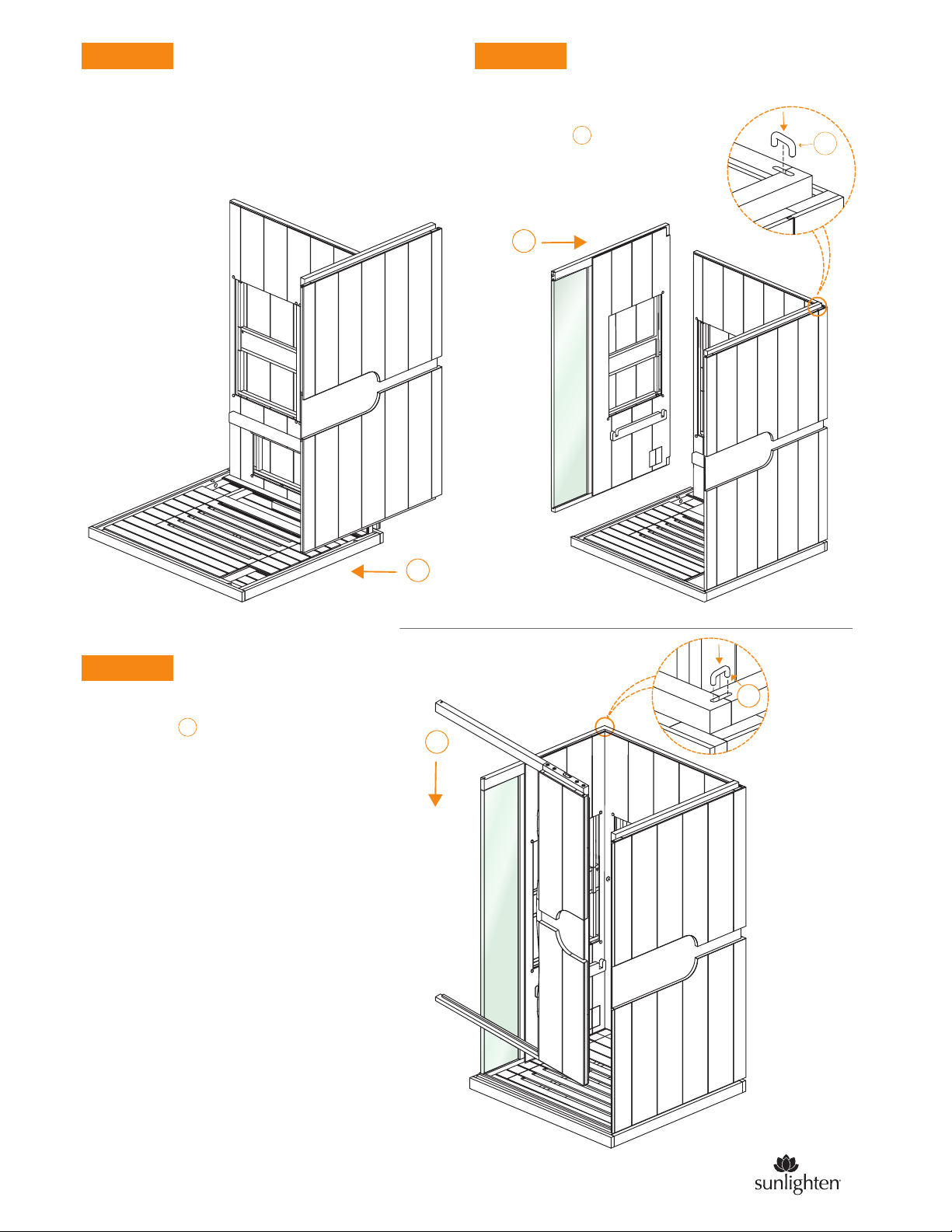

The following walls will be inserted the same way

as STEP 2. Make sure the wires coming out from

the bottom hatches don’t pinch when you mount

the walls.

STEP 5

After you place each wall segement, please

use the U-clips and insert them in each

upper corner to hold the walls together.

3sunlighten.com

STEP 6

After the roof is placed, remove the dust covers.

There should be the connections to the lights and

speakers at the top front. Connect those so you

can turn on the lights and listen to sound.

In addition there will be one metal-loop lead.

Those can be screwed into the radio antenna.

Next is the bench . Make sure the heater

frames are not mounted, otherwise they will

prevent the bench from resting on the supports.

After all four U-clips are inserted in

the corners, the next step will be to place

the roof on top. The roof will also reinforce the walls

in position along with the clips.

NOTE: The roof may require some slight

manipulation to fall into place on top of

the wall panels.

STEP 7

Lights, Speakers,

Antenna

4sunlighten.com

STEP 8

The dust cover should be replaced to protect

the lights and speakers from dust and other

ﬂoating residue. Place the heater frames in their

respective locations if you have not yet done so.

As mentioned in STEP 5, there are four

connections to be made in each bottom section

of the walls. If you have not yet done so, consult

with the diagram at the bottom of this page.

NOTE: Look at the back of the heater frames for

the “This Side Up” sticker for proper orientation.

Left Wall Heaters

Lights, Stereo,

Control Tablet

Back Wall Heaters

Right Wall Heaters

5sunlighten.com

STEP 9

After the bench is placed in the unit, the next step

will be inserting the glass door . Please ensure

you have at least one other person to assist with this

step. Do not put the door handles on as that will be

done in a later step after the door has been safely

attached in this step.

NOTE: You can use a paint stick to shim the glass

door at a desirable angle above the threshold as

you mount it.

STEP 10

Using the Allen wrench , you will tighten the

bolts into the hinges as the door is inserted.

Make sure the bolt is inserted ﬁrmly. Each hinge

will have four plastic gaskets. The door will be

inserted between the four gaskets.

Make sure the rough-texture side of the gasket is

against the glass door as your insert it. This will

give it the grip needed to hang it. Likewise make

sure the gaskets touching the hinges also are

doing so by the rough side.

6sunlighten.com

STEP 11

The gaskets, bolts and washers , and

will come with the handles. The washers need to be

inserted into the door holes ﬁrst before the gaskets

go on and eventually the bolts. The rough side of the

gaskets must be facing the glass door. Be sure to

have a second person hold the handle in place while

the other inserts the bolt.

1 2 3

STEP 12

Installation Guidance for the INTERIOR DOOR SEAL

After the glass door installation is completed, ensure

the gap between the glasss door and wooden frame

is at least 1/8 in.

Open the glass door to 90°.

Carefully remove the blue protection ﬁlm.

Make sure to clean the inside edge of the glass

with a wet towel, then dry before applying the strips.

90°

7sunlighten.com

m1 m1

STEP 13

2 strips x 11 in

1 strip x 3 1/2 ft.

CONGRATULATIONS, your sauna is now ready to enjoy!

If you have any questions, please call

Sunlighten Customer Support at 1-877-292-0020 x4.

Remove the backing layer of the 3M adhesive tape on the strip.

Adhere the shorter strip on the top and bottom section

to inside edge of glass door.

Adhere the longer strip on the middle section to inside

edge of the glass door.

Close the door slowly and check to make sure the strips don’t hit

the wooden frame which could cause the strips to peel off.

In case the strip hits the wooden frame, adjust the door hinge to

increase the gap between the door and the wooden frame.

04062022

8sunlighten.com
