SUNPRO D2FN26 Montageanleitung
H4110 4110 Rev. F
Specications and materials may change without notice
Effective for Sunpro gas post-boosted solar water heaters manufactured and sold after 1st Sept 2006.
Installation by a licensed tradesperson and in
accordance with:
• AS/NZS 3500.4 “National Plumbing &
Drainage Code Hot Water Supply Systems
– Acceptable Solutions”
• AS5601/AG601 Gas Installation
• Adherence to local authority and OH&S
regulations
• Victorian PIC Requirements
Installer’s Guide
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Read This Document First
On completion, sign and leave with owner
(Gas Post-Boost) Solar Water Heater
Models: D2FN26, D2FL26,
D3FN26, D3FL26,
D4FN26, D4FL26
D2FN20, D2FL20
Carefully remove all packaging and
transit protection from the heater before
installation. Dispose of the packaging
responsibly using re-cycling facilities
where they exist.
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
H4110 4110 Rev. F
Installer’s Guide
Rough In Diagram 1
Read This Document First 2
Safety Audit 2
Removal of Existing Tank 3
Placement of New Tank 3
Water Connections 4
Pipes – Important Points 5
Collectors – Alignment
and Inclination 7
Collectors – Important Points 8
Collectors – Attaching to Roof 9
Collectors – Attaching Fittings 11
4 Way Union Assembly 14
Anti-Frost Valve 15
Flashing 16
Temperature Sensor 17
Heat Trap/Non Return Valve 19
PTR Valve 20
Gas Connection 20
GPO 21
Tempering Valve 22
Testing the Gas 22
Burner Test Point Pressure 23
Setting the Low Burner Rate 23
Setting the High Burner Rate 24
Commissioning Checklist 25
Installation Declaration 26
Components 27
© Dux Manufacturing Limited 2011. All rights reserved.
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
1
H4110 4110 Rev. F
Rough In Diagram
Approximate location of pipework. A tolerance of 25mm is acceptable to dimensions shown in table below.
Note: Ensure pipes protrude horizontally from wall, and leave enough length of pipe to allow easy
connections.
250 L 315 L 400 L
Tank Height 1444 1754 1703
Overall diameter 617 617 705
A Hot water outlet 1230 1300 1450
B Tempered water outlet (mid-way between A and C) 505 540 615
C Cold water inlet 220 220 220
D Return from solar collectors 1231 1541 1466
E Gas entry 770 820 820
F Flow to solar collectors 600 600 600
House rebate level
100
A
B
F
C
D
E
Hot Return
Gas
Flow
Cold
Tempering
Valve
100
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
2H4110 4110 Rev. F
Installer’s Guide
• This Installer’s Guide and the
Owner’s Manual (also included in the
product carton) contain important
information about installation and use
of this water heater.
Note: For an easier
installation, please read this
document before you begin.
• Arrive at site, park vehicle as close as
allowable to installation, and conduct
a safety audit, also known as Work
Method Statements (WMS) or Job
Site Analysis (JSA).
• Prior to working at heights, it is the
responsibility of the installer to ensure
that all practices are compliant with
any relevant OH&S legislation.
Note: Do not commence a
job where the risks cannot be
controlled.
• Refer to local working at heights
regulations. NSW Ref: “Safe Work on
Roofs – Part 2 Residential” Code of
Practice 2004, Work Cover NSW.
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
3
H4110 4110 Rev. F
Installer’s Guide
• The existing tank (if applicable)
should be drained and removed in a
responsible manner.
Note: Do not drain on to grass
or garden beds.
• Safely position new storage tank on
a level surface in accordance with all
plumbing and building regulations.
Note: We recommend a plinth
be installed under the water
heater where the water heater
is subjected to wet conditions.
• Refer to the section called “Rough
In Diagram” on page 1 for detailed
information on position of plumbing.

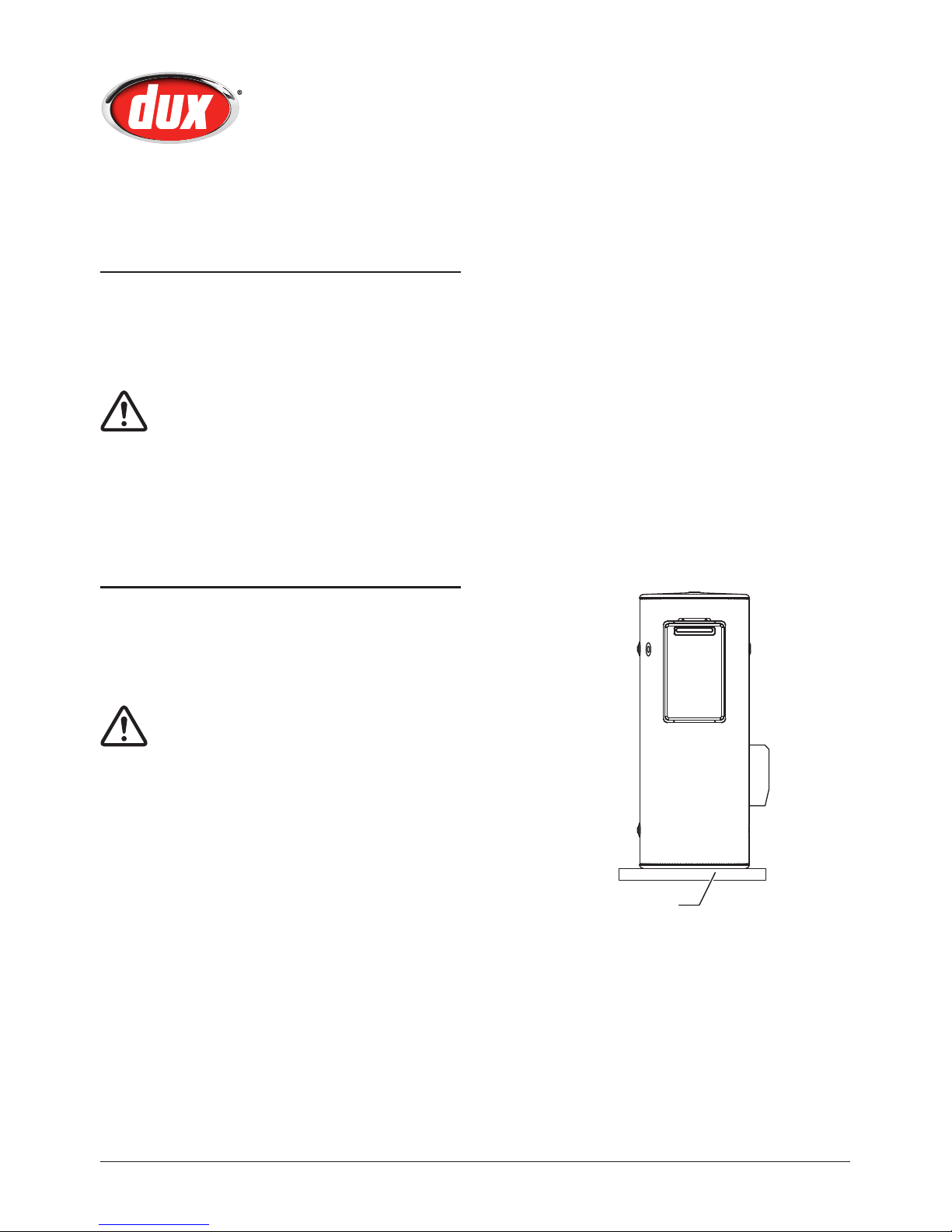

Install a plinth under the
water heater where the
water heater is subjected
to wet conditions
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
4H4110 4110 Rev. F
• Using correct plumbing methods,
connect the cold water pipe to the
storage tank.
• According to local regulations and
the plumbing code, t any and
all valves that are necessary e.g.
tempering valves, pressure limiting
valves, line strainer, duo valves, cold
water expansion valves etc.
• We recommend the use of new valves
for all Installation. Refer to plumbing
code and/or local requirements.
• Connect the supplied hose from
the top left tank outlet to the heat
exchanger water inlet.
Cold
water
inlet
Outlet to the heat
exchanger water inlet
Installer’s Guide
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
5
H4110 4110 Rev. F
Installer’s Guide
Critical: Due to the high
temperature imposed by solar
heated water, all solar system
pipes and ttings must be DR
brass and copper, including
collector compression ttings
(as supplied). No plastic pipes
or ttings.
• Flow and return lines must be
installed as direct as possible
between tank and collector.
• Pipes must be fully insulated with
UV stabilized insulation suitable for
solar working temperatures. We
recommend Armaex DuoSolar /
Solar insulation, minimum 13mm
thick (refer to local regulations).
Note: Warranty will be void
if this minimum insulation
requirement is not used.

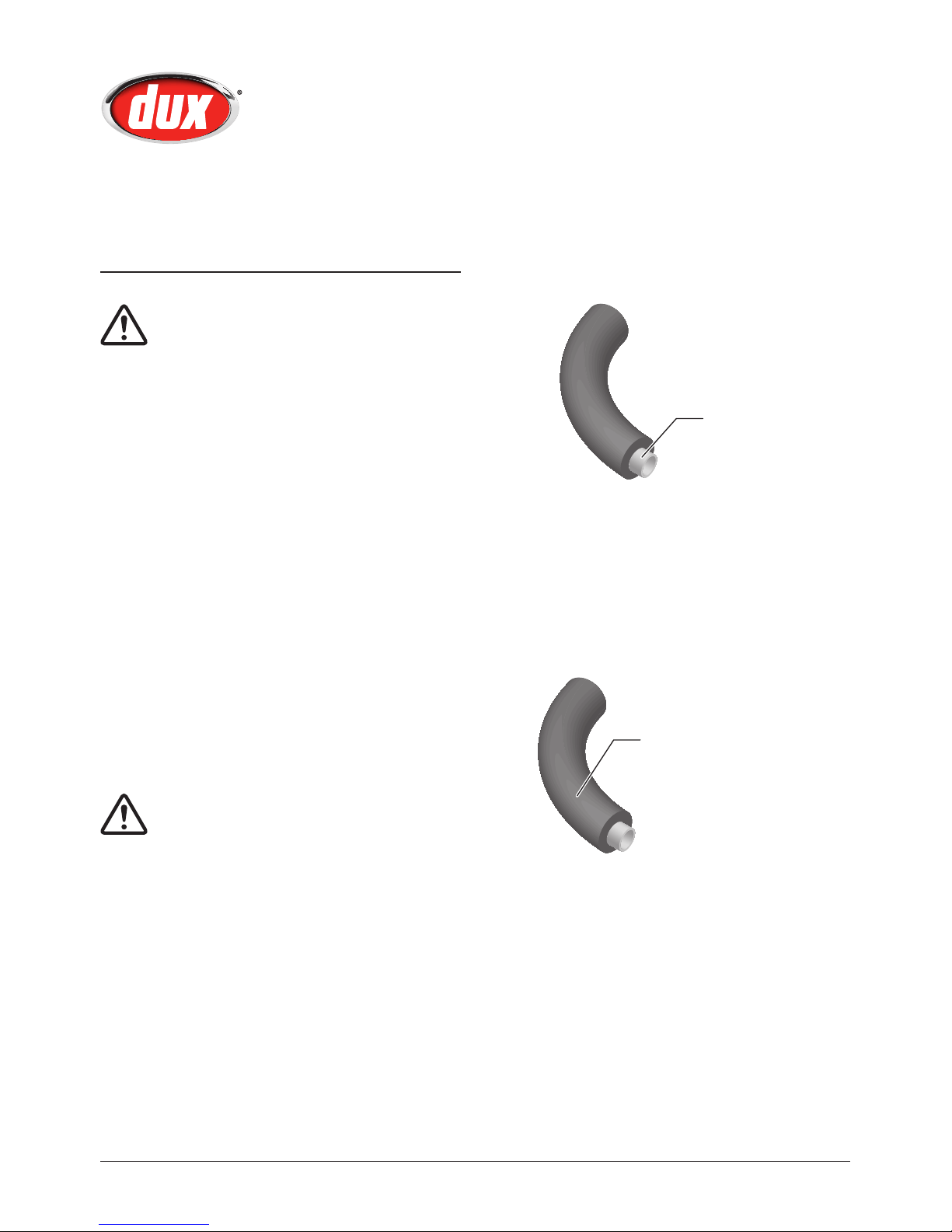

Pipes must be DR
brass and copper.
Refer to AS/NZS
3500.4.
Pipes must be fully
insulated with UV
stabilized insulation
suitable for solar working
temperatures, minimum
13mm thick (refer to local
regulations)
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
6H4110 4110 Rev. F
Installer’s Guide
• It is critical to stop any chance of an
air lock developing, so ensure that:
– no pipework is higher than the
automatic air vent valve
– ow and return pipes from the solar
collectors to the water storage tank
have a minimum of 5° continuous fall
– pipes have no high points that
allow air to be trapped
– the minimum number of bends in
the pipes are used.
• Flow and return lines should be
neatly installed and hidden inside the
roof cavity if possible.
• Take care when running ow
and return lines through the roof,
cladding and the eaves.
Note: Where roof and
the eaves are made from
asbestos, specialised handling
and advice is necessary.
Pipes must have no
high points that allow
air to be trapped
No pipes can be higher than
the air bleed valve
Minimum 5°
continuous fall
To collectors
Use minimum
number of bends
Must fully
insulate flow
and return
pipes
Minimum 5°
continuous fall
To collectors
Non continuous
fall
To collectors
Incorrect Correct
Ensure flow and return pipes from the solar collectors to the
water storage tank have a minimum of 5° continuous fall
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
7
H4110 4110 Rev. F
Installer’s Guide
Solar Collector Alignment
• For the most efcient solar gain, the
collectors must be aligned ±45° from
true north (i.e. north west to north
east). See Collector Orientation
Compass below.
Solar Collector Inclination
• For the most efcient solar gain, the
collectors must be inclined within
10° to 45° from horizontal. See
Collector Inclination Guide right.
True North
NW NE
Surface Plate EastWest
45°
50° from
true north
70° from
true north 45°
B
Collector Orientation Compass
True North
A
A = 500mm, or greater if roof allows
B = Between 10° and 45°
B
Note: When establishing the correct Collector Orientation, please account
for the Magnetic Declination of your geographic location
Collector Inclination Guide
C
A
C
A. Dux preferred range
B. Industry accepted range
C. If orientations A or B are not practical, an additional collector can be
installed at the home owner’s discretion in range C (not required north
of Tropic of Capricorn)
True North
NW NE
Surface Plate EastWest
45°
50° from
true north
70° from
true north 45°
B
Collector Orientation Compass
True North
A
A = 500mm, or greater if roof allows
B = Between 10° and 45°
B
Note: When establishing the correct Collector Orientation, please account
for the Magnetic Declination of your geographic location
Collector Inclination Guide
C
A
C
A. Preferred range
B. Industry accepted range
C. If orientations A or B are not practical, an additional collector can be
installed at the home owner’s discretion in range C (not required north
of Tropic of Capricorn)
Installer’s Guide – (Gas Post-Boost) Solar Water Heater
8H4110 4110 Rev. F
Installer’s Guide
• Inspect ttings after collectors are
pressurized with water.
Critical: Fittings must be as
tight as possible.
Warning: Only pressurize the
the collectors for inspection
and de-pressurize them
immediately after inspection.
Critical: Do not leave
collectors pressurised for
longer than 24 hours.
• To prevent damage, collectors
should be left pressurised only when
connected to the storage tank with
appropriate pressure relief valves.
• Collectors can be located a maximum
of 20 metres (with minimal bends)
from the storage tank if pipe layout is
simple.
Note: For more energy
efciency, locate the
collectors as close as
possible to the tank
• This system is suitable for 2 storey
homes.
