AY BASIC BACK

I. TABLE OF CONTENTS

SUNRISE MEDICAL LISTENS

Thank you for choosing a AY Basic Back Support System. We

want to hear your questions or comments about this manual, the

safety and reliability of your product, and the service you receive

from your Authorized Sunrise dealer. Please feel free to write or

call us at the address and telephone number below:

Sunrise Medical (US) LLC

Be sure to return your warranty card, and let us know if you

change your address. This will allow us to keep you up to date

with information about safety, new products and options to

increase your use and enjoyment of this wheelchair. If you lose

your warranty card, call or write and we will gladly send you a

new one.

FOR ANSWERS TO YOUR QUESTIONS

Your Authorized Dealer knows your product best, and can

answer most of your questions about safety, use and maintenance.

For future reference, fill in the following:

Supplier:________________________________________________

Address: _______________________________________________

Telephone: _____________________________________________

Serial #: ___________________________ Date/Purchased:_______

ADDITIONAL INFORMATION YOU SHOULD KNOW

No component of this product was made with Natural

Rubber Latex.

DISPOSAL AND RECYCLING INFORMATION

When this product reaches the end of its life, please take it to an

approved collection or recycling point designated by your local or

state government. This product is manufactured using a variety of

materials, Your product should not be disposed of as ordinary

household waste. You should dispose of your wheelchair proper-

ly, according to local laws and regulations. Most materials that are

used in the construction of this product are fully recyclable. The

separate collection and recycling of your product at the time of

disposal will help conserve natural resources and ensure that it is

dosposed in a manner that protects the environment.

Ensure you are the legal owner of the product prior to arranging

for the product disposal in accordance with the above recommen-

dations

ENGLISH

Introduction..................................................3

General Warnings.......................................4

Use and Maintenance .................................5

Installation & Adjustment..........................6

Warranty.......................................................7

NOTICE– READ BEFORE USE

A. CHOOSE THE RIGHT SUPPORT & SAFETY OPTIONS

This product is intended for single person use only. Selection of the type

of support systems, options, and final adjustment rests solely with the user

and their health care professional. Choosing the best product and set-up

for safety and health depends on such things as:

1. Type of disability, strength, balance and coordination.

2. The types of hazards that must be overcome in daily use.

3. The need for options that will improve your positioning, safety and

comfort (such as positioning belts, or special seating systems).

B. REVIEW THIS MANUAL OFTEN

Before using this system, you, and each person who may assist you, should

read this entire manual and make sure to follow all instructions. Review

the warnings often, until they are second nature to you.

C. WARNINGS

The word “WARNING” refers to a hazard or unsafe practice that may

cause severe injury or death to you or to other persons. The “Warnings”

are in Three main sections, as follows:

1. V– GENERAL WARNINGS

A safety checklist and a summary of risks you need to be aware of

before you use this equipment.

2. VI– SAFETY WARNINGS: FALLS & TIP-OVERS

Learn about the safe use of your equipment, and how to avoid a

fall or tip-over while performing daily activities.

3. VII– WARNINGS– COMPONENTS & OPTIONS

Learn about the components and options that can be selected for

safety and Positioning needs. Consult your Authorized Supplier and

your Health care advisor to help you choose the best set-up and

options for safe use.

NOTE - Where they apply, you will also find “Warnings” in other sections

of this manual. Heed all warnings in this section. If you fail to do

so a fall, tip-over or loss of control may occur and cause severe

injury to the rider or others.

932165 Rev. C

AY BASIC BACK

II. INTRODUCTION

INTRODUCTION

THE AY BASIC BACK

The AY Basic Back is designed to provide the important benefits

of a proper back support for a wide variety of users. It is designed

to provide simple, comfortable and effective support to help maxi-

mize function and increase sitting tolerance. In addition, it is light-

weight, durable and easy to use.

Maximum user weight: 250 lbs. (113 kg).

GENERAL WARNINGS

A. CENTER OF GRAVITY

WARNING

Installing a back support on a wheelchair may affect the center of

gravity of the wheelchair, and may cause the wheelchair to tip back-

wards potentially resulting in injury to the rider.

B. ANTI-TIPS

WARNING

Anti-tip tubes can help keep your chair from tipping over

backward in normal conditions.

1. Sunrise recommends the use of anti-tip tubes

2. ALWAYS assess the need for anti-tips or an amputee axle

adapter brackets that could be added to the wheelchair to

help increase the stability of the wheelchair and seating system.

If you fail to heed these warnings damage to your chair, a fall, tip-

over or loss of control may occur and cause severe injury to the

rider or others.

C. PUSHING OR LIFTING

WARNING

Do not use the Back to move or push the wheelchair.

1. Do not use any part of the back to lift the wheelchair. It is

intended only for Back removal.

2. Improper use of the back by pushing or pulling may cause

the back to unexpectedly detach from the wheelchair.

If you fail to heed these warnings damage to your chair, a fall, tip-

over or loss of control may occur and cause severe injury to the

rider or others.

D. COMPATIBILITY

WARNING

The AY Basic Back is designed to be compatible with most wheel-

chairs with the following exception:

1. Wheelchairs that are angle adjustable with recline or tilt, and

result in a back angle greater than 60° from the vertical

Basic back use with these types of wheelchairs may cause the back

to accidentally disconnect from the wheelchair. This could result

in a fall or potential injury of the rider and/or caregiver.

Laundry Care Symbols

Machine wash in warm water

(50° C)

Only non-chlorine

bleach, when needed

Drip dry

Do not iron

Do not dry clean

932165 Rev. C 4

AY BASIC BACK

III. USE AND MAINTENANCE

WARNING

The owner of this equipment is responsible for making sure that it

has been set up and adjusted by a Authorized Dealer under the

advice of a healthcare professional. It may require periodic safety

and function checks or certain in-use adjustments that can be per-

formed by the owner, caregiver or Authorized Dealer if desired.

A. MAINTENANCE AND CLEANING

1. Proper maintenance and cleaning will improve performance

and extend the useful life of your equipment.

2. Clean your equipment regularly. This will help you find loose

or worn parts and make your equipment easier to use. You

will need a mild detergent solution and cleaning rags.

3. If discovered, have loose, worn, bent or damaged parts

replaced before using the back support.

B. CRITICAL SAFETY CHECKS

1. Fasteners:

Sunrise Medical recommends that all fasteners be checked for

wear, such as loose bolts or broken components Every 6 months.

Loose fasteners should be retightened according to the installation

instructions.

2. Replacing components:

Contact your Authorized Dealer immediately to replace any com-

ponents. Do not continue to use the system after identifying

loose or broken components.

C. EASY CLEANING

1. Back Cover

a. Remove the cover from backshell by detaching the Velcro®.

Unzip the zipper on the bottom of the cover.

b. Remove the foam and turn the cover inside out.

c. Zip the cover closed to avoid snagging.

d. Machine wash in warm water (50°C).

e. Drip and tumble dry in on Low Heat.

NOTE – Do not dry clean covers or use industrial washers or dryers to

clean covers. Do not steam autoclave. Do not bleach. Laundry care symbol

definitions are shown (Fig. 1).

2. Back shell

a. The backshell should be wiped clean with soap and water on

a regular basis to prevent buildup of dirt and grime.

3. Strap and Support version

a. Loosen straps and remove back from the wheelchair.

b. Locate the zipper on the bottom of cover and unzip.

c. remove foam and plastic support shell and turn the cover

inside out.

d. Zip cover closed to avoid snagging.

e. Machine wash in warm water (50°C).

f. Drip and tumble dry in on Low Heat.

g. Reinsert the foam and support shell inside the cover and zip

the cover closed.

NOTE - Do not dry clean covers or use industrial washers and dryers to

clean cover. Do not steam autoclave. Do not bleach.

NOTE - The ABS plastic support shell is designed to be placed inside the

cover to provide additional support to the back.

Clamp Hardware Strap Attachment

932165 Rev. C

AY BASIC BACK

IV. INSTALLATION AND ADJUSTMENT

A. INSTALLING THE BASIC BACK WITH STRAP ATTACHMENT

Please read the following instructions before beginning the installation. To install the Basic

Back, it is best to begin without a user in the wheelchair. Once the back has been

installed the user can be seated back in the wheelchair for minor adjustments. The strap

attachment version of the Basic Back is mounted over, or on top of the standard sling

upholstery that typically is shipped on most wheelchairs. For this version do not remove

the existing sling upholstery.

1. Installation:

a. Loosen both left and right straps (A) to the width of the back canes on your chair.

b. Slide the straps over both back canes.

c. Secure the back by tightening the straps. Do not overtighten the straps, check to

make sure the back canes are parallel after the adjustment is made.

2. Removal:

a. Remove the back by unsnapping the plastic buckles on each side (B)

b. Lift the back off the chair.

B. INSTALL BASIC BACK WITH CLAMP HARDWARE

Please read the following instructions before beginning the installation. To install the Basic

Back with clamp hardware, it is best to begin without a user in the wheelchair. Once the

back has been installed the user can be seated back in the wheelchair for minor adjustments.

1. Prepare the chair for the Basic Back

a. Measure the width of the Back (C) and the size of the tubing (D) before starting

this installation for your chair.

b. Remove the sling upholstery from the wheelchair according to the wheelchair

manufacturers instructions.

c. If an aftermarket cushion is going to be used on the chair, ensure that it is placed

on the wheelchair to ensure proper back height placement.

2. Locating and attaching the hardware receivers

a. Visually determine the approximate location for the receivers on the wheelchair’s

back canes.

b. The mounting hardware should be at about the same height on each backpost and

parallel to the seat frame.

c. Attach the hardware receivers by removing the screws and wrapping the hinge

around the wheelchair back canes.

d. Use the shorter screws provided to secure the clamps to 7/8” tubing, and use the

longer screws provided to secure the clamps to a 1” tube.

e. The hinge and tapered attachment must be aligned when assembling the screws.

The tapered attachment should be facing upwards and the hinge should be facing

forward.

f. Place the pin in slot (E) for 7/8” tubing, and slot (F) for 1” Tubing.

NOTE – A higher location on the back canes are generally better.

111098

CC6

equal 8

parallel

9rear

of chair 10

932165 Rev. C 6

AY BASIC BACK

3. Attaching the back shell to the receivers

a. After the receiving hardware has been attached, checked, and measured. The back

can be attached to the wheelchair’s back canes.

b. Using the 4mm hex key, Loosen the clamp screws(A)

c. Align the back shell to the mounting hardware, if the width of the shell-side hard-

ware needs adjustment, please reference the adjustment section.

d. Attach the back shell to the mounting hardware by raising the shell horizontally and

lowering it onto mounting hardware (B). Once the shell is seated properly on the

hardware, rotate the shell bottom so that the back shell is in a vertical position

(Fig. 13).

e. Test that the attachment is aligned properly by removing and re-attaching the back

shell. Proper alignment of the mounting hardware and back is achieved when the

back can be smoothly attached and released.

f. If proper alignment has not been achieved, adjust the components until properly

aligned.

g. Once properly aligned, tighten the hardware receiver clamp screws (A). The rec-

ommended torque specification is 15-20 in-lbs. (1.7- 2.3 Nm).

C. AD USTING BASIC BACK WITH CLAMP HARDWARE

Please read the following instructions before beginning the installation. To install the Basic

Back with clamp hardware, it is best to begin without a user in the wheelchair. Once the

back has been installed the user can be seated back in the wheelchair for minor adjustments.

1. Height adjustment

a. Loosen the clamp screws on the chair side mounting hardware (A) and slide along

the back canes until the desired height is reached. The mounting hardware should

be at approximately equal heights on each back post and parallel to the seat frame.

b. Securely tighten the clamp screws (A). The recommended torque specification is

15 - 20 in-lbs (1.7 - 2.3 Nm).

Additional height

c. If additional height is needed, change the position of the shell-side hardware by

loosening nuts (E) and placing upper or lower hardware in optional holes (D).

Securely tighten the chair-side mounting hardware. The recommended torque specifi-

cation is 75 - 85 in-lbs (8.5 - 9.6 Nm). Reattach back shell to chair side mounting

hardware.

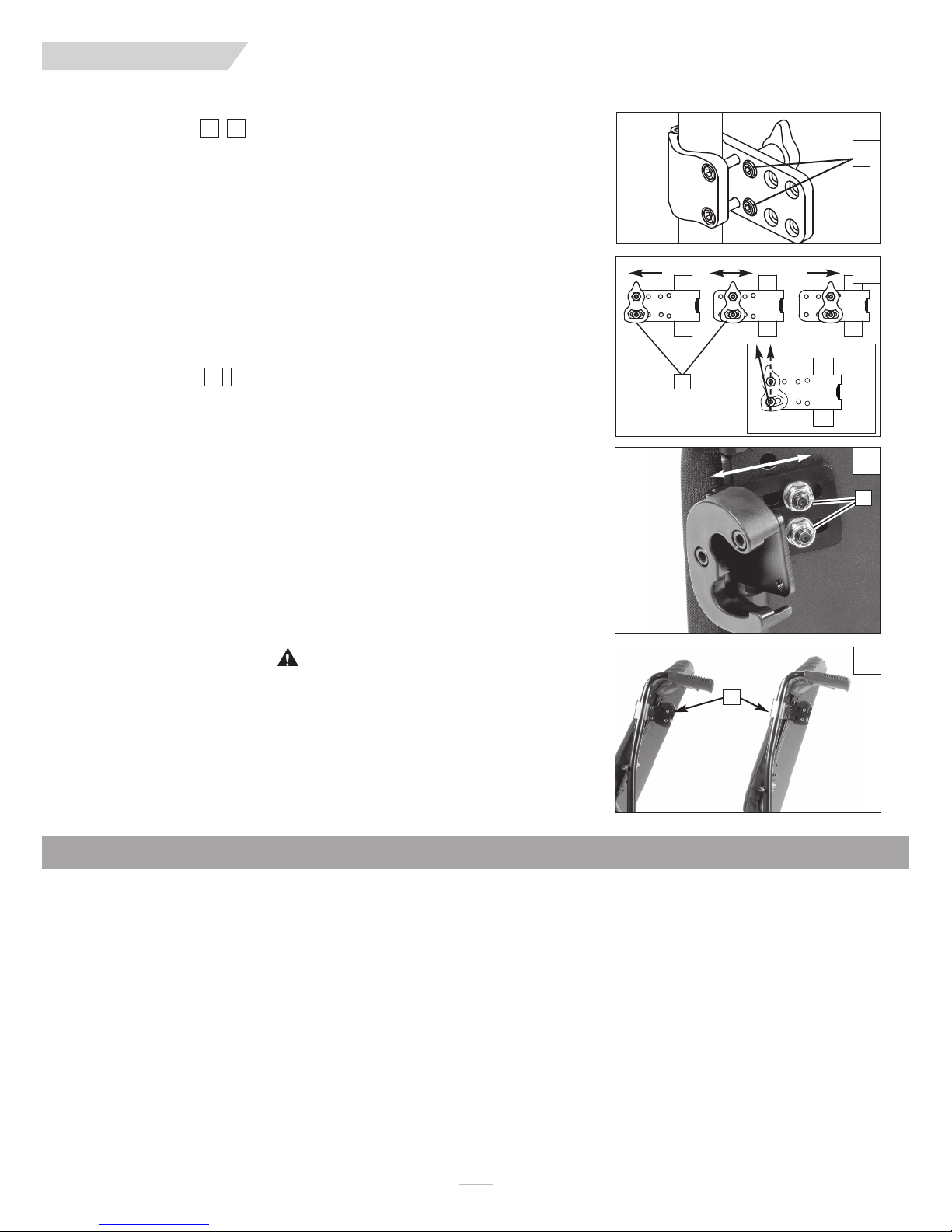

11 12 13

14 15

IV. INSTALLATION AND ADJUSTMENT

front of

chair

932165 Rev. C

AY BASIC BACK

2. Angle Adjustment

The Basic Back offers up to 10 degrees of angle with limited seat depth loss.

a. Detach the back shell from the mounting hardware.

b. Remove the left and right socket head screws (A) on the chair side mounting hard-

ware.

c. Adjust the angle by moving the tapered pin (B) forward or backward in the bracket as

shown in Fig. 17. Securely tighten the socket head screws. The recommended torque

specification is 15 - 20 in-lbs (1.7 - 2.3 Nm).

d. As the back angle is adjusted, also adjust the angle of the tapered pin to match (Fig. 17,

inset). The recommended torque specification is 15 - 20 in-lbs (1.7 - 2.3 Nm).

3. Width Adjustment

a. Loosen nuts (C) using a 7/16” wrench.

b. Slide hardware horizontally until the appropriate width is achieved. The appropriate

width allows for attaching to the chair-side mounting hardware.

NOTE - Width can be adjusted +1” to allow a smaller back to be mounted on wider back canes.

c. Secure the width nuts (C). The recommended torque specification is 75-85 in-lbs.

d. To minimize seat depth loss, place the lower mounting hardware (D) in a lower

mounting hole as seen in (Fig. 19). The recommended torque specification is 25-30

in-lbs (2.8 - 3.4 Nm).

D. INSPECT

WARNING

Ensure all hardware has been properly tightened according to suggested specifications.

a. Make sure the Back Support is locked, and the receivers are tight.

b. Check that the Back Support can be attached smoothly and securely, by attaching

and removing the assembly several times.

c. Double check fit and comfort for the user before putting the Back Support into use.

d. Failure to follow this check out procedure could result in injury and/or damage to

your Back Support and/or components.

16 17

18 19

IV. INSTALLATION AND ADJUSTMENT

VIII. WARRANTY

24 MONTH LIMITED WARRANTY

1. Each AY Basic Back is carefully inspected and tested to provide peak performance.

Every AY Basic Back is guaranteed to be free from defects in materials and workmanship

for a period of 24 months from the date of purchase, provided normal use. Should a

defect in materials or workmanship occur within 24 months from the original date of pur-

chase, Sunrise Medical will, at its option, repair or replace it without charge. This warran-

ty does not apply to punctures, tears or burns, nor to the back’s removable cover.

2. Claims and repairs should be processed through the nearest authorized supplier.

Except for express warranties made herein, all other warranties, including implied war-

ranties of merchantability and warranties of fitness for a particular purpose are excluded.

There are not warranties which extend beyond the description on the face hereof.

Remedies for breach of express warranties herein are limited to repair or replacement of

the goods. In no event shall damages for breach of any warranty include any consequen-

tial damages or exceed the cost of non-conforming goods sold.

10.16 932165 Rev. C

Inhaltsverzeichnis

Andere Sunrise Medical Medizinische Geräte Handbücher

Sunrise Medical

Sunrise Medical Hoyer Bedienungsanleitung

Sunrise Medical

Sunrise Medical Empulse R90 Bedienungsanleitung

Sunrise Medical

Sunrise Medical Guardian IC-6418 Bedienungsanleitung

Sunrise Medical

Sunrise Medical JAY Series Montageanleitung

Sunrise Medical

Sunrise Medical Guardian IC-5142 Bedienungsanleitung

Sunrise Medical

Sunrise Medical Leckey Sleepform Bedienungsanleitung

Sunrise Medical

Sunrise Medical Guardian IC-5143 Installations- und Betriebshandbuch

Sunrise Medical

Sunrise Medical Jay Easy series Bedienerhandbuch

Sunrise Medical

Sunrise Medical DeVilbiss 515ADS Bedienungsanleitung

Sunrise Medical

Sunrise Medical Quickie Bedienungsanleitung

Sunrise Medical

Sunrise Medical Hoyer Bedienungsanleitung

Sunrise Medical

Sunrise Medical Jay Dermafloat LAL 1100 Bedienungsanleitung

Sunrise Medical

Sunrise Medical Hoyer HPL600 Kurzanleitung

Sunrise Medical

Sunrise Medical Coopers 10381C Bedienungsanleitung

Sunrise Medical

Sunrise Medical Series 550 Bedienungsanleitung

Sunrise Medical

Sunrise Medical Jay Active Installations- und Betriebshandbuch

Sunrise Medical

Sunrise Medical Quickie GTi Titanium None Installations- und Betriebshandbuch

Sunrise Medical

Sunrise Medical switch-IT Bedienungsanleitung

Sunrise Medical

Sunrise Medical Quickie Q700 M SEDEO PRO Bedienungsanleitung

Sunrise Medical

Sunrise Medical Jay Fit Cushion Installations- und Betriebshandbuch

Sunrise Medical

Sunrise Medical Deep Contour Cushion J2 Installations- und Betriebshandbuch

Sunrise Medical

Sunrise Medical Switch-It Dual Pro Head Array Bedienungsanleitung

Sunrise Medical

Sunrise Medical Guardian 900-0880 Service-Handbuch

Sunrise Medical

Sunrise Medical Jay 1200 Series Installations- und Betriebshandbuch

Beliebte Medizinische Geräte Handbücher anderer Marken

TekTone

TekTone Tek-CARE160 Bedienungsanleitung

NeuroMetrix

NeuroMetrix Quell 2.0 Bedienungsanleitung

AMT

AMT XLR8 Bedienungsanleitung

Medipost-Nutristoma

Medipost-Nutristoma MD300K2 Bedienungsanleitung

EDAN

EDAN SONOTRAX Pro Bedienungsanleitung

Restorative Therapies

Restorative Therapies RT300 Bedienungsanleitung

Gendex

Gendex Expert DC Bedienungsanleitung

Dexcowin

Dexcowin ADX4000W Bedienungsanleitung

Libelium

Libelium MySignals Bedienungsanleitung

Acelity

Acelity V.A.C.ULTA 4 Bedienungsanleitung

Caputron

Caputron ActivaDose II tDCS Bedienungsanleitung

FujiFilm

FujiFilm Sonart Betriebsanleitung

Plinth 2000

Plinth 2000 93CDT Bedienungsanleitung

GE SENOGRAPHE 800T Bedienungsanleitung

GE Definium 5000 Bedienungsanleitung

Kanmed

Kanmed GE-1380 Bedienungsanleitung

Huntleigh

Huntleigh FD1 Bedienungsanleitung

Stryker

Stryker SPR Plus Bedienungsanleitung
