Sunx LS-400 SERIES Bedienungsanleitung

1. Functional Description

1-1. Functional Description.........................P. 1

1-2. Setting Procedure ...............................P. 1

2. Diagram of Functions and Settings

2-1. Diagram of Functions and Settings.....P. 2

3. Others

3-1.

Precautions When Selecting Settings

...P. 3

3-2. Factory Settings ..................................P. 4

3-3. Error Display Indicator Readings ........P. 5

4. Settings for NAVI Mode

4-1. NAVI Mode Functions and Settings....P. 6

4-2. Teaching Mode

(when using normal mode)................P. 11

4-3. Teaching Mode

(when using window comparator mode)

...P. 14

4-4. Teaching Mode

(when using hysteresis mode) ..........P. 18

4-5. Output Operation Setting Mode........P. 22

4-6. Timer Setting Mode...........................P. 23

5. PRO1 Mode

5-1.

PRO1 Mode Functions and Settings

...P. 24

5-2. Response Time Change Function.....P. 25

5-3. Hysteresis Function...........................P. 26

5-4. Shift Function....................................P. 27

5-5. M.G.S. Function ................................P. 28

5-6. Emission Halt Function .....................P. 29

6. PRO2 Mode

6-1.

PRO2 Mode Functions and Settings

...P. 30

6-2. Display Switching Function...............P. 32

6-3. Display Turning Function...................P. 33

6-4. ECO Mode Function..........................P. 34

6-5. Period Holding Function....................P. 35

6-6. Current Value Storage Function........P. 36

6-7.

Stored Value Comparison Function

...P. 37

7. PRO3 Mode

7-1.

PRO3 Mode Functions and Settings

...P. 38

7-2. Data Bank Load Function .................P. 39

7-3. Data Bank Save Function.................P. 40

8. PRO4 Mode

8-1.

PRO4 Mode Functions and Settings

...P. 41

8-2. Copy Function...................................P. 42

8-3. Selection for Transmission Change

to Permit / Not to Permit ...................P. 43

8-4.

External Input Switch Setting Function

...P. 44

8-5. Backup Setting Function...................P. 45

9. PRO5 Mode

9-1.

PRO5 Mode Functions and Settings

...P. 46

9-2. Code Setting Function.......................P. 48

9-3. 0-Adjust Setting Function..................P. 49

9-4. Setting Reset Function......................P. 50

9-5. CUSTOM Mode Display Function.....P. 51

10.PRO6 Mode

10-1.

PRO6 Mode Functions and Settings

...P. 52

10-2. Output 1 Sensing Mode Settings....P. 53

10-3. Output 2 Sensing Mode Settings....P. 55

11.Others

11-1. Key Lock Function...........................P. 56

PRO Mode Operation Guide

LS-400SERIES

DIGITAL LASER SENSOR

Cancel: If the [MODE key] is pressed, the amplifier will return to the previous settings status, immediately before

the [Jog switch] was pressed (the selected setting has been confirmed).

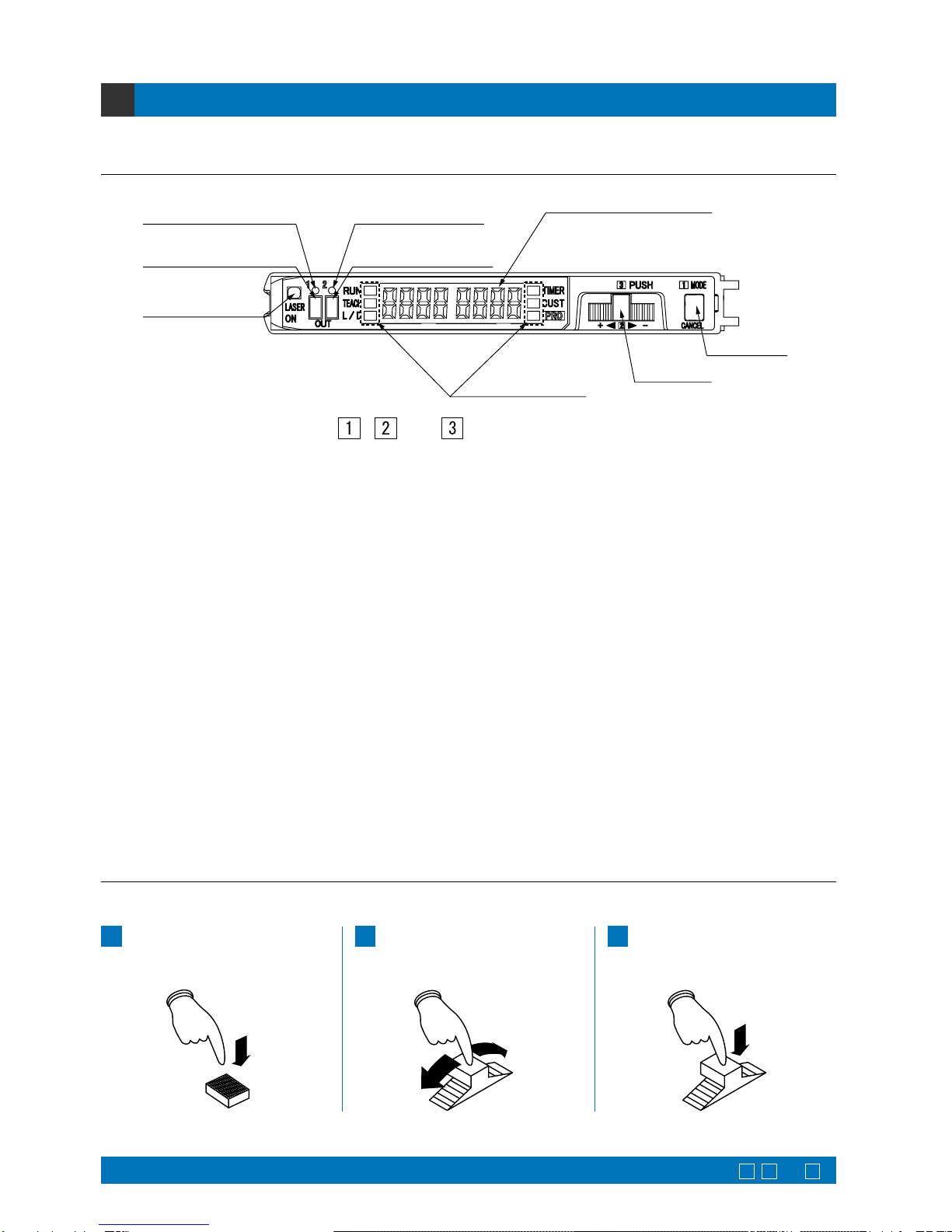

Functional Description

1-1. Functional Description

1-2. Setting Procedure

The use [MODE key] and [Jog switch] are utilized to configure various settings.

Press the [MODE key]

(mode selection / cancellation)

Turn the [Jog switch] in the ‘’ or

‘’ direction (chooses setting for selection)

2Press the [Jog switch]

(confirms the selected setting)

1Output 1 operation

indicator (Orange)

3Laser emission

indicator (Green)

2Select 1 indicator

(Yellow)

1Output 2 operation

indicator (Orange)

2Select 2 indicator

(Yellow) Digital display (Green, Red)

4MODE indicators

6MODE key

5Jog switch

, and are in the correct order for selecting settings.

Output 1, 2 operation indicator (Orange)

……

Select 1, 2 indicator (Yellow)

……………

Laser emission indicator (Green)

………

MODE indicators

…………………………

Jog switch

…………………………………

MODE key

…………………………………

: Lights up during normal sensing operation.

When this indicator lights up, in normal mode, the ‘threshold

value’ can be set by utilizing either ‘2-level teaching’, ‘limit

teaching’ or ‘full-auto teaching’. In window comparator mode

and hysteresis mode, the ‘threshold value’ can be set by either

‘1-level teaching’, ‘2-level teaching’ or ‘3-level teaching’

whenever this indicator lights up. Span adjustment can be carried

out when using rising differential and trailing differential modes.

When this indicator lights up, the output operation setting can be done.

: When this indicator lights up, timer operation and timer period

setting can be done.

: When this indicator lights up, function is stored in the CUSTOM

mode, can be set.

: When this indicator lights up, further advanced functions, such

as the copying and memory functions, can be set.

Lights up when output 1 or output 2 is ON.

Lights up when output 1 or output 2 is selected.

Lights up when laser is emitted.

RUN (Green)

TEACH (Yellow)

L/D ON (Yellow)

TIMER (Yellow)

CUST (Yellow)

PRO (Yellow)

Moving this switch in the ‘’ or ‘’ direction, allows different items to be viewed

for selection and pressing the switch then confirms the selected setting.

This key is used to select operating modes and to cancel settings while they are

being configured.

Selection and confirmation of settings are performed according to the order of the numbers, as shown on the amplifier:

and

P. 41l

The amplifier of LS-400 series features and settings are generally classified into two main modes; the

‘

NAVI

’

mode

for items and settings that are frequently reconfigured, and the

‘

PRO

’

mode that contains more detailed settings.

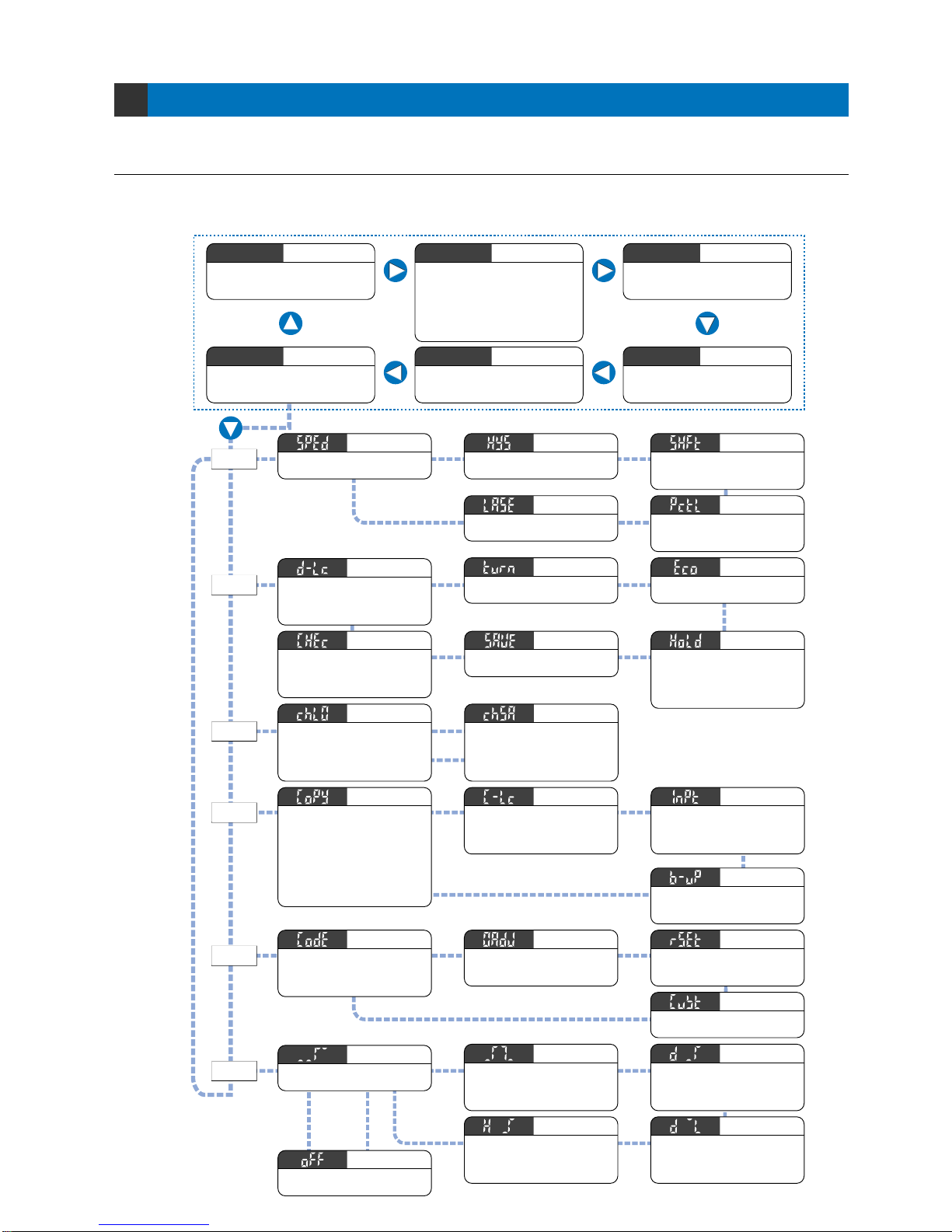

Diagram of Functions and Settings

2-1. Diagram of Functions and Settings

NAVI

mode

PRO

mode

mFor output 1

Refer to

p. 53l.

mFor

output 2

Refer to

p. 55.

PRO5

PRO4

PRO3

PRO2

PRO1

PRO6

This indicates normal sensing

operation. The threshold value

can be fine-adjusted as well.

Run

RUN

Allows various detailed settings to be

configured, such as optical communications,

save / load and other settings.

Pro

PRO

Shows stored settings for functions.

(Refer to p. 10.)

Custom

CUST

The threshold value can be set by utilizing

either ‘2-level / limit / full-auto teaching’. When

the sensor is in window comparator / hysteresis

mode, the threshold value can be set by either

‘1-level / 2-level / 3-level teaching’. When using

rising / trailing differential mode, ‘span

adjustment’is carried out. (Refer to p. 11.)

Teaching

TEACH Sets output operation either

Light-ON, or Dark-ON. (Refer to

p. 22.)

L-ON / D-ON

L/D ON

Configures operation and period

of the timer. (Refer to p. 23.)

Timer

TIMER

Switches among response

times. (Refer to p. 25.)

Response time change

Sets hysteresis. (Refer to p. 26.)

Hysteresis

Shifts the ‘threshold value’by a

certain percentage increment in

‘limit teaching’. (Refer to p. 27.)

Shift

Selects laser emission to

execute or halt. (Refer to p. 29.)

Emission halt

Sets the digital display to turn

ON / OFF. (Refer to p. 34.)

ECO mode setting

Selects to display peak / bottom

values in the hold condition or

peak / bottom values in the digital

display refleshing condition.

(Refer to p. 35.)

Period hold

Saves current incident light

intensity. (Refer to p. 36.)

Sets the viewing orientation of the

digital display. (Refer to p. 33.)

Display turning

P. 30l

This selects whether the digital display

is fixed at digits, % or peak hold / bottom

hold display, or whether the display can

be selectable. (Refer to p. 32.)

Display switching

This simultaneously displays the saved incident

light intensity and the current incident light

intensity for checking things such as drops in

incident light intensity. (Refer to p. 37.)

Stored value comparison

P. 38l

Loads configuration setting from the data

bank. Select only one amplifier to load or all

amplifiers connected on the right side of the

main unit to load in a single step by using

optical communications. (Refer to p. 39.)

Data bank load

Saves configuration setting from the data

bank. Select only one amplifier to save or all

amplifiers connected on the right side of the

main unit to save in a single step by using

optical communications. (Refer to p. 40.)

Data bank save

Using optical communications,

configuration settings from the

main unit are copied to units

connected on the right side of

the main unit, in a single step.

(Except data bank load / save,

0-adjust function setting and

transmission change to permit /

not to permit.) (Refer to p. 42.)

Copy

mCable type only

Allows not to save the threshold

value, by teaching via external

input, in EEPROM. (Refer to p. 45.)

Backup setting

P. 46l

Allows basic configuration

information to be set in a single

step, by inputting a 8-digit code.

(Refer to p. 48.)

Coding

Forces the numerical value for

incident light intensity to ‘0’on the

digital display. (Refer to p. 49.)

0-adjust setting

All settings, except for data

bank, revert to factory settings.

(Refer to p. 50.)

Reset

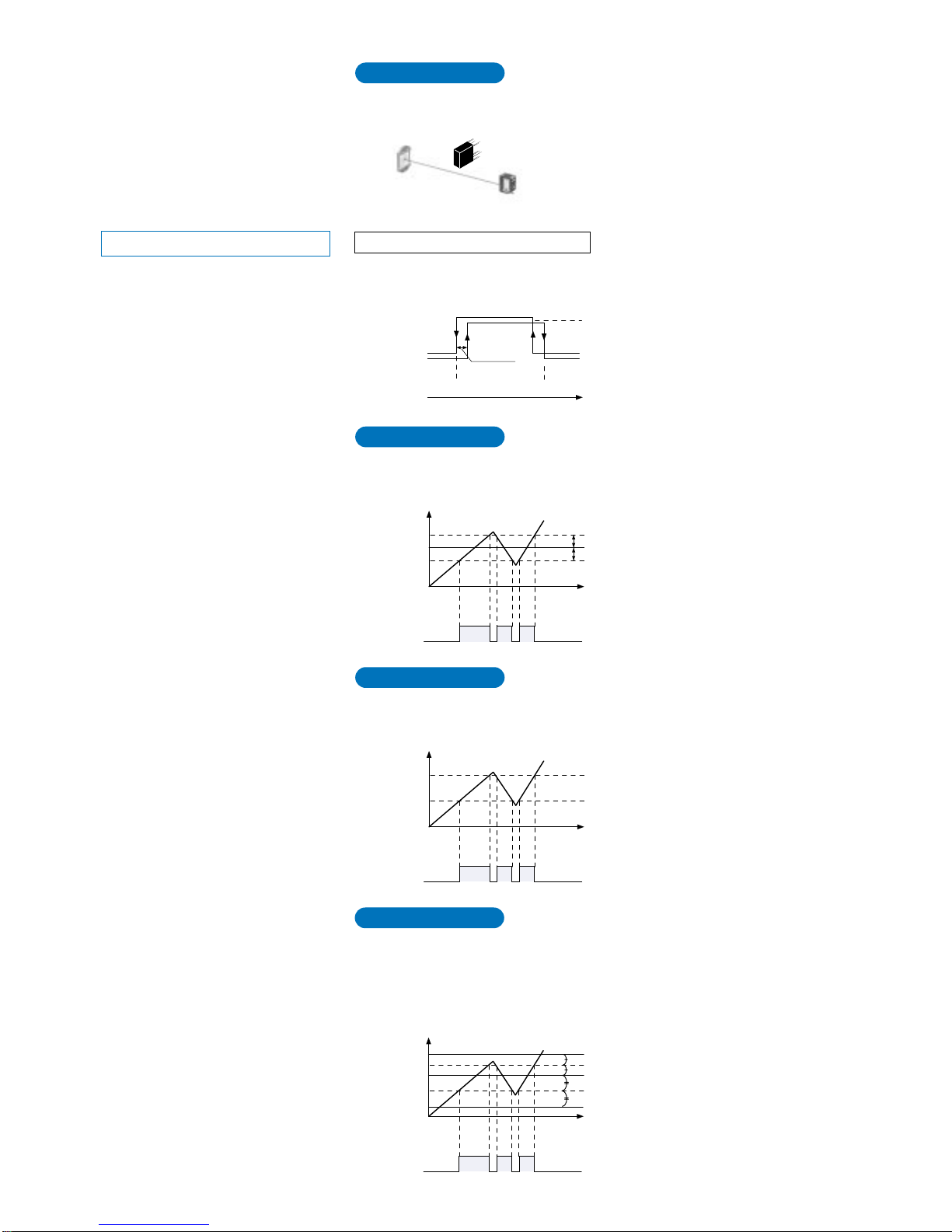

Sensing mode that cancels out

slight changes in light intensity so

that only sudden increases in

incident light intensity are sensed.

Rising differential mode

Judges if set two threshold values

are within the required range or not.

This can be selected in 1-level /

2-level / 3-level teaching.

Window comparator mode

Sets a threshold value for ON /

OFF operation.

Normal mode

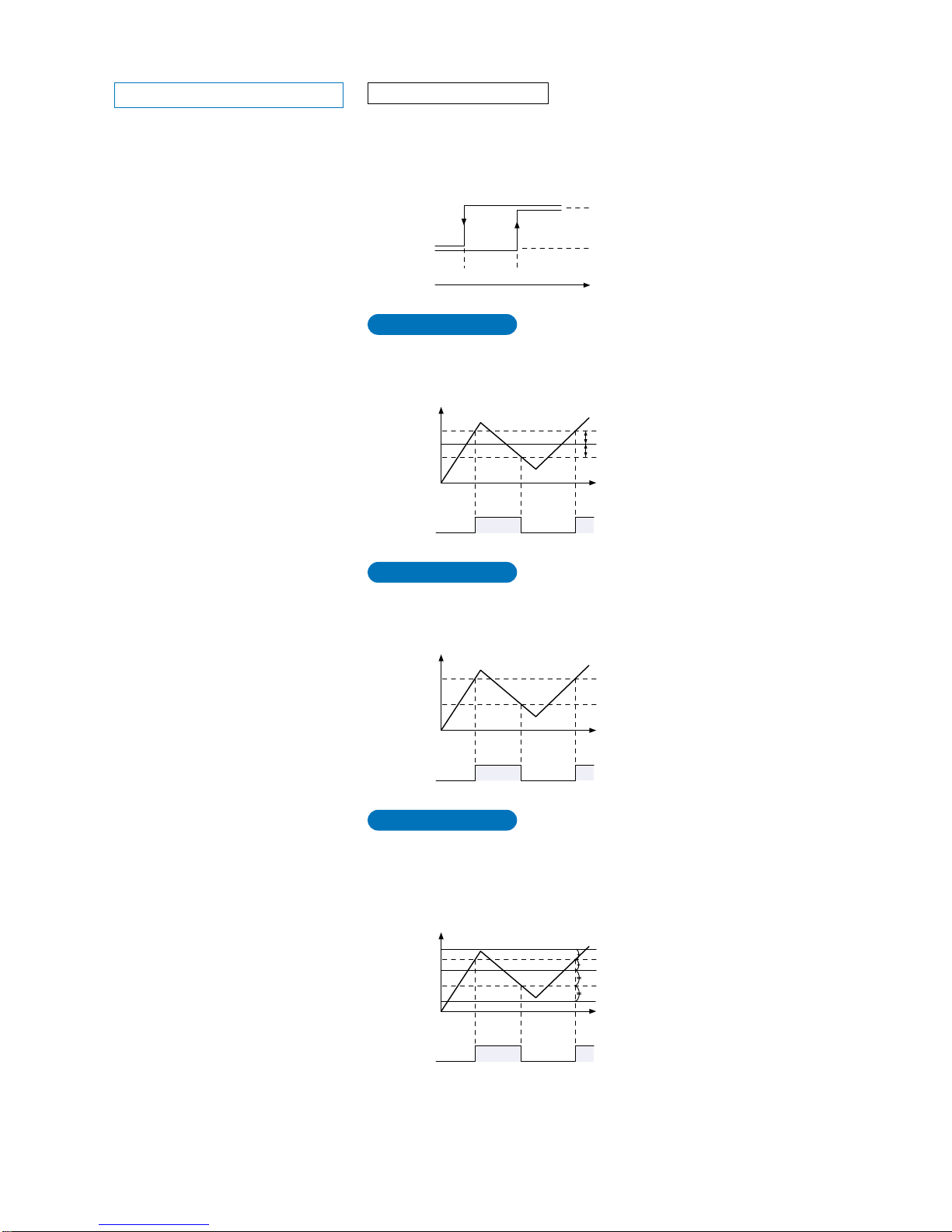

Changes hysteresis to ignore

small change of incident light

intensity. This can be selected in

1-level / 2-level / 3-level teaching.

Hysteresis mode

Sensing mode that cancels out

slight changes in light intensity so

that only sudden decreases in

incident light intensity are sensed.

Trailing differential mode

Set to OFF when not using

output 2.

Output 2 OFF

Sets receiving light sensitivity

in 3 level (U-LG mode: 4-level).

(Refer to p. 28.)

M.G.S.

Using external input wire,

‘emission halt’, ‘full-auto

teaching’or ‘limit teaching’is

selected. (Refer to p. 44.)

Selects a function in CUSTOM

mode to display. (Refer to p. 51.)

CUSTOM mode display

Allows to ignore copy / load /

save operations in a single step

used by optical communications.

(Refer to p. 43.)

Transmission change

to permit / not to permit

External input

switch setting

() ()

P. 24l

P. 52l

Current value

storage

 Be sure to set each item after selecting output 1 or output 2.

 The items that can be set in output 1 and output 2 respectively are only 1Threshold value, 2Output

operation, 3Timer operation and Timer period, and 4Sensing mode (Output 2 can only be selected in

normal mode). The items other than those are common. (However, in case of setting with the direct code, a

combination of the output 1 / 2 can be set only for output operation. The items other than output operation are

valid only for the output 1.)

 To cancel any operation, press the [MODE key]. If the [MODE key] is pressed once, the amplifier will return to

the previous settings status, immediately before the [Jog switch] was pressed and the selected setting has

been confirmed.

Others

Press the MODE

key once.

Example: When operating in PRO mode.

Press the Jog

switch once.

When changing the status of any setting, ensure that the selected setting is subsequently confirmed.

If confirmation is not performed, the new setting will not take effect.

Canceling operations

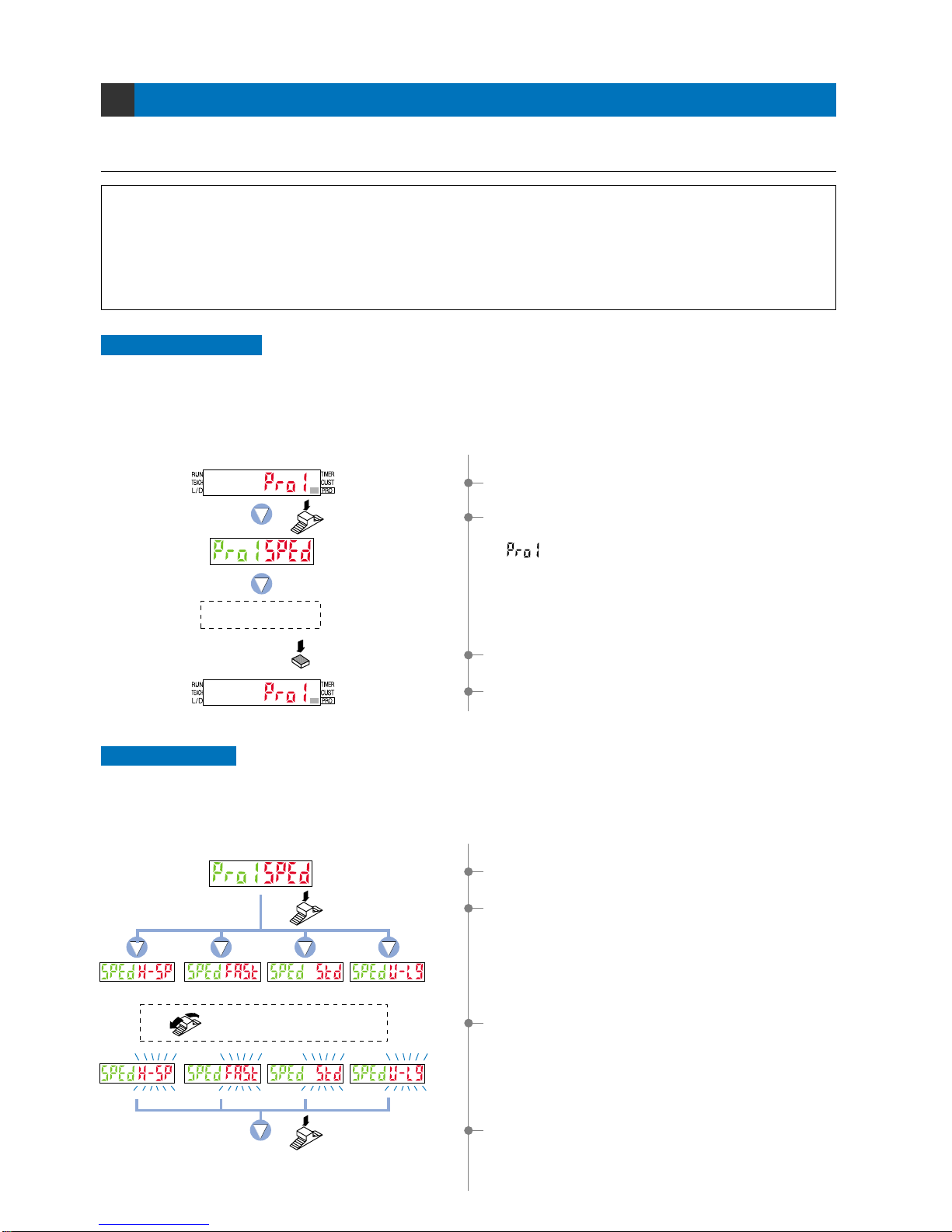

3-1. Precautions When Selecting Settings

Confirming settings

1Select ‘PRO mode’.

1Select ‘response time change’.

2If the [Jog switch] is pressed, the current mode (red) will be

displayed.

* The factory setting is ‘STD (standard)’.

3If the [Jog switch ] is turned, the digital display (red) will blink.

Select the desired mode.

3To cancel the ‘response time change’operation, press the

[MODE key] once.

The display will return to the previous [PRO1 mode] selection

screen.

H-SP

(ultra high-speed)

Example: When setting response time change.

FAST

(high-speed)

Press the Jog switch.

The digital display will quickly blink to confirm the setting.

STD (standard) U-LG

(ultra long-range)

Select the desired mode

by turning the Jog switch.

To cancel

2If the [Jog switch] is pressed once, the amplifier enter the

‘response time change’state.

[ move left side (Green)]

4If the [Jog switch] is pressed, the digital display (red) will

quickly blink, confirming the setting.

The digital display will not blink if the setting has not been

changed.

()

Note: Equipped with cable type only.

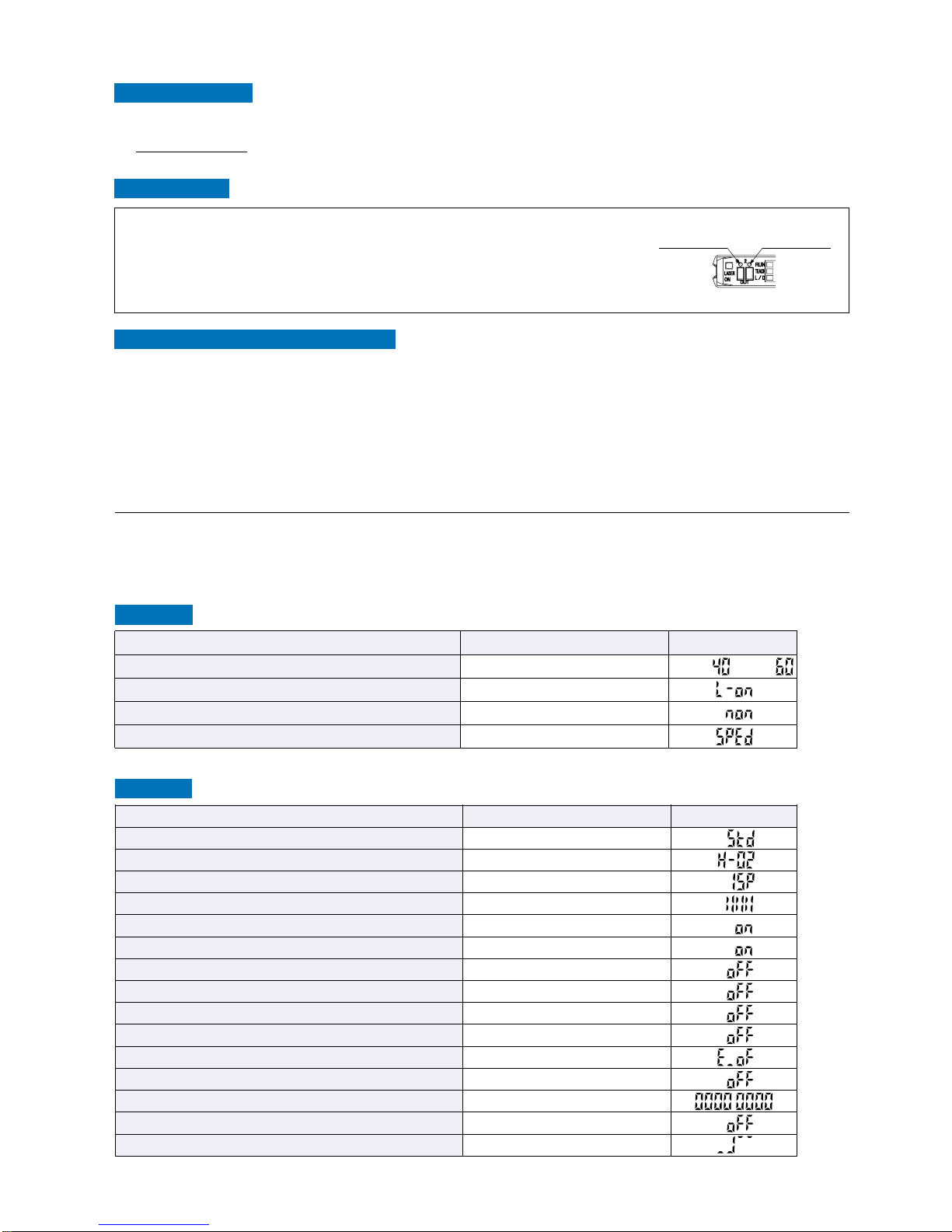

3-2. Factory Settings

NAVI mode

PRO mode

Item

Response time

Hysteresis

Amount of shift during limit teaching

M.G.S.

Emission halt

Display switching

Display turning

ECO mode

Period hold

Selection for transmission change to permit / not to permit

External input switch setting (Note)

Backup setting (Note)

Code setting

0-adjust setting

Output 1 / 2 sensing mode

Settings

STD (standard)

H-02 (standard)

15 %

Level 3

Laser emission ON

Incident light intensity display only

Digital display turning OFF

ECO OFF

Hold OFF

Lock OFF

Emission halt

OFF

00000000

OFF

Normal mode

Digital display

Item

Threshold value

Output operation

Timer operation

CUSTOM mode display

Settings

Output 1: 40, Output 2: 60

L-ONL-ON (Output 1Output 2)

Without timer (Output 1Output 2)

Response time change

Output 1: , Output 2:

Digital display

Factory settings for the LS-400 series are indicated below:

If the amplifier is reset using the ‘9-4 Setting Reset Function’from ‘PRO5 Mode’on p. 50, the resulting settings

will be those indicated below:

Operation protection

 You can use the ‘key lock function’to protect these operations. (Refer to p. 56.)

Key lock function

This function can be used to prevent the operator from accidentally changing the sensor settings.

Automatic interference prevention function

 To operate the automatic interference prevention function, you need to install the amplifiers so that they are

directed against each other and carry out optical communication.

The automatic interference prevention function allows up to four sensor heads to be installed so that they are

directed against each other.

(However, the automatic interference prevention function cannot be used in H-SP mode.)

Output switching

 Set the sensing mode (PRO6) for output 1 to normal mode beforehand.

In modes other than normal mode, this is fixed at output 1.

 Press the MODE key for more than 2 seconds when in NAVI mode. If Output 1

has been selected, the Select 1 indicator (yellow) lights up. If Output 2 is being

selected, the Select 2 indicator (yellow) lights up.

Select 1 indicator

(Yellow) Select 2 indicator

(Yellow)

3-3. Error Display Indicator Readings

Digital display Error description Measures

Turn off the power, then check

the load.

The load has short-circuited

and excess current is flowing.

Confirm that all amplifiers are

properly connected to each other.

Communication error has

occurred at time of connection.

Check the sensor head connection

status.

Disconnected sensor head

wire error.

In case of errors, attempt the following measures:

Settings for NAVI Mode

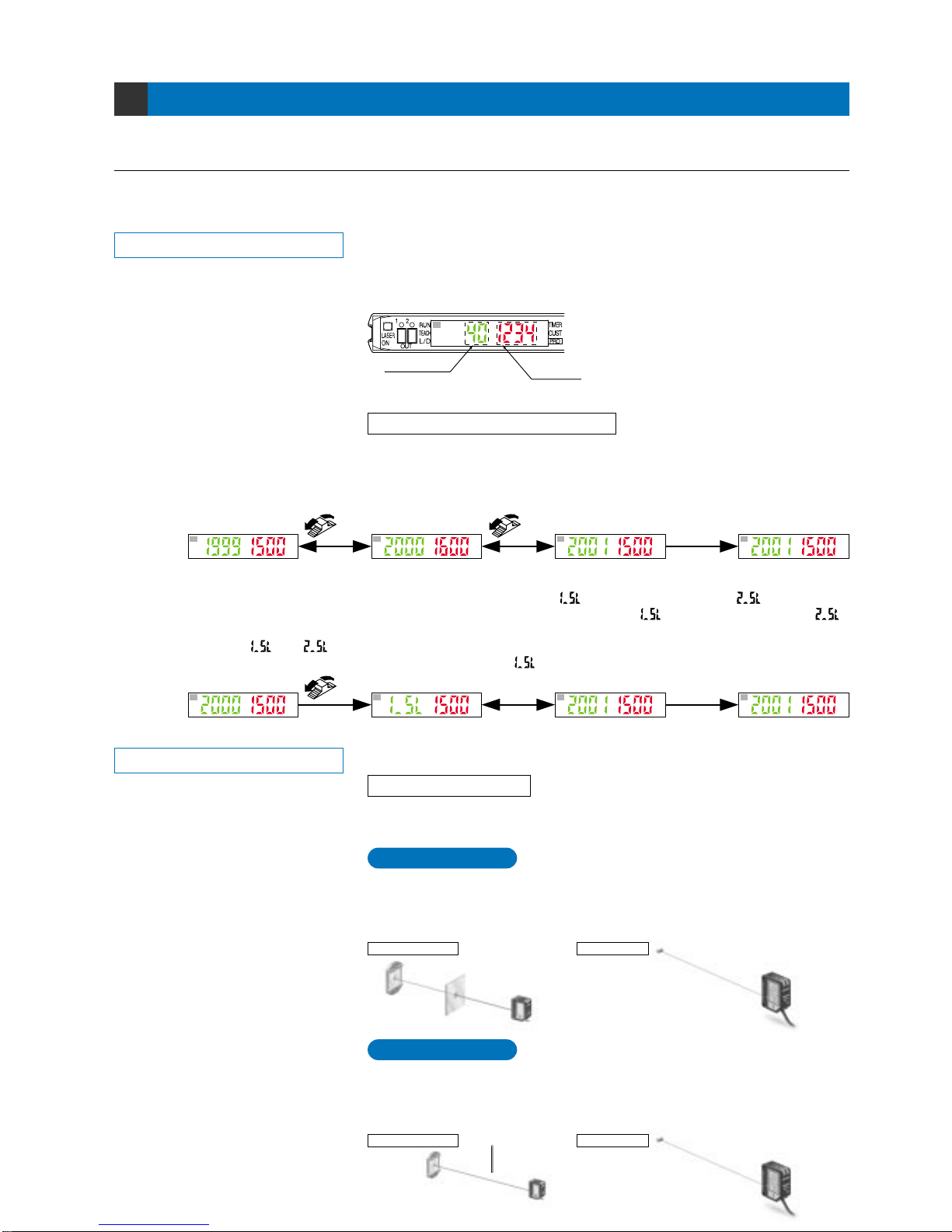

4-1. NAVI Mode Functions and Settings

RUN :

Normal Sensing Operation

TEACH : Teaching Mode

This indicates normal sensing operation. Threshold value (green) and incident light

intensity (red) are displayed in real time. Manual fine adjustment of the ‘threshold

value’can be performed during normal sensing operation.

The ‘threshold value’can be set with any of the 3 teaching methods, ‘2-level

teaching’, ‘limit teaching’and ‘full-auto teaching’.

This mode sets the ‘threshold value’by utilizing teaching.

When using normal mode

Turn the jog switch to either ‘’(left) or ‘’(right) to increase / decrease the

threshold value.

If there are no key operations after a certain period of time or if the MODE key is

pressed (to change to TEACH), the digital display (green) will blink and the setting

will be confirmed.

2-level teaching is a method of setting the threshold value by teaching the

amplifier two different status conditions - sensing object present and sensing

object absent.

The ‘threshold value’is usually set using this method.

Refer to p. 11 ~ for setting procedure

P. 11

2-level Teaching

Retroreflective type

Reflective type

*The incident light intensity display can

display a maximum value of 4,000 in

H-SP (ultra high-speed) mode and

FAST (high-speed) mode. In STD

(standard) mode and U-LG (ultra long-

range) mode, it can display up to a

maximum value of 9,999.

Confirmed

Automatic

AutomaticAutomatic

Turn to ''

Turn

* When you turn the jog switch to ‘’or ‘’in window comparator mode or hysteresis mode, the threshold

value will increase or decrease after the threshold value 1 ‘’or the threshold value 2 ‘’is displayed.

Each time the jog switch is pressed, the display switches between the ‘’threshold value 1 and ‘’

threshold value 2.

After ‘’or ‘’is displayed, the respective threshold value will be displayed.

If you turn the jog switch to ‘’when the output 1 ‘’is displayed, the following will be displayed.

Change

Turn

Threshold value Incident light

intensity

Threshold value fine adjustment function

Teaches only the status condition in which no sensing object is within sensing

range (status in which incident light intensity is stable). This method is used to set

a ‘threshold value’for conducting sensing in the presence of a background, or

when extremely small objects are to be detected.

P. 12

Limit Teaching

Very small object

In [NAVI mode], frequently changed settings can be easily configured.

Settings for four functions can be configured.

1_SL

2_SL

OFF

P. 16 l

3-level Teaching

This carries out 3-level teaching (P-1, P-2, P-3) and sets the threshold value

(1_SL) between A and B and the threshold value (2_SL) between B and C as

shown in the diagram below.

After teaching, P-1, P-2 and P-3 are automatically assigned in ascending order to

‘A’, ‘B’, and ‘C’.

Time

Incident light

intensity

9,999

Output

(L-ON)

TEACH : Teaching Mode

Refer to p. 14 ~ for setting procedure

P. 14

1-level Teaching

This sets the shift value to any desired value, and sets the threshold values (1_SL,

2_SL) by means of 1-level teaching.

P. 15

2-level Teaching

This carries out 2-level teaching (P-1, P-2) and sets the threshold values (1_SL,

2_SL).

Time

P-11_SL

P-22_SL

OFF

Time

Shift value

1_SL

2_SL

P-1

OFF

Incident light

intensity

9,999

Incident light

intensity

9,999

Output

(L-ON)

Output

(L-ON)

Output

(L-ON)

* In this figure, the incident light intensity of

P-1 is less than that of P-2.

P. 13

Full-auto Teaching

This method is used to set the threshold value while the sensing objects are still

moving on the production line, without stopping the production line.

When using window comparator mode

The ‘threshold value’can be set with any of the 3 teaching methods (‘1-level

teaching’, ‘2-level teaching’and ‘3-level teaching’). By setting two ‘threshold

values’, both ON and OFF can occur between the two threshold value levels.

Hysteresis

9,999 Incident light

intensity

1_SL 2_SL

OFF

P. 18

1-level Teaching

This sets the shift value to any desired value, and sets the ON level / OFF level

(1_SL, 2_SL) by means of 1-level teaching (P-1).

Output

(L-ON)

Time

Shift value

Incident light

intensity

9,999

Incident light

intensity

9,999

Incident light

intensity

9,999

Output

(L-ON)

Output

(L-ON)

Output

(L-ON)

* In this figure, the incident light intensity of

P-1 is less than that of P-2.

TEACH : Teaching Mode

Refer to p. 18 ~ for setting procedure

When using hysteresis mode

1_SL

2_SL

P-11_SL

P-22_SL

1_SL

2_SL

P-1

OFF

9,999 Threshold value

1_SL 2_SL

OFF

P. 19

2-level Teaching

This carries out 2-level teaching (P-1, P-2) and sets the ON level / OFF level

(1_SL, 2_SL).

P. 20 l

3-level Teaching

This carries out 3-level teaching (P-1, P-2, P-3) and sets the ON level / OFF level

(1_SL, 2_SL) between A and B as shown in the diagram below.

After teaching, P-1, P-2 and P-3 are automatically assigned in ascending order to

‘A’‘B’, and ‘C’.

This sets the ON / OFF levels with any of the 3 teaching methods (‘1-level

teaching’, ‘2-level teaching’and ‘3-level teaching’) and sets the hysteresis.

By adjusting the hysteresis, the irregular sections of sensing objects with

irregularities are canceled out so that stable sensing is possible.

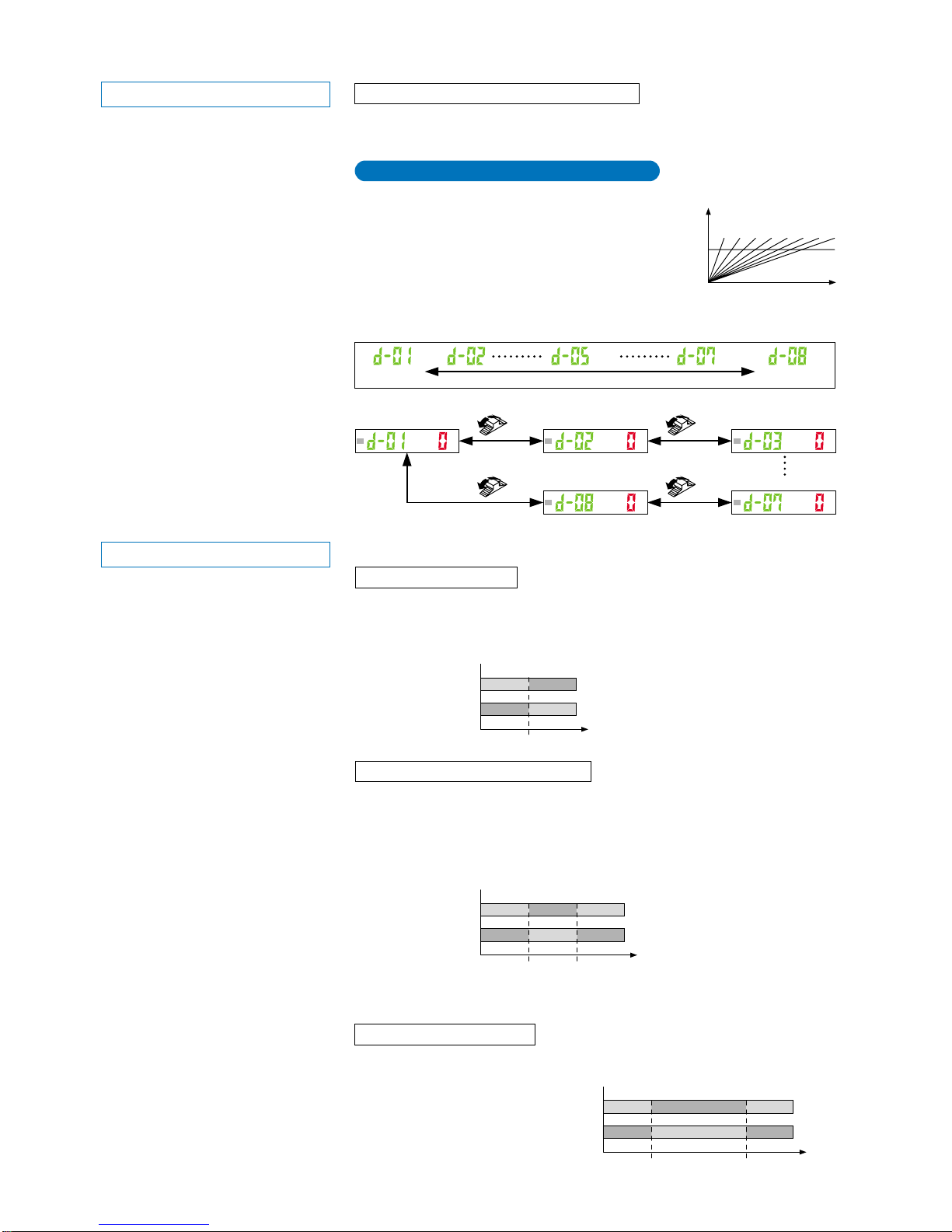

Span adjustment during differential mode

Time

Threshold

value

d-01

When setting differential mode in PRO mode, the maximum sensitivity (minimum

threshold value) is set.

If the response time is changed in differential

mode, the maximum sensitivity (minimum threshold

value) for that response time is set automatically.

Span adjustment for differential mode can be set

as follows in teaching mode. The threshold value

can be changed using the threshold value fine adjustment function. Refer to

‘threshold value fine adjustment function (P. 6)’ for details.

Changed intensity Turn

Turn

Changed intensity

Turn

Short span

(Sudden change) Long span

(Gradual change)

(Note) (Note) (Note)

d-02 d-03 d-04 d-05 d-06 d-07 d-08

ONOFF OFF

OFFON ON

0Threshold value

Threshold

value 1

(1_SL)

Threshold

value 2

(2_SL)

Incident light

intensity

Incident light

intensity

9,999

ONOFF

OFFON

Output

operation

L-ON

D-ON

Output

operation

L-ON

D-ON

* The factory setting is ‘L-ON (Light-ON)’.

0 9,999

L/D ON :

Output Operation Setting Mode

Refer to p. 22 for setting procedure

This mode allows the selection of output operation from either Light-ON, or Dark-ON.

* Products manufactured up until June 2004 (~ Lot No.: 4F□) are set in 5 steps (d-01 to d-05).

When using differential (rising or trailing) mode

For L-ON, the output turns ON when the incident light intensity is greater than the

ON level (2_SL), and the output turns OFF when the incident light intensity is less

than the OFF level (2_SL).

For D-ON, the output turns OFF

when the incident light intensity

is greater than the OFF level

(2_SL), and the output turns ON

when the incident light intensity

is less than the ON level (1_SL).

When using hysteresis mode

When using normal mode

When using window comparator mode

Incident

light

intensity

Changed intensity

ON level or OFF level

(2_SL)

OFF level or ON level

(1_SL)

ON or OFFOFF ON

OFF or ONON OFF

Output

operation

L-ON

D-ON

0 9,999

Incident

light

intensity

Only sudden changes in the light intensity are sensed, so that objects such as

glass edges can also be sensed with stability.

When set to ‘L-ON’, the output will be ON if the incident light intensity becomes

greater than the ‘threshold value’.

When set to ‘D-ON’, the output will be ON if the incident light intensity becomes

less than the ‘threshold value’.

When set to ‘L-ON’, if the incident light intensity is between the two ‘threshold

value’ levels, the output will be ON. If the incident light intensity is outside of the

two threshold value levels, the output will be OFF.

When set to ‘D-ON’, if the incident light intensity is between the two ‘threshold

value’ levels, the output will be OFF. If the incident light intensity is outside of the

two threshold value levels, the output will be ON.

TEACH : Teaching Mode

Inhaltsverzeichnis

Andere Sunx Messgerät Handbücher

Sunx

Sunx FD-F8Y Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
