Superbrightleds BRI816-B-D Bedienungsanleitung

Setting Sensitivity Time Light Standby Level Standby Time

Switch Pair Position 1 and 2 3 and 4 5 and 6 7 and 8 9 and 10

20% 10 seconds disabled 0always on

50% 1 minute 10 lx 10 1 minute

75% 5 minute 30 lx 30 30 minute

100% 15 minute 50 lx 50 60 minute

Fixture-Mounted Motion Sensor

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 11/04/2019

Model BRI816-B-D

Maximum Detection Radius 26.2 ft (8 m)

Maximum Mounting Height 49.2 ft (15 m)

Operating Temperature -40°–158° F (-40°–70° C)

Dimming 0–10 V¹

¹Lights that use a 1–10 V dimming driver will not completely turn off when at the zero setting on the sensor.

Specications

Safety and Notes

• Product should be installed and serviced in accordance with applicable

national, state, and local building and electrical codes.

• To reduce the risk of electric shock, ensure that the main power

󰀨

any installation or wiring procedures.

Sensitivity adjusts detection area.

Time adjusts the amount of time between when motion is detected and when the light enters standby mode.

Light 󰀨󰀩

Standby Level adjusts the dimming level of the light during standby mode. It should be noted that “0” setting on a 1–10 V light will result in the

light being set at 10% as the driver in this case cannot dim beyond this level.

Standby Time 󰀨

Important: Read all instructions prior to installation. BRI816-B-D

User Manual

DIP Switch Settings

1 2 3 4 5 6 7 8 9 10

Check product label for specific electrical

specifications related to installation.

Improper installation will void warranty.

Fixture-Mounted Motion Sensor

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 11/04/2019

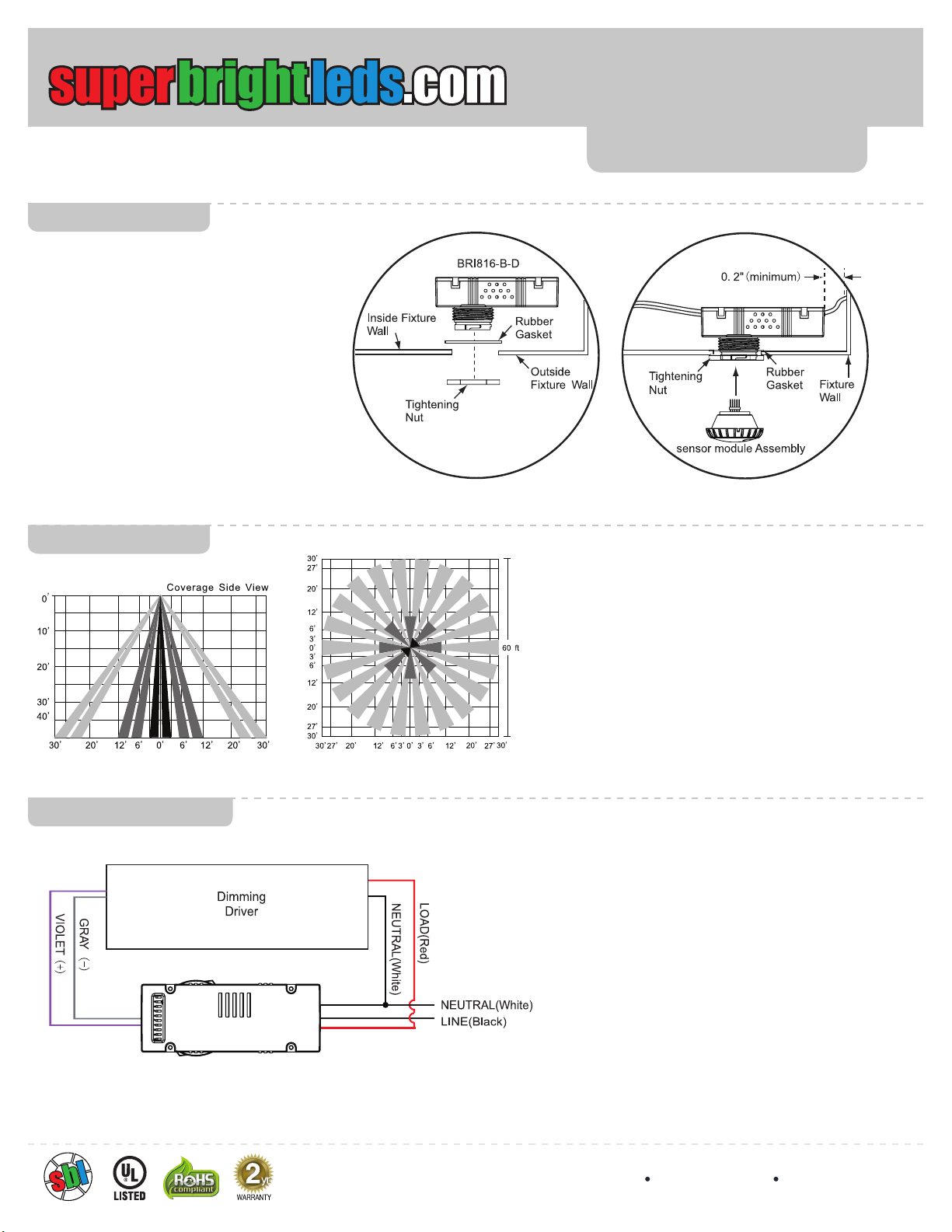

Installation

Sensor Coverage

Important: Read all instructions prior to installation. BRI816-B-D

User Manual

Wiring Diagram

1. 

2. Remove two bolts to open access panel.

3. 

4. Place module through hole, then install

rubber gasket and locking nut.

5. Plug sensor into module.

6. Wire using wiring diagram below.

7. Close and secure panel then reapply

supply power.
