Supermicro BPN-SAS3-826A Backplane Bedienungsanleitung

BPN-SAS3-826A BAckPlANe

USeR'S GUIDe

Rev. 1.0a

100

CG1

PRESSFIT

CG2CG3

CG1

PRESSFIT

CG2

CG3

CG1

PRESSFIT

CG2CG3

CG1

PRESSFIT

CG2

CG3

PRESSFIT

CG2

PRESSFIT

CG1

PRESSFIT

CG3

BAR CODE

DESIGNED IN USA

BPN-SAS3-826A-N4

REV:1.11

1 3

1 41 4

+ +

123

321

UB12

JP13

JP12

JP11

JP10

J27

JSM1

JSM2

JSM3

JSM4

JSM5

JSM6

JSM7

JP6

MH9

MH1MH2

MH3

MH4

MH7

MH8

JP8

JP9

JP1

JPW1

JPW2

JPW3

JPW4

C70

C125

C42

C41 C40C39

C36

C33

C34

C35

C100

C78

TP21 TP20

CPLD_RST

JTAG

BTTN1

BTTN2

BTTN3

BTTN4

CPU_SEL0

+5V

GND+12V

+5V

GND

+12V

+5VGND

+5V

GND+12V

Manual Revision 1.0a

Release Date: November 19, 2015

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software and

documentation, is the property of Supermicro and/or its licensors, and is supplied only under a

license. Any use or reproduction of this product is not allowed, except as expressly permitted by

the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE

USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL

NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR

USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING,

INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws

of Santa Clara County in the State of California, USA. The State of California, County of

Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super

Micro's total liability for all claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to

the State of California to cause birth defects and other

reproductive harm.

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

iii

Contents

Contacting Supermicro.......................................................................................iv

Returning Merchandise for Service.....................................................................v

Chapter 1 Guidelines

1-1 ESD Safety Guidelines ................................................................................... 1-1

1-2 General Safety Guidelines .............................................................................. 1-1

1-3 Version Information ......................................................................................... 1-2

Chapter 2 Jumpers and Pin Denitions

2-1 Rear Connectors and Jumpers....................................................................... 2-1

2-2 RearConnectorandPinDenitions ............................................................... 2-2

2-3 RearJumperLocationsandPinDenitions ................................................... 2-3

Explanation of Jumpers .................................................................................. 2-3

2-4 Front Connectors and LED Indicators ............................................................ 2-4

BPN-SAS3-826A Backplane User’s Guide

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Web Site: www.supermicro.nl

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3992

Email: [email protected]

Web Site: www.supermicro.com.tw

Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before

any warranty service will be rendered. You can obtain service by calling your vendor

for a Returned Merchandise Authorization (RMA) number. When returning to the

manufacturer, the RMA number should be prominently displayed on the outside of

the shipping carton, and mailed prepaid or hand-carried. Shipping and handling

charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.

supermicro.com/support/rma/).

Whenever possible, repack the backplane in the original Supermicro box, using the

original packaging materials. If these are no longer available, be sure to pack the

backplane in an anti-static bag and inside the box. Make sure that there is enough

packaging material surrounding the backplane so that it does not become damaged

during shipping.

This warranty only covers normal consumer use and does not cover damages

incurred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

Duringthewarrantyperiod,contactyourdistributorrstforanyproductproblems.

BPN-SAS3-826A Backplane User’s Guide

Notes

1-1

Chapter 1 Guidelines

Chapter 1

Guidelines

This chapter offers guidelines for personal and equipment safety, and notes about

the BPN-SAS3-826A version documented in this manual.

1-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufcient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing a component from the antistatic

bag.

• Handle the backplane by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the card and peripherals back into their antistatic bags when not in use.

1-2 General Safety Guidelines

• Always disconnect power cables before installing or removing any components

from the computer, including the backplane.

• Disconnect the power cord before installing or removing any cables from the

backplane.

• Make sure that the backplane is securely and properly installed on the mounting

frame in the chassis to prevent damage to the system due to power shortage.

1-2

BPN-SAS3-826A Backplane User's Guide

1-3 Version Information

The BPN-SAS3-826A backplane has been designed to utilize the most up-to-date

technology available, providing your system with reliable, high-quality performance.

This manual reects BPN-SAS3-826A Revision 1.11, the most current release

available at the time of publication. Always refer to the Supermicro Web site at

www.supermicro.com for the latest updates, compatible parts and supported

congurations.

All images and layouts in this user's guide are based upon the latest PCB revision

available at the time of publishing. The backplane you have received may not look

exactly the same as the graphics in this manual.

2-1

Chapter 2: Jumpers and Pin Denitions

100

CG1

PRESSFIT

CG2CG3

CG1

PRESSFIT

CG2

CG3

BAR CODE

DESIGNED IN USA

BPN-SAS3-826A

REV:1.11

1 41 4

+ +

123

321

UB12

JP13

JP12

JP11

JP10

J27

JSM1

JSM2

JP6

MH9

MH1MH2

MH3

MH4

MH7

MH8

JP1

JPW1

JPW2

JPW3

JPW4

C70

C125

C42

C41 C40C39

C36

C33

C34

C35

C100

C78

TP21 TP20

CPLD_RST

JTAG

+5V

GND+12V

+5V

GND

+12V

+5VGND

+5V

GND+12V

CG1

PRESSFIT

CG2CG3

JSM3

Chapter 2

Jumpers and Pin Denitions

This manual covers the BPN-SAS3-826A backplane.

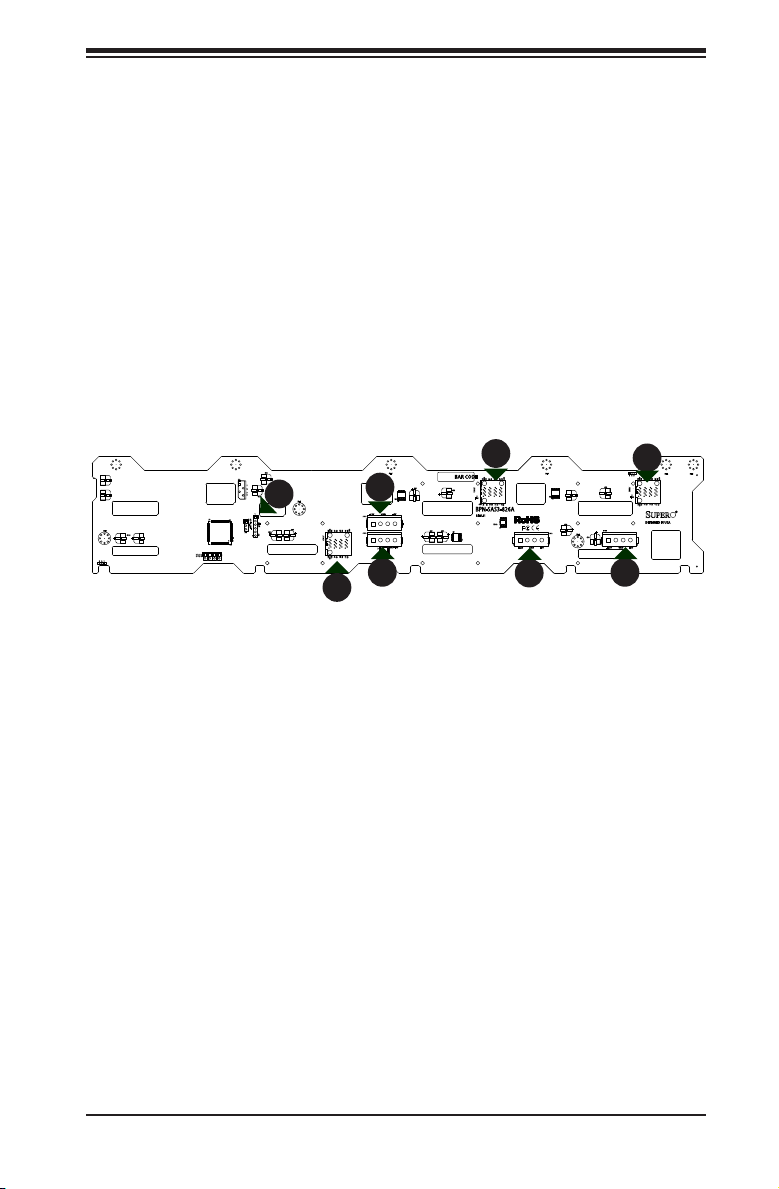

2-1 Rear Connector Locations

The following connectors are on the side of the backplane that faces the rear of the

chassis. They are marked by silkscreen labels.

1. Power Connectors, 4-pin: JPW1,

JPW2, JPW3 and JPW4.

2. JTAG Connector: JS27, CPLD

upgrade port (6-pin)

3. Mini SAS HD Connector: JSM1

4. Mini SAS HD Connector: JSM2

5. Mini SAS HD Connector: JSM3

Figure 2-1. Rear Connectors

2-2

BPN-SAS3-826A Backplane User's Guide

Backplane

Main Power

4-Pin Connector

Pin#Denition

1+12V

2 and 3 Ground

4 +5V

1. Backplane Main Power Connectors

The 4-pin connectors, designated JPW1,

JPW2, JPW3 and JPW4 provide power to

the backplane. See the table on the right

forpindenitions.

2. CPLD Upgrade Port

The JP27 connector is used only by

manufacturing to upgrade CPLD.

3-5. Mini SAS HD Connectors

The three SAS connectors are used to

connect the SAS drive cables and are

designated JSM1 to JSM3. Each of the

three connectors has four ports for a total

of twelve ports. These twelve ports are

designated SAS#0 - SAS#11. They are also

compatible with SATA drives.

2-2 Rear Connector and Pin Denitions

Inhaltsverzeichnis

Andere Supermicro Computerhardware Handbücher

Supermicro

Supermicro X11OPi Bedienungsanleitung

Supermicro

Supermicro SuperServer SYS-510D-4C-FN6P Bedienungsanleitung

Supermicro

Supermicro A+ Server AS -3015A-I Bedienungsanleitung

Supermicro

Supermicro AOM-S3108-H8 Bedienungsanleitung

Supermicro

Supermicro AOC-A100G-b2CM Bedienungsanleitung

Supermicro

Supermicro AOC-A25G-m2SM Bedienungsanleitung

Supermicro

Supermicro FatTwin F620P3-RTBN Bedienungsanleitung

Supermicro

Supermicro X12SPA-TF Bedienungsanleitung

Supermicro

Supermicro SBI-7426T-S3 Bedienungsanleitung

Supermicro

Supermicro R12SPD-A Bedienungsanleitung

Supermicro

Supermicro AOC-A100G-m2CG Bedienungsanleitung

Supermicro

Supermicro B2SC1-CPU Bedienungsanleitung

Supermicro

Supermicro AOC-A25G-i4SM Bedienungsanleitung

Supermicro

Supermicro BPN-SAS2-936EL Series Bedienungsanleitung

Supermicro

Supermicro Optane Persistent Memory 200 Series Bedienungsanleitung

Supermicro

Supermicro BPN-SAS3-116A-N10 Bedienungsanleitung

Supermicro

Supermicro SC846 JBOD Series Bedienungsanleitung

Supermicro

Supermicro AOC-USAS-S4i Bedienungsanleitung

Supermicro

Supermicro Supero AOC-SIMLP-B+ Bedienungsanleitung

Supermicro

Supermicro AOC-A100G-m2CM Bedienungsanleitung

Supermicro

Supermicro B2SS2-F Bedienungsanleitung

Supermicro

Supermicro SBI-7127RG Bedienungsanleitung

Supermicro

Supermicro SuperServer SYS-510T-M Bedienungsanleitung

Supermicro

Supermicro AOC-SLG4-4X4T Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
