Swann DVR4-4550 Bedienungsanleitung

For more information on this product visit www.swann.com

Be protected & see every detail in full HD

• A cutting edge & easy to use surveillance system with 1080p high definition video to see &

protect your premises

• Set & forget by recording from 4 channels for 160 days+ onto a 1TB hard drive

• Seeing is believing with 4 x 1080p HD cameras offering 100ft/30m infrared night vision &

durable construction for indoors or outdoors.

• Save time & have peace of mind by easily locating incident video, then transfer to external

storage via USB or network

• View live or playback video in high definition on your HDTV, LCD screen or monitor via

HDMI connection or VGA port

• Surveillance in the palm of your hand with live viewing on Smartphone & tablets including

iPhones, iPads & Android devices using the free SwannView Link app

• Cut the cost of crime & know what’s happening with this HD security system to suit front &

back doorways, yards, homes, offices, small businesses & retail stores

SWDVK-445504

Professional HD Security System

4 Channel Digital Video Recorder & 4 Cameras

4 CHANNEL VIEWING

4CH

DAY/NIGHT VISION

EASY INSTALLATION

WEATHER PROOF

LIVE VIEW & RECORDING

160 DAYS RECORDING+

1TB

PREVENT CRIME

Deter

1080PPROSERIES HD

Security Made Smarter

What’s in the box?

All installation accessories included

• DVR4-4550™ with 1TB Hard Drive

• PRO-T853™ 1080p Cameras x 4

• BNC Cables 60ft / 18m x 4

• Ethernet Cable

• HDMI Cable

• Power Adapter & Splitter

• Mouse

• Mounting Screws & Plugs

• Quick Start Guide

• Theft Deterrent Stickers

What can I do with this system?

Specifications

DVR4-4550™ DIGITAL VIDEO RECORDER

Video

Inputs 4 Channels

Outputs VGA, HDMI

Display Resolution Up to 1080p

Audio

Audio Input 1 RCA

Audio Output 1 RCA

Recording

Recording Resolution Up to 1080p

Hard Drive Support Includes 1TB SATA HDD

(supports up to 4TB)

Connection

Network Interface RJ45 Port x 1

USB Interface USB 2.0 x 2

Software

Computer Operating Systems Windows, Mac OS

Internet Viewing SwannView Link

Handheld Device Supported iOS, Android, 3G/4G

Smartphones & Tablets

General

Dimensions 8.5” x 8.5” x 1.8” /

215 x 215 x 45mm

PRO-T853™ CAMERA

Video

Video Quality 1080p

Viewing Angle 80°

Night Vision

Night Vision Distance Up to 100ft / 30m

General

Indoor / Outdoor Indoor or Outdoor, IP66 rated

Audio Microphone No

Operating Power DC 12V

Operating Temperature -4°F ~ 122°F / -20°C ~ 50°C

Body Construction Aluminum

Dimensions - Camera 2.4” x 5.75” x 2.4” /

61mm x 146mm x 61mm

Code

Swann Code SWDVK-445504

+ Based on 15% motion events at lowest settings

* Monitor, tablet and mobile phones not included. Not all handsets supported

Note: Trademarks are properties of their respective owners

130˚

Professional HD Security System

4 Channel Digital Video Recorder & 4 Cameras

Deter

Crime

Safeguard

Family

See

Faces

Protect

Property

Detect

Motion

See at

Night

For more information on this product visit

www.swann.com

Our Promise

Swann stands by its promise of Lifetime Support to

make advanced security easy to use, install and maintain.

Everything is in the pack but if you need it Swann’s help

desk is available 24 hours a day, 7 days a week for the life

of the product.

Installation is easy

Do-it-Yourself

Installing this Swann product is simple. For instructions,

tips and videos see the operating instructions in this pack

or visit www.swann.com

Professional Installation

Need extra help? We have an installer in your region!

For more visit www.swann.com

Security Made Smarter

PRO-SERIES HD

Professional HD

Security System

Instruction Manual

Important Information

FCC Verification

This equipment has been tested and found to comply with the limits for

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in ac-

cordance with the instructions, may cause harmful interference to radio

or television reception, which can be determined by turning the equip-

ment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

These devices comply with part 15 of the FCC Rules. Operation is sub-

ject to the following two conditions:

• These devices may not cause harmful interference

• These devices must accept any interference received, including in-

terference that may cause undesired operation

Important Notice: All jurisdictions have specific laws and regulations re-

lating to the use of cameras. Before using any camera for any purpose,

it is the buyer’s responsibility to be aware of all applicable laws and reg-

ulations that prohibit or limit the use of cameras and to comply with the

applicable laws and regulations.

FCC Regulation (for USA): Prohibition against eavesdropping

Except for the operations of law enforcement officers conducted under

lawful authority, no person shall use, either directly or indirectly, a de-

vice operated pursuant to the provisions of this Part for the purpose

of overhearing or recording the private conversations of others unless

such use is authorized by all of the parties engaging in the conversation.

Warning: Changes or modifications made to this device not approved

expressly by the party responsible for compliance could void the user’s

authority to operate the equipment.

Important Safety Instructions

• Make sure product is fixed correctly and stable if fastened in place

• Do not operate if wires and terminals are exposed

• Do not cover vents on the side of the device and allow adequate space

for ventilation

• Only use the power adapter supplied with your DVR

Password Information

This DVR does not have a default password. A password is created dur-

ing the Setup Wizard. If password protection has been enabled and you

have forgotten your password, you can enter a super password. Click

“Forgot Password” then input your DVR’s MAC address without the co-

lons, for example, EC71DBE32877.

Your DVR’s Mac address can be obtained using SwannView Link for Win-

dows. Please download it from our website: support.swann.com.

About this Manual

This instruction manual is written for the DVR-1580, 4550, 4750 and

5000 models and was accurate at the time it was published. However,

because of our on-going efforts to constantly improve our products, ad-

ditional features and functions may have been added since that time. We

encourage you to visit our website to check for the latest updates and

product announcements.

Contents

Important Information 2

Contents 3

Contents (cont.) 4

Live View 5

Menu 6

Menu Layout 7

Camera Configuration 8

Display: Camera 9

Creating a Privacy Mask 10

Recording: Encode (720p Models) 11

Recording: Encode (1080p Models) 12

Recording: Encode (3MP Models) 13

Alarm: Motion 14

Motion Detection 15

Motion Detection Schedule 16

Motion Detection Tips 17

Alarm: Video Loss 18

Video Loss Schedule 19

Device: PTZ 20

Controlling a PTZ Camera 21

Creating a Preset 22

Creating a Patrol 23

Recording Configuration 24

Recording: Encode 25

Recording: Option 26

Recording: Schedule 27

Playback & Backup 28

Search: Playback 29

The Playback Interface 30

The Playback Interface (cont.) 31

Search: Event 32

Search: Backup 33

System Configuration 34

System: General 35

System: User 36

System: Maintenance 37

Alarm: Exception 38

Device: HDD 39

Display: Output 40

Network: General 41

Network: Advanced 42

System Status 43

Search: Log Search 44

Network: Status 45

Device: S.M.A.R.T 46

System: System Information 47

Glossary 48

Glossary (cont.) 49

Glossary (cont.) 50

Warranty Information 51

Helpdesk & Technical Support 52

Contents (cont.)

Live View

Live View is the default display mode for your DVR. Each camera connected will be displayed on-screen. You can check the status or operation of

your DVR and cameras using the icons and Menu Bar on the Live View screen. Right-click the mouse to access the Menu Bar.

1. Opens the Menu.

2. Click to view a single camera.

3. Click to view four cameras.

4. Click to view eight cameras.

5. Click to view nine cameras.

6. Click to view the next screen in

single or four camera view.

7. Click to enable PIP mode.

8. Click to manually record the

selected camera.

9. Click to access the Setup Wiz-

ard.

Double-click a

live video chan-

nel to view full

screen.

Menu Bar

Status Icons

Camera Toolbar

Click & drag a

live video chan-

nel to reposition

it.

1 2 3 4 5 6 7 8 9

Camera1 Camera2

29/09/2015 10:30:15 Tue

The Menu is where you control the

various actions and options that are

available on your DVR. You can also

access previously recorded video

for playback and to export to a USB

storage device such as a flash drive.

To maintain system integrity, a firm-

ware upgrade can be performed when

available and access to the shutdown

menu to restart or safely turn off your

DVR.

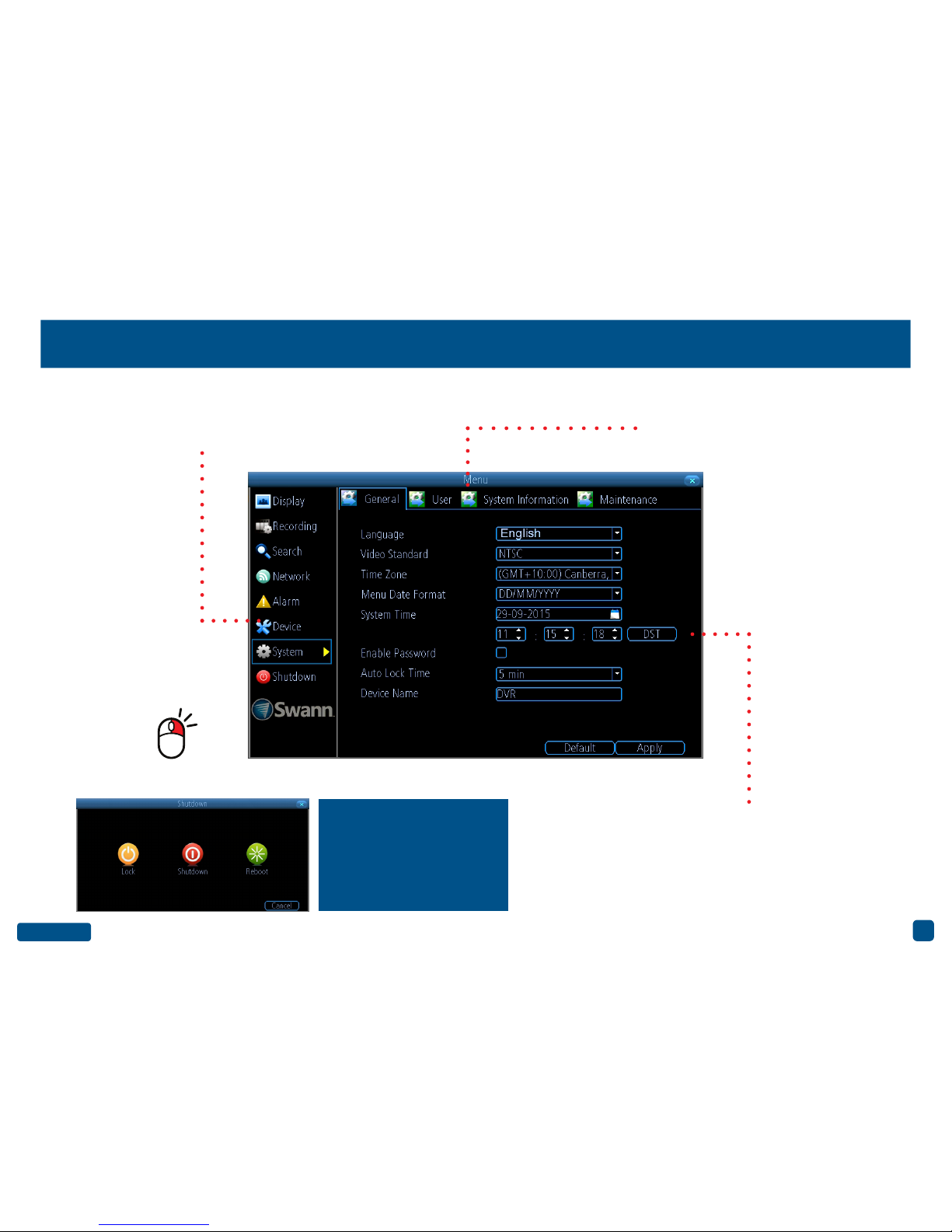

Menu Layout

The various actions and options

that are available, are categorised

on the left-hand side of the Menu.

Clicking each category will reveal a

number of tabs or sub-categories

that can be changed from their de-

fault value.

Some options may have additional

menus that can be accessed.

To exit or access the

previous menu, right-

click the mouse.

To shutdown, reboot or lock

your DVR, click the “Shut-

down” button. To ensure the

integrity of your data and re-

cordings, always select “Shut-

down” when powering off.

Camera Configuration

The majority of the camera configura-

tion options available are in the “Dis-

play”, “Recording”, “Alarm” and “De-

vice” menus that are accessible from

the Menu. You can change the reso-

lution and bitrate settings as well as

the image settings for brightness and

contrast. Your DVR has several con-

trols for Motion Detection, Video Loss

and the ability to create one or more

privacy masks.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Swann Sicherheitssystem Handbücher

Swann

Swann RL-0507A Bedienungsanleitung

Swann

Swann 2K Series Bedienungsanleitung

Swann

Swann Advanced SWDVK-825508TB Bedienungsanleitung

Swann

Swann USB 2.0 DVR Guardian SW241-UD4 Bedienungsanleitung

Swann

Swann SWDVK-840004D Bedienungsanleitung

Swann

Swann DVR4-2500 Bedienungsanleitung

Swann

Swann DVRx-2500 Bedienungsanleitung

Swann

Swann Alpha D03C5 Bedienungsanleitung

Swann

Swann SW244-SKI Bedienungsanleitung

Swann

Swann ADW-200 Bedienungsanleitung

Swann

Swann REDALERT SW242-WDV Bedienungsanleitung

Swann

Swann Advanced SWDVK-825504TB Bedienungsanleitung

Swann

Swann SSH-KIT03 Bedienungsanleitung

Swann

Swann PRO-530 Bedienungsanleitung

Swann

Swann DVR8-1425 Bedienungsanleitung

Swann

Swann MDRIVE2260214E Bedienungsanleitung

Swann

Swann RedAlert SW242-WBW Bedienungsanleitung

Swann

Swann 4 CCTV Cameras Security Monitoring System Bedienungsanleitung

Swann

Swann Mobile viwer Bedienungsanleitung

Swann

Swann NightHawk Twin Pack SW233-WX2 Bedienungsanleitung

Swann

Swann SW245-SBD Bedienungsanleitung

Swann

Swann DVR16-8600 Combo Bedienungsanleitung

Swann

Swann PRO-580 Bedienungsanleitung

Swann

Swann DVR4-1200 Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung

DSC

DSC PC 4010 Betriebsanleitung
