Systembuild Evolution 8964015COM Bedienungsanleitung

8964015COM

Storage Cabinet

B348964015COM0

For the latest information on SystemBuild products

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Assembly Difficulty Meter

Easy Tough

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-866-452-4081 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.systembuild.com

Helpful Hints

systembuild.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-866-452-4081

Monday-Friday

9am - 5pm CST

Visit systembuild.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

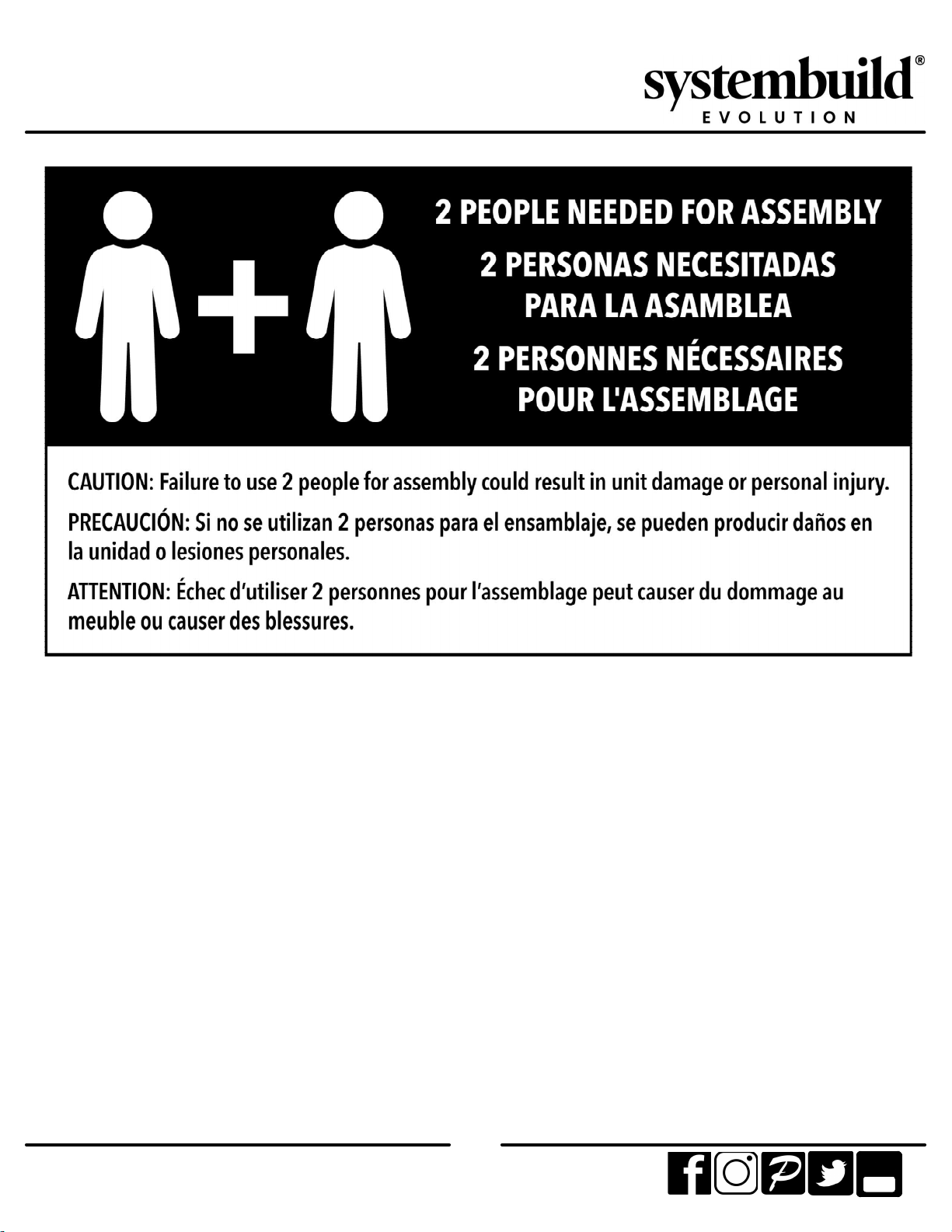

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

systembuild.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

systembuild.com

Tube

You

systembuild.com

Board Identification

Not actual size

Tube

You

This piece is

paperboard

construction. It is not

made from wood, but

is required for the

assembly of your unit.

Left Panel

31117015010 Right Panel

31117015020

shelf (2)

31117015030

Bottom

31117015040

Adjustable shelf (2)

37362015060

Door (4)

38964015070

Drawer Side (2)

39991167346200C

Drawer Back

39991167051390B

Drawer Front

34632015080

Drawer Bottom

39991341052210D

Back Panel

K111701500

DWR

SIDE

DWR

BACK

DWR

BTM

systembuild.com

Board Identification

Not actual size

Tube

You

DWR

SIDE

DWR

BACK

DWR

SIDE

This piece is paperboard construction. It

is not made from wood, but is required

for the assembly of your unit.

DWR

BTM

systembuild.com

Part List

Actual Size

Tube

You

(x8)

#A22610

cam bolt

(x8)

#A22620

cam lock

(x8)

#A21660

wood dowel

(x10)

#A11080

7/16" flat

head screw

(x10)

#A12120

7/16" round

head screw

(x2)

#A11160

5/8" flat

head screw

(x8)

#A12420

5/8" round

head screw

(x4)

#A12930

1-1/8" round

head screw

(x2)

#A89020

bumper

(x4)

#A23030

confirmat screw

(x42)

#A21110

nail

(x4)

#A21970

drive fastener

(x8)

#A17400

8-32 x 7/8"

(x8)

#A80250

shelf support

(x1)

#A84050

safety bracket kit

17a

17b

17d

(x2)

#A89210

bumper

17c

(x2)

#A17200

8-32 x 1/2"

systembuild.com

Part List

Not Actual Size

23b

23a

23c

23d

(x5)

#A52395

handle

(x8)

#A65615

hinge

(x1)

#A54900

drawer brace

(x2)

#A54520

drawer bracket

(x4)

#A44140

foot

left cabinet member

right cabinet member

left drawer member

(x1)

#A56770

drawer slide kit

right drawer member

systembuild.com

STEP1

Tube

You

23a

(x4) (x3)

left cabinet member

(x1)

marked with "L"

23a

finished edge

marked with "L"

systembuild.com

STEP2

(x4) (x3) (x1)

marked with "R"

right cabinet member

finished edge

marked with "R"

23b
