Tally T9412 Bedienungsanleitung

Maintenance manual Laser printer

5-1

5. Exploded Views and Parts Lists(T9412)

5-1 Main Exploded View & Parts Lists

5-2 Cover Exploded View & Parts Lists

5-3 Frame Exploded View & Parts Lists

5-4 Exit Exploded View & Parts Lists

5-5 Fuser Exploded View & Parts Lists

5-6 Rack-MPF Exploded View & Parts Lists

5-7 Drive Exploded View & Parts Lists

5-8 Pick-Up Exploded View & Parts Lists

5-9 Cassette Exploded View & Parts Lists

5-10 Second Cassette Frame Exploded View & Parts Lists

Exploded Views and Parts Lists

5-2

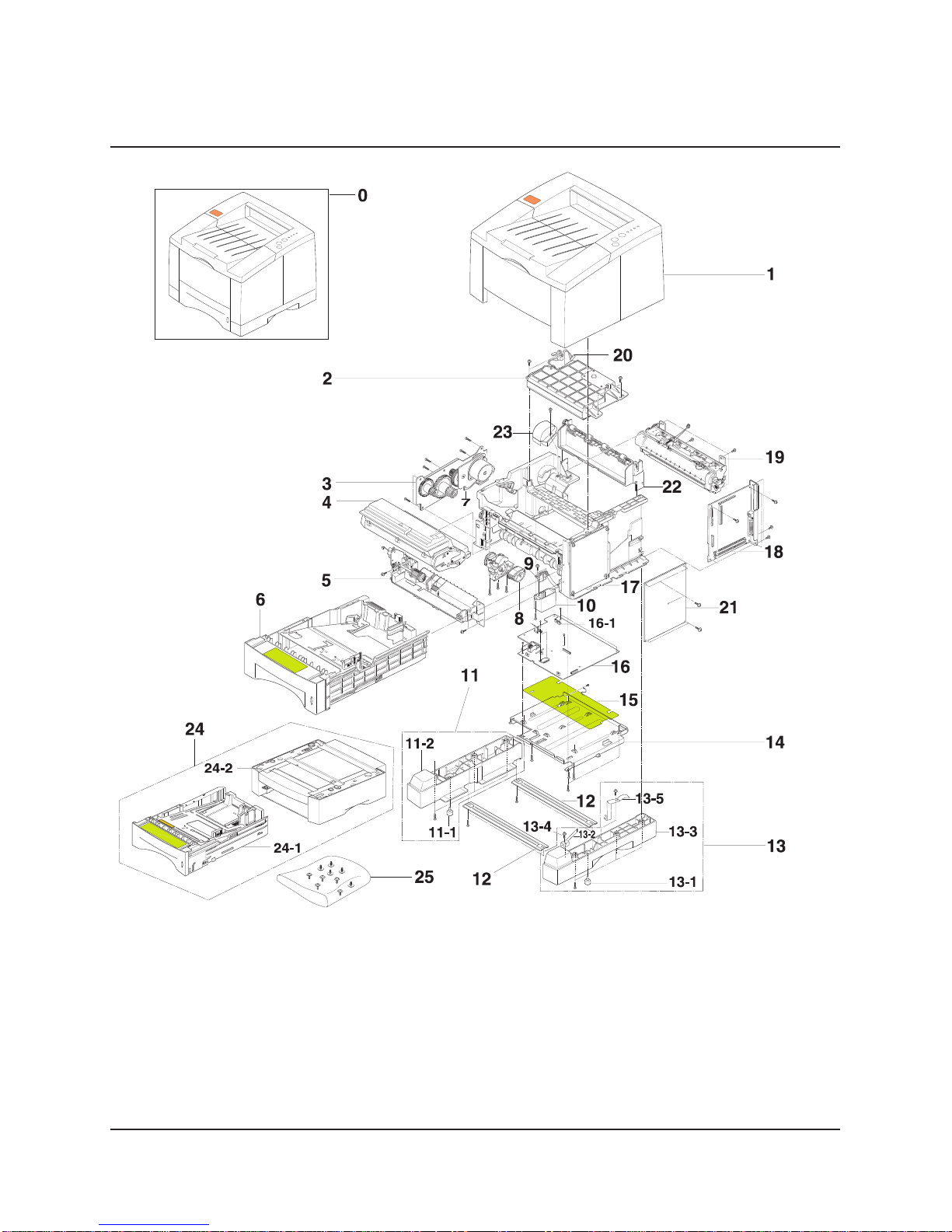

5-1 Main Exploded View

5-3

Exploded Views and Parts Lists

Main Parts Lists

Location No. Description Id. No. Q'ty

1 ELA HOU TOP-HOUSING 1

2 UNIT-LSU 398 425 1

3 ELA UNIT-MOTOR 1

4 ELA UNIT-DEVE 1

5 ELA HOU-MPF 1

6 MEA RACK-FEEDER CST 398 426 1

7 CBF-HARNESS-MOTOR 1

8 MEA UNIT-FEEDER 398 427 1

9 PMO-CAP SENSOR 1

10 PMO-HOLDER SCF CN 398 428 1

11 MEA UNIT-BRKT BOTTOM(L) 398 429 1

11-1 FOOT-RUBBER 1

11-2 PMO-BRKT BASE L 1

12 IPR-BAR CROSS BOTTOM 398 430 2

13 MEA UNIT-BRKT BOTTOM(R) 398 431 1

13-1 FOOT-RUBBER 1

13-2 IPR-PLATE CST GAIDE 1

13-3 PMO-BRKT BASE R 1

13-4 SCREW-TAPTITE 1

13-5 IPR-GROUND SCF BASE 1

14 SHIELD-PCU 1

15 PCT-INSULATOR PCU 1

16 PBA MAIN-ENGINE_V2 398 432 1

16-1 FUSE-CARTRIDGE 398 403 1

17 ELA UNIT-FRAME BASE 398 433

18 PBA MAIN CTRL 398 434 1

19 ELA UNIT-FUSER 1

20 CBF HARNESS-LSU 1

21 PCB PWR-HVPS 398 435 1

22 MEA RACK-HOU EXIT 398 436 1

23 PMO-DUCT FAN 1

Exploded Views and Parts Lists

5-4

5-2 Top Exploded View

5-5

Exploded Views and Parts Lists

Top Parts Lists

Location No. Description Id. No. Q'ty

0 ELA-HOU COVER MAIN 399 453 1

1 PMO-COVER OPEN 1

2 PMO-COVER MAIN 1

3 MEA UNIT-MP TRAY 398 438 1

3-1 PMO-COVER-MP 1

3-2 NPR-BADGE (45) 1

3-3 PMO-TRAY EXTENSION MP 1

3-4 PMO-TRAY HOLDER MP 1

3-5 IPR-GUIDE LATCH 1

3-6 PMO-ADJUSTER_P SIDE 1

3-7 PMO-TRAY LINK MP 2

4 STOPPER HINGE OPEN 2

5 PMO-LENS LED 1

6 PMO-KEY BUTTON 1

7 PMO-KEY SAVE MODE 1

8 PBA LED PANEL_II 399 454 1

9 PMO-GUIDE EXIT 1

10 PMO-BUSHING F/DOWN 1

11 PMO-COVER REAR 398 439 1

12 PMO-STACKER REAR 398 440 1

13 IPR-SPRING LOCKER REAR 398 441 2

14 PMO-COVER CONTROLLER 398 442 1

15 PMO-CAP REAR 398 443 1

16 PMO-SUPPORT MP TRAY 1

17 PMO-LEVER_EMPTY, MP 1

18 PMO-STOPPER_EXIT,P 1

S1 SCREW-TAPTITE 7

Exploded Views and Parts Lists

5-6

5-3 Frame Exploded View

5-7

Exploded Views and Parts Lists

Frame Parts Lists

Location No. Description Id. No. Q'ty

0 ELA UNIT-FRAME BASE 1

1 FAN-DC-HAWK 398 444 1

2 PMO-GUIDE RIB 1

3 CBF HARNESS-INLET ASS'Y 1

4 PMO-HOLDER WIRE 1

5 PMO-KEY DEVE HAWK 1

6 CBF HARNESS-ENGINE_CONTROL 1

7 CBF-HARNESS-FUSER 1

8 PBA SUB-EXIT SENSOR 398 445 1

9 CBF-HARNESS-THERMISTOR JOINT 1

10 CBF-HARNESS-MP_CLUTCH ENG 1

11 PBA SUB-FUSER_SW 398 446 1

13 PMO-FRAME COVER 1

14 IPR-TERMINAL FU 2

15 ELA UNIT-HOLDER TR L 398 447 1

15-1 PMO-BUSHING TR 1

15-2 SPRING TR L HAWK 1

15-3 PMO-TRANSFER HOLDER L 1

16 ELA UNIT-HOLDER TR R 398 448 1

16-1 PMO-BUSHING TR 1

16-2 SPRING TR R HAWK 1

16-3 PMO-TRANSFER HOLDER R 1

16-4 IPR-PLATE TR 1

17 GEAR-TR29 398 449 1

18 ELA UNIT-GUIDE DEVE L 398 450 1

18-1 PMO-GUIDE DEVE L 1

18-2 SPRING GUIDE DEVE 1

19 ELA UNIT-GUIDE DEVE R 398 451 1

19-1 PMO-GUIDE DEVE R 1

19-2 SPRING GUIDE DEVE 1

Exploded Views and Parts Lists

5-8

Frame Parts Lists

Location No. Description Id. No. Q'ty

20 ELA HOU-VARISTOR 1

21 IPR-TERMINAL TR HAWK 1

22 ELA UNIT-SENSOR DEVE 1

22-1 PBA SUB-SWITCH 398 452 1

22-2 PMO-HOLDER ACTUATOR 1

22-3 PMO-ACTUATOR DEVE 1

23 GROUND FU 1

24 ELA UNIT-TERMINAL TR L 398 455 3

24-1 ICT-SHAFT HV LARGE 3

24-2 SPRING-HV LARGE 3

25 ELA UNIT-TERMINAL TR S 398 456 1

25-1 ICT-SHAFT HV LARGE 1

25-2 SPRING-HV SMALL 1

26 GROUND-HVPS 1

27 IPR-REMOVE KEY 1

28 ELA UNIT-ACTUATOR FEED 398 457 1

28-1 PMO-ACTUATOR FEED 2

28-2 PMO-HOLDER ACTUATOR 2

29 ELA UNIT-GUIDE TRANSFER 1

29-1 PMO-HADER SAW PLATE 1

29-2 IPR-PLATE SAW 1

29-3 IPR-GUIDE TRANSFER HAWK 1

29-4 PMO-GUIDE RIB TR 1

30 ELA UNIT-GUIDE FEED 398 453 1

30-1 PMO-GUIDE OPTIC 1

30-2 GUIDE FEED 1

30-3 PMO-HOLDER G/PAPER 1

31 ELA UNIT-PTL 398 454 1

31-1 GUIDE PLATE FEED 1

31-2 PMO-HOLDER PTL 1

31-3 PBA SUB-PTL 1

5-9

Exploded Views and Parts Lists

Location No. Description Id. No. Q'ty

32 ELA UNIT-EMPTY ACT 399 458 1

32-1 PMO-ACTUATOR EMPTY HAWK 1

32-2 SPRING EMPTY 1

33 PMO-HINGE GUIDE FEED 1

34 GND ICU 1

35 PMO-CAP SENSOR 399 459 1

36 GND MP 1

37 GEAR-P/UP DRIVE 398 466 2

38 GROUND MOTOR 1

39 IPR-GUIDE DUST 1

41 IPR-OPC-HAWK 1

42 CAP CONNECTOR L 1

43 CAP CONNECTOR U 1

44 MEC-ROLLER TRANSFER 398 455 1

45 GEAR IDLE 27 398 467 2

46 RING-CS 2

47 WASHER-PLAIN 2

48 IPR-WASHER SPRING SU 1
