Tandberg Data DAT320 Bedienungsanleitung

DW090-90901

3Preparing the host

IMPORTANT: Refer to www.tandbergdata.com for detailed compatibility

information about operating systems and software applications.

SAS cable and port

A standard SAS cable (not supplied) with integrated power connector is appropriate

for this installation. The server must have a SAS HBA that supports internal SAS

ports. See

www.tandbergdata.com

for recommended products. If necessary, install

a new HBA and any associated drivers before you install the tape drive.

Drivers

For Windows systems, download the latest drivers from www.tandbergdata.com.

For other operating systems, patch to the latest version of the operating system,

following the instructions in the patch documentation.

Backup software

Always upgrade your software application to ensure it works correctly with the tape

drive. We do NOT recommend native backup applications, such as Windows Backup,

because they do not support the full features of the tape drive and may cause

performance problems.

NOTE:

Some backup applications require you to use their own drivers. Refer

to the documentation of your software application to ensure you are using the

recommended driver.

Hardware encryption

The DAT320 tape drive includes hardware capable of supporting data encryption.

To make use of this feature you need a backup application that supports hardware

encryption and DAT320 media.

Power requirements

Mounting bay

You need one industry-standard, 5 1/4-inch, half-height bay in which to install the

Tandberg Data DAT320 tape drive.

Different models of server require different mounting methods. Refer to your server

documentation for detailed information. You may need to purchase mounting

hardware separately.

Printed on at least 50% total recycled fiber with at least 10%

post-consumer paper

Printed in the EU

www.tandbergdata.com

Part No. 1018928

1Introduction

This poster describes how to install your Tandberg Data DAT320 tape drive.

•Use the fixing screws supplied with the tape drive

• Is connection to your SAS server supported?

• Can you connect to the host SAS controller or do you need to purchase an

additional HBA?

WARNING:

To avoid personal injury or damage to the server or tape drive,

disconnect your server from the mains power supply before installing the tape

drive.

To avoid damage to server or tape drive observe all recommended anti-static

and power-grounding precautions, as specified in your server and tape drive

manuals.

Tandberg Data DAT320 SAS

Internal Tape Drives

Typical Current

0.7 A

0.25 A

1.4 A

1.3 A

Voltage Maximum Current

5 V

12 V

2 Other sources of information

There is a more detailed "User Guide" on www.tandbergdata.com.

If you need technical support or have any problem with your DAT320 tape storage

solution, please visit the support pages at www.tandbergdata.com.

CMY

DW090-90901 Tandberg DAT320 SAS Int Eng front.pdf 11/9/09 10:32:11

6Choosing and looking after media

Your high-performance tape drive works best with high-performance Tandberg

Data DAT media. For optimum performance always use a data cartridge that

matches the specification of your tape drive (see table) and normally only use one

cartridge per day.

NOTE:

The DAT320 tape drive is not compatible with 4mm media. It may only

be used with 8mm media.

Table: Tandberg Data DAT data cartridge compatibility

* Capacity assumes 2:1 compression.

The recommended cleaning cartridge is the Tandberg Data DAT320 cleaning

cartridge for DAT320 tape drives. Only use the cleaning cartridge if the Clean LED

is flashing.

7Understanding the LEDs

DAT320

Clean – amber

• Off: the drive does not require cleaning

• Flashing: the drive needs cleaning

• Flashing (with Ready flashing): Cleaning is in progress

Tape – amber

• Off: no fault has been detected

• Flashing: the drive believes the current tape or the tape just ejected is faulty

(damaged or unsupported)

• Flashing (with Ready and Clean flashing): the cleaning cartridge has expired,

The drive ejects it automatically

Drive – amber

• Off: no fault has been detected

• Flashing: the drive mechanism has detected a hardware error

Encrypt – blue

• Off: no encryption activity, encryption parameters are not loaded

• On: encryption parameters loaded, drive is ready to read/write encrypted data

• Flashing blue (with Ready flashing): Reading/writing encrypted data

• Solid blue (with Ready flashing): Encryption parameters loaded, but drive is

reading/writing unencrypted data. This is the normal Ready LED operation

• Fast flash (with Drive LED): encryption related error

Ready – green

• On: the drive is ready for use and there is a cartridge in the drive

• Off: there is no cartridge in the drive. If the Ready LED remains off when a

cartridge is loaded, the drive power may be off or there may have been a failure

during self-test

• Flashing: the drive is busy

5 Power on the tape drive and verify connection

• Plug in the host server or workstation and all attached devices.

• Turn on any other devices you turned off earlier. Turn on the server.

• Check the LEDs on the front panel to make sure the tape drive is ready for use

(See section 6: Understanding the LEDs).

• Verify the connection.

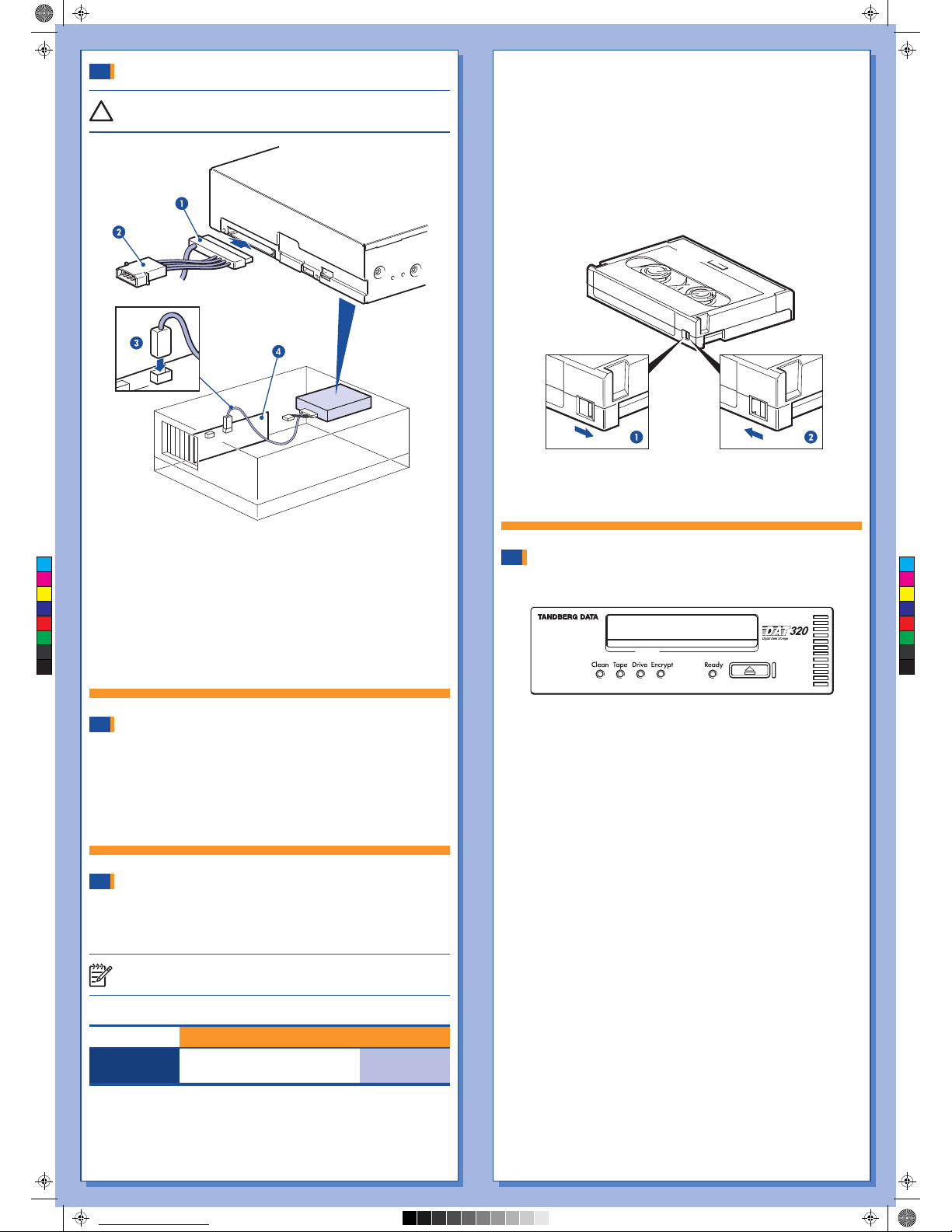

4 Connecting the tape drive

CAUTION:

Turn off and remove the power cords from the server and all

attached accessories.

1 SAS conector to tape drive 2 Power connector

3SAS connector to server 4 SAS HBA

SAS cable (not supplied)

Connect the SAS cable to the server's internal SAS port and the tape drive.

Power connection

Connect the power connector on the SAS cable to the server's internal power

supply.

It pays to look after your media

Many tape drive and backup failures are caused by damaged or badly handled

tape media.

• Keep media in the case provided.

• Follow the temperature, humidity and acclimitization guidelines on the media

packaging.

• Avoid dropping it or rough handling, as this is likely to damage the cartridge.

• Inspect it regularly for damage.

• Do not exceed normal cartridge life.

For detailed information on media care and best handling please visit

www.tandbergdata.com.

1Write-protect switch off 2Write-protect switch on

Read/Write

(

Recommended)

DAT72 & All DDS DAT160 DAT320

Read/Write

Tandberg Data

DAT320

Not

Supported

CMY

DW090-90901 Tandberg DAT320 SAS Int Eng back.pdf 11/9/09 10:40:54
