Targus Amb0301 Bedienungsanleitung

AMB03EU / 410-0465-003B

USER GUIDE

Visit our Website at www.targus.com/emea

Features and specifications subject to change without notice.

Bluetooth®Laser

Rechargeable

Notebook Mouse

Bluetooth Qualified Product ID# B03158

TABLE OF CONTENTS

Bluetooth® Laser Rechargeable Notebook Mouse................3

Bluetooth® Notebook-Lasermaus..........................................29

Ratón láser Bluetooth® recargable para portátil.....................56

Souris laser rechargeable Bluetooth® pour notebook............83

Mouse Laser Bluetooth® ricaricabile per notebook..............110

Oplaadbare Bluetooth® lasermuis voor notebooks.............137

Bluetooth® Laser Rechargeable Notebook Mouse...............164

CAUTION

LASER RADIATION. DO NOT STARE INTO

THE BEAM OR VIEW DIRECTLY WITH

OPTICAL INSTRUMENTS. CLASS I LASER

PRODUCT.

NEVER POINT A LASER BEAM INTO A

PERSON’S EYES OR VIEW A LASER BEAM

DIRECTLY, AS PROLONGED EXPOSURE CAN

BE HAZARDOUS TO THE EYES.

MOMENTARY EXPOSURE FROM A LASER

POINTER, SUCH AS AN INADVERTENT

SWEEP OF THE LIGHT ACROSS A PERSON'S

EYES, MAY CAUSE TEMPORARY FLASH

BLINDNESS SIMILAR TO THE EFFECT OF A

CAMERA FLASH BULB. ALTHOUGH THIS

CONDITION IS TEMPORARY, IT CAN

BECOME MORE DANGEROUS IF THE

EXPOSED PERSON IS ENGAGED IN A

VISION-CRITICAL ACTIVITY SUCH AS

DRIVING.

TARGUS BLUETOOTH®

LASER

RECHARGEABLE

NOTEBOOK MOUSE

Introduction

Congratulations on your purchase of the Targus Bluetooth®

Laser Rechargeable Notebook Mouse. This mouse has a

special EDR (Enhanced Data Rate) technology that provides

faster data transmission rate and allows multiple Bluetooth

devices running without conflict.

System Requirements

Hardware - Bluetooth-enabled notebook or desktop PC

Operating System - Windows® 98SE / 2000 / ME / XP

Windows VistaTM

Mac OS X (10.x or greater)

Installing the Batteries (Supplied)

Use the two AAA-size rechargeable NIMH batteries

(supplied)

Remove the battery cover from the back of the mouse by

sliding off the cover while pressing the release button at the

bottom of the mouse.

Insert the batteries, making sure that the positive (+) and

negative (-) ends of each battery match the polarity

indicators inside the battery housing

•

OPEN

off

connect

button

Battery cover

release button

slide the battery

cover in this direction

On/Off switch

TARGUS BLUETOOTH® LASER RECHARGEABLE NOTEBOOK MOUSE

Snap the battery cover back into position

Turn on the mouse by sliding on/off switch on the bottom

to the “on” position.

•

Charge the mouse for 8 hours before using. Plug in the

USB charge cable to the mouse and connect the other

end to the computer.

•

Charging the Batteries

WARNINGS: WHEN REPLACING THE BATTERIES, ALWAYS REPLACE WITH NiMH

BATTERIES OR OTHER RECHARGEABLE BATTERIES. NEVER USE ALKALINE

BATTERIES IN THIS DEVICE. AVOID MIXING NEW AND USED BATTERIES IN A DEVICE

NOTE: WHILE THE MOUSE IS FUNCTIONING, NO LASER LIGHT IS VISIBLE TO THE

NAKED EYE. BE CAREFUL NOT TO LOOK DIRECTLY INTO THE EMITTER HOLE

WHILE THE MOUSE IS ACTIVE.

To determine if the laser mouse is on and functioning is by

moving the mouse to see if the cursor is moving. The mouse

should be paired with the computer before it operates. The

scroll wheel will light up for approximately 1 sec. when the

power is turned on.

TARGUS BLUETOOTH® LASER RECHARGEABLE NOTEBOOK MOUSE

1. Charge the mouse for at least 8 hours before using it. And please

make sure only rechargeable batteries (the ones that come with your

product) are used.

2.Your computer needs to stay powered on for the mouse to charge.

Follow these steps to prevent your computer from going in to Standby

or Hibernate:

a) Click “Start”

b) Click “Control Panel”

c) Click “Performance and Maintenance” (Skip in Classic View)

d) Click “Power Options”

e) Make sure “System Standby:” and “System Hibernates:” under

“Plugged in” are set to “Never”

3. If you use your notebook computer’s LCD monitor, please do not close

the lid. (Please ignore this step if you use an external monitor with your

notebook lid closed.)

4. If your mouse does not respond after a period of inactivity, please wake

it up by pressing one of the buttons on the mouse or moving the mouse

around.

TARGUS BLUETOOTH® LASER RECHARGEABLE NOTEBOOK MOUSE

Initial Configuration

Before you can begin using Bluetooth connectivity on your

computer and other Bluetooth devices, you must perform

some initial setup tasks.

The Targus Bluetooth Laser Rechargeable notebook mouse is

designed to work with the four major software stack (protocol)

standards: WIDCOMM, Toshiba, Microsoft and Mac OS X.

Please check your computer’s documentation to see which

software stack your computer has. Please contact your

system vendor if your system does not support one of the

following Bluetooth software standards.

Using the enhanced Resolution feature

This bluetooth laser mouse has a special enhanced

resolution feature. By activating this feature, the laser

mouse will increase its tracking sensitivity from 800 CPI to

1600 CPI. This will improve the precision of the mouse

pointer for fine details with increased speed. Press both the

scroll and right key when the mouse is on , the red LED in

the scroll wheel will light up around 3 secs to proceed

resolution switching. When the LED is off, it indicates the

resolution switching is successful.

Bluetooth Software: WIDCOMM

1. Go to the Bluetooth Places icon located on your desktop

or in the system tray and double click, then click Bluetooth

setup wizard.

NOTE: TO CONTINUOUSLY CHARGE THE BATTERIES VIA THE USB CHARGE CABLE,

YOUR COMPUTER MUST BE ON AND AWAKE . FOR BEST RESULTS , TURN OFF

YOUR COMPUTER ’S POWER MANAGEMENT / SLEEP MODE FEATURE WHILE

CHARGING THE MOUSE.

TARGUS BLUETOOTH® LASER RECHARGEABLE NOTEBOOK MOUSE

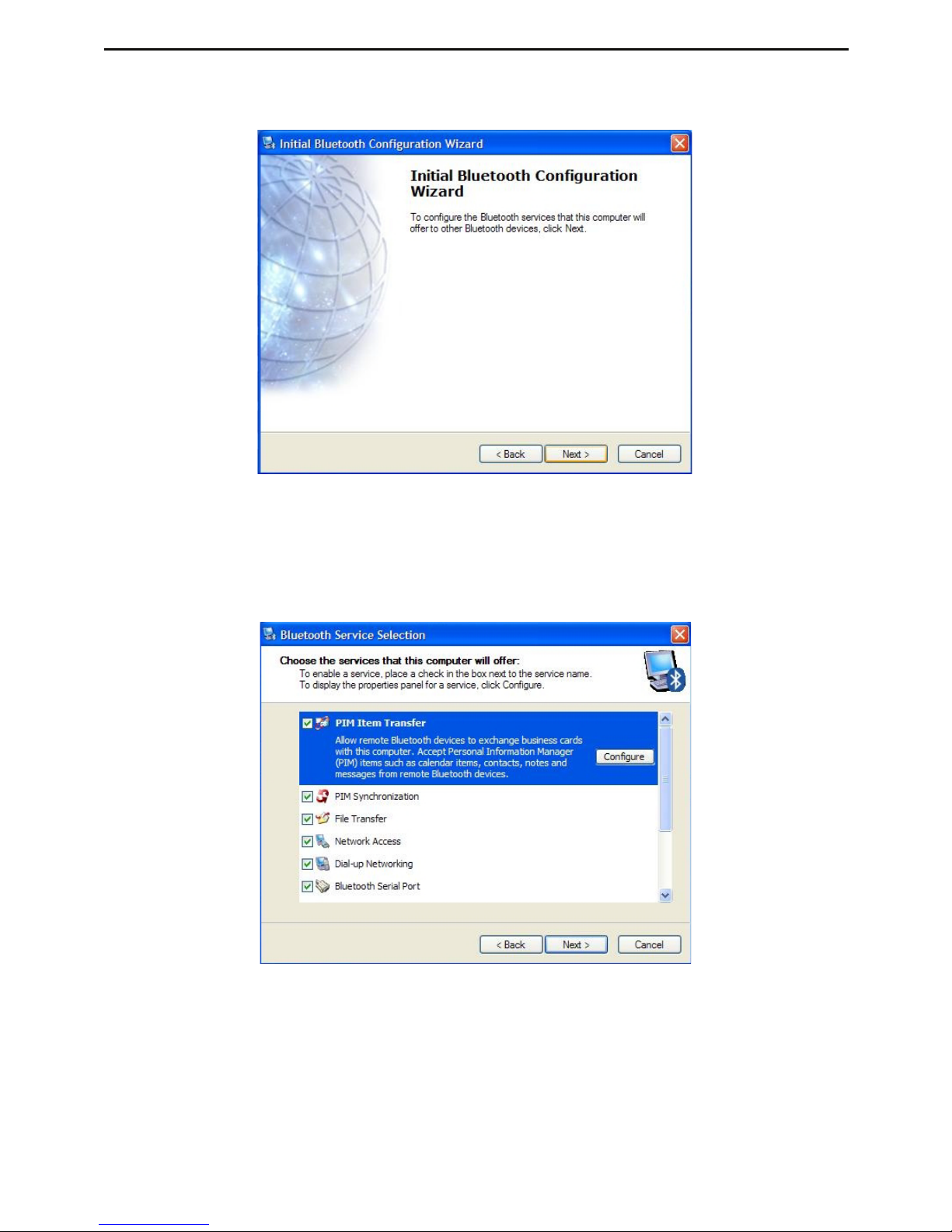

2. The Bluetooth configuration screen will prompt. Please

follow the onscreen instructions. Click Next to continue.

3. Continue to setup your bluetooth device profile.

TARGUS BLUETOOTH® LASER RECHARGEABLE NOTEBOOK MOUSE

4. Click Next to continue setup.

5. Please select the service which the bluetooth device

offers. (Default setting allows the most coverage. It is

recommend to keep as default). Click Next.

6. Installation will perform setup and click Next when setup is

completed.

TARGUS BLUETOOTH® LASER RECHARGEABLE NOTEBOOK MOUSE

7. Please turn on the mouse and press the connection ID

button located at the bottom of the mouse until the light in

the middle scroll wheel blinks red light (discoverable mode).

Click Next to continue pairing.

8. The confirmation window will appear as the system installs

the drivers. Click OK. When this is done, the mouse should

be functioning. The bluetooth mouse has been successfully

installed.

Targus BT

Laser

Notebook

Mouse
