Teknion HiSpace Basic Height-Adjustable Extended Corner Complete Table... Bedienungs- und Wartungsanleitung

hiSpace Basic Height-Adjustable Extended Corner Complete Table (YJS),

hiSpace Height-Adjustable Leg Riser Kit (YSRK)

Section:

Description: Page No:

Date:

Rev. No: 2

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

Sept 2022 1 of 19

COM_136

complements

Installation Guides

B4A

NOTE: Extended Electric Model (9E) is

shown below

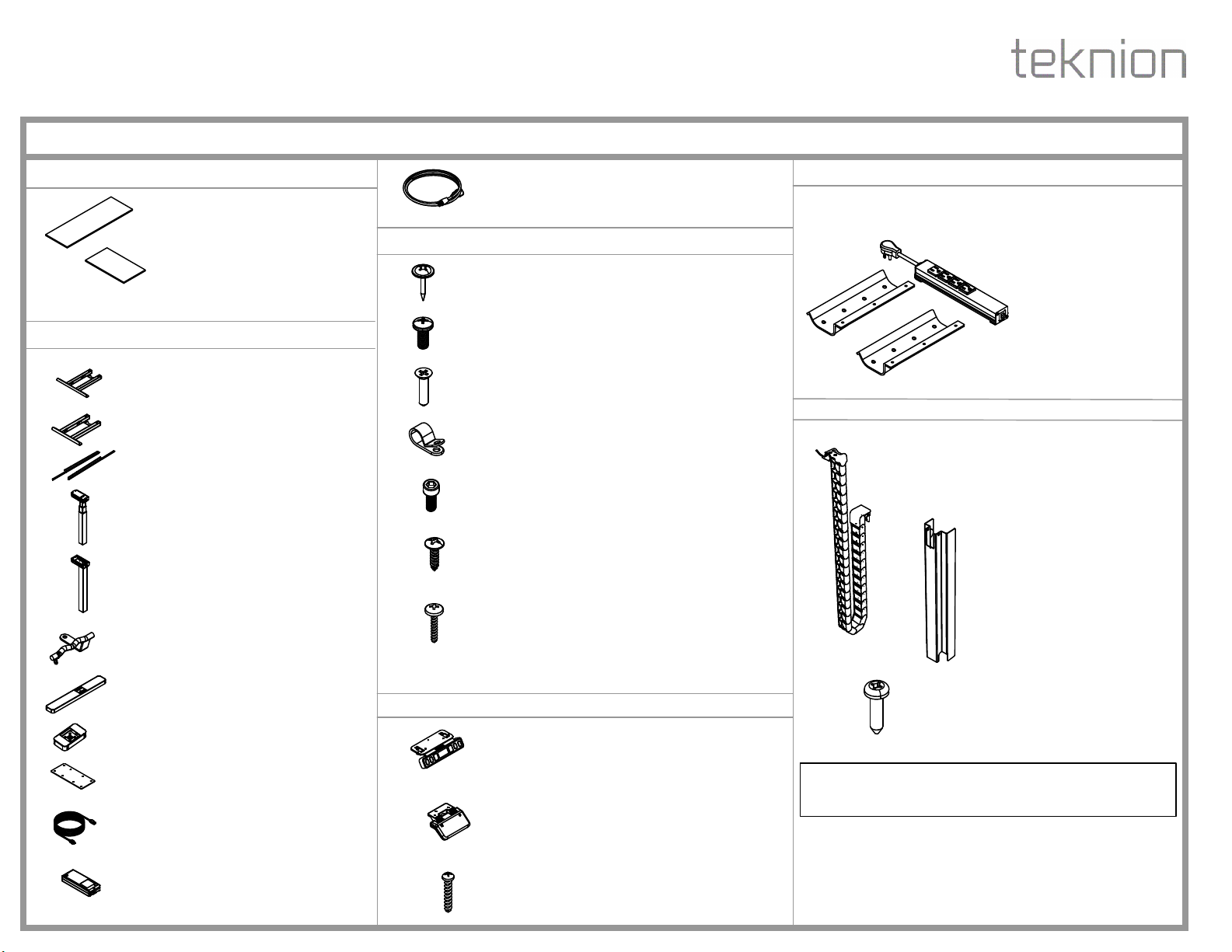

Part and Product Identification

Section:

Description: Page No:

Date:

Rev. No: 2

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

Sept 2022 2 of 19

COM_136

complements

Installation Guides

A - HA Extended Corner Worksurface

A1 - Main Worksurface

(C07-7015) x1

A2 - Return Worksurface

(C07-7378) x1

B - hiSpace Quick Connect Assy (N01-4870) x 1

B1 - Leg Mount Bracket Ql

hiSpace (N09-9873) x 2

B2 - Leg Mount Bracket Short Ql

hiSpace (N09-4900) x 1

B3 - 3PT Stiffener (A16-11207X)

B4A - KAIDI Ql BIFMA Range Leg

(N09-9282) x 3

B9 - 3.05 US Power Cable, hispace

(N09-9456) x 1

B10 - Control Box for 3 Leg BIFMA

System with Anti-Collision

(N09-9457) x 1

B11 - hiSpace Motor Cable

(N09-9455/10) x 2

(N09-9455/25) x 1

C3 - (KAIDI) WOOD SCREW

3.5x15mm (E01-1417) x 10

C1 - #10x0.875" Screw

(E07-0077) x 70

C2 - M5x0.8, 12mm

Philips Head Screw(E01-1106) x2

C4 - Cable Clamp 3/8, BLK

(B02-0558) x 10

C5 - M6x16, SHCS

(E04-0096) x 12

B4B - KAIDI Ql Fixed Height Leg

(N01-7475) x 3

B5 - Cam Handle hiSpace (N09-9814) x 3

B6 - YS Feet (Pair), hiSpace table

(N09-5784/24) x 1

B7 - YS Foot 6 inch (N09-9458X) x 1

B8 - Flush Plate (A16-4002) x 2

C - hiSpace Hardware Kit for 3-point Base (X05-0576) x 1

D - Keypad/Toggle Switch (N01-7336)/(D06-4276) x1

D1- Keypad, hiSpace Table

(D06-4276) x 1

D3 - 3.5x19mm Wood Screw

(E01-1470)x 2 or 3

D2- Kaidi - hiSpace Toggle Switch

(N01-7336)x1

E - Complements Plastic Tray Cable Mgmt (YEYS) x1

E1 - Plastic Tray Cable Management

(YEYS01/02) x1

F - VWC- Hi-Space Workstation (N01-5114-X) x1

F1 - Vertical Wire

Carrier (N01-4577-X) x1

F2 - Vertical Wire

Carrier Cover

(N09-8474-X) x1

F3 - VWC Hardware

Kit (X01-3933) x1

Refer to COM_151a for Cable Organizer (YEYA)

Refer to COM_151b for Cable Management (YEYS)

Refer to COM_102e for Vertical Wire Carrier (N01-5114-X)

C6- M5x20, Phillips, Truss Head,

BLK (E07-0203) x4

B7 - (KAIDI) WOOD SCREW

5 x 25mm,(E01-1415) x 2

STEP 2: Attach Reinforcement Bar to Worksurface as shown above.STEP 1: Attach Legs Mount Brackets to Worksurface as shown above.

Section:

Description: Page No:

Date:

ATTACH BRACKETS TO WORKSURFACE ATTACH REINFORCEMENT BAR

COM_136

3 of 19

Sept 2022

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

complements

Installation Guides

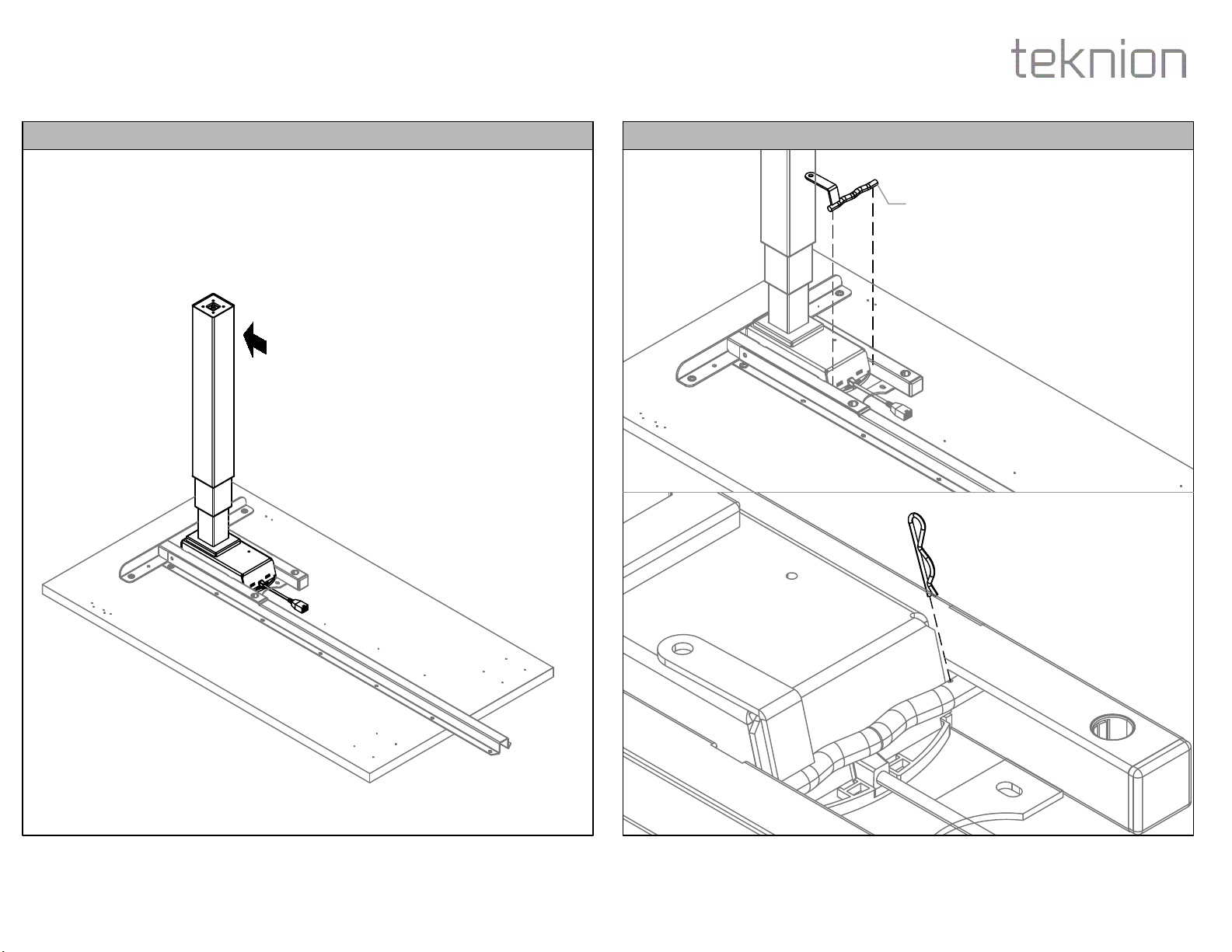

STEP 4A: Push Legs to Outer side of the Worksurface.STEP 3A: Attach legs to Worksurface as shown above.

Section:

Description: Page No:

Date:

ATTACH LEGS TO WORKSURFACE SECURE LEGS TO WORKSURFACE

COM_136

4 of 19

Sept 2022

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

B4A

complements

Installation Guides

STEP 4B: Push Legs to Outer side of the Worksurface.STEP 3B: Attach legs to Worksurface as shown above. Line up the mating holes on the leg

mount to the leg.

Section:

Description: Page No:

Date:

ATTACH LEGS TO WORKSURFACE SECURE LEGS TO WORKSURFACE

COM_136

5 of 19

Sept 2022

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

B4B

complements

Installation Guides

NOTE: Fixed Leg Assembly shown Below

Section:

Description: Page No:

Date:

SECURE LEGS TO BRACKETS - 1 SECURE LEGS TO BRACKETS - 2

COM_136

6 of 19

Sept 2022

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

STEP 6: Insert Pin and lock the Cam handle as shown above.STEP 5: Install Cam Handle as shown above and check ensure leg is locked in place.

complements

Installation Guides

NOTE: Steps 5 to 19 are identical for

Extended height and Fixed height

Configurations.

Section:

Description: Page No:

Date:

ATTACH FEET TO LEGS FASTEN FEET TO LEGS

COM_136

7 of 19

Sept 2022

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

STEP 8: Attach Feet to legs with screws provided.STEP 7: Position feet to the mating concentric holes on the leg

complements

Installation Guides

Section:

Description: Page No:

Date:

ATTACH FLUSH PLATES TO WORKSURFACE ATTACH BRACKETS TO WORKSURFACE

COM_136

8 of 19

Sept 2022

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

STEP 10: Attach Leg Mount Brackets to Return Worksurface as shown above.STEP 9: Attach Flush Plates to Worksurface as shown above.

complements

Installation Guides

Section:

Description: Page No:

Date:

ATTACH BARS TO WORKSURFACE SECURE LEGS TO WORKSURFACE

COM_136

9 of 19

Sept 2022

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

STEP 12: Attach legs to Retun Worksurface as shown above.STEP 11: Attach Reinforcement Bars to Return Worksurface as shown above.

B4A

complements

Installation Guides

Section:

Description: Page No:

Date:

SECURE LEGS TO WORKSURFACE SECURE LEGS TO BRACKETS

COM_136

10 of 19

Sept 2022

HA TABLES - QUICK CONNECT

HEIGHT-ADJUSTABLE TABLES

STEP 14: Install Cam Handle as shown above and Make sure its Locked in then, insert Pin and

lock the Cam Handle as shown above.

STEP 13: Push Legs to Outer side of the Return Worksurface.

complements

Installation Guides
