Televes 106501 Bedienungsanleitung

MATV

Antenna / Antena

Ref. 106501

BIII

High VHF

9/32”

(7mm)

1/8”

(3mm)

CLICK!

REFLECTOR

2016 © Copyright, Televés S.A.

Reference Referencia 106501

Working

band

Banda de

trabajo MHz

174 - 230

CH 05 - 12 (EU)

CH 07 - 13 (USA)

Gain Ganancia dBi 9.5

F/B ratio Relación D/A dB 20

Dimensions Dimensiones mm

1410 x 900 x 105

55.51” x 35.43” x 4.13”

Wind load Carga al

viento N71 (1)

97.7 (2)

(1) 80 miles/h - 130 Km/h

(2) 93 miles/h - 150 Km/h

ANSI/CEA-2028-A

Safety Instructions:

LIGHTNING PROTECTION

If installed outdoors, be sure the antenna system is grounded

so as to provide protection against voltage surges and built-

up static charges. Section 810 of the National Electrical Code

ANSI/NFPA70, or CSA C22.1 sections 10, 16, and 54, of the

Canadian Electrical Code, provide information with respect

to proper grounding of the mast and supporting structure,

grounding of the antenna lead-in wire to an antenna

discharge unit, size of grounding conductors, location

of antenna-discharge unit, connection to grounding

electrodes, and requirements for the grounding electrode

(see gure and instructions).

Mount the lightning arrestor or 75 ohm coaxial grounding

block as close as possible to where the 75 ohm coaxial cable

downlead enters the house.

The ground wires for both the mast and the downlead should

be copper or aluminum wire, number eight (8) or larger.

The downlead wire from the antenna to the lightning arrestor

and the mast ground wire should be secured to the house,

spaced from four (4) to six (6) feet apart.

In the case of a “ground up” antenna installation it may not

be necessary to ground the mast if the mast extends four

or more feet in the earth. Consult a TV serviceman for the

proper depth in your location.

WARNINGS

To prevent re or shock hazard, do not expose the included

power supply to rain or moisture.

Installation of o-air antennas near power lines is dangerous.

For your safety, follow the installation instructions.

Any alteration or modication to the product or usage not

in accordance with product instructions voids the warranty.

Antenna Lead

in Wire

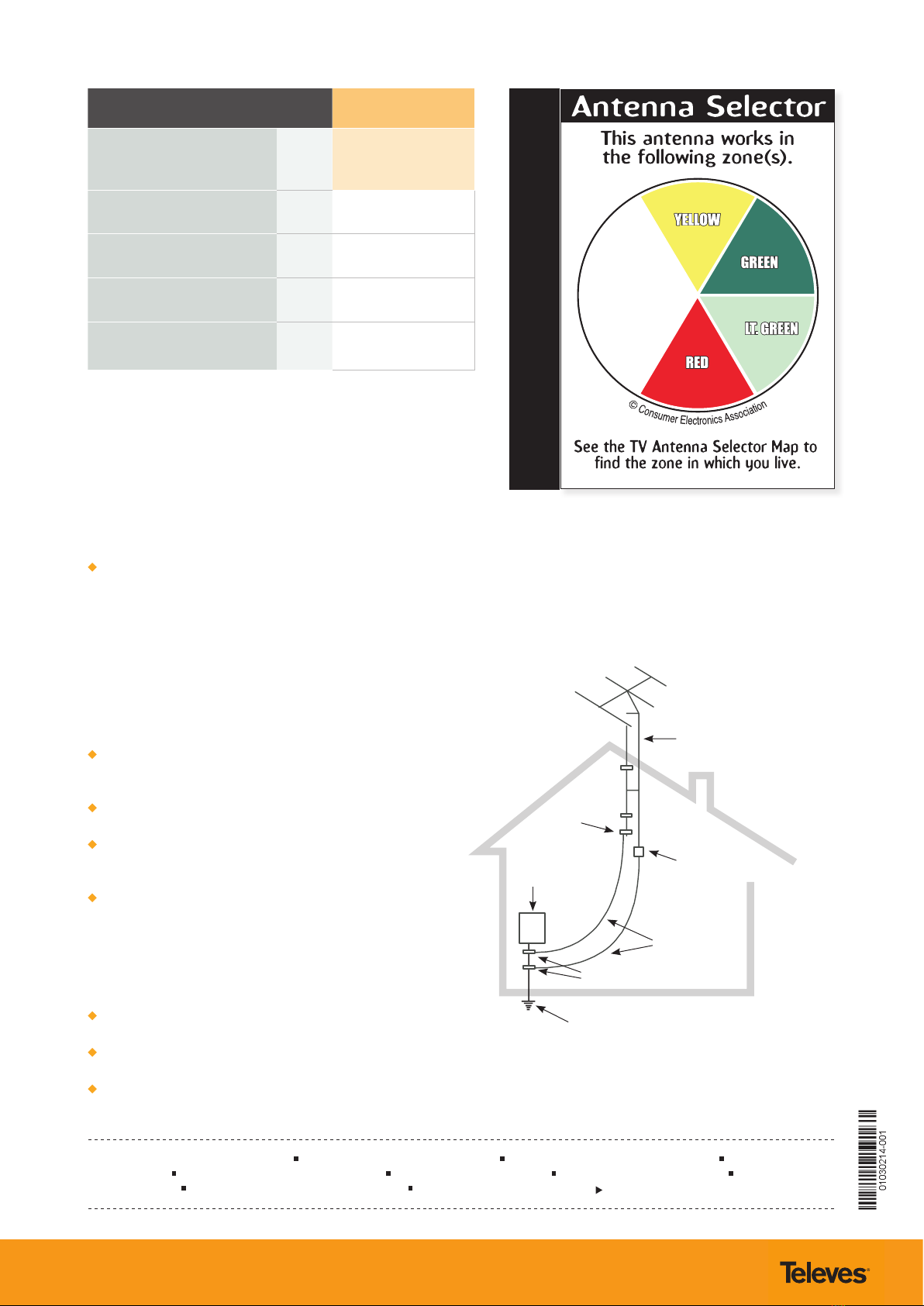

Example of antenna grounding as per

National Electrical Code, ANSI/NFPA 70

NEC - National Electrical Code

Ground

clamp

Electric Service

Equipment

Ground clamps

Power service Grounding Electrode System

(NEC Art 250, Part H)

Antenna Discharge Unit

(NEC Section 810-20)

(May substitute a 75 ohm

Coax Grounding Block)

Grounding Conductors

(NEC Section 810-21)

DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DECLARAÇÃO DE CONFORMIDADE DECLARATION DE

CONFORMITE DICHIARAZIONE DI CONFORMITÀ DEKLARACJA ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ

ΣΥΜΜΟΡΦΩΣΗΣ FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ

https://doc.televes.com
