Telit Technical Documentation

WE310F5-I/P

Quick Setup Guide

1. Connect the micro-USB UART1 port to your system.

2. Change the toggle switch position to Program.

3. Download and unzip the Telit_Wifi_Image_Tool.

For download information, see Resource Links.

4. Open the Telit_Wifi_Image_Tool folder.

5. Open the Telit_Wifi_Image_Tool application.

6. Click Browse.

7. Navigate to the Telit_Wifi_Image_Tool and select s2w.bin file.

8. To initiate the flash, click Program.

9. After the flash process is complete, click OK.

10. Close the Telit_Wifi_Image_Tool.

The WE310F5 EVB is ready to configure.

Program the WE310F5 Module

1. Connect the micro-USB cable to the UART0 port.

2. Change the toggle switch position to Run.

3. Open Tera Term > Setup > Serial Port.

4. Set the BAUD rate.

The WE310F5 EVB is ready to use.

Configure the WE310F5 Module

Wireless Mode- Station Mode

1. To set the module in Station Mode: AT+WNI=0.

2. To connect the network to L3:

Wireless Mode- AP Mode

1. To set the module in AP Mode: AT+WNI=1.

2. To configure the IP:

3. To configure the node in AP Mode:

Prerequisites:

•Ensure to connect the module and the node to the same WPA2

Secured Wi-Fi network.

•Insert the SIM card in the appropriate SIM card slot.

Bluetooth Mode- Station Mode

1. To scan the available Bluetooth devices: AT+BI=1.

2. For DUT peripheral connection:

Device 1

AT&W0

AT+YSR

AT+BI=1

AT+BICAP=0

AT+BADVINTMIN=60

AT+BADVINTMAX=60

AT+BADVE=1

AT+BATTRIB="pserv","uuid=1234"

AT+BATTRIB="char","prop=0x0c","uuid=5678"

AT+BATTRIB="charval","perm=0011","len=1","val=0x30"

AT+BATTRIB="complete"

AT+BOAD

AT+BI=1

AT+BCONINTMAX=1000

AT+BCONINTMIN=1000

AT+BCONNECT="00217E368'22","t2"

AT+WNAPIPC=0,192.168.5.3,192.168.5.20,86400000

AT+WNIPC=0,1,192.168.5.1,255.255.255.0,192.168.5.1

AT+WNCN=1,"Telit_WiFi",“Password123",11

1VV0301671 Rev. 7 –2021-07-16

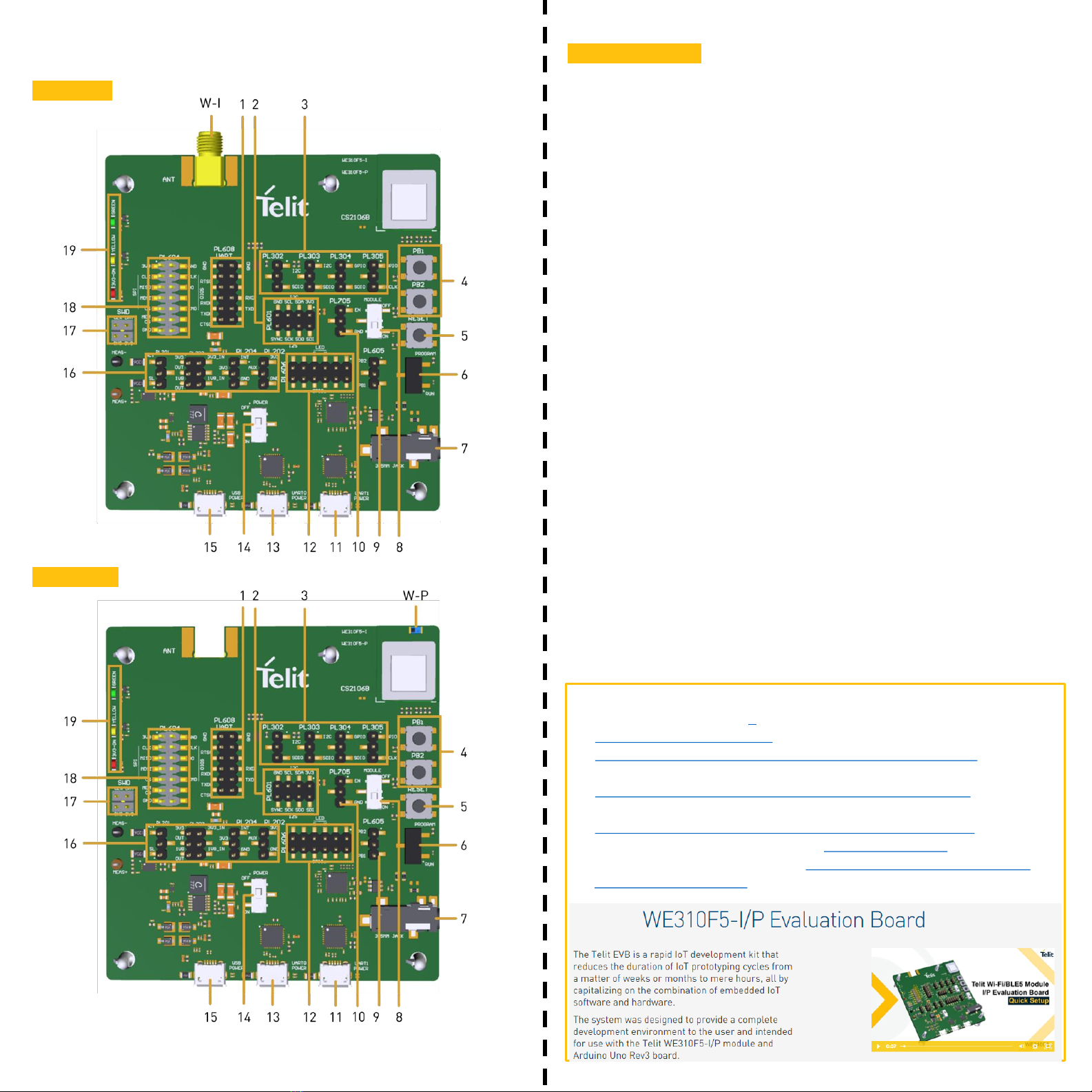

WE310F5 Products

W-I

WE310F5

-I Antenna Connector

ARDUINO Enable (PL705)

WE310F5

-P RF Pad

UART1

UART (PL608)

GPIO

- LED (PL606)

I2S

-I2C (PL601)

UART0

GPIO

–Alternate Function

(PL302

–PL305)

Power Switch

-EVB

General Purpose Button (PB1

PB2)

Power connector USB 2.0

Reset Button

Power Config (PL201

P204)

RUN/ PROGRAM Toggle Switch

SWD

Audio Jack

SPI

-SDIO (PL604)

Power Switch

- Module

LED

PB1

-PB2 (PL605)

WE310F5-I

WE310F5-P

WE310F5 CalIouts

Resource Links:

•Telit_Wifi_Image_Tool –

https://www.telit.com/wp-

content/uploads/2021/06/Telit_WE310F5_39.00.001-1.zip

For latest Firmware version, visit

https://www.telit.com/support-training/download-zone/

For more information, visit

https://www.telit.com/products/wifi-and-bluetooth/#wifi

•For technical support, email us at TS[email protected]

•For a video demonstration, see https://www.telit.com/developer-

zone/we310f5-i-p-evb/?
