Teltonika FMC00A Installationsanleitung
FMC00A
Advanced OBDII tracker
Quick Manual v1.4
Quick Manual v1.4 // FMC00A 2
Telematics
CONTENT
Know your device................................................................................................................................................................................................3
Pinout ...................................................................................................................................................................................................................4
Set up your device ..............................................................................................................................................................................................5
PC Connection (Windows)..................................................................................................................................................................................6
How to install USB drivers (Windows) ..............................................................................................................................................................6
Conguration.......................................................................................................................................................................................................7
Quick SMS conguration....................................................................................................................................................................................9
Mounting recommendations.......................................................................................................................................................................... 11
Basic characteristics ........................................................................................................................................................................................ 12
LED indications................................................................................................................................................................................................. 12
Safety information .......................................................................................................................................................................................... 15
Certication and Approvals ............................................................................................................................................................................ 16
Warranty ........................................................................................................................................................................................................... 17
Warranty disclaimer ....................................................................................................................................................................................... 17
Quick Manual v1.4 // FMC00A 3
Telematics
KNOW YOUR DEVICE
OBDII
CONNECTOR
STATUS
LED
NAVIGATE
LED
MICRO-SIM
SLOT
BATTERY
SOCKET
MICRO-USB
TOP VIEW TOP VIEW (WITHOUT COVER)
Quick Manual v1.4 // FMC00A 4
Telematics
Pin number Pin name Description
2 PWM_BUS+/VPW
4 GND (-) Ground
5 GND (-) Ground
6CAN_H CAN high
7 K-Line
10 PWM_BUS-
14 CAN_L CAN low
15 L-Line
16 VCC (10 - 30)V
DC(+)
Power supply (+10-30
V DC)
PINOUT
PIN2 PIN4 PIN5 PIN6 PIN7
PIN10 PIN14 PIN15 PIN16
FMC00A OBDII socket pinout
Quick Manual v1.4 // FMC00A 5
Telematics
SET UP YOUR DEVICE
HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY
Device is ready to be
connected.
4
1COVER REMOVAL 3BATTERY CONNECTION
2MICRO-SIM CARD INSERT ATTACHING COVER BACK
Gently remove FMC00A
cover using plastic pry tool
from both sides.
Insert Micro-SIM card as
shown with PIN request
disabled or read our Wiki1
how to enter it later in
Teltonika Congurator2.
Make sure that Micro-
SIM card cut-o corner is
pointing forward to slot.
1 wiki.teltonika-gps.com/view/
FMC00A_Security_info
2 wiki.teltonika.lt/view/Teltonika_
Congurator
Connect battery as shown to
device. Position the battery
in place where it does not
obstruct other components.
Attach device cover back.
Quick Manual v1.4 // FMC00A 6
Telematics
PC CONNECTION (WINDOWS)
HOW TO INSTALL USB DRIVERS (WINDOWS)
1. Please download COM port drivers from here1.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in driver installation window.
4. In the following window click Install button.
5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the
setup.
1 teltonika-gps.com/downloads/en/fmb120/TeltonikaCOMDriver.zip
1. Power-up FMC00A with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED
indications1”.
2. Connect device to computer using Micro-USB cable or Bluetooth connection:
• Using Micro-USB cable
• You will need to install USB drivers, see “How to install USB drivers (Windows)2”
• Using Bluetooth
• FMC00A Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device >
Bluetooth. Choose your device named – “FMC00A_last_7_imei_digits”, without LE in the end. Enter default password 5555,
press Connect and then select Done.
3. You are now ready to use the device on your computer.
1 wiki.teltonika-gps.com/view/FMC00A_LED_status
2 Page 6, "How to install USB drivers"
Quick Manual v1.4 // FMC00A 7
Telematics
MS .Net requirements
Operating system MS .NET Framework version Version Links
Windows Vista
Windows 7
Windows 8.1
Windows 10
MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1
1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462
At rst FMC00A device will have default factory settings set. These settings should be changed according to the users needs. Main
conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator
operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.
1 wiki.teltonika-gps.com/view/Teltonika_Congurator
2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions
CONFIGURATION
Quick Manual v1.4 // FMC00A 8
Telematics

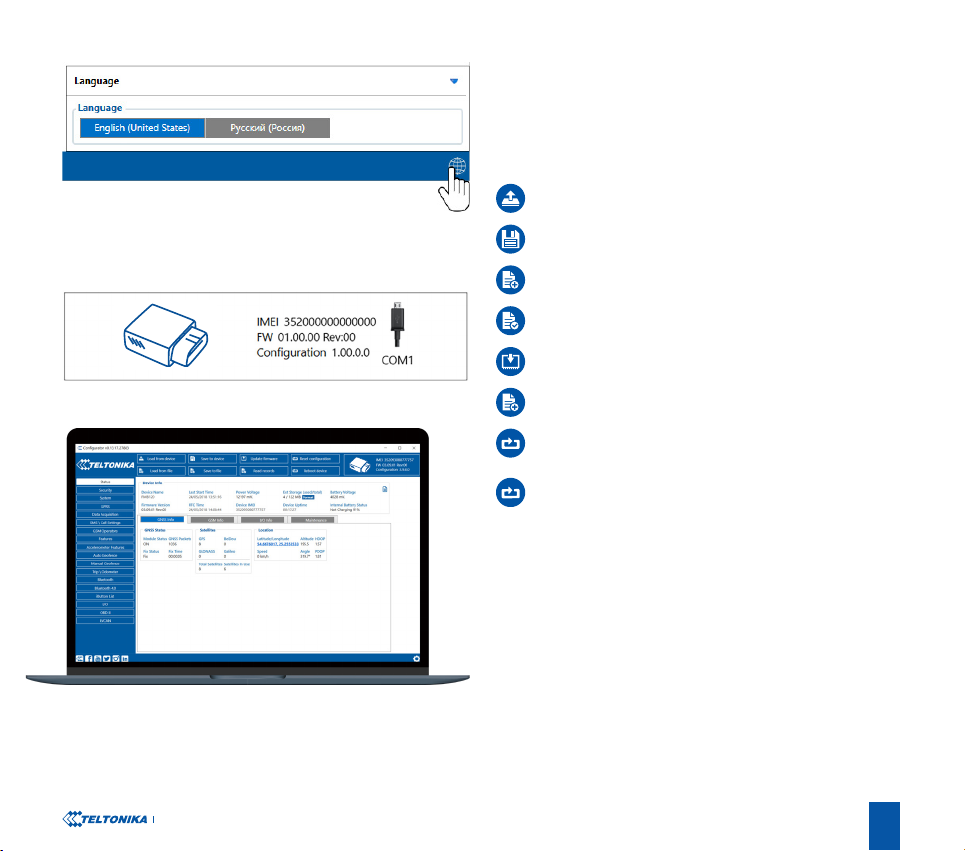

Downloaded Congurator will be in compressed archive.
Extract it and launch Congurator.exe. After launch software
language can be changed by clicking 🌐 in the right bottom
corner.
Conguration process begins by pressing on connected device.
FMC00A
Various Status window1 tabs display information about GNSS2,
GSM3, I/O4, Maintenance5 and etc. FMC00A has one user
editable prole, which can be loaded and saved to the device.
After any modication of conguration the changes need to
be saved to device using Save to device button. Main buttons
oer following functionality:
Load from device – loads conguration from device.
Save to device – saves conguration to device.
Load from le – loads conguration from le.
Save to le – saves conguration to le.
Update rmware – updates rmware on device.
Read records – reads records from the device.
Reboot device – restarts device.
Reset conguration – sets device conguration to
default.
Most important congurator section is GPRS – where all
your server and GPRS settings6 can be congured and Data
Acquisition7 – where data acquiring parameters can be
congured. More details about FMC00A conguration using
Congurator can be found in our Wiki8.
After connection to Congurator Status window will be
displayed.
FMC00A
1 wiki.teltonika-gps.com/view/FMC00A_Status_info
2 wiki.teltonika-gps.com/view/FMC00A_Status_info#GNSS_Info
3 wiki.teltonika-gps.com/view/FMC00A_Status_info#GSM_Info
4 wiki.teltonika-gps.com/view/FMC00A_Status_info#I.2FO_Info
5 wiki.teltonika-gps.com/view/FMC00A_Status_info#Maintenance
6 wiki.teltonika-gps.com/index.php?title=FMC00A_GPRS_settings
7 wiki.teltonika-gps.com/index.php?title=FMC00A_Data_acquisition_
settings
8 wiki.teltonika-gps.com/index.php?title=FMC00A_Conguration
Quick Manual v1.4 // FMC00A 9
Telematics
QUICK SMS CONFIGURATION
Default conguration has optimal parameters present to ensure best performance of track quality and data usage.
Quickly set up your device by sending this SMS command to it:
Note: Before SMS text, two space symbols should be inserted.
GPRS SETTINGS:
2001 – APN
2002 – APN username (if there are no APN username,
empty eld should be left)
2003 – APN password (if there are no APN password,
empty eld should be left)
SERVER SETTINGS:
2004 – Domain
2005 – Port
2006 – Data sending protocol (0 – TCP, 1 – UDP)
« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»
1 2 3 4 5 6
1
2
3
4
5
6
Quick Manual v1.4 // FMC00A 10
Telematics
DEFAULT CONFIGURATION SETTINGS
MOVEMENT AND IGNITION DETECTION: DEVICE MAKES A RECORD ON MOVING
IF ONE OF THESE EVENTS HAPPEN:
SPEED DIFFERENCE
between last coordinate
and current position is
greater than 10 km/h
VEHICLE DRIVES
100 meters
VEHICLE TURNS
10 degrees
PASSES
300 seconds
After successful SMS conguration, FMC00A device will synchronize time and update records to congured server. Time intervals
and default I/O elements can be changed by using Teltonika Congurator1or SMS parameters2.
1 wiki.teltonika-gps.com/view/Teltonika_Congurator
2 wiki.teltonika-gps.com/view/Template:FMB_Device_Family_Parameter_list
VEHICLE MOVEMENT
will be detected by
accelerometer
DEVICE MAKES A
RECORD ON STOP IF:
1 HOUR PASSES
while vehicle is
stationary and
ignition is o
IGNITION
will be detected by
vehicle power voltage
between 13,2 – 30 V
RECORDS SENDING TO
SERVER:
EVERY 120 SECOND
it is sent to the server
If device has made a
record
