Teltonika Telematics FMM650 Installationsanleitung

FMM650

Professional tracker with CAN data

reading feature

Quick Manual v1.1

Quick Manual v1.1 // FMM650 2

CONTENT

Know your device................................................................................................................................................................................................3

Pinout ...................................................................................................................................................................................................................4

Wiring scheme.....................................................................................................................................................................................................5

Set up your device ..............................................................................................................................................................................................6

PC Connection (Windows)..................................................................................................................................................................................7

How to install USB drivers (Windows) ..............................................................................................................................................................7

Conguration (Windows) ...................................................................................................................................................................................8

Quick SMS conguration................................................................................................................................................................................. 10

Mounting recommendations.......................................................................................................................................................................... 12

Basic characteristics ........................................................................................................................................................................................ 13

LED indications................................................................................................................................................................................................. 13

Electrical characteristics.................................................................................................................................................................................. 16

Safety information ........................................................................................................................................................................................... 18

Certication and Approvals ............................................................................................................................................................................ 19

Warranty ........................................................................................................................................................................................................... 20

Warranty disclaimer ....................................................................................................................................................................................... 20

Quick Manual v1.1 // FMM650 3

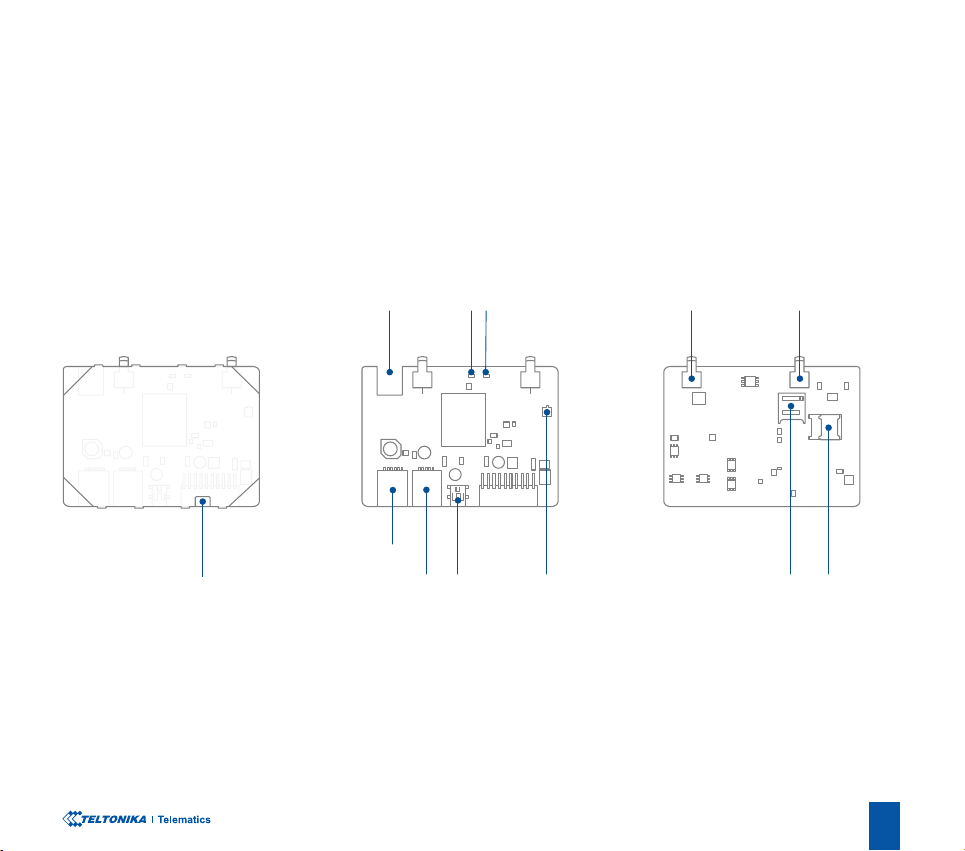

KNOW YOUR DEVICE

GNSSS ANTENNA

SOCKET

STATUS

LED

J1708 CELLULAR ANTENNA

SOCKET

NAVIGATE

LED

DUAL-SIM

SLOT

BATTERY

SOCKET

MICRO-USBRS232

RS232/RS485

MICRO SD

SLOT

2x10

SOCKET

TOP VIEW TOP VIEW (WITHOUT COVER)BOTTOM VIEW (WITHOUT COVER)

Quick Manual v1.1 // FMM650 4

PIN NUMBER PIN NAME DESCRIPTION

1 GND (-) Ground

2CAN 1L SAE J1939 CAN interface Low

channel 1

31WIRE

POWER

Power supply pin for Dallas

1-Wire® devices

4 DIN4 Digital input, channel 1

5 DIN2 Digital input, channel 2

6CAN 2L SAE J1939 CAN interface Low

channel 2

7AIN2 Analog input, channel 2. Input

range: 0-30V/0-10V DC

8 DOUT3 Digital output. Open collector

output

9 DOUT2 Digital output. Open collector

output

10 AIN3 Analog input, channel 3. Input

range: 0-30V/0-10V DC

11 VCC (+) Power supply (+8-32 V DC)

12 CAN 1H SAE J1939 CAN interface High

channel 1

13 1WIRE DATA Data channel for Dallas 1-Wire®

devices

14 DIN3 Digital input, channel 3

15 IGN (DIN1)

Digital input, channel 1.

DEDICATED FOR IGNITION

INPUT

PINOUT

AIN1

DOUT4/AIN4

DOUT1

DIN1

CAN2H

K-LINE

AIN2

DOUT3

DOUT2

CAN2L

DIN2

AIN3

1WIRE DATA

DIN3

+8...32 V DC

CAN1H

1WIRE POWER

DIN4

CAN1L

GND

FMM650 2x10 socket pinout

16 CAN 2H SAE J1939 CAN interface High

channel 2

17 AIN1 Analog input, channel 1. Input

range: 0-30V/0-10V DC

18 DOUT4/

AIN4

Digital output. Open collector

output OR Analog input, channel

4. Input range: 0-30V/0-10V DC

19 DOUT1 Digital output. Open collector

output

20 K-Line

K-LINE interface for online

Tachograph Vehicle Data

transfer

Quick Manual v1.1 // FMM650 5

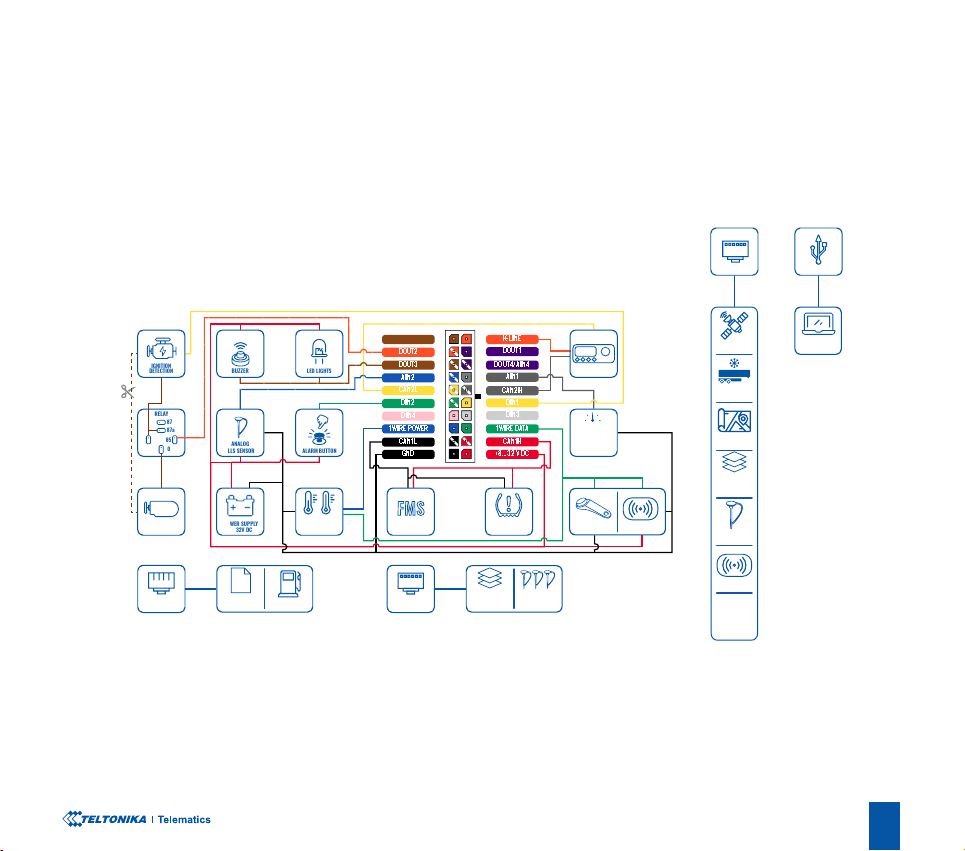

WIRING SCHEME

BUZZER LED LIGHTS

RELAY

FUEL GAUGE

IBUTTON

POWER SUPPLY

8 - 32V DC

ANALOG

LLS SENSOR ALA RM BUTTON

MULTIPLE

TEMP ERATUR E

SENSORS

8586

87a

IGNITION

DETECTION

STARTER

TACHOGRAPH

J1939 RFID

CONFIGURATION

VIA PC

RS232

MULTIPLE

LLS SENSORS

BUFFERED

TRANSPARENT

MODE

RS485

RJ9 FUEL DATA

J1708 PROTOCOL

SUPPORT

CONTINENTAL

TPMS

CAN ADAPTERS

USB

DIN3

1WIRE DATA

+8...32 V DC

DO UT4/AI N4

CAN2H

CAN1H

DIN1

AIN1

DOUT1

K-LINE

AIN3

1WIRE POWER

DIN4

GND

DOUT2

CAN2L

DOUT3

DIN2

CAN1L

AIN2

GARMIN

BUFFERED

TRANSPARENT

MODE

RFID

LLS SENSOR

CARRIER

FREEZER

IRIDIUM EDGE

Quick Manual v1.1 // FMM650 6

SET UP YOUR DEVICE

HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY

UNSCREW SCREWS

BATTERY CONNECTION

SIM CARD INSERT

DEVICE IS READY

COVER REMOVAL

ATTACHING COVER BACK

Unscrew 4 screws counterclockwise that

are located on the bottom of the device.

Connect battery as shown to device.

Remove the cover

After conguration, see “PC Connection

(Windows)”, attach device cover back.

Insert SIM card as shown with PIN

request disabled or read Security

info1how to enter it later in Teltonika

Congurator2. Make sure that SIM card

cut-o corner is pointing forward to slot.

SIM slot 1 is closer to PCB, SIM slot 2 is

the upper one.

1 wiki.teltonika.lt/view/FMM650_Security_info

2 wiki.teltonika.lt/view/Teltonika_Congurator

Screw in all screws. Device is ready to be

mounted.

Quick Manual v1.1 // FMM650 7

PC CONNECTION (WINDOWS)

HOW TO INSTALL USB DRIVERS (WINDOWS)

1. Please download COM port drivers from here1.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the

setup.

1 teltonika-gps.com/downloads/en/FMM650/TeltonikaCOMDriver.zip

1. Power-up FMM650 with DC voltage (8 – 32 V) power supply using supplied power cable. LED’s should start blinking, see “LED

indications1”.

2. Connect device to computer using Micro-USB cable or Bluetooth connection:

• Using Mini-USB cable

• You will need to install USB drivers, see “How to install USB drivers (Windows)2”

3. You are now ready to use the device on your computer.

1 wiki.teltonika-gps.com/view/FMM650_LED_status

2 Page 7, "How to install USB drivers"

Quick Manual v1.1 // FMM650 8

MS .NET REQUIREMENTS

Operating system MS .NET Framework version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1

1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462

At rst FMM650 device will have default factory settings set. These settings should be changed according to the users needs. Main

conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator

operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.

1 wiki.teltonika-gps.com/view/Teltonika_Congurator

2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions

CONFIGURATION (WINDOWS)

Quick Manual v1.1 // FMM650 9

Downloaded Congurator will be in compressed archive.

Extract it and launch Congurator.exe. After launch software

language can be changed by clicking 🌐in the right bottom

corner.

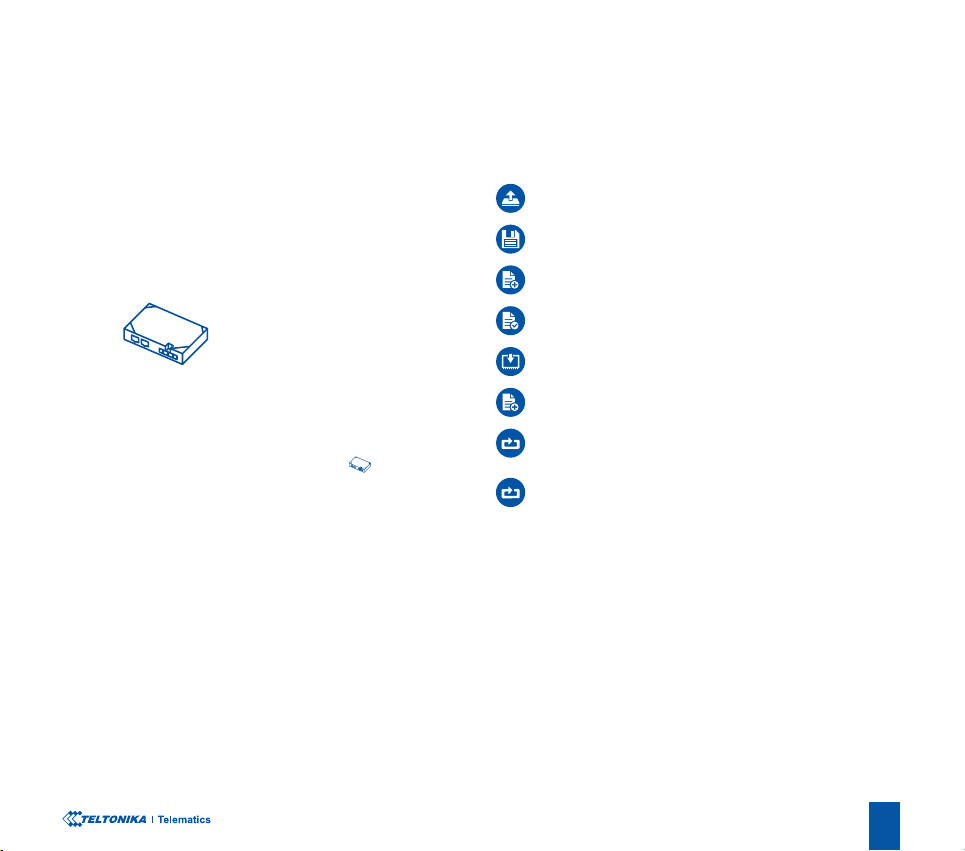

Conguration process begins by pressing on connected device.

FMM650

Various Status window1 tabs display information about GNSS2,

GSM3, I/O4, Maintenance5 and etc. FMM650 has one user

editable prole, which can be loaded and saved to the device.

After any modication of conguration the changes need to

be saved to device using Save to device button. Main buttons

oer following functionality:

 Load from device – loads conguration from device.

 Save to device – saves conguration to device.

 Load from le – loads conguration from le.

 Save to le – saves conguration to le.

 Update rmware – updates rmware on device.

 Read records – reads records from the device.

 Reboot device – restarts device.

 Reset conguration – sets device conguration to

default.

Most important congurator section is GPRS – where all

your server and GPRS settings6 can be congured and Data

Acquisition7– where data acquiring parameters can be

congured. More details about FMM650 conguration using

Congurator can be found in our Wiki8.

After connection to Congurator Status window will be

displayed.

FMM650

1 wiki.teltonika-gps.com/view/FMM650_Status_info

2 wiki.teltonika-gps.com/view/FMM650_Status_info#GNSS_Info

3 wiki.teltonika-gps.com/view/FMM650_Status_info#GSM_Info

4 wiki.teltonika-gps.com/view/FMM650_Status_info#I.2FO_Info

5 wiki.teltonika-gps.com/view/FMM650_Status_info#Maintenance

6 wiki.teltonika-gps.com/index.php?title=FMM650_GPRS_settings

7 wiki.teltonika-gps.com/index.php?title=FMM650_Data_acquisition_

settings

8 wiki.teltonika-gps.com/index.php?title=FMM650_Conguration

Quick Manual v1.1 // FMM650 10

QUICK SMS CONFIGURATION

Default conguration has optimal parameters present to ensure best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS SETTINGS:

 2001 – APN

 2002 – APN username (if there are no APN username,

empty eld should be left)

 2003 – APN password (if there are no APN password,

empty eld should be left)

SERVER SETTINGS:

 2004 – Domain

 2005 – Port

 2006 – Data sending protocol (0 – TCP, 1 – UDP)

« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»

1 2 3 4 5 6
