Teltonika Telematics FTC881 Installationsanleitung

FTC881

Special and small waterproof tracker

Quick Manual v1.0

Quick Manual v1.0 // FTC881 2

CONTENT

Know your device................................................................................................................................................................................................3

Pinout ...................................................................................................................................................................................................................4

Set up your device ..............................................................................................................................................................................................5

PC Connection (Windows)..................................................................................................................................................................................6

How to install USB drivers (Windows) ..............................................................................................................................................................6

Conguration (Windows) ...................................................................................................................................................................................7

Mounting recommendations.............................................................................................................................................................................8

Safety information .............................................................................................................................................................................................9

Quick Manual v1.0 // FTC881 3

KNOW YOUR DEVICE

STATUS

LED

SIM

SLOT

BATTERY

SOCKET

NAVIGATE

LED

GNSS

ANTENA

TOP VIEW TOP VIEW (WITHOUT COVER)BOTTOM VIEW (WITHOUT COVER)

Quick Manual v1.0 // FTC881 4

PIN NUMBER PIN NAME DESCRIPTION

1VCC (10-70)V DC

(+)

(Red) Power supply (+10-

70 V DC)

2 GND (-) (Black) Ground

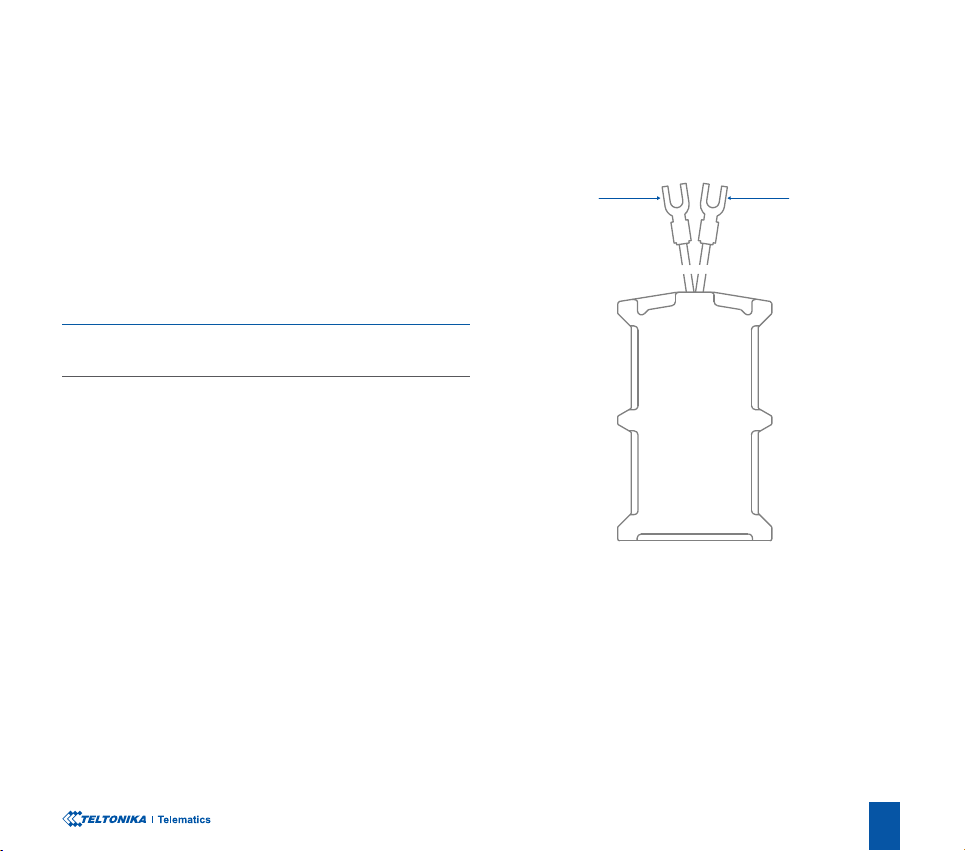

PINOUT

FTC881

PIN1 PIN2

FTC881 pinout

Quick Manual v1.0 // FTC881 5

SET UP YOUR DEVICE

HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY

COVER REMOVAL

BATTERY CONNECTION

3SIM CARD INSERT

COVER REMOVAL

DEVICE IS READY

You will receivyour device partly closed.

Battery is already connected, so after

conguring device fully close casing.

Gently remove side cover.

Device is ready to be mounted.

Insert SIM card as shown. Make sure

Nano-SIM card cut-o corner is pointing

towards SIM slot.

Quick Manual v1.0 // FTC881 6

PC CONNECTION (WINDOWS)

HOW TO INSTALL USB DRIVERS (WINDOWS)

1. Please download COM port drivers from here1.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the

setup.

1 wiki.teltonika-gps.com/images/d/d0/TeltonikaCOMDriver.zip

1. Power- up FTC881 with DC voltage (10-70V) power supply using power wires.LEDs should start blinking.

2. Connect device to computer using Micro-USB cable and install USB driver, see “How to install USB drivers (Windows)1”

1 Page 6, "How to install USB drivers"

Quick Manual v1.0 // FTC881 7

MS .NET REQUIREMENTS

Operating system MS .NET Framework version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1

1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462

At rst FTC881 device will have default factory settings set. These settings should be changed according to the user's needs. Main

conguration can be performed via Teltonika Congurator tool1(TCT).

1 wiki.teltonika-gps.com/view/QSG_New_platform

CONFIGURATION (WINDOWS)

Quick Manual v1.0 // FTC881 8

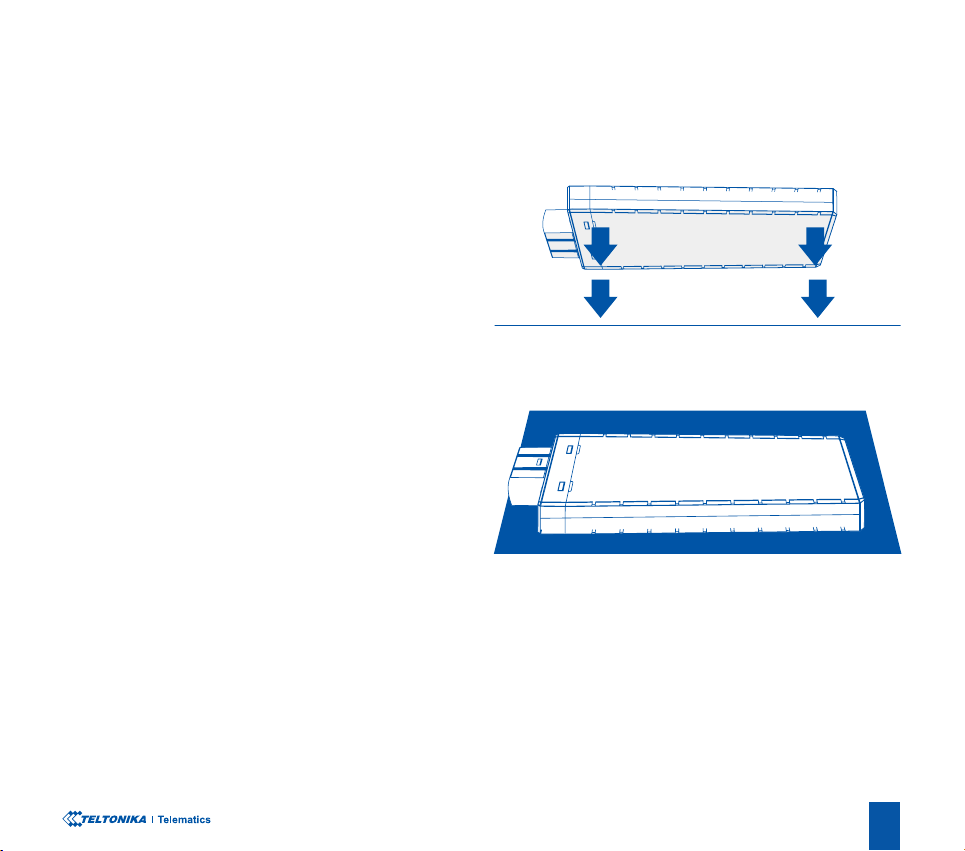

MOUNTING RECOMMENDATIONS

DEVICE FASTENING

• Locate the battery in your vehicle. If present remove the

battery cover to access the battery.

• There is a double sided tape on the back of the device,

use it to attach the device on the battery, so that the GNSS

antenna and LEDs indicators are facing up.

CONNECTING POWER SOURCE

• Device power wire is designed to be directly connected to

the positive terminal fastener of the vehicle battery.

CONNECTING GROUND WIRE

• Connect ground wire to the vehicle frame or metal parts

that are xed to the frame.

• If the wire is xed with the bolt, the loop must be connected

to the end of the wire.

• Device ground wire is designed to be directly connected to

the negative terminal fastener of the vehicle battery.

Quick Manual v1.0 // FTC881 9

This message contains information on how to operate FTC881

safely. By following these requirements and recommendations,

you will avoid dangerous situations. You must read these

instructions carefully and follow them strictly before operating

the device!

• The device uses a 10 V...70 V DC power supply. The

nominal voltage is 12 V DC. The allowed range of voltage

is 10 V...70 V DC.

• To avoid mechanical damage, it is advised to transport

the device in an impact-proof package. Before usage,

the device should be placed so that its LED indicators are

visible. They show the status of device operation.

• Before unmounting the device from vehicle, ignition

MUST be OFF.

SAFETY INFORMATION Do not disassemble the device. If the device is

damaged, the power supply cables are not isolated

or the isolation is damaged, DO NOT touch the

device before unplugging the power supply.

All wireless data transferring devices produce

interference that may aect other devices which are

placed nearby.

The programming must be performed using a PC

with autonomic power supply.

The device must be rmly fastened in a predened

location.

The device must be connected only by qualied

personnel.

Installation and/or handling during a lightning storm

is prohibited.

The device is susceptible to water and humidity if

the device housing is not properly closed

Risk of explosion if battery is replaced by an

incorrect type. Dispose of used batteries according

to the instructions.

Battery should not be disposed of with general

household waste. Bring damaged or worn-out

batteries to your local recycling center or dispose

them to battery recycle bin found in stores.
