MM267

Rev. 05 (12–95)

Home

Find...

Go To..

(Parts Manual)

This manual is furnished with each new TENNANT Model 1186. It provides necessary operating and

preventive maintenance instructions. Read this manual completely and understand the machine before

operating or servicing it.

This manual covers all machine variations and standard options. The instruction portion of the manual

consists of the Specification, Operation, Maintenance, and Appendix sections. The parts portion consists

of the Standard Parts, Options, Engine Parts, Gasoline, LPG; and Cross Reference sections.

All right side and left side references to the machine are determined by facing the direction of forward

travel. All hardware considered to be of a common nature or locally available has been omitted from the

parts sections. Be aware that this machine may contain metric hardware. Make sure you use equivalent

hardware when replacement becomes necessary.

This machine will provide excellent service. However, the best results will be obtained at minimum costs

if:

 The machine is operated with reasonable care.

 The machine is maintained regularly – per the maintenance instructions provided.

 The machine is maintained with TENNANT supplied or equivalent parts.

Parts and supplies may be ordered by phone or mail from any TENNANT parts and service center,

distributor, or from any of the TENNANT subsidiaries. Before ordering parts or supplies, be sure to have

your machine model number and serial number handy. Fill out the data block below for future reference.

MACHINE DATA

Please fill out at time of installation.

Machine Serial Number –

Engine Serial Number –

Sales Representative –

Customer Number –

Date of Installation –

Manual Number – MM267

Revision: 05

Published: 12–95

Trademark Registered in: Austria, Benelux, Denmark, England, France, Germany, Italy, Spain,

Switzerland, United States, Argentina, Australia, Canada, Japan, Mexico, Sweden, by TENNANT,

Minneapolis, Minnesota, U.S.A.

Home

Find...

Go To..

HOW TO USE THIS MANUAL

5Ć1

1186 MM267 (6–94)

HOW TO USE THIS MANUAL

This section on HOW TO USE THIS MANUAL will

tell you how to:

–Find important machine information for

ordering correct repair parts.

–Find TENNANT part numbers.

–Order TENNANT parts and supplies.

IMPORTANT INFORMATION

When placing an order for parts, the machine

model and machine serial number are important.

Refer to the MACHINE DATA box which is filled

out during the installation of your machine. The

MACHINE DATA box is located on the inside of

the front cover of this manual.

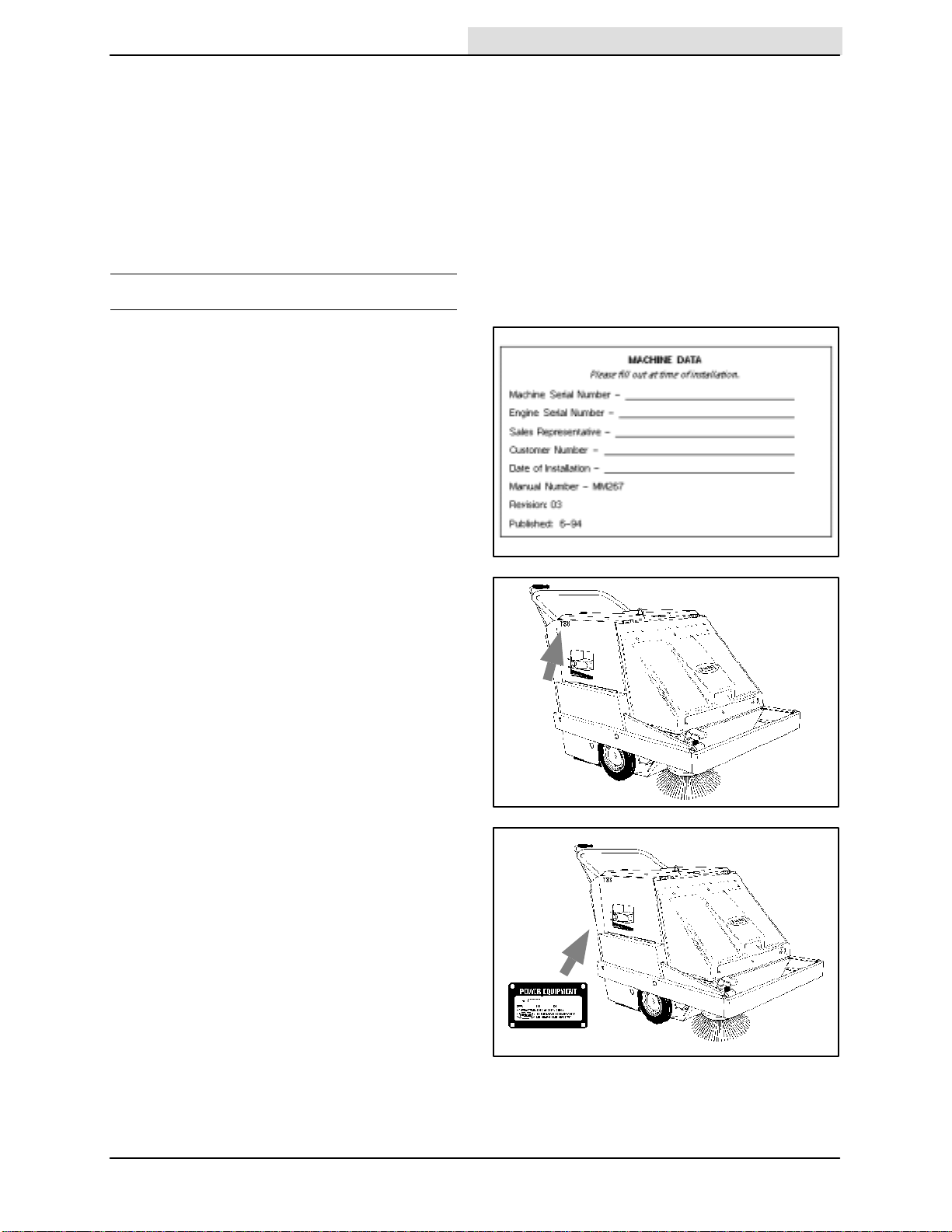

The model number of your machine is on the side

of the machine.

The serial number of your machine is printed on

the machine data plate located as shown.

Home

Find...

Go To..

HOW TO USE THIS MANUAL

1186 MM267 (6–94)

5Ć2

FINDING A TENNANT PART NUMBER

This manual contains the following sections:

–HOW TO USE THIS MANUAL

–STANDARD PARTS

–OPTIONS

–BREAKDOWNS

–CROSS REFERENCE

The STANDARD PARTS section lists repair parts

for standard machines. They are grouped in this

general order:

–General wear parts.

–Machine frame and related parts.

–Machine propelling system.

–Scrubbing components.

–Electrical parts.

The OPTION section lists repair parts of options.

The BREAKDOWN section lists available repair

parts of major components.

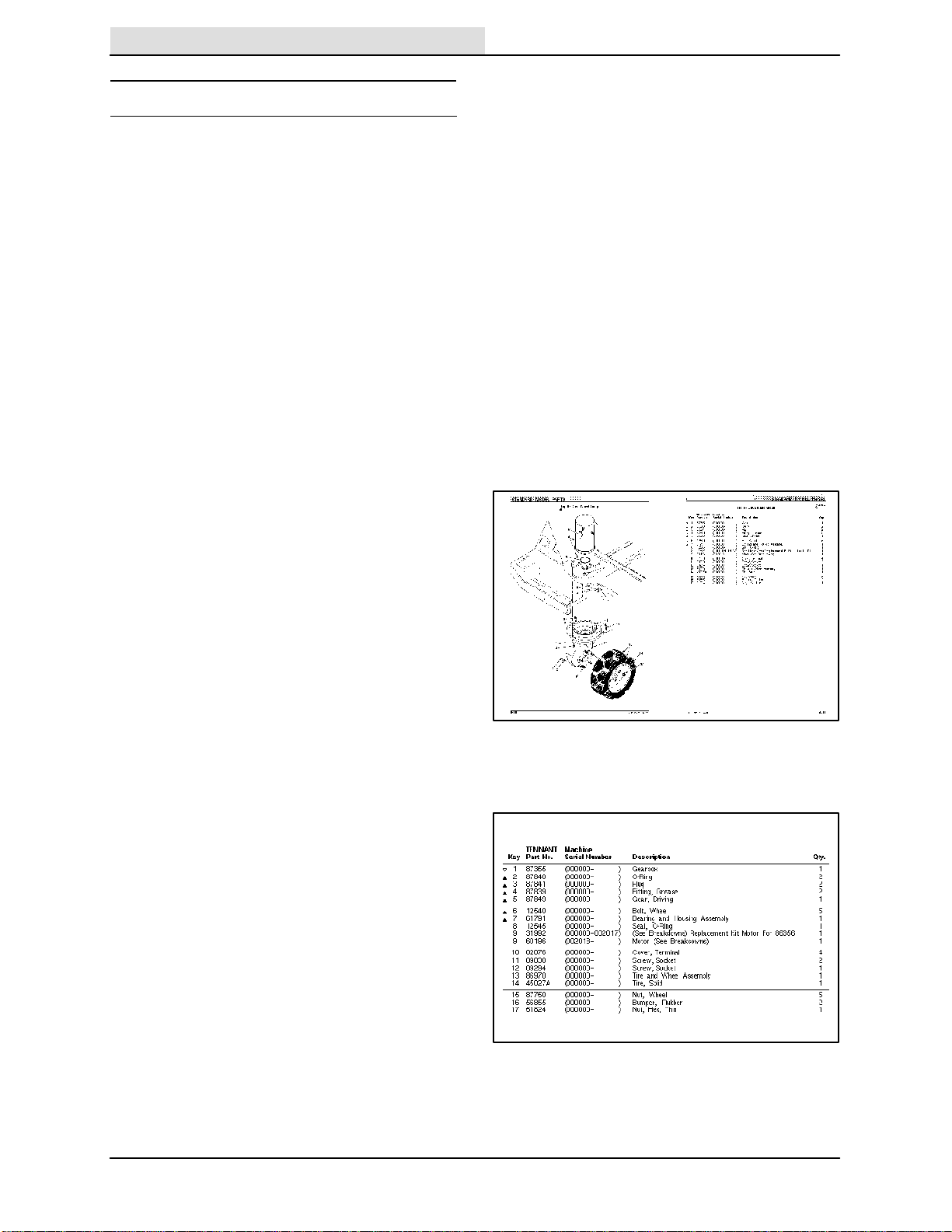

All sections in this manual consist of parts

illustrations and corresponding parts lists.

The parts illustrations are numbered with Ref

numbers which refer to corresponding parts lists.

The parts lists include a number of columns of

information:

–Ref –column refers to the reference number

on the parts illustration.

∇–indicates the part is an assembly.

–indicates the part is included in the

assembly listed just before it.

–TENNANT Part No. –column lists the

TENNANT part number for the part.

–Serial Number –column indicates the set of

machines the part number is applicable to.

Serial numbers change when the machine

design has been modified. The most current

design of the machine is shown in the main

illustration, older designs are boxed in a

corner of the illustration.

–Description –column is a brief description

of the part.

–Qty. –column lists the quantity of that part

used in that area of the machine.

Home

Find...

Go To..

HOW TO USE THIS MANUAL

5Ć3

1186 MM267 (6–94)

NOTE: If a service kit is installed on your

machine, be sure to keep the INSTRUCTION

BULLETIN which came with the kit. It contains

repair parts numbers needed for ordering future

parts.

NOTE: Fasteners used in this machine may be

metric or non-metric. Take care when replacing

hardware to replace with same thread size.

PLACING AN ORDER

Orders may be placed by phone, fax, or by mail.

Phone orders may need written confirmation.

Follow the steps below to insure prompt delivery:

1. Identify the model number of your machine.

2. Identify the serial number of your machine.

3. Find the part number of the part you need.

Do not order by page number or reference

number. If you are not able to find the part

number, call your TENNANT representative

for help or send the old part as a sample.

4. Determine the quantity of the part you need.

5. Provide the following company information:

–Company name

–Customer ID Number

–Shipping address

–Billing address

–First and last name of person ordering

parts

–Telephone number

–Purchase order number

6. Provide definitive shipping instructions.

Home

Find...

Go To..

HOW TO USE THIS MANUAL

1186 MM267 (6–94)

5Ć4

Any claim for loss or damage to a shipment in

transit should be filed promptly with the

transportation company making the delivery.

Shipments will be complete unless the packing list

or order acknowledgement indicates items back

ordered.

If parts received are suspected to be incorrect or

defective, please contact the TENNANT

representative from whom you ordered the part.

They will give authorization for return and/or

handle replacement shipments when required.

Home

Find...

Go To..

STANDARD PARTS

6Ć1

1186 MM267 (6–94)

SECTION 6

CONTENTS

Page

Fig. 1 –Recommended General Maintenance Items 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 2 –Replacement Brushes 6-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 3 –Main Frame Group 6-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 4 –Covers Group 6-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 5 –Handle and Battery Group 6-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 6 –Engine and Sheaves Group 6-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 7 –Engine and Fuel Tank Group, LPG 6-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 8 –Brush Drive Group 6-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 9 –Sweeper/Scrubber Hopper Group 6-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 10 –Solution and Recovery Tank Group 6-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 11 –Rear Squeegee Lift Group 6-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 12 –Rear Squeegee Group 6-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 13 –Wheel Drive Group 6-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 14 –Vacuum Fan Group 6-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 15 –Vacuum Fan Shutoff Group 6-25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 16 –Filter and Shaker Motor Group 6-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 17 –Instrument Panel Group 6-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 18 –Wire Harnesses Group, Gasoline 6-28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fig. 19 –Label Group 6-29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Home

Find...

Go To..

STANDARD PARTS

1186 MM267 (6–94)

6Ć2

06363

Fig. 1 –Recommended General Maintenance Items

TENNANT Machine

Key Part No. Serial Number Description Qty.

∇60027 (020000–) Maintenance Kit, Skirts 1

08057 (020000–) Skirt and Flap Assembly, Rear 1

08703 (020000–) Retainer, Rear Seal 1

28072 (020000–) Skirt, Side 2

28250 (020000–) Retainer, Side Skirt 1

28026 (020000–) Retainer, Front Side Skirt 1

28081 (020000–) Lip Assembly, Pan 2

28277–1 (020000–) Seal, Foam Rubber 1

28277–2 (020000–) Seal, Foam Rubber 1

28025 (020000–) Retainer 1

47037 (020000–) Adhesive, 5 oz (150 cc) Tube 1

∇06732 (020000–) Maintenance Kit, 200 Hour 1

30166 (020000–) Spark Plug 2

06816 (020000–) Filter, Air 2

06817 (020000–) Pre-Cleaner, Air 1

06818 (020000–) Filter, Fuel 1

∇60025 (020000–) Performance Package, Squeegee 1

50935 (020000–) Blade, Rear Squeegee 1

01657 (020000–) Strip, Rear Backup 1

63967 (020000–) Blade, Front Squeegee 1

Home

Find...

Go To..

STANDARD PARTS

6Ć3

1186 MM267 (6–94)

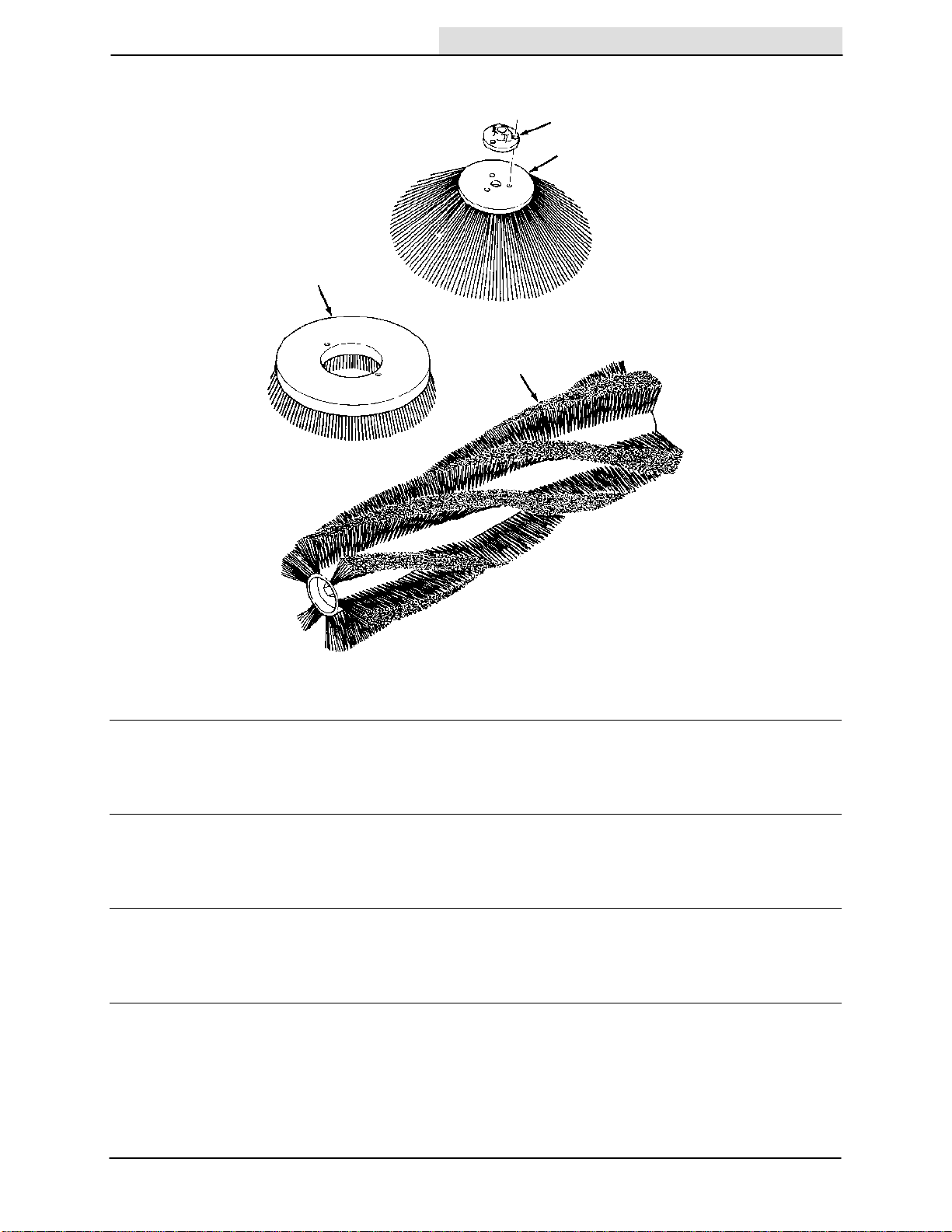

Fig. 2 –Replacement Brushes

06364

TENNANT Machine

Key Part No. Serial Number Description Qty.

1 28002 (020000–) Main Brush, 6 Row, Wire and Fiber 1

1 28006 (020000–) Main Brush, 6 Row, Union Mix 1

1 28006N (020000–) Main Brush, 6 Row, Herox 1

1 28007P (020000–) Main Brush, 6 Row, Polypropylene 1

1 28172 (020000–) Main Brush, 18 Row, Natural Fiber 1

1 28234 (020000–) Main Brush, 50 Row, Tampico 1

1 28235 (020000–) Main Brush, 18 Row, Wire and Fiber 1

1 28660 (020000–) Main Brush, 6 Row, Bright Wire 1

1 29006 (020000–) Main Brush, Scrubbing 18 Row, Stainless Steel 1

1 29408 (020000–) Main Brush, Scrubbing 24 Row, Polypropylene 1

1 02869 (020000–) Main Brush, Scrubbing 24 Row, Abrasive Bristle 1

1 41302 (020000–) Main Brush, Sweeping–Scrubbing 6 Row, Polypropylene 1

∇2 28096P (020000–) Side Brush and Hub Assembly, Polypropylene 1

3 45154 (020000–) Hub, Side Brush 1

∇28096N (020000–) Side Brush and Hub Assembly, Perlon 1

45154 (020000–) Hub, Side Brush 1

4 29406 (020000–) Side Brush, Scrubbing Polypropylene 1

Home

Find...

Go To..

Inhaltsverzeichnis

Andere Tennant Bodenreinigungsmaschine Handbücher

Tennant

Tennant 1230 Produkthandbuch

Tennant

Tennant 9000136 Schulungshandbuch

Tennant

Tennant ATLV 4300 Schulungshandbuch

Tennant

Tennant S30 Bedienungs- und Montageanleitung

Tennant

Tennant 2370 Bedienungsanleitung

Tennant

Tennant M17 Series Schulungshandbuch

Tennant

Tennant 242E Bedienungsanleitung

Tennant

Tennant T3e Bedienungsanleitung

Tennant

Tennant NOBLES EX-CAN-15-HP Bedienungsanleitung

Tennant

Tennant T3 Produkthandbuch

Tennant

Tennant Nobles V-WD-15S Bedienungsanleitung

Tennant

Tennant 800 Schulungshandbuch

Tennant

Tennant Castex SCX-400 Produkthandbuch

Tennant

Tennant 9000498 Schulungshandbuch

Tennant

Tennant IRIS T300 Bedienungsanleitung

Tennant

Tennant 96GR Bedienungsanleitung

Tennant

Tennant B10 Bedienungs- und Montageanleitung

Tennant

Tennant F3 Produkthandbuch

Tennant

Tennant T3 Bedienungsanleitung

Tennant

Tennant 1220 Produkthandbuch

Tennant

Tennant 2300 Produkthandbuch

Tennant

Tennant ReadySpace 1610 Bedienungsanleitung

Tennant

Tennant ReadySpace R14 Bedienungs- und Montageanleitung

Tennant

Tennant B5 Bedienungsanleitung

Beliebte Bodenreinigungsmaschine Handbücher anderer Marken

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Bedienungsanleitung

Numatic

Numatic ET 4045 Bedienungsanleitung

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Bedienungsanleitung

Mytee

Mytee 8070 Mytee-Lite Bedienungsanleitung

Kärcher

Kärcher B 140 R Bedienungsanleitung

Triple S

Triple S Ace 26T1 Bedienungsanleitung

Nilfisk-Advance

Nilfisk-Advance SW 750 Bedienungsanleitung

Tornado

Tornado Marathon 2000 98190 Handbuch

Windsor

Windsor ADMIRAL Admiral 8 Bedienungsanleitung

Numatic

Numatic TTB 1117/100 Bedienungsanleitung

Nobles

Nobles Frontier Produkthandbuch

lavina

lavina 21-X Bedienungsanleitung

KENT

KENT Edge 28B Bedienungsanleitung

Windsor

Windsor BDP 51/2000C Bedienungsanleitung

CleanFreak

CleanFreak DURA-18HD Bedienungsanleitung

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Administratorhandbuch

BETCO

BETCO PB24 Bedienungsanleitung

IPC

IPC CT51-71 BT Bedienungsanleitung
