Tennant S16 Schulungshandbuch

IB 9045271 (02- 2021) 1

INSTRUCTION BULLETIN

No. 9045271

Machine: S16

Published: 02- 2021

Rev. 00

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9045269

Kit installation must be performed by TennantTrue



service or an authorized service provider.

SYNOPSIS:

This kit contains the parts needed to replace the main sweep circuit board on S16 sweepers.

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: Tennant Service device with Tennant Service Diagnostics

software.

(Estimated time to complete: 1 hour)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, used machine components

such as batteries and fluids in an environmentally safe way according

to local waste disposal regulations.

Always remember to recycle.

PREPARATION:

NOTE: Only authorized Tennant Service

Personnel can replace the main sweep circuit

board on the S16 sweeper.

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, turn off

machine, and remove key.

1. Disconnect the battery cable from the

machine.

WARNING: Always disconnect battery

cables from machine before working on

electrical components.

INSTALLATION:

NOTE: To avoid damaging electronic

components, a static ground strap (5) must be

worn at all times while handling electrical

components. Attach the other end of the static

ground strap to the machine chassis.

1. Remove the left side cover from the machine.

Set the left side cover aside.

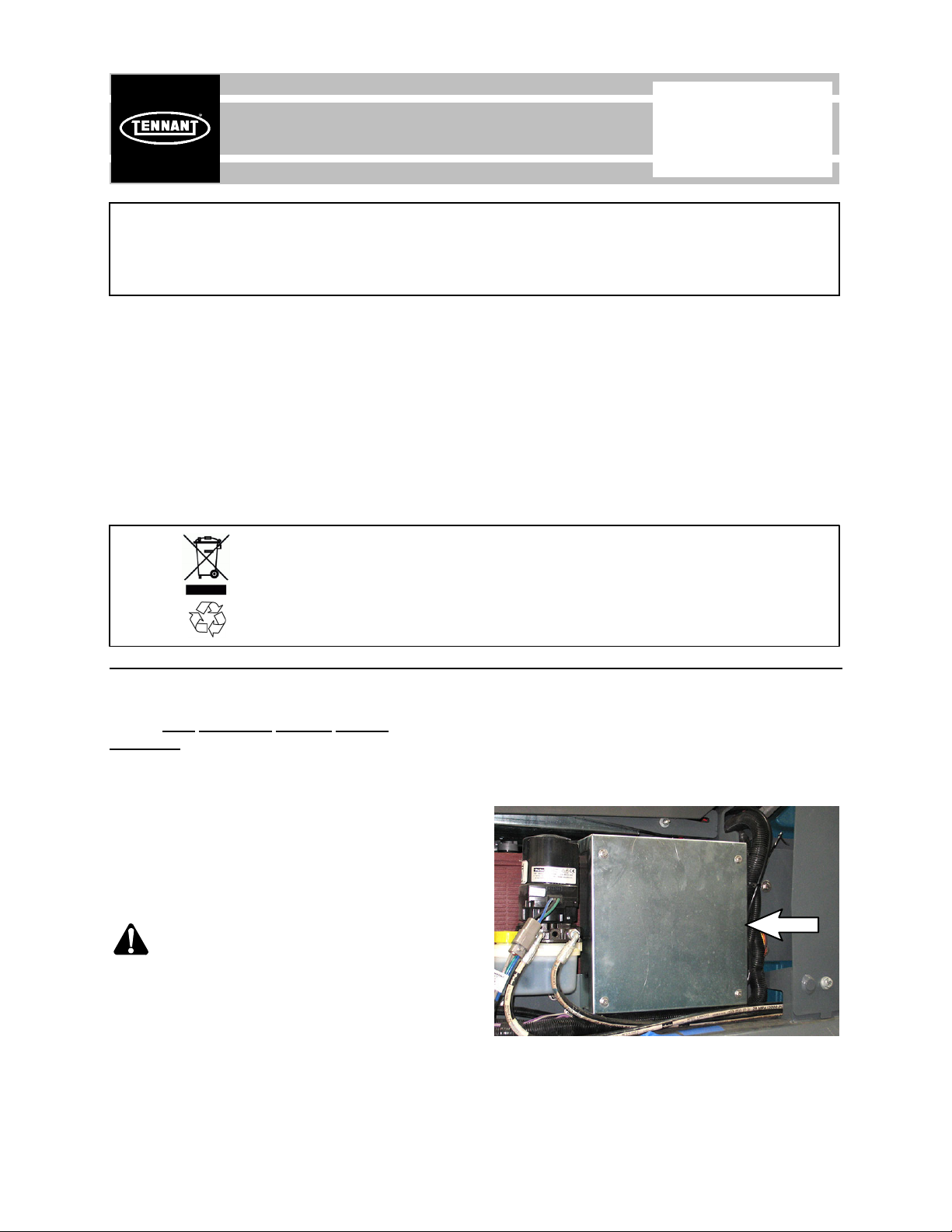

2. Remove the controls cover box from the

control housing. Set the controls cover box

and hardware aside. (Fig. 1/Fig. 4)

FIG. 1

IB 9045271 (02- 2021)2

3. Disconnect all main wire harness connectors

from the main sweep control board. Set aside

all hardware used to secure main wire

harness connections to the main sweep

control board. (Fig. 4)

4. Remove the six pan screws and nylon

washers securing the main sweep board to

the control housing. Discard the removed pan

screws and nylon washers. (Fig. 2/Fig. 4)

FIG. 2

5. Carefully squeeze the plastic standoffs

securing the main sweep circuit board to the

control housing to release the circuit board

from the control housing and remove the main

sweep circuit board. Discard the removed

main sweep circuit board. (Fig. 4)

6. Remove the stand- offs previously used to

hold the main sweep circuit board to the

control housing from the control housing.

Discard the stand- offs. (Fig. 4)

7. Install new stand- offs (2) where the

stand- offs that were removed from the control

housing in the previous step were located.

(Fig. 4)

8. Place the new main sweep circuit board (1)

onto the stand- offs (2) install into the control

housing in the previous step. (Fig. 4)

9. Use the six pan screws (3) and six nylon

washers (4) to secure the main sweep circuit

board (1) into the control housing. (Fig. 4)

10.Reconnect the main wire harness to the main

sweep circuit board (1). (Fig. 4)

11. Reinstall the controls cover box onto the

control housing. (Fig. 4)

12.Reinstall the left side cover onto the machine.

13.Reconnect the battery cable to the machine.

NOTE: A Tennant Service device equipped with

Tennant Service Diagnostics software is required

to update the machine firmware after the main

sweep circuit board (1) is replaced. Refer to the

S16 SERVICE MANUAL for instructions how to

update the machine firmware after replacing the

main sweep circuit board (1).

14.Plug machine USB cable into service device

and reconfigure the machine for the new

main sweep circuit board. (Fig. 3)

FIG. 3

15.Disconnect the service device/USB cable

from the machine USB connection.

16.Turn key switch ON and test machine. Ensure

all machine systems are fully operational.

IB 9045271 (02- 2021) 3

FRONT

Controls

cover box

Control

housing

Hold B+ and GND

stand- offs with open ended

wrench while tightening hex

screws securing main

harness connectors to main

sweep circuit board

FIG. 4

IB 9045271 (02- 2021)4

Bill Of Materials For Circuit Board Kit, Main Sweep, CI [S16] - 9045269 *

Ref.

Tennant

Part No. Description Qty.

11237558 )Circuit Board Assy [Sweep, Jetmore] 1

2 1210399 Stand- Off, Circuit Board [0.25”] 8

3 06927 Screw, Pan, Phl, M4 X 0.70 X 16, 4.8 6

4 1202860 Washer, Flat, 0.17B 0.31D .03, Nyl 6

527964 Strap, Ground, Static, Disposable 1

* NOTE: Only authorized Tennant Service Personnel can install this main sweep circuit board kit onto the

S16 sweeper.

TENNANT COMPANY

P. O. Box 1452

Minneapolis, MN 55440-1452
