TPA6101A2

Audio Power Amplifier

Evaluation Module

2001 Mixed-Signal Products

User’s Guide

SLOU104A

IMPORTANT NOTICE

TexasInstruments andits subsidiaries(TI) reservethe rightto makechanges totheir productsor todiscontinue

any product or service without notice, and advise customers to obtain the latest version of relevant information

to verify, before placing orders, that information being relied on is current and complete. All products are sold

subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those

pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its products to the specifications applicable at the time of sale in accordance with

TI’sstandardwarranty.TestingandotherqualitycontroltechniquesareutilizedtotheextentTIdeemsnecessary

to support this warranty. Specific testing of all parameters of each device is not necessarily performed, except

those mandated by government requirements.

Customers are responsible for their applications using TI components.

In order to minimize risks associated with the customer’s applications, adequate design and operating

safeguards must be provided by the customer to minimize inherent or procedural hazards.

TIassumesnoliabilityforapplicationsassistance orcustomer productdesign. TIdoes notwarrantorrepresent

thatanylicense,eitherexpressorimplied,isgrantedunderanypatentright,copyright,maskworkright,orother

intellectual property right of TI covering or relating to any combination, machine, or process in which such

products or services might be or are used. TI’s publication of information regarding any third party’s products

or services does not constitute TI’s approval, license, warranty or endorsement thereof.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without

alterationand isaccompanied byall associatedwarranties,conditions,limitationsandnotices. Representation

or reproduction of this information with alteration voids all warranties provided for an associated TI product or

service, is an unfair and deceptive business practice, and TI is not responsible nor liable for any such use.

Resale of TI’s products or services with statements different from or beyond the parameters stated by TI for

that product or service voids all express and any implied warranties for the associated TI product or service,

is an unfair and deceptive business practice, and TI is not responsible nor liable for any such use.

Also see: Standard Terms and Conditions of Sale for Semiconductor Products. www.ti.com/sc/docs/stdterms.htm

Mailing Address:

Texas Instruments

Post Office Box 655303

Dallas, Texas 75265

Information About Cautions and Warnings

iii

Read This First

Preface

Read This First

How to Use This Manual

This document contains the following chapters:

Chapter 1—Introduction

Chapter 2—Quick Start

Information About Cautions and Warnings

This book may contain cautions and warnings.

This is an example of a caution statement.

A caution statement describes a situation that could potentially

damage your software or equipment.

This is an example of a warning statement.

A warning statement describes a situation that could potentially

cause harm to you.

The information in a caution or a warning is provided for your protection.

Please read each caution and warning carefully.

Running Title—Attribute Reference

Related Documentation From Texas Instruments

TI Plug-N-Play Audio Amplifier Evaluation Platform (literature

number SLOU011) provides detailed information on the evaluation

platform and its use with TI audio evaluation modules.

TPA6101A2 50-mW Stereo Audio Power Amplifier (literature

number SLOS331) This is the data sheet for the TPA6101A2 audio

amplifier integrated circuit.

FCC Warning

This equipment is intended for use in a laboratory test environment only. It

generates, uses, and can radiate radio frequency energy and has not been

testedforcompliancewiththelimitsofcomputingdevices pursuant to subpart

Jofpart 15ofFCCrules,whicharedesignedtoprovidereasonableprotection

against radio frequency interference. Operation of this equipment in other

environments may cause interference with radio communications, in which

case the user at his own expense will be required to take whatever measures

may be required to correct this interference.

Running Title—Attribute Reference

Chapter Title—Attribute Reference

Contents

1 Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 Features 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Description 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 TPA6101A2 EVM Specifications 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Quick Start 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1 Precautions 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 Quick Start List for Platform 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3 Quick Start List for Stand-Alone 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4 Reference 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4.1 TPA6101A2 Filterless Class-D EVM Schematic 2-5. . . . . . . . . . . . . . . . . . . . . . . . . .

2.4.2 TPA6101A2 Audio Power Amplifier Evaluation Module Parts List 2-6. . . . . . . . . .

2.4.3 TPA6101A2 EVM PCB Layers 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Running Title—Attribute Reference

Figures

1–1 The TI TPA6101A2 Audio Amplifier Evaluation Module 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–1 Quick Start Platform Map 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–2 Quick Start Module Map 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–3 TPA6101A2 Class-D EVM Schematic Diagram 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–4 TPA6101A2 EVM Top Layer 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–5 TPA6101A2 EVM Bottom Layer 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tables

2–1 Typical TI Plug-N-Play Platform Jumper and Switch Settings for the

TPA6101A2 EVM 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–2 TPA6101A2 EVM Parts List 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1

Introduction

This chapter provides an overview of the Texas Instruments (TI) TPA6101A2

audio amplifier evaluation module (SLOP336). It includes a list of EVM

features, a brief illustrated description of the module, and a list of EVM

specifications.

Topic Page

1.1 Features 1–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Description 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 TPA6101A2 EVM Specifications 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 1

Features

1-2 Introduction

1.1 Features

The TI TPA6101A2 audio amplifier evaluation module and the TI plug-n-play

audio amplifier evaluation platform include the following features:

TPA6101A2 Stereo Audio Power Amplifier Evaluation Module

1.6-V to 3.6-V operation

Fixed-gain of 2 dB (inverting)

Dual channel, single-ended operation

50-mW output power into 16 Ωat 3.3 V

Verylowdistortion—THD+Nislessthan0.08%at1kHzandlessthan

0.2% from 20 Hz to 20 kHz into 16-Ωloads, and less than 0.06% at

1 kHz and less than 0.2% from 20 Hz to 20 kHz into 32-Ωloads

Extremely low current consumption in shutdown mode

Internal thermal and short-circuit protection

Internal pop reduction circuitry

Quick and Easy Configuration With the TI Plug-N-Play Audio Amplifier

Evaluation Platform

Evaluation module is designed to simply plug into the platform,

automatically making all signal, control, and power connections

Platform provides flexible power options

Jumpers on the platform select power and module control options

Switches on the platform route signals

Platformprovides quick and easyaudio input and outputconnections

Platform Power Options

Onboard 9-V battery

External 5-V –15-V (VCC) supply inputs

External regulated VDD supply input

Socket for onboard 5-V VDD voltage regulator EVM

Onboard overvoltage and reverse polarity power protection

Platform Audio Input and Output Connections

Left and right RCA phono jack inputs

Miniature stereo phone jack input

Left and right RCA phono jack outputs

Left and right compression speaker terminal outputs

Miniature stereo headphone jack output

Description

1-3

Introduction

1.2 Description

The TPA6101A2 audio power amplifier evaluation module is a complete,

low-power stereo audio power amplifier for high-fidelity line-level output,

headphone, and small speaker applications. It consists of the TI TPA6101A2

50-mW stereo audio power amplifier IC in a very small MSOP package,along

with a small number of other parts mounted on a circuit board that is

approximately one and a quarter inches square (see Figure 1–1).

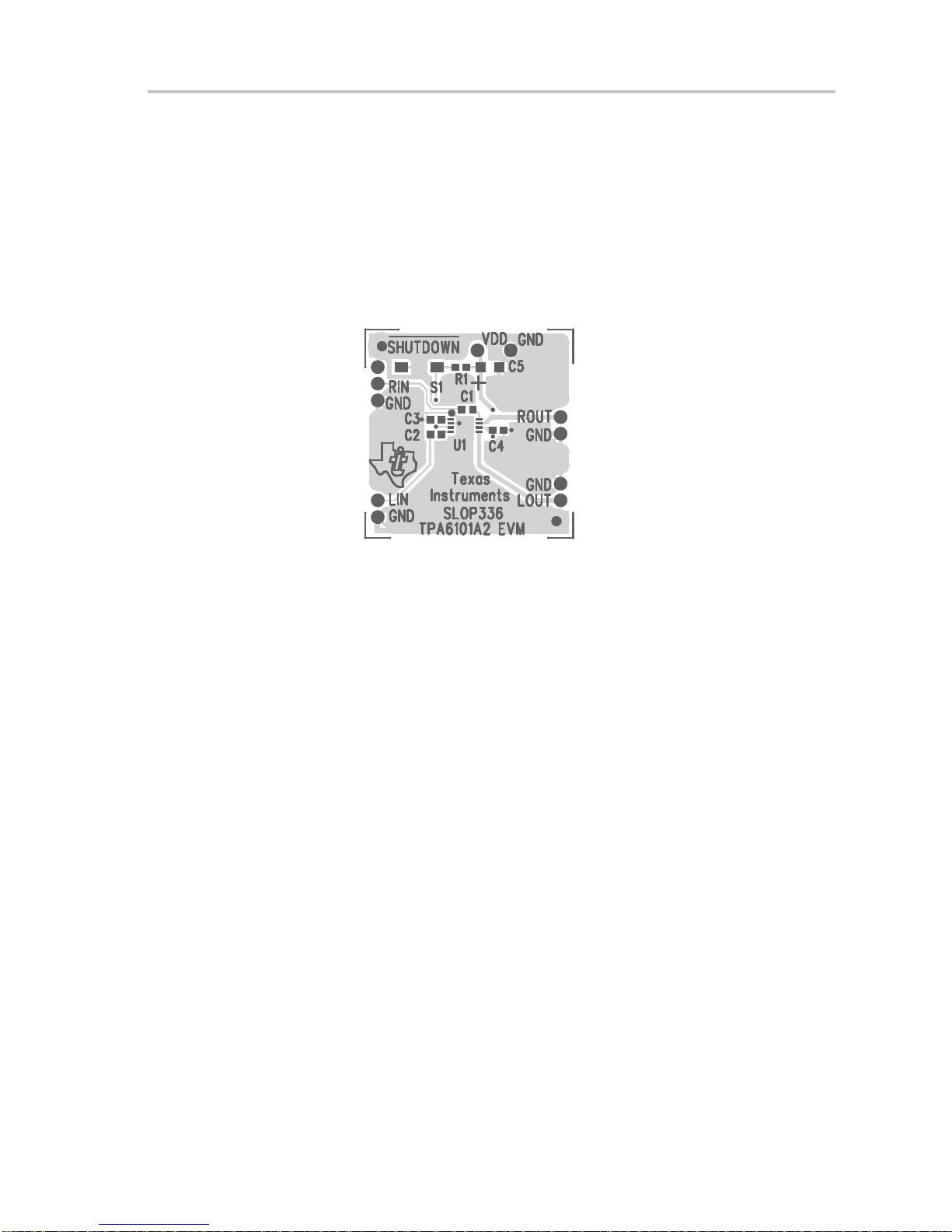

Figure 1–1.The TI TPA6101A2 Audio Amplifier Evaluation Module

†Due to the very small size of the MSOP IC package, the standard part number TPA6101A2 is

replaced with the code TIAJM.

Single in-line header pins are mounted to the underside of the module circuit

board to allow the EVM to be plugged into the TI plug-n-play audio amplifier

evaluationplatform,ortobewireddirectlyintoexistingcircuitsand equipment

when used stand-alone.

The platform has room for a single TPA6101A2 evaluation module and is a

convenient vehicle for demonstrating TI’s audio power amplifier and related

evaluation modules. The EVMs simply plug into the platform, which

automatically provides power to the modules, interconnects them correctly,

andconnectsthemtoaversatilearrayofstandardaudioinputandoutputjacks

and connectors. Easy-to-use configuration controls allow the platform and

EVMs to quickly model many possible end-equipment configurations.

There is nothing to build, nothing to solder, and nothing but the speakers

included with the platform to hook up.

1.3 TPA6101A2 EVM Specifications

Supply voltage range, VDD 1.6 V to 3.6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Supply current, IDD 160 mA, max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous output power, PO: 16 Ω, VDD = 3.3 V 50 mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Audio input voltage, VIVDD + 0.3 Vpp, max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Minimum load impedance, RL16 Ω. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-4 Introduction
