LM5160 Fly-Buck (Isolated Buck) User’s Guide

User's Guide

Literature Number: SNVU408A

October 2014–Revised February 2015

Contents

1 Introduction......................................................................................................................... 4

2 Background......................................................................................................................... 4

3 Setup.................................................................................................................................. 4

3.1 Input/Output Connector Description ................................................................................... 4

3.2 Operation.................................................................................................................. 5

4 Board Layout....................................................................................................................... 5

5 Schematic ........................................................................................................................... 6

6 Bill of Materials.................................................................................................................... 7

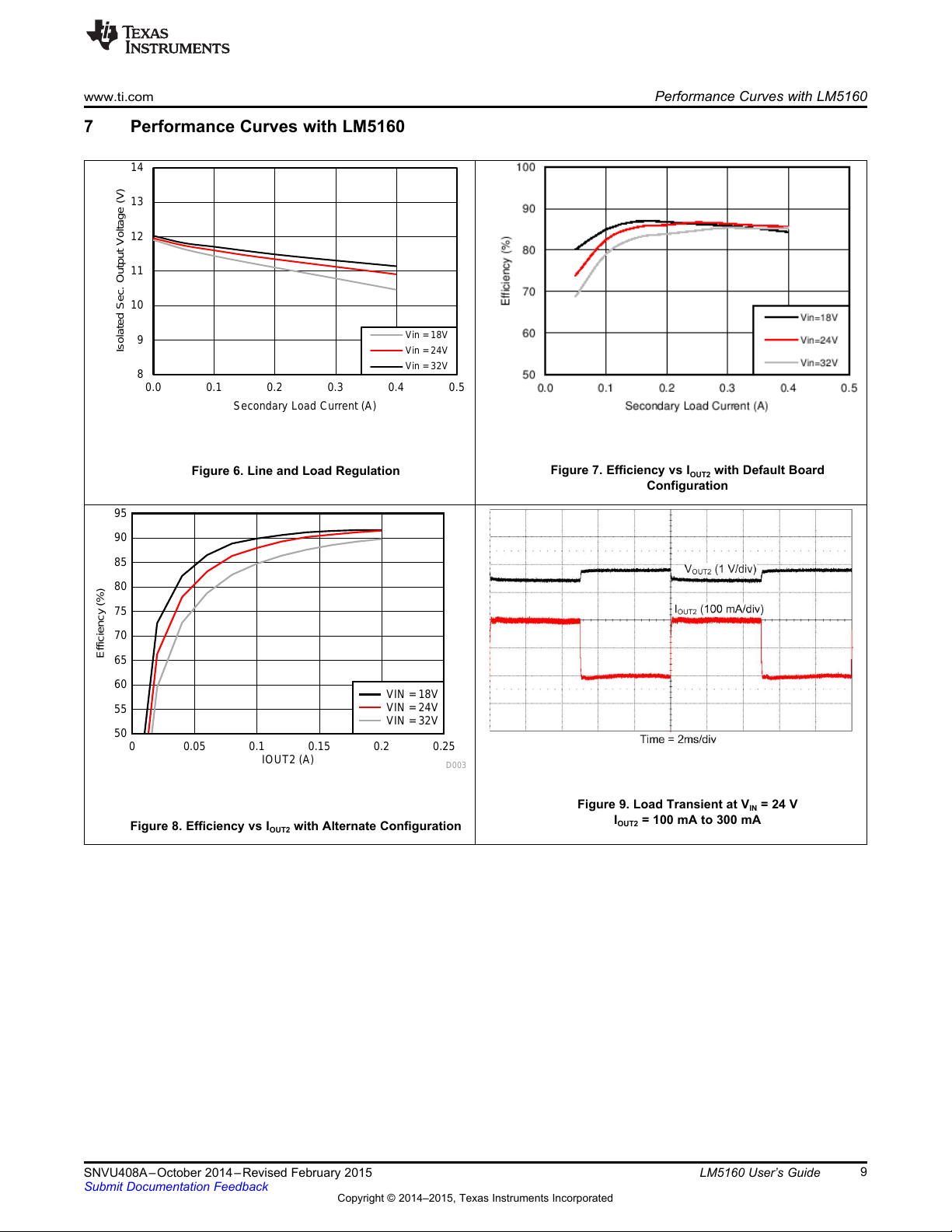

7 Performance Curves with LM5160 .......................................................................................... 9

Revision History.......................................................................................................................... 11

2Table of Contents SNVU408A – October 2014 – Revised February 2015

Submit Documentation Feedback

www.ti.com

List of Figures

1 Top Assembly Layer......................................................................................................... 5

2 Top Copper ................................................................................................................... 5

3 Bottom Copper ............................................................................................................... 6

4 LM5160 Fly-Buck EVM Schematic ........................................................................................ 6

5 Fly-Buck Schematic with LM5160A ....................................................................................... 7

6 Line and Load Regulation .................................................................................................. 9

7 Efficiency vs IOUT2 with Default Board Configuration ..................................................................... 9

8 Efficiency vs IOUT2 with Alternate Configuration........................................................................... 9

9 Load Transient at VIN = 24 V IOUT2 = 100 mA to 300 mA ................................................................ 9

10 VIN Startup Waveform at IOUT2 = 200 mA and IOUT1 = 0 A ................................................................ 9

11 Primary Switch Node at VIN = 24 V and IOUT2 = 200 mA................................................................. 9

12 Secondary-side Short at IOUT2 = 600 mA and IOUT1 = 200mA (Tx: Wurth Elektronik #: 744873220).............. 10

List of Tables

1 Default Board Specification with LM5160 ................................................................................ 4

2 Alternate Configuration with LM5160 ..................................................................................... 4

3 LM5160DNTFBKEVM Bill of Materials for 300 kHz Configuration .................................................... 7

4 Bill of Materials for Alternate Configuration .............................................................................. 8

SNVU408A – October 2014 – Revised February 2015 List of Figures

OUTISO OUT1 F

V V V

u 

§ ·

 u

¨ ¸

OUT1 R8

V 1 2 V

OUT1

SW 10 ON

¦1 10 R



u u

www.ti.com

Setup

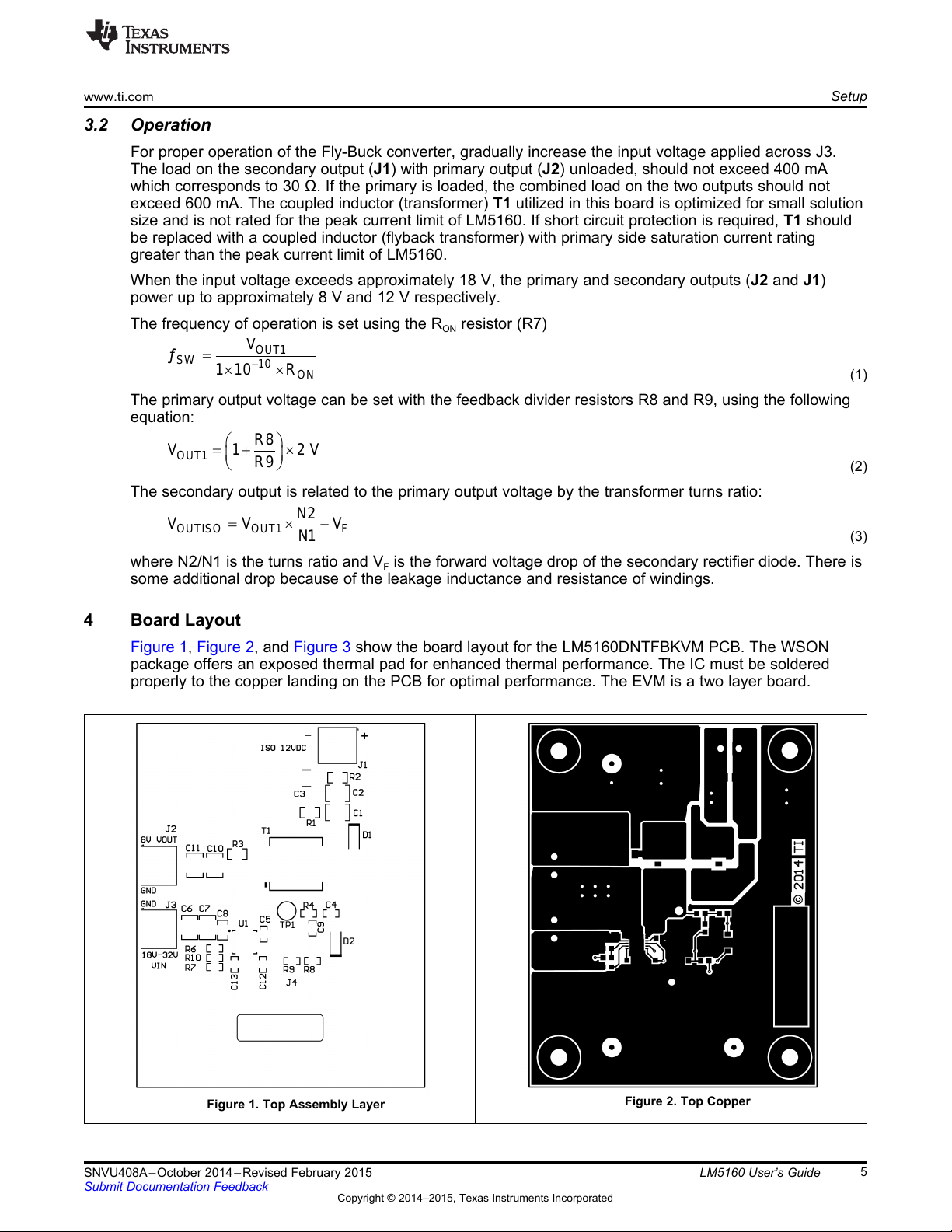

3.2 Operation

For proper operation of the Fly-Buck converter, gradually increase the input voltage applied across J3.

The load on the secondary output (J1) with primary output (J2) unloaded, should not exceed 400 mA

which corresponds to 30 Ω. If the primary is loaded, the combined load on the two outputs should not

exceed 600 mA. The coupled inductor (transformer) T1 utilized in this board is optimized for small solution

size and is not rated for the peak current limit of LM5160. If short circuit protection is required, T1 should

be replaced with a coupled inductor (flyback transformer) with primary side saturation current rating

greater than the peak current limit of LM5160.

When the input voltage exceeds approximately 18 V, the primary and secondary outputs (J2 and J1)

power up to approximately 8 V and 12 V respectively.

The frequency of operation is set using the RON resistor (R7)

(1)

The primary output voltage can be set with the feedback divider resistors R8 and R9, using the following

equation:

(2)

The secondary output is related to the primary output voltage by the transformer turns ratio:

(3)

where N2/N1 is the turns ratio and VFis the forward voltage drop of the secondary rectifier diode. There is

some additional drop because of the leakage inductance and resistance of windings.

4 Board Layout

Figure 1,Figure 2, and Figure 3 show the board layout for the LM5160DNTFBKVM PCB. The WSON

package offers an exposed thermal pad for enhanced thermal performance. The IC must be soldered

properly to the copper landing on the PCB for optimal performance. The EVM is a two layer board.

Figure 2. Top Copper

Figure 1. Top Assembly Layer

SNVU408A – October 2014 – Revised February 2015 LM5160 User’s Guide

User's Guide

SNVU408A– October 2014–Revised February 2015

LM5160 User’s Guide

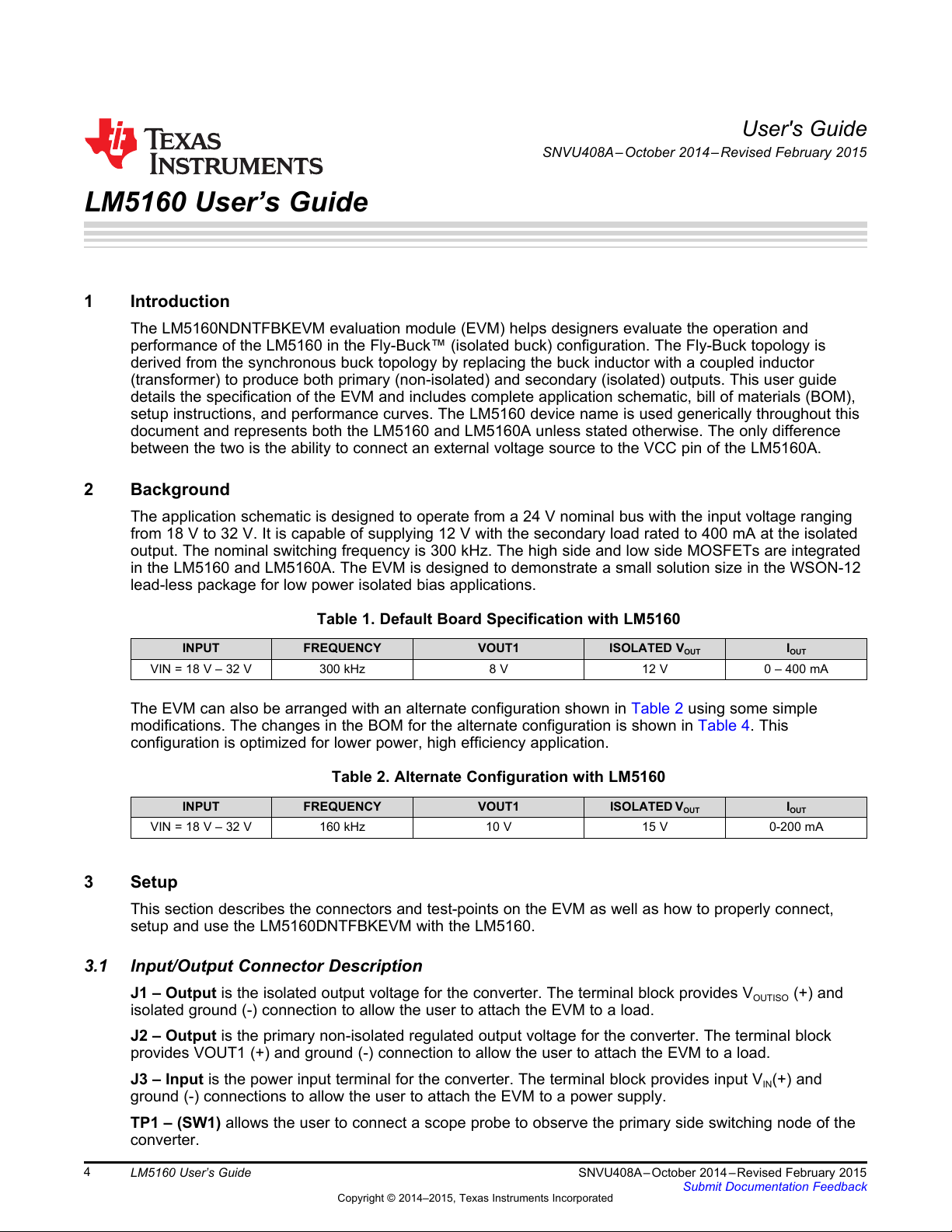

1 Introduction

The LM5160NDNTFBKEVM evaluation module (EVM) helps designers evaluate the operation and

performance of the LM5160 in the Fly-Buck™ (isolated buck) configuration. The Fly-Buck topology is

derived from the synchronous buck topology by replacing the buck inductor with a coupled inductor

(transformer) to produce both primary (non-isolated) and secondary (isolated) outputs. This user guide

details the specification of the EVM and includes complete application schematic, bill of materials (BOM),

setup instructions, and performance curves. The LM5160 device name is used generically throughout this

document and represents both the LM5160 and LM5160A unless stated otherwise. The only difference

between the two is the ability to connect an external voltage source to the VCC pin of the LM5160A.

2 Background

The application schematic is designed to operate from a 24 V nominal bus with the input voltage ranging

from 18 V to 32 V. It is capable of supplying 12 V with the secondary load rated to 400 mA at the isolated

output. The nominal switching frequency is 300 kHz. The high side and low side MOSFETs are integrated

in the LM5160 and LM5160A. The EVM is designed to demonstrate a small solution size in the WSON-12

lead-less package for low power isolated bias applications.

Table 1. Default Board Specification with LM5160

INPUT FREQUENCY VOUT1 ISOLATED VOUT IOUT

VIN = 18 V – 32 V 300 kHz 8 V 12 V 0 – 400 mA

The EVM can also be arranged with an alternate configuration shown in Table 2 using some simple

modifications. The changes in the BOM for the alternate configuration is shown in Table 4. This

configuration is optimized for lower power, high efficiency application.

Table 2. Alternate Configuration with LM5160

INPUT FREQUENCY VOUT1 ISOLATED VOUT IOUT

VIN = 18 V – 32 V 160 kHz 10 V 15 V 0-200 mA

3 Setup

This section describes the connectors and test-points on the EVM as well as how to properly connect,

setup and use the LM5160DNTFBKEVM with the LM5160.

3.1 Input/Output Connector Description

J1 – Output is the isolated output voltage for the converter. The terminal block provides VOUTISO (+) and

isolated ground (-) connection to allow the user to attach the EVM to a load.

J2 – Output is the primary non-isolated regulated output voltage for the converter. The terminal block

provides VOUT1 (+) and ground (-) connection to allow the user to attach the EVM to a load.

J3 – Input is the power input terminal for the converter. The terminal block provides input VIN(+) and

ground (-) connections to allow the user to attach the EVM to a power supply.

TP1 – (SW1) allows the user to connect a scope probe to observe the primary side switching node of the

converter.

4LM5160 User’s Guide SNVU408A– October 2014 – Revised February 2015

Submit Documentation Feedback

0.47µF

127k

10.0k

R10

301k

51.1k

0.082µF

C13

0.01µF

1000pF

6.04K

2.00k

10µF

C11

10µF

C10

TP1

GND

GND GND GND

1µF

C12

0.1µF

GND ISOGND

DFLS1100-7

2.0k

10µF

GND

2200pF

12VOUT

18-32VIN

750314597

GND

VOUTISO

VIN

2.2uF

VOUT

J4 8VOUTAGND

PGND

VIN

EN/UVLO

RON

6FPWM 7

FB 8

VCC 9

BST 10

SW 11

SW 12

PAD

LM5160DNT

Schematic

www.ti.com

Figure 3. Bottom Copper

5 Schematic

Figure 4. LM5160 Fly-Buck EVM Schematic

Figure 5 below shows the Fly-buck configuration using LM5160A with the VCC being powered from the

VOUT (8VOUT, Primary) through diode D2 for improved efficiency requirements. When evaluating the

LM5160A, the designer can use the standard LM5160DNTFBKEVM by simply replacing the LM5160 IC

with the LM5160A. No other components on board need to be replaced or removed. In the standard EVM,

when used with the LM5160, the placeholder for diode D2, as given in Figure 1, must remain unpopulated

under all cases. For more information about the difference between the LM5160A and the LM5160, please

refer to the LM5160 Datasheet (SNVSA03).

6LM5160 User’s Guide SNVU408A– October 2014 – Revised February 2015

Submit Documentation Feedback

0.47µF

127k

10.0k

R10

301k

51.1k

0.082µF

C13

0.01µF

1000pF

6.04K

2.00k

10µF

C11

10µF

C10

TP1

B0530W-7-F

GNDGND GND GND GND GND

1µF

C12

0.1µF

GND ISOGND

DFLS1100-7

2.0k

10µF

GND

2200pF

12VOUT

18-32VIN

AGND

PGND

VIN

EN/UVLO

RON

6FPWM 7

FB 8

VCC 9

BST 10

SW 11

SW 12

PAD

LM5160A

750314597

GND

VOUTISO

VIN

2.2µF

VOUT

1040

8VOUT

www.ti.com

Bill of Materials

Figure 5. Fly-Buck Schematic with LM5160A

6 Bill of Materials

Table 3. LM5160DNTFBKEVM Bill of Materials for 300 kHz Configuration

COUNT REF DES DESCRIPTION SIZE MFR PART NUMBER

4 C1, C2, CAP, CERM, 10 µF, 35 V, ±10%, X7R, 1210 MuRata GRM32ER7YA106KA12L

C10, C11

1 C3 CAP, CERM, 2200 pF, 2000 V, ±10%, X7R 1812 TDK C4532X7R3D222K

1 C4 CAP, CERM, 1000 pF, 16 V, ±10%, X7R 603 MuRata GRM188R71C102KA01D

1 C5 CAP, CERM, 0.01 µF, 16 V, ±10%, X7R 603 MuRata GRM188R71C103KA01D

2 C6, C7 CAP, CERM, 2.2 µF, 100 V, X7R, 10% 1210 Murata GRM32ER72A225KA35K

1 C8 CAP, CERM, 0.47 µF, 100 V, ±10%, X7R 805 MuRata GRM21BR72A474KA73L

1 C9 CAP, CERM, 0.1 µF, 25 V, ±5%, X7R 603 AVX 06033C104JAT2A

1 C12 CAP, CERM, 1 µF, 16 V, ±10%, X7R 603 TDK C1608X7R1C105K

1 C13 CAP, CERM, 0.082 µF, 16 V, ±10%, X7R 603 MuRata GRM188R71C823KA01D

1 D1 Diode, Schottky, 100 V, 1 A PowerDI123 Diodes Inc. DFLS1100-7

1 D2 Diode, Schottky, 30 V, 0.5 A (LM5160A only) SOD-123 Diodes Inc. B0530W-7-F(Unpopulated)

3 J1, J2, J3 Terminal Block, 6 A, 3.5 mm Pitch, 2-Pos, TH 7.0x8.2x6.5 On-Shore ED555/2DS

mm Technology

2 R1, R3 RES, 0 Ω, 5%, 0.125 W 805 Vishay-Dale CRCW08050000Z0EA

1 R2 RES, 2.0 kΩ, 5%, 0.125 W 805 Vishay-Dale CRCW08052K00JNEA

1 R4 RES, 51.1 kΩ, 1%, 0.1 W 603 Yageo RC0603FR-0751K1L

1 R6 RES, 127 kΩ, 1%, 0.1 W 603 Yageo RC0603FR-07127KL

1 R7 RES, 301 kΩ, 1%, 0.1 W 603 Vishay-Dale CRCW0603301KFKEA

1 R8 RES, 6.04 kΩ, 1%, 0.1 W 603 Vishay-Dale CRCW06036K04FKEA

1 R9 RES, 2.00 kΩ, 1%, 0.1 W 603 Vishay-Dale CRCW06032K00FKEA

1 R10 RES, 10.0 kΩ, 1%, 0.1 W 603 Vishay-Dale CRCW060310K0FKEA

1 T1 Transformer, 60 uH, SMT, 0.840 A 13.36x8.64x Wurth 750314597

10.16 mm Elektronik

1 TP1 Test Point, Multipurpose, Yellow, TH Testpoint Keystone 5014

1 U1 IC, PWM, COT Regulator DNT0012B Texas LM5160DNT

Instruments

SNVU408A – October 2014 – Revised February 2015 LM5160 User’s Guide

Bill of Materials

www.ti.com

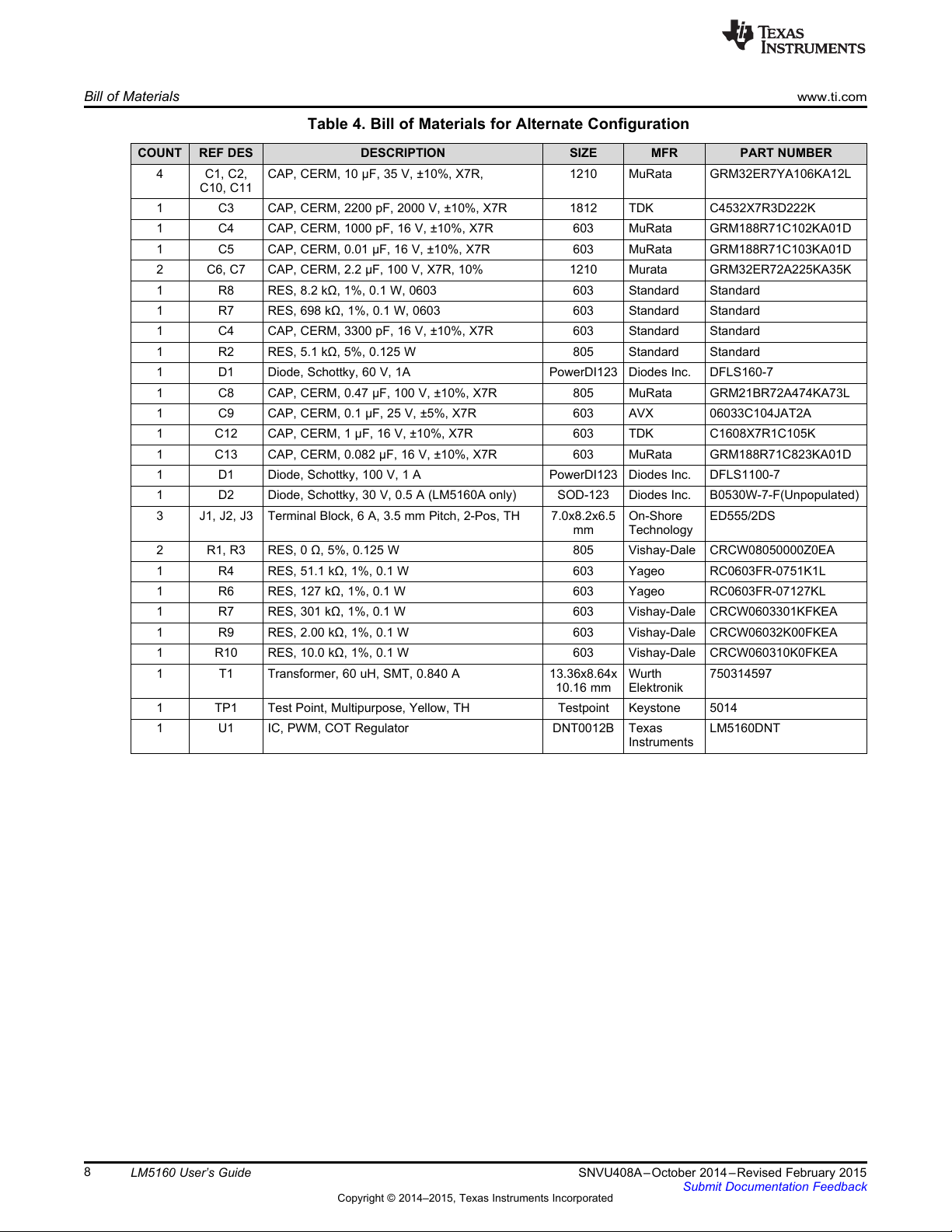

Table 4. Bill of Materials for Alternate Configuration

COUNT REF DES DESCRIPTION SIZE MFR PART NUMBER

4 C1, C2, CAP, CERM, 10 µF, 35 V, ±10%, X7R, 1210 MuRata GRM32ER7YA106KA12L

C10, C11

1 C3 CAP, CERM, 2200 pF, 2000 V, ±10%, X7R 1812 TDK C4532X7R3D222K

1 C4 CAP, CERM, 1000 pF, 16 V, ±10%, X7R 603 MuRata GRM188R71C102KA01D

1 C5 CAP, CERM, 0.01 µF, 16 V, ±10%, X7R 603 MuRata GRM188R71C103KA01D

2 C6, C7 CAP, CERM, 2.2 µF, 100 V, X7R, 10% 1210 Murata GRM32ER72A225KA35K

1 R8 RES, 8.2 kΩ, 1%, 0.1 W, 0603 603 Standard Standard

1 R7 RES, 698 kΩ, 1%, 0.1 W, 0603 603 Standard Standard

1 C4 CAP, CERM, 3300 pF, 16 V, ±10%, X7R 603 Standard Standard

1 R2 RES, 5.1 kΩ, 5%, 0.125 W 805 Standard Standard

1 D1 Diode, Schottky, 60 V, 1A PowerDI123 Diodes Inc. DFLS160-7

1 C8 CAP, CERM, 0.47 µF, 100 V, ±10%, X7R 805 MuRata GRM21BR72A474KA73L

1 C9 CAP, CERM, 0.1 µF, 25 V, ±5%, X7R 603 AVX 06033C104JAT2A

1 C12 CAP, CERM, 1 µF, 16 V, ±10%, X7R 603 TDK C1608X7R1C105K

1 C13 CAP, CERM, 0.082 µF, 16 V, ±10%, X7R 603 MuRata GRM188R71C823KA01D

1 D1 Diode, Schottky, 100 V, 1 A PowerDI123 Diodes Inc. DFLS1100-7

1 D2 Diode, Schottky, 30 V, 0.5 A (LM5160A only) SOD-123 Diodes Inc. B0530W-7-F(Unpopulated)

3 J1, J2, J3 Terminal Block, 6 A, 3.5 mm Pitch, 2-Pos, TH 7.0x8.2x6.5 On-Shore ED555/2DS

mm Technology

2 R1, R3 RES, 0 Ω, 5%, 0.125 W 805 Vishay-Dale CRCW08050000Z0EA

1 R4 RES, 51.1 kΩ, 1%, 0.1 W 603 Yageo RC0603FR-0751K1L

1 R6 RES, 127 kΩ, 1%, 0.1 W 603 Yageo RC0603FR-07127KL

1 R7 RES, 301 kΩ, 1%, 0.1 W 603 Vishay-Dale CRCW0603301KFKEA

1 R9 RES, 2.00 kΩ, 1%, 0.1 W 603 Vishay-Dale CRCW06032K00FKEA

1 R10 RES, 10.0 kΩ, 1%, 0.1 W 603 Vishay-Dale CRCW060310K0FKEA

1 T1 Transformer, 60 uH, SMT, 0.840 A 13.36x8.64x Wurth 750314597

10.16 mm Elektronik

1 TP1 Test Point, Multipurpose, Yellow, TH Testpoint Keystone 5014

1 U1 IC, PWM, COT Regulator DNT0012B Texas LM5160DNT

Instruments

8LM5160 User’s Guide SNVU408A– October 2014 – Revised February 2015

Submit Documentation Feedback

IOUT2 (A)

Efficiency (%)

0 0.05 0.1 0.15 0.2 0.25

D003

VIN = 18V

VIN = 24V

VIN = 32V

0.0 0.1 0.2 0.3 0.4 0.5

Isolated Sec. Output Voltage (V)

Secondary Load Current (A)

Vin = 18V

Vin = 24V

Vin = 32V

C002

www.ti.com

Performance Curves with LM5160

7 Performance Curves with LM5160

Figure 7. Efficiency vs IOUT2 with Default Board

Figure 6. Line and Load Regulation

Configuration

Figure 9. Load Transient at VIN = 24 V

IOUT2 = 100 mA to 300 mA

Figure 8. Efficiency vs IOUT2 with Alternate Configuration

SNVU408A – October 2014 – Revised February 2015 LM5160 User’s Guide

Performance Curves with LM5160

www.ti.com

Figure 11. Primary Switch Node at VIN = 24 V

Figure 10. VIN Startup Waveform at IOUT2 = 200 mA

and IOUT2 = 200 mA

and IOUT1 = 0 A

Figure 12. Secondary-side Short at IOUT2 = 600 mA

and IOUT1 = 200mA (Tx: Wurth Elektronik #: 744873220)

10 LM5160 User’s Guide SNVU408A– October 2014 – Revised February 2015

Submit Documentation Feedback

Inhaltsverzeichnis

Andere Texas Instruments Medienkonverter Handbücher

Texas Instruments

Texas Instruments TPS549B22EVM-847 Bedienungsanleitung

Texas Instruments

Texas Instruments UCC28750EVM-071 Bedienungsanleitung

Texas Instruments

Texas Instruments UCC28517 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS61041 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS40003 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS40090EVM-002 Montage- und Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320 Series Bedienungsanleitung

Texas Instruments

Texas Instruments TPS62840-1YBGEVM56 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS6100 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments TLC3578EVM FAMILY TLC3578EVM Bedienungsanleitung

Texas Instruments

Texas Instruments UCC2891 Bedienungsanleitung

Texas Instruments

Texas Instruments UCC2977EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1230REF Bedienungsanleitung

Texas Instruments

Texas Instruments MSC1210 Bedienungsanleitung

Texas Instruments

Texas Instruments DM365 Bedienungsanleitung

Texas Instruments

Texas Instruments TVP5151 Bedienungsanleitung

Texas Instruments

Texas Instruments THS1031 Bedienungsanleitung

Texas Instruments

Texas Instruments UCC28742EVM-001 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS79 EVM-PDK Series Bedienungsanleitung

Texas Instruments

Texas Instruments TPS54320 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS65917-Q1 Produkthandbuch

Texas Instruments

Texas Instruments TLV1562 Bedienungsanleitung

Texas Instruments

Texas Instruments UCC28610EVM-474 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS5410 EVM Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
