Texas Instruments LaunchPad MSP430FR5994 Bedienungsanleitung

SLAU678A–March 2016–Revised April 2016

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

LaunchPad, BoosterPack, Code Composer Studio, MSP430, EnergyTrace++, EnergyTrace, E2E are trademarks of Texas Instruments.

IAR Embedded Workbench is a registered trademark of IAR Systems AB.

All other trademarks are the property of their respective owners.

User's Guide

SLAU678A–March 2016–Revised April 2016

MSP430FR5994 LaunchPad™ Development Kit

(MSP

‑‑

EXP430FR5994)

The MSP-EXP430FR5994 LaunchPad™ development kit is an easy-to-use evaluation module (EVM) for

the MSP430FR5994 microcontroller (MCU). It contains everything needed to start developing on the ultra-

low-power MSP430FRx FRAM microcontroller platform, including onboard debug probe for programming,

debugging, and energy measurements. Figure 1 shows the development kit.

Figure 1. MSP-EXP430FR5994 LaunchPad Development Kit

www.ti.com

2SLAU678A–March 2016–Revised April 2016

Submit Documentation Feedback

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

Contents

1 Getting Started............................................................................................................... 3

2 Hardware...................................................................................................................... 5

3 Software Examples ........................................................................................................ 16

4 Resources................................................................................................................... 25

5 FAQ .......................................................................................................................... 32

6 Schematics.................................................................................................................. 33

List of Figures

1 MSP-EXP430FR5994 LaunchPad Development Kit.................................................................... 1

2 MSP-EXP430FR5994 Overview........................................................................................... 5

3 MSP-EXP430FR5994 Block Diagram..................................................................................... 6

4 MSP430FR5994 Pinout..................................................................................................... 7

5 eZ-FET Debug Probe ....................................................................................................... 8

6 eZ-FET Isolation Jumper Block Diagram................................................................................ 10

7 Application Backchannel UART in Device Manager................................................................... 10

8 MSP-EXP430FR5994 Power Block Diagram........................................................................... 12

9 MSP-EXP430FR5994 Super Cap Power Block Diagram............................................................. 13

10 BoosterPack Plug-in Module Checker Tool............................................................................. 15

11 LaunchPad Development Kit to BoosterPack Plug-in Module Connector Pinout.................................. 16

12 MSP-EXP430FR5994 Out-of-Box Demo GUI.......................................................................... 18

13 Live Temperature Mode................................................................................................... 19

14 FRAM Log Mode ........................................................................................................... 20

15 Record....................................................................................................................... 22

16 Playback..................................................................................................................... 23

17 Alternate Microphone Configuration ..................................................................................... 24

18 EEPROM SPI Interface Block Diagram ................................................................................. 25

19 EEPROM I2C Interface Block Diagram.................................................................................. 25

20 TI Resource Explorer Cloud .............................................................................................. 26

21 CCS Cloud .................................................................................................................. 27

22 Directing the Project>Import Function to the Demo Project .......................................................... 28

23 When CCS Has Found the Project ...................................................................................... 28

24 Using TI Resource Explorer to Browse MSP-EXP430FR5994 in MSPWare....................................... 30

25 Schematics (1 of 7) ........................................................................................................ 33

26 Schematics (2 of 7) ........................................................................................................ 34

27 Schematics (3 of 7) ........................................................................................................ 35

28 Schematics (4 of 7) ........................................................................................................ 36

29 Schematics (5 of 7) ........................................................................................................ 37

30 Schematics (6 of 7) ........................................................................................................ 38

31 Schematics (7 of 7) ........................................................................................................ 39

www.ti.com

Getting Started

SLAU678A–March 2016–Revised April 2016

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

1 Getting Started

1.1 Introduction

The MSP-EXP430FR5994 LaunchPad development kit is an easy-to-use evaluation module (EVM) for the

MSP430FR5994 microcontroller (MCU). The LaunchPad development kit contains everything needed to

start developing on the ultra-low-power MSP430FRx FRAM microcontroller platform, including onboard

debug probe for programming, debugging and energy measurements. The board features onboard buttons

and LEDs for quick integration of a simple user interface, a microSD card port to interface with microSD

cards, and a super capacitor (super cap) to enable stand-alone applications without an external power

supply.

The MSP430FR5994 MCU features 256KB of embedded FRAM (Ferroelectric Random Access Memory),

a nonvolatile memory known for its ultra-low power, high endurance, and high speed write access. The

device also features 8 KB of SRAM, supports CPU speeds of up to 16 MHz and has integrated

peripherals for communication, ADC, timers, AES encryption, low-energy accelerator (LEA) (a new

hardware module for the FRAM family that is designed for fast, efficient, and low-power vector math), and

more–plenty to get you started in your development.

Rapid prototyping is simplified by the 40-pin BoosterPack™ plug-in module headers, which support a wide

range of available BoosterPack modules. Quickly add features like wireless connectivity, graphical

displays, environmental sensing, and much more. Design your own BoosterPack plug-in module or

choose among many already available from TI and third-party developers.

Free software development tools are also available, such as the TI Eclipse-based Code Composer

Studio™ IDE (CCS) and the IAR Embedded Workbench®for MSP430™ IDE (EW430). Both of these IDEs

support EnergyTrace++™ technology for real-time power profiling and debugging when paired with the

MSP430FR5994 LaunchPad kit.

1.2 Key Features

• MSP ULP FRAM technology based MSP430FR5994 16-bit MCU

• EnergyTrace++ Technology available for ultra-low-power debugging

• 40-pin LaunchPad development kit standard leveraging the BoosterPack plug-in module ecosystem

• Onboard eZ-FET debug probe

• Two buttons and two LEDs for user interaction

• Onboard microSD card

• Super capacitor (0.22 F)

1.3 What's Included

1.3.1 Kit Contents

• 1xMSP-EXP430FR5994 LaunchPad Development Kit

• 1xMicro USB cable

• 1xQuick start guide

1.3.2 Software Examples

• Out-of-box software

• Blink LED

• Audio BoosterPack plug-in module record and playback

• Low-energy accelerator for signal processing

• EEPROM emulation

Getting Started

www.ti.com

4SLAU678A–March 2016–Revised April 2016

Submit Documentation Feedback

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

1.4 First Steps: Out-of-Box Experience

An easy way to get familiar with the EVM is by using its preprogrammed out-of-box code. It demonstrates

some key features from a user level.

1.4.1 Connecting to the Computer

Connect the LaunchPad development kit using the included USB cable to a computer. A green power LED

should illuminate. For proper operation, drivers are needed. TI recommends installing the drivers by

installing an IDE such as TI CCS or IAR EW430. Drivers are also available at ti.com/MSPdrivers.

1.4.2 Running the Out-of-Box Demo

When connected to the computer, the LaunchPad development kit powers up. Press and hold the S1 and

S2 buttons simultaneously to select a new mode. See Section 3.1 for a detailed explanation of each

mode.

1.4.2.1 Live Temperature Mode

This mode provides live temperature data streaming to the PC GUI. You can influence the temperature of

the device and see changes on the GUI.

1.4.2.2 FRAM Data Log Mode

This mode shows the FRAM data logging capabilities of the MSP430FR5994. After starting this mode, the

LaunchPad development kit wakes up every five seconds from sleep mode (indicated by LED blink) to log

both temperature and input voltage values. After reconnecting to the GUI, these values can be uploaded

and graphed in the GUI.

1.4.2.3 SD Card Data Log Mode

This mode shows the data logging capabilities of the MSP430FR5994 while interfacing with an SD card.

After starting this mode, the LaunchPad development kit wakes up every five seconds from sleep mode

(indicated by LED blink) to log both temperature and input voltage values. After reconnecting to the GUI,

these values can be uploaded and graphed in the GUI.

1.5 Next Steps: Looking Into the Provided Code

After the EVM features have been explored, the fun can begin. It's time to open an integrated

development environment and start editing the code examples. See Section 4 for available IDEs and

where to download them.

The quickest way to get started using the LaunchPad development kit is to use TI's Cloud Development

Tools. The cloud-based Resource Explorer provides access to all of the examples and resources in

MSPWare. Code Composer Studio Cloud is a simple cloud-based IDE that enables developing and

running applications on the LaunchPad development kit.

The out-of-box source code and more code examples are provided and available on the download page.

Code is licensed under BSD, and TI encourages reuse and modifications to fit specific needs.

Section 3 describes all functions in detail and provides a project structure to help familiarize you with the

code.

With the onboard eZ-FET debug probe debugging and downloading new code is simple. A USB

connection between the EVM and a PC through the provided USB cable is all that is needed.

www.ti.com

Hardware

SLAU678A–March 2016–Revised April 2016

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

2 Hardware

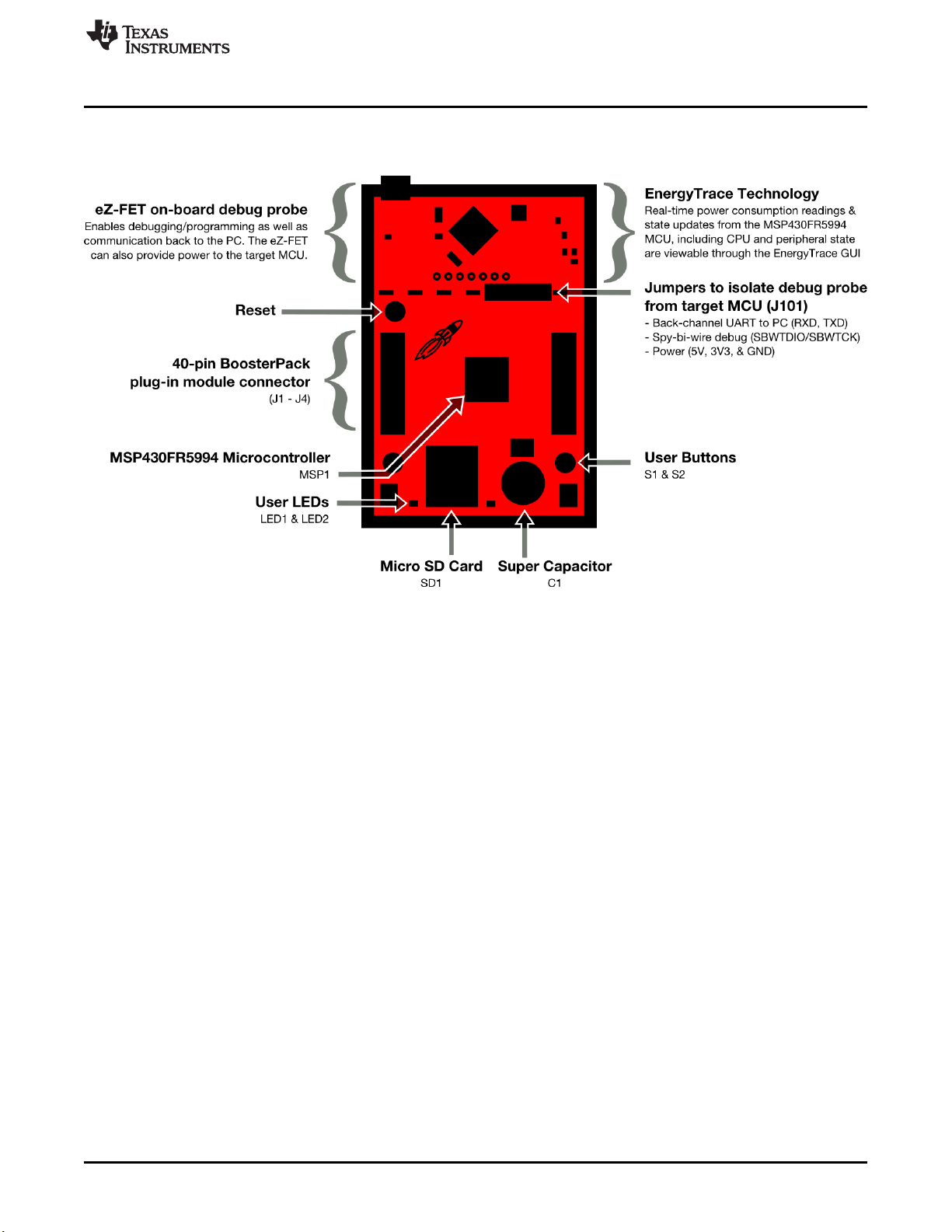

Figure 2 shows an overview of the MSP-EXP430FR5994 hardware.

Figure 2. MSP-EXP430FR5994 Overview

Target device

MSP430FR5994

Crystal

32.768 kHz

Micro-B

USB

3.3-V

LDO

ESD

protection

Debug

MCU

LED

red, green

Crystal

4 MHz

UART, SBW to target

User interface

2 buttons, 2 LEDs

40-pin LaunchPad

standard headers

Power to target

Reset

button

Super capacitor

EnergyTrace

microSD Card

Hardware

www.ti.com

6SLAU678A–March 2016–Revised April 2016

Submit Documentation Feedback

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

2.1 Block Diagram

Figure 3 shows the block diagram.

Figure 3. MSP-EXP430FR5994 Block Diagram

2.2 Hardware Features

2.2.1 MSP430FR5994 MCU

The MSP430FR5994 is the next device in TI's new ULP FRAM technology platform. FRAM is a cutting-

edge memory technology that combines the best features of flash and RAM into one nonvolatile memory.

For more information on FRAM, see www.ti.com/fram.

Device features include:

• 1.8-V to 3.6-V operation

• 16-bit RISC architecture up to 16-MHz system clock and 8-MHz FRAM access

• 256KB of FRAM and 8KB of SRAM

• 16-channel 12-bit ADC

• 16-channel analog comparator

• Six 16-bit timers with seven capture/compare registers each

• 6-channel direct memory access (DMA)

• 128-bit or 256-bit AES

• 32-bit hardware multiplier (MPY)

• 68 GPIOs

DVSS3

DVCC2

23 24 25 26 27 28 29 30 31 32 33 34

P5.0/UCB1SIMO/UCB1SDA

35 36 37 38 39 40

61626364

DVCC1

65666768697071727374757677787980

P1.4/TB0.1/UCA0STE/A4/C4

P1.0/TA0.1/DMAE0/RTCCLK/A0/C0/VREF-/VeREF-

P1.1/TA0.2/TA1CLK/COUT/A1/C1/VREF+/VeREF+

P1.2/TA1.1/TA0CLK/COUT/A2/C2

P3.0/A12/C12

P3.1/A13/C13

P3.2/A14/C14

P3.3/A15/C15

P1.3/TA1.2/UCB0STE/A3/C3

P1.5/TB0.2/UCA0CLK/A5/C5

P4.7

PJ.0/TDO/TB0OUTH/SMCLK/SRSCG1/C6

PJ.1/TDI/TCLK/MCLK/SRSCG0/C7

PJ.2/TMS/ACLK/SROSCOFF/C8

PJ.3/TCK/SRCPUOFF/C9

P4.0/A8

P4.1/A9

P4.2/A10

P4.3/A11

P2.5/TB0.0/UCA1TXD/UCA1SIMO

P2.6/TB0.1/UCA1RXD/UCA1SOMI

TEST/SBWTCK

RST/NMI/SBWTDIO

P2.0/TB0.6/UCA0TXD/UCA0SIMO/TB0CLK/ACLK

P2.1/TB0.0/UCA0RXD/UCA0SOMI

P2.2/TB0.2/UCB0CLK

P3.4/TB0.3/SMCLK

P3.5/TB0.4/COUT

P3.6/TB0.5

P3.7/TB0.6

P1.6/TB0.3/UCB0SIMO/UCB0SDA/TA0.0

P1.7/TB0.4/UCB0SOMI/UCB0SCL/TA1.0

P4.4/TB0.5

P4.5

P4.6

DVSS1

P2.7

P2.3/TA0.0/UCA1STE/A6/C10

AVSS3

PJ.6/HFXIN

PJ.7/HFXOUT

AVSS2

PJ.4/LFXIN

PJ.5/LFXOUT

AVSS1

AVCC1

P2.4/TA1.0/UCA1CLK/A7/C11

DVSS2

P5.1/UCB1SOMI/UCB1SCL

P5.2/UCB1CLK/TA4CLK

P5.3/UCB1STE

P5.4/UCA2TXD/UCA2SIMO/TB0OUTH

P5.5/UCA2RXD/UCA2SOMI/ACLK

P5.6/UCA2CLK/TA4.0/SMCLK

P5.7/UCA2STE/TA4.1/MCLK

P8.0

P6.0/UCA3TXD/UCA3SIMO

P6.1/UCA3RXD/UCA3SOMI

P6.2/UCA3CLK

P6.3/UCA3STE

P8.1

DVCC3

P6.4/UCB3SIMO/UCB3SDA

P6.5/UCB3SOMI/UCB3SCL

P6.6/UCB3CLK

P6.7/UCB3STE

P8.2

P8.3

P7.0/UCB2SIMO/UCB2SDA

P7.2/UCB2CLK

P7.3/UCB2STE/TA4.1

P7.1/UCB2SOMI/UCB2SCL

P7.4//TA4.0/A16

P7.6/A18

P7.7/A19

P7.5/A17

MSP430FR59xxPN

www.ti.com

Hardware

SLAU678A–March 2016–Revised April 2016

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

Figure 4 shows the pinout of the MSP430FR5994 MCU in the 80-pin PN package.

Figure 4. MSP430FR5994 Pinout

Hardware

www.ti.com

8SLAU678A–March 2016–Revised April 2016

Submit Documentation Feedback

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

2.2.2 eZ-FET Onboard Debug Probe With EnergyTrace++ Technology

To keep development easy and cost effective, TI's LaunchPad development kits integrate an onboard

debug probe, which eliminates the need for expensive programmers. The MSP-EXP430FR5994 has the

eZ-FET debug probe (see Figure 5), which is a simple and low-cost debugger that supports all MSP430

device derivatives.

Figure 5. eZ-FET Debug Probe

The MSP-EXP430FR5994 LaunchPad development kit features full EnergyTrace++ technology. The

EnergyTrace™ functionality varies across the MSP portfolio (see Table 1).

Table 1. EnergyTrace Technology

Features EnergyTrace™ Technology EnergyTrace++™ Technology

Current Monitoring ✓ ✓

CPU State ✓

Peripheral and System State ✓

Devices Supported All MSP430 MCUs FR59 and FR69 MCUs

Development Tool Required MSP-FET or eZ-FET MSP-FET or eZ-FET

In Figure 5, the dotted line through J101 divides the eZ-FET debug probe from the target area. The

signals that cross this line can be disconnected by jumpers on J101, the isolation jumper block. For more

details on the isolation jumper block, see Section 2.2.3.

The eZ-FET also provides a "backchannel" UART-over-USB connection with the host, which can be very

useful during debugging and for easy communication with a PC. For more details, see Section 2.2.4.

Details of the eZ-FET hardware can be found in the schematics in Section 6 and in the hardware design

files download page. The software and more information about the debugger can be found on the eZ-FET

wiki.

www.ti.com

Hardware

SLAU678A–March 2016–Revised April 2016

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

2.2.3 Debug Probe Connection: Isolation Jumper Block

The isolation jumper block at jumper J101 can connect or disconnect signals that cross from the eZ-FET

domain into the MSP430FR5994 target domain. This includes eZ-FET Spy-Bi-Wire signals, application

UART signals, and 3.3-V and 5-V power (see Table 2 and Figure 6).

Reasons to open these connections:

• To remove any and all influence from the eZ-FET debug probe for high accuracy target power

measurements

• To control 3-V and 5-V power flow between the eZ-FET and target domains

• To expose the target MCU pins for other use than onboard debugging and application UART

communication

• To expose the programming and UART interface of the eZ-FET so that it can be used for devices other

than the onboard MCU.

Table 2. Isolation Block Connections

Jumper Description

GND Ground

5V 5-V VBUS from USB

3V3 3.3-V rail, derived from VBUS in the eZ-FET domain

RXD << Backchannel UART: The target FR5994 receives data through this signal. The arrows indicate the direction of the

signal.

TXD >> Backchannel UART: The target FR5994 sends data through this signal. The arrows indicate the direction of the

signal.

SBW RST Spy-Bi-Wire debug: SBWTDIO data signal. This pin also functions as the RST signal (active low).

SBW TST Spy-Bi-Wire debug: SBWTCK clock signal. This pin also functions as the TST signal.

eZ-FET Debug

Probe

Isolation

Jumper Block

Spy-Bi-Wire (SBW)

Emulation

Application UART

3.3-V Power

5-V Power

Target MSP430 MCU

eZ-FETMSP430 Target

USB Connector

in out

LDO

BoosterPack Header

USB

EnergyTrace

Hardware

www.ti.com

10 SLAU678A–March 2016–Revised April 2016

Submit Documentation Feedback

MSP430FR5994 LaunchPad™ Development Kit (MSP

‑

EXP430FR5994)

Figure 6. eZ-FET Isolation Jumper Block Diagram

2.2.4 Application (or Backchannel) UART

The backchannel UART allows communication with the USB host that is not part of the target application's

main functionality. This is very useful during development, and also provides a communication channel to

the PC host side. This can be used to create graphical user interfaces (GUIs) and other programs on the

PC that communicate with the LaunchPad development kit.

Figure 6 shows the pathway of the backchannel UART. The backchannel UART is the UART on

eUSCI_A0. This UART channel is separate from the UART on the 40-pin BoosterPack plug-in module

connector (eUSCI_A3).

On the host side, a virtual COM port for the application backchannel UART is generated when the

LaunchPad development kit enumerates on the host. You can use any PC application that interfaces with

COM ports, including terminal applications like Hyperterminal or Docklight, to open this port and

communicate with the target application. You need to identify the COM port for the backchannel. On

Windows PCs, Device Manager can assist (see Figure 7).

Figure 7. Application Backchannel UART in Device Manager

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Texas Instruments Mikrocontroller Handbücher

Texas Instruments

Texas Instruments MSP430G2231 Bedienungsanleitung

Texas Instruments

Texas Instruments BP-DAC11001EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMS570LS3137 Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320F2837 D Series Bedienungsanleitung

Texas Instruments

Texas Instruments Chipcon Products CC1050DK Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320F2837 D Series Bedienungsanleitung

Texas Instruments

Texas Instruments 430BOOST-TMP006 BoosterPack Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320C6000 DSP Leitfaden

Texas Instruments

Texas Instruments MSP430F67491 Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5132DDV6EVM Bedienungsanleitung

Texas Instruments

Texas Instruments MSP430FG6425 Bedienungsanleitung

Texas Instruments

Texas Instruments CC2652RSIP Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320F28004 Series Bedienungsanleitung

Texas Instruments

Texas Instruments SimpleLink Wi-Fi BoosterPack CC3135 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS65910 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments SimpleLink MSP432P4111 Bedienungsanleitung

Texas Instruments

Texas Instruments MSP430F6730 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS6381 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments AM243x Bedienungsanleitung

Texas Instruments

Texas Instruments CC11 L Series Bedienungsanleitung

Texas Instruments

Texas Instruments TDP0604 Bedienungsanleitung

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Bedienungsanleitung

Texas Instruments

Texas Instruments Errata MSP430FG6426 Bedienungsanleitung

Texas Instruments

Texas Instruments LaunchPad CC1354P10-6 Bedienungsanleitung

Beliebte Mikrocontroller Handbücher anderer Marken

AMS

AMS AS7261 Demo Kit Bedienungsanleitung

Novatek

Novatek NT6861 Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266 SDK Einrichtungshandbuch

Nuvoton

Nuvoton ISD61S00 ChipCorder Leitfaden

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Bedienungsanleitung

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Bedienungsanleitung

NEC

NEC 78GK0S/K 1+ Series Montage- und Bedienungsanleitung

Mikroe

Mikroe SEMITECH N-PLC Click Montage- und Bedienungsanleitung

Intel

Intel Agilex Bedienungsanleitung

Cypress

Cypress CY4607 HX2VL Bedienungsanleitung

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Bedienungsanleitung

CYPRES

CYPRES CY14NVSRAMKIT-001 Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266EX Betriebsanleitung

Abov

Abov AC33M8128L Bedienungsanleitung

Laird

Laird BL654PA Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories C8051F800 Bedienungsanleitung

Energy micro

Energy micro EFM32 Giant Gecko Starter Kit Bedienungsanleitung

Mikroe

Mikroe click Proximity 2 Bedienungsanleitung
