SNOU165A–September 2018–Revised March 2019

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

User's Guide

SNOU165A–September 2018–Revised March 2019

Using the LMG341xEVM-018 half-bridge and LMG34XX-

BB-EVM breakout board EVM

The LMG341xEVM-018 features two LMG341xR050 600V GaN power transistors with integrated drivers

that are configured in a half bridge with all the required bias circuit and logic/power level shifting. Essential

power stage and gate driving high frequency current loops are fully enclosed on the board to minimize

parasitic inductances, reducing voltage overshoots and improving performance. The LMG341xEVM-018 is

configured to have a socket style external connection for easy interface with external power stages to run

the LMG341xR050 in various applications.

Contents

1 LMG341xEVM-018 User's Guide General TI High Voltage Evaluation User Safety Guidelines .................. 2

2 Description.................................................................................................................... 4

3 Schematic..................................................................................................................... 8

4 Test Setup................................................................................................................... 11

5 Test Procedure ............................................................................................................. 14

6 Typical Characteristics..................................................................................................... 15

7 EVM Assembly Drawing and PCB Layout .............................................................................. 16

8 Bill of Materials ............................................................................................................. 18

List of Figures

1 Simplified LMG341xEVM-018 Schematic ................................................................................ 5

2 Top Side View of LMG341xEVM-018..................................................................................... 6

3 Back Side View of LMG341xEVM-018.................................................................................... 6

4 LMG3410EVM-018 Schematic............................................................................................. 8

5 Recommended Footprint for LMG341xEVM-018........................................................................ 9

6 LMG34XX-BB-EVM Schematic .......................................................................................... 10

7 LMG3410EVM-018 Connected with LMG34XX-BB-EVM ............................................................ 11

8 Recommended Connection Points....................................................................................... 12

9 Recommended Probe Connection for Logic Signals.................................................................. 15

10 Recommended Probe Connection for High Voltage Switch Node................................................... 15

11 Recommended Configuration for Heatsink and Fan................................................................... 15

12 Switching Waveforms with 480V input, 100kHz, 30% duty cycle, 6A output....................................... 15

13 Low to High Transition Waveform with 480V input, 100kHz, 30% duty cycle, 6A output ........................ 15

14 High to Low Transition Waveform with 480V input, 100kHz, 30% duty cycle, 6A output ........................ 15

15 LMG341xEVM-018 Top Layer and Components ...................................................................... 16

16 LMG341xEVM-018 Inner Copper Layer 1 .............................................................................. 16

17 LMG341xEVM-018 Inner Copper Layer 2 .............................................................................. 16

18 LMG341xEVM-018 Bottom Layer and Components .................................................................. 16

19 LMG34XX-BB-EVM Top Layer and Components...................................................................... 16

20 LMG34XX-BB-EVM Bottom Layer and Components.................................................................. 16

List of Tables

1 Logic Pin Function Description............................................................................................. 4

2 Power Pin Function Description ........................................................................................... 4

WARNING

LMG341xEVM-018 User's Guide General TI High Voltage Evaluation User Safety Guidelines

www.ti.com

2SNOU165A–September 2018–Revised March 2019

Submit Documentation Feedback

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

3 Test Point Functional Description........................................................................................ 13

4 List of Terminals............................................................................................................ 13

5 LMG341xEVM-018 List of Materials..................................................................................... 18

6 LMG34XX-BB-EVM List of Materials .................................................................................... 20

Trademarks

All trademarks are the property of their respective owners.

1 LMG341xEVM-018 User's Guide

General TI High Voltage Evaluation User Safety Guidelines

Always follow TI’s set-up and application instructions, including use of all interface components within their

recommended electrical rated voltage and power limits. Always use electrical safety precautions to help

ensure your personal safety and the safety of those working around you. Contact TI’s Product Information

Center http://support/ti./com for further information.

Save all warnings and instructions for future reference.

Failure to follow warnings and instructions may result in personal injury, property damage, or

death due to electrical shock and/or burn hazards.

The term TI HV EVM refers to an electronic device typically provided as an open framed, unenclosed

printed circuit board assembly. It is intended strictly for use in development laboratory environments,

solely for qualified professional users having training, expertise, and knowledge of electrical safety risks in

development and application of high-voltage electrical circuits. Any other use and/or application are strictly

prohibited by Texas Instruments. If you are not suitably qualified, you should immediately stop from further

use of the HV EVM.

•Work Area Safety:

– Maintain a clean and orderly work area .

– Qualified observer(s) must be present anytime circuits are energized.

– Effective barriers and signage must be present in the area where the TI HV EVM and its interface

electronics are energized, indicating operation of accessible high voltages may be present, for the

purpose of protecting inadvertent access.

– All interface circuits, power supplies, evaluation modules, instruments, meters, scopes and other

related apparatus used in a development environment exceeding 50 VRMS/75 VDC must be

electrically located within a protected Emergency Power Off (EPO) protected power strip.

– Use a stable and non-conductive work surface.

– Use adequately insulated clamps and wires to attach measurement probes and instruments. No

freehand testing whenever possible.

•Electrical Safety:

As a precautionary measure, it is always a good engineering practice to assume that the entire

EVM may have fully accessible and active high voltages.

– De-energize the TI HV EVM and all its inputs, outputs, and electrical loads before performing any

electrical or other diagnostic measurements. Confirm that TI HV EVM power has been safely de-

energized.

– With the EVM confirmed de-energized, proceed with required electrical circuit configurations, wiring,

measurement equipment hook-ups and other application needs, while still assuming the EVM circuit

and measuring instruments are electrically live.

– When EVM readiness is complete, energize the EVM as intended.

WARNING: While the EVM is energized, never touch the EVM or its electrical circuits as they

could be at high voltages capable of causing electrical shock hazard.

www.ti.com

LMG341xEVM-018 User's Guide General TI High Voltage Evaluation User Safety Guidelines

SNOU165A–September 2018–Revised March 2019

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

•Personal Safety:

– Wear personal protective equipment, for example, latex gloves and/or safety glasses with side

shields or protect EVM in an adequate lucent plastic box with interlocks from accidental touch.

•Limitation for Safe Use:

– EVMs are not to be used as all or part of a production unit.

Safety and Precautions

The EVM is designed for professionals who have received the appropriate technical training, and is

designed to operate from an AC power supply or a high-voltage DC supply. Please read this user guide

and the safety-related documents that come with the EVM package before operating this EVM.

CAUTION

Do not leave the EVM powered when unattended.

WARNING

Hot surface! Contact may cause burns. Do not touch!

WARNING

High Voltage! Electric shock is possible when connecting board to

live wire. Board should be handled with care by a professional.

For safety, use of isolated test equipment with overvoltage and

overcurrent protection is highly recommended.

Description

www.ti.com

4SNOU165A–September 2018–Revised March 2019

Submit Documentation Feedback

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

2 Description

The LMG341xEVM-018 operates as a daughter card as part of a larger custom designed system or with

the LMG34XX-BB-EVM breakout motherboard.

2.1 LMG341xEVM-018

The LMG341xEVM-018 configures two LMG341xR050 GaN FETs in a half bridge. All the bias and level

shifting components are included, allowing low side referenced signals to control both FETs. High

frequency bypass capacitors are included on the power stage in an optimized layout to minimize parasitic

inductance and reduce voltage overshoot.

There are 6 logic pins on the FET card.

Table 1. Logic Pin Function Description

Pin Description

AGND Logic and bias power ground return pin. Functionally isolated from PGND.

12V Auxiliary power input for when the LMG341xEVM-018 is configured in bootstrap mode. Pin is not used

when configured in isolated power mode.

5V Auxiliary power input for the LMG341xEVM-018. Used to power logic isolators. Used as input bias power

of LMG341xR050 devices when configured in isolated power mode.

FAULT Logic AND output from FAULT signal from LMG341xR050. Pin is either pulled to AGND or 5V.

Q2 Gate AGND referenced logic gate signal input for bottom LMG341xR050. Compatible with both 3.3V and 5V

logic.

Q1 Gate AGND referenced logic gate signal input for top LMG341xR050. Compatible with both 3.3V and 5V logic.

There are 3 power pins on the FET card.

Table 2. Power Pin Function Description

Pin Description

VSW Switch node of the half bridge

VDC Input DC voltage of the half bridge

PGND Power ground of the half bridge. Functionally isolated from

AGND.

www.ti.com

Description

SNOU165A–September 2018–Revised March 2019

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

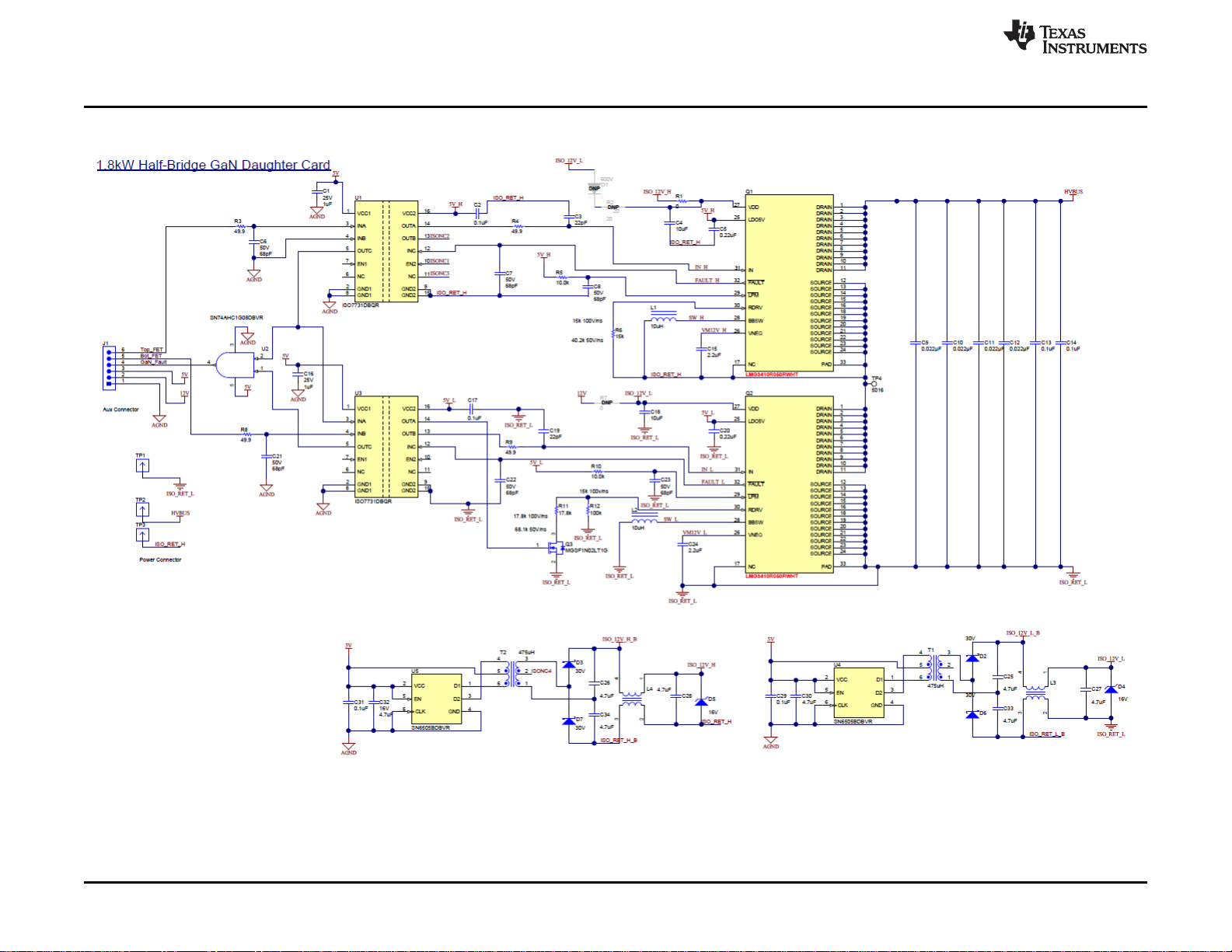

Figure 1. Simplified LMG341xEVM-018 Schematic

CAUTION

High-voltage levels are present on the evaluation module whenever it is

energized. Proper precautions must be taken when working with the EVM.

2.1.1 FAULT

The FAULT pin of LMG341xEVM-018 is active low when an under voltage lockout on an auxiliary voltage

rail, over temperature or overcurrent even occurs on the LMG341xR050. The FAULT signal for both

LMG341xR050 devices are level shifted to AGND, where they are logic AND connected to the FAULT pin.

CAUTION

Please do NOT ignore FAULT signal when using LMG341xEVM-018. Turn off

both top and bottom devices, if any device is generating FAULT signal. The

device under fault condition may operate in undesired 3rd-quadrant mode and

may be over heated and damaged due to the high source-drain voltage drop if

the other device is still switching.

2.1.2 Power Pins

While there are some power stage bypass capacitors on the LMG341xEVM-018 from VDC to PGND to

minimize voltage overshoot during switching, more bulk capacitance is required to hold up the DC voltage

during operation. It is highly recommended to minimize, and ideally prevent, any overlap and parasitic

capacitance from VSW to VDC, PGND and any logic pins. The two grounds PGND and AGND are

functionally isolated from each other on the LMG341xEVM-018.

Description

www.ti.com

6SNOU165A–September 2018–Revised March 2019

Submit Documentation Feedback

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

2.1.3 Bootstrap Mode

The LMG341xEVM-018 card can be modified to operate in bootstrap mode, where the 12V bias voltage is

used to power both LMG341xR050 devices. This can be achieved by removing U3, U4 and R2, and

placing a 20 Ωresistor on R1, a 0 Ωresistor on R18 and a 600V SOD-123 diode on D1, such as Micro

Commercial Components UFM15PL-TP. Do NOT power up the LMG341xEVM-018 when R1, R2, R7, D1,

U4 and U5 are all populated.

2.1.4 Heatsink

Heatsink is installed to help with heat dissipation of the LMG341xR050. Exposed copper pads that are

attached to the die attach pad (DAP) of both the high and low side devices are provided for a low thermal

impedance point to a heatsink. The two copper pads have high voltage potential difference between them

so an electrically isolative thermal interface material (TIM) is required. Please refer to Section 8 for the

recommended TIM and mechanical fixture.

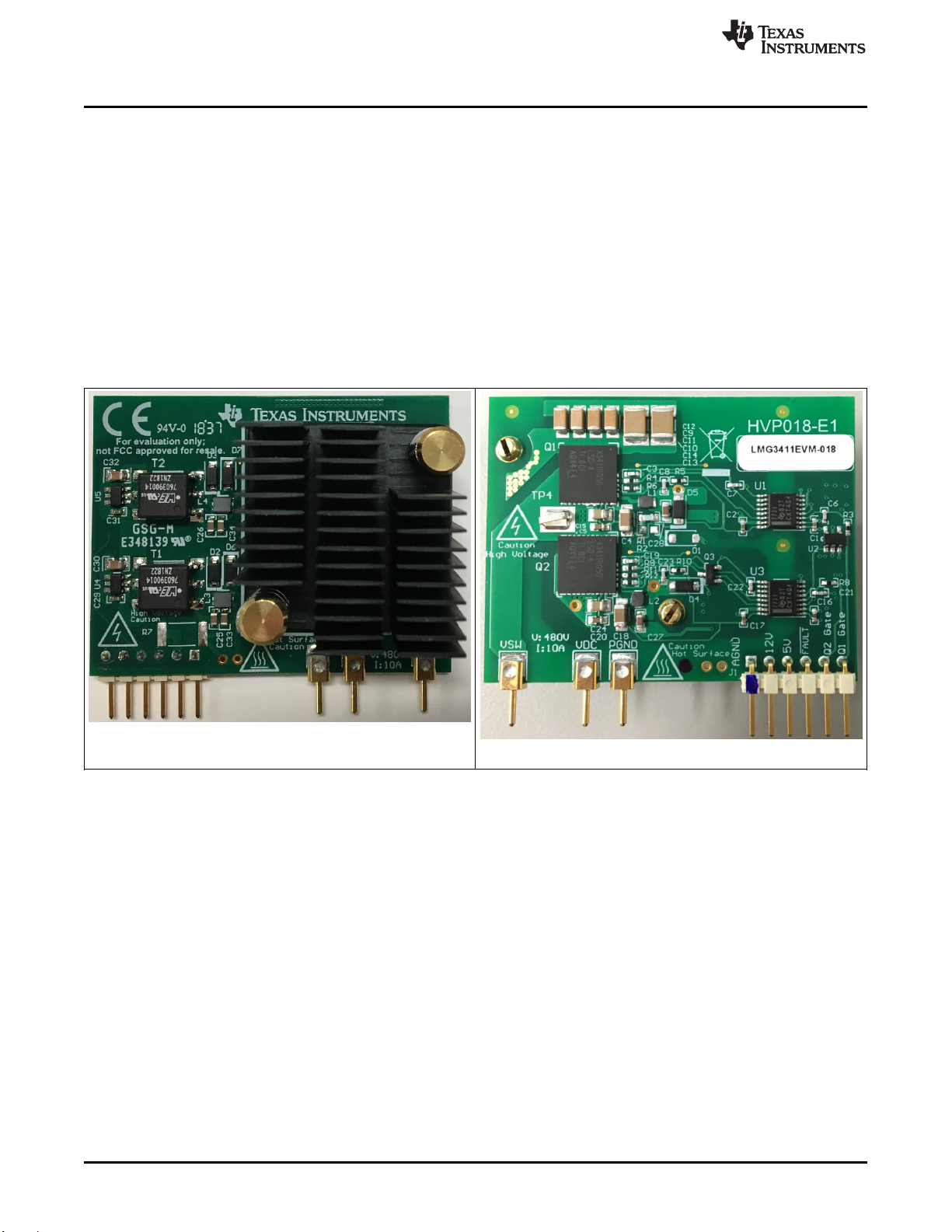

Figure 2. Top Side View of LMG341xEVM-018 Figure 3. Back Side View of LMG341xEVM-018

2.2 LMG34XX-BB-EVM

To allow for quick operation the LMG34XX-BB-EVM is available to interface with the LMG341xEVM-018.

This mother board is designed to operate the LMG341xR050 as a synchronous open loop buck converter.

Easy probe locations are provided for measurement of logic and power stage voltages.

2.2.1 Bias Supply

The motherboard requires one 12V bias supply. A linear drop off regulator steps the voltage down to a

tightly regulated 5V for logic and auxiliary power of the LMG341xR050 when the LMG341xEVM-018 is

configured in isolated power mode. When the LMG341xEVM-018 is configured in bootstrap mode the 12V

input is used to power the two LMG341xR050 devices.

2.2.2 Logic PWM Input

The LMG34XX-BB-EVM supports a single PWM, with complimentary signal and corresponding dead time

generated on board. A 0 V to 5 V magnitude input square wave is required. The complementary PWM

generation circuit creates 50 ns of dead time between both transitions of the PWM signals.

www.ti.com

Description

SNOU165A–September 2018–Revised March 2019

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

2.2.3 Fault Protection

There is an option to disable PWM input to the FET card in the event of a fault signal from the

LMG341xEVM-018. When the FAULT Protect jumper is placed in the EN mode PWM is disabled when

either LMG341xR050 has an active fault. This disable is not latching, so when the fault clears PWM

immediately resumes. If FAULT Protect mode is not desired it can be disabled by placing the jumper in

the DIS position. The FAULT LED will still illuminate when either LMG341xR050 has an active fault,

regardless of the position of FAULT Protect jumper.

2.3 Typical Applications

The LMG341xEVM-018 is designed for use in AC/DC, DC/DC and DC/AC applications

• Totem-Pole PFC converters

• Phase-Shifted Full Bridge or LLC Converter

• Buck converter such as the LMG34XX-BB-EVM

2.4 Features

The LMG341xEVM-018 has the following features and specifications:

• Two options to bias the LMG341x, isolated power or from bootstrap diode

• Over temperature, overcurrent, and under voltage lockout protection with FAULT indication that is level

shifted to an AGND referenced signal

• Gate logic input support of either 3.3V or 5V logic

• Maximum recommended operating voltage of 480V and absolute maximum voltage of 600V

The LMG34XX-BB-EVM has the following features and specifications:

• Requires only a single 12V bias supply

• Requires only a single 0V to 5V PWM input to generate gate drive signal

• PWM disable in the event of a fault from the LMG341xEVM-018

• Maximum recommended operating voltage of 480V and absolute maximum voltage of 600V

• Maximum recommended operating inductor current of 8A

Schematic

www.ti.com

8SNOU165A–September 2018–Revised March 2019

Submit Documentation Feedback

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

3 Schematic

Figure 4. LMG3410EVM-018 Schematic

www.ti.com

Schematic

SNOU165A–September 2018–Revised March 2019

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

Figure 5. Recommended Footprint for LMG341xEVM-018

AGND

112404

AGND

1 6

U1A

SN74LVC2G14DCKR

1µF

AGND

39pF

C13

BAT54WS-7-F

AGND

HDEAD1

PWM

1µF

C11 5V

3 4

U3B

SN74LVC2G14DCKR

39pF

BAT54WS-7-F

AGND

LDEAD1

1µF

C4 5V

AGND

1.20k

HVIN

PGND1

Vin

HVOUT

PGND2

Vout

LOW

HIGH

FAULT

1000pF

C14

AGND

PGND

1µF

U2A

SN74LVC2G08IDCTRQ1

U2B

SN74LVC2G08IDCTRQ1

AGND

12V aux

FAULT Indicator

SW1 PGND3

AGND

282834-2

5µF

C15

HIGH

LOW

PGND

PGND PGND

39pF

AGND

39pF

C12

AGND

39pF

C10

AGND

R3 VDC

PGND

AGND

1 6

U3A

SN74LVC2G14DCKR

0.1µF

630V

0.1µF

630V

0.1µF

630V

C17

0.1µF

630V

C16

1µF

C18

AGND

1µF

C20

LOW_2

HIGH_2

LOW_2

TSW-106-07-G-S

1µF

VAUX

ACMGND

0448120024

AGND1

AGND4

AGND

3 4

U1B

SN74LVC2G14DCKR

AGND3

R23

R21

1OUT 3

GND 2

TAB

LM2940IMP-5.0/NOPB 33µF

C19

10µF

C21

12V

Green

Red

1.6k

30k

R10

30k

R16

30k

R11

30k

R17

30k

R18

30k

R12

30k

R13

30k

R19

30k

R20

30k

R14

TSW-103-07-G-S

Red

PGND

SH-J1

282841-2

47µH

DRQ73-470-R

TI HV Synchronous Buck Motherboard

150µH

10.0k

AGND

AGND2

Schematic

www.ti.com

10 SNOU165A–September 2018–Revised March 2019

Submit Documentation Feedback

Using the LMG341xEVM-018 half-bridge and LMG34XX-BB-EVM breakout

board EVM

Figure 6. LMG34XX-BB-EVM Schematic

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments DS100MB203EVK Bedienungsanleitung

Texas Instruments

Texas Instruments TPS658 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments LOG200EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS65400 Bedienungsanleitung

Texas Instruments

Texas Instruments TDC7201-ZAX-EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DLPC4430EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LMX2492 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8028EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8568EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments DAC31 1EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments DLP LightCrafter 6500 Bedienungsanleitung

Texas Instruments

Texas Instruments LP5861T Bedienungsanleitung

Texas Instruments

Texas Instruments TPS746EVM-009 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS53015EVM-126 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS79 EVM-PDK Series Bedienungsanleitung

Texas Instruments

Texas Instruments ALM2402FQ1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS51125 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS131E08EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments LM2796 Bedienungsanleitung

Texas Instruments

Texas Instruments TPA0162 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS58J64 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1263EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments TAS6424-Q1 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS61193EVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
