Installation Manual

Premier Elite ComWiFi

INS644

Premier Elite ComWiFi Installation Manual

2 INS644

1. Overview

Introduction

The ComWiFi module allows the Premier & Premier Elite control panels to be

connected to either a Local Area Network (LAN) or Wide Area Network (WAN). The

internet is considered to be a WAN. Once the control panel is connected to a network

the following functions can be achieved:

•Control the alarm system using the Texecom mobile apps, and send push

notifications

•Upload/Download via Wintex UDL

Two Modules are available

•CEK-0001 Premier Elite ComWiFi (PCB Antenna)

•CEK-0002 Premier Elite ComWiFi SMA (External Antenna)

Typical LAN configuration

Premier or

Premier Elite

Control Panel

ComWiFi

Module

Wireless

Router

Wintex

Upload/Download

iOS

Android

Device

  

 

  























PR X

Premier Elite ComWiFi Installation Manual

INS644 3

Typical WAN configuration

Supported Control Panels

The ComWiFi module is supported on the following Premier & Elite Series control

panels:

•Premier Elite 12/24/48/88/168 & 640

•Premier 48/88/168 & 640 V7 or later

General

The installation of the ComWiFi module requires a basic understanding of networking

and TCP/IP protocol. If you are not familiar with these concepts, you may require

assistance from an IT professional before attempting to install the module.

The ComWiFi module is designed to be fitted inside the control panel and is powered

via the harness connection supplied.

Network

Hub/Switch

Wintex

Upload/Download

Wintex

Upload/Download

Router or

Gateway Internet

iOS

Android

Device

Premier or

Premier Elite

Control Panel

ComWiFi

Module

 



  























PR X

Premier Elite ComWiFi Installation Manual

4 INS644

Onboard or External Antenna

For polycarbonate panels, either the ComWiFi with integral antenna or the ComWiFi

with external antenna may be used.

For metal panels the ComWiFi with external antenna is required.

A 6.5mm hole will need to be drilled in the control panel housing to mount the

external antenna.

Metal Panel (CEK-0002)

Polycarbonate Panel (CEK-0001)

Small Poly & Livefront

Large Poly

Drill

6.5mm hole

Drill

6.5mm hole

Drill

6.5mm hole

Premier Elite ComWiFi Installation Manual

INS644 5

PCB Layout

1. 5 way harness connection to control panel

2. LED Indicators (see table below)

a. Hardware flow control (CTS) (for future use)

b. Signal Strength

c. Hardware flow control (DTR) (for future use)

LED Off On Slow Flashing Fast Flashing

A & C Unit Not

connected OK N/A Communication

with panel

No or Low

Signal

(less than 40%

Signal Strength)

Good

(better than 66%

Signal Strength)

Marginal

(between 40%-

66%)

N/A

3. Antenna/Antenna connection

A B C

Premier Elite ComWiFi Installation Manual

6 INS644

Installation

Introduction

The ComWiFi module requires some initial setup that cannot be done through the

control panel or Wintex. This step by step guide will allow you to achieve the following

and should be carried out in the order detailed in the manual.

•Installation

oInitial Module Setup

oChange Default Account Settings

•Dynamic IP address

•Assign an IP address manually

oReserve the IP address

oSet the DHCP Pool

•Setup Port Forwarding on the Router

•Setup Push Notifications

•Programme the Control Panel

Changing other settings within the setup pages may cause incorrect operation of the ComWiFi

and you will be advised to return the unit to factory settings.

2. Initial Module Setup

These steps MUST be carried out FIRST.

•Connect the ComWiFi onto the comport of the control panel using the lead

provided.

•Using a Wi-Fi enabled computer, tablet or mobile device scan for new wireless

networks.

•Select the 'Com WiFi'network.

•Enter the network key password texecom2015 and press connect.

•On the same device open the Web browser and type the IP address

10.10.100.254 into the address bar.

•You will need to enter the user name as master and the password as 123456.

•You are now online with the ComWiFi module, and should see the system

image shown on the following page.

Premier Elite ComWiFi Installation Manual

INS644 7

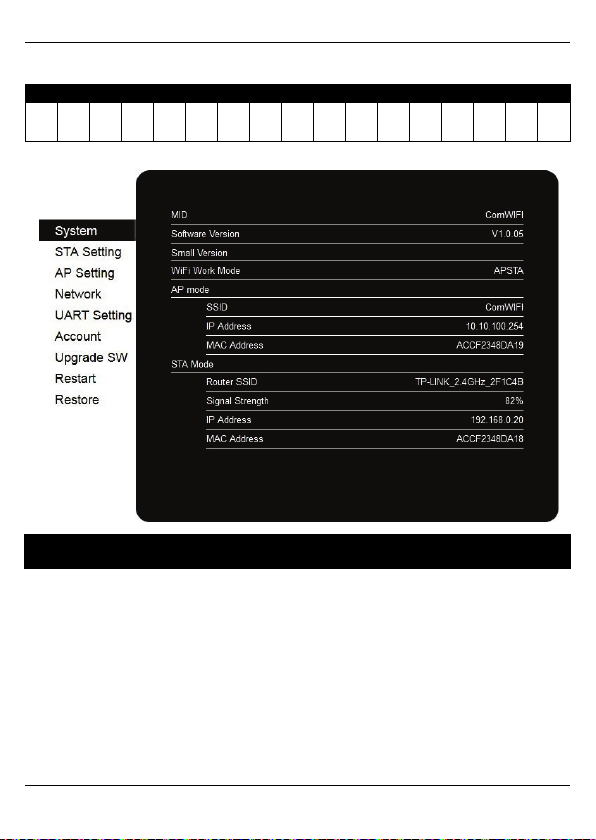

•Take a note of the STA Mode MAC Address.

STA Mode MAC Address

: : : : :

3. Change Password & User Name

Before proceeding it is important to change the User Name and Password in order to

keep the ComWiFi secure. Click on Account on the left side of the screen and then

enter a new User Name and Password followed by Save. You will be prompted to

Restart the unit.

Once the unit has restarted reconnect if required and continue.

Please note it is NOT possible to retrieve the User Name & Password once it has been

changed. You will have NO access to the device without it. It is not possible to default the unit

without the User Name & Password.

Premier Elite ComWiFi Installation Manual

8 INS644

Record the details here

User Name

Password

4. Assigning an IP address

Before proceeding you should ensure you can access the wireless router as changes

will need to be made to ensure the ComWiFi will function as expected; and so that

you can configure the router to allow access from the outside world (WAN) should

you require.

You will need to know the following; the default information should be available from

the router documentation:

•The router's SSID (wireless network name)

•The WiFi password

•The IP address of the router

Premier Elite ComWiFi Installation Manual

INS644 9

•The router password

Before assigning an IP address it is important to understand how IP addresses work

and the impact this can have on the performance of the system and the ComWiFi.

IP Address Information

Each TCP/IP node on a network host has a unique IP address. This address provides

the information needed to forward packets on the local network and across multiple

networks if necessary.

IP addresses are specified as x.x.x.x, where each x is a number from 1 to 254; for

example, 192.168.0.200. The ComWiFi must be assigned a unique IP address to use

on a TCP/IP network. If the address is left blank or is programmed as 0.0.0.0 the

ComWiFi module will try to automatically obtain an IP address from a DHCP server (if

one is running on the network).

Port Numbers

The port number used to identify the channel for remote initiated connections. The

default setting is 10001. The range for port settings is: 1-65535 except for the following

reserved ports:

Port Numbers Reserved for

1-1024 Reserved (well known ports)

9999 Telnet setup

14000-14009 Reserved

30718 Reserved

10000 - 10999 Recommended for raw socket connections

Gateway

The gateway address, or router, allows communication to other LAN/WAN segments.

The gateway address should be the IP address of the router connected to the same

LAN segment as the ComWiFi. The gateway address must be within the local

network.

Netmask (Subnet Mask)

A netmask defines the number of bits taken from the IP address that are assigned for

the host section. The default mask is 255.255.255.0 (8 bits).

Automatically Assigned IP Address (DHCP)

DHCP (Dynamic Host Configuration Protocol) is by far the most common method for

routers to assign devices IP addresses so that they can use WiFi or hardwired

connections to access the Internet and other resources on the network.

Premier Elite ComWiFi Installation Manual

10 INS644

IP addresses will be assigned, from a "pool" for a "lease" time, and can change from

device day to day; for example when you leave your home and lose WiFi connection

there is no guarantee when you return that you will be given the same address, it may

be in use by something else.

If you allow the wireless router to automatically assign an IP address to the ComWiFi

you may encounter problems with IP conflicts if:

•Another device on the network has ever used the address (and could do

so again)

•The ComWiFi is off line and another device is given the address by the

router

To overcome these potential issues it is advised that the IP address is either reserved

for the ComWiFi, or the IP address used for the ComWiFi is outside of the DHCP

Pool.

Accessing the Router

On a PC open the web browser and type the router's IP address into the address bar

as shown and press enter. Values used are typical only; they may or may not be the

same as the router.

When prompted enter the router user name & password and press Enter.

Once you have access to the router you are looking for DHCP Settings. The example

shown may or may not be the same as the router. You will see a Start & End IP

address, this is the DHCP pool or the range of addresses used by the router when

assigning and address automatically.
