1. Designated Use
•LED400FL is an outdoor LED light.
•Suitable for installation on walls.
•Simple plug in wall plate for easy & safe connection.
•Suitable for a wide range of locations: corridors, gardens, staircases,
entrances, garages, outdoor parking areas etc.
Index :
Page 2 Contents & Tools required.
Page 3 Product dimensions.
Page 4 Installation procedure.

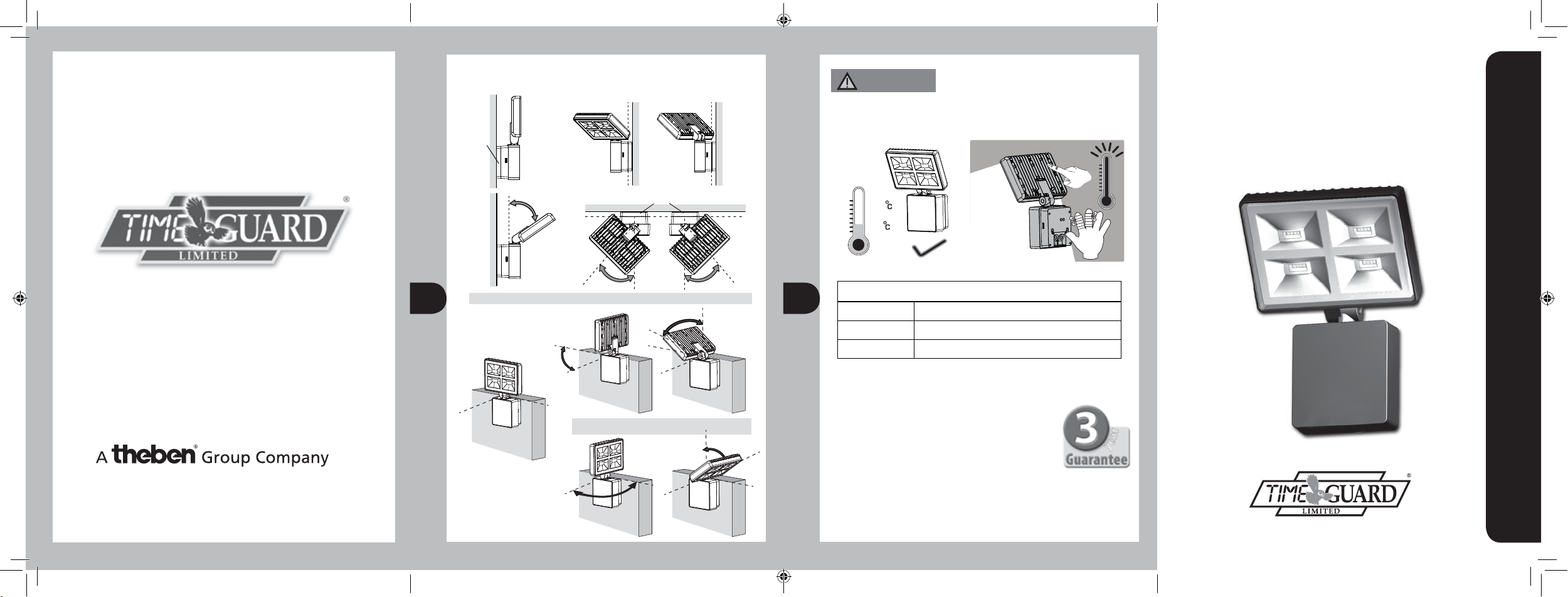

Page 5 Lamp adjustment
2. Basic Safety Instruction
Danger of death through electric shock or fire!
•Must only be installed by qualified electricians.
•Avoid the metal parts of the device due to potentially high temperature.
•The device conforms to EN60598 for designated installation; IP55 in
accordance with EN 60529 and IEC62471 Photo biological safety of
•Designed for use in normal environments.
•Intended for outdoor installation.
•Energy saving.
•Long LED bulb life.
LED400FLW.1_Instructs_147x105.indd 1-4 31/05/2012 11.16am
Prepared by Sally

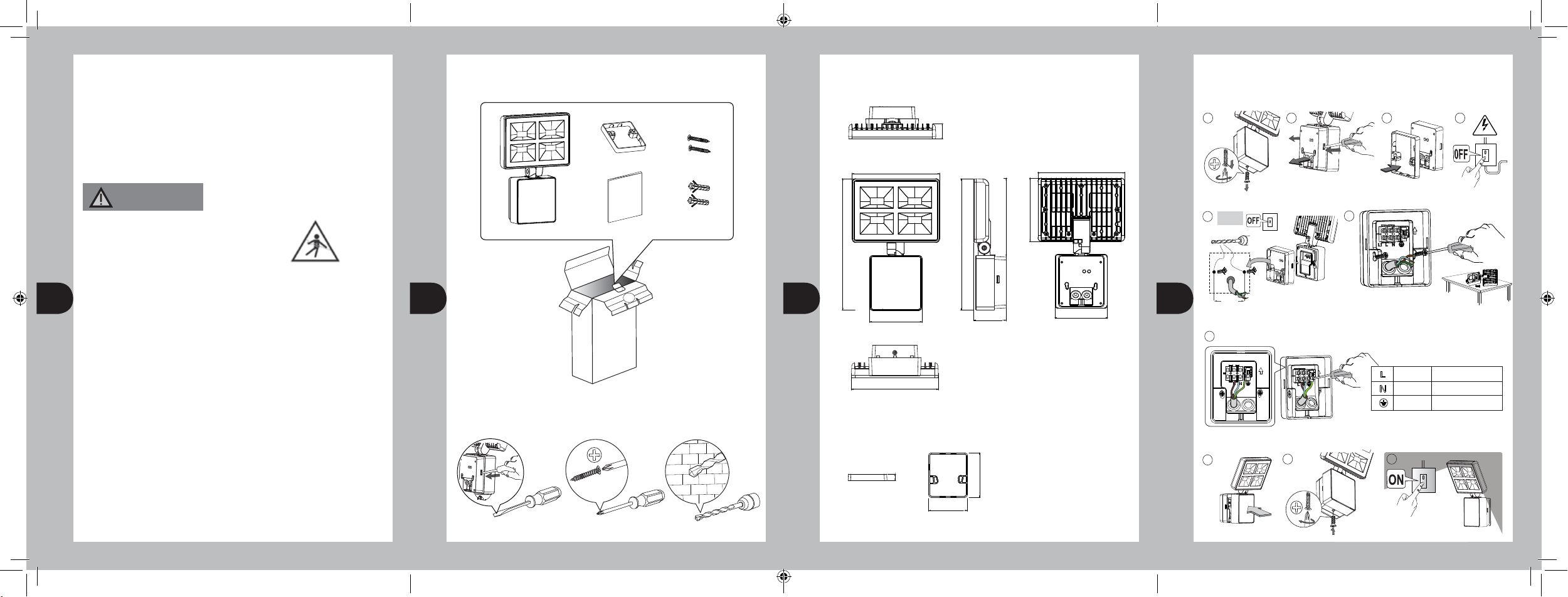

3. Contents:
What’s in the box?
5. Product Dimensions:
Spacer dimension:
179.00
131.00
108.00
179.00
270.00
31.00
270.00
67.00
161.00
179.00
108.00
15.00
104.00
91.00
2
5
3
14
6
7
MOUNTING SCREW x 2
φ5mm
60mm
6. Installation Procedure:
Screw the wall plate
to the unit.
Unit goes into warm-up
period for 40 sec.
Connect the mains supply cable to the
terminal block on the backplate as follows.
( See connection diagram )
CONNECTION:
LIVE
NEUTRAL
EARTH
BLUE
GREEN / YELLOW
BROWN
8
Feed the wires through rubber gasket of the wall plate with spacer and attach
to corresponding terminal.
Fix the spacer with the wall plate to the wall or the wall plate alone.
Attach the device
to the wall plate.
240V
9 10
Use the spacer if necessary
Push
Page 6 High temperature in lamp.
INSTRUCTION
MANUAL
X1
WARNING
* The Spacer is an optional fitting
which gives maximum Pan angle.
lamps and lamp system.
Fix the spacer
to the wall plate
- if required.
Switch off
the power.
Unscrew the
wall plate.
Push and open
the wall plate.
CAUTION:
X1 X1
X2
X2
4. Tools required:
X 1 X 1
X 1
Tools / Equipment need for installation.
